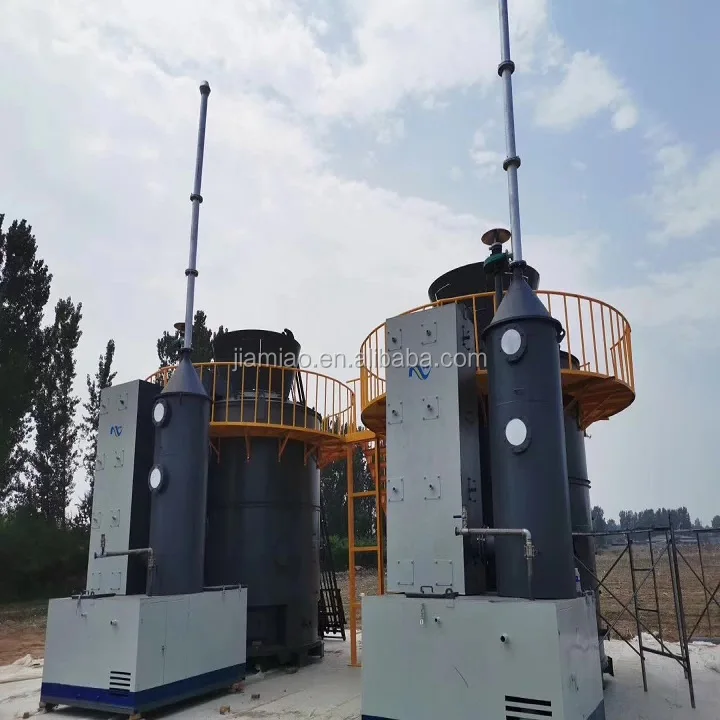

Movable low temperature pyrolysis equipment for domestic garbage

Product Overview

Description

Movable low temperature pyrolysis equipment for domestic garbage.











Product Introduction:

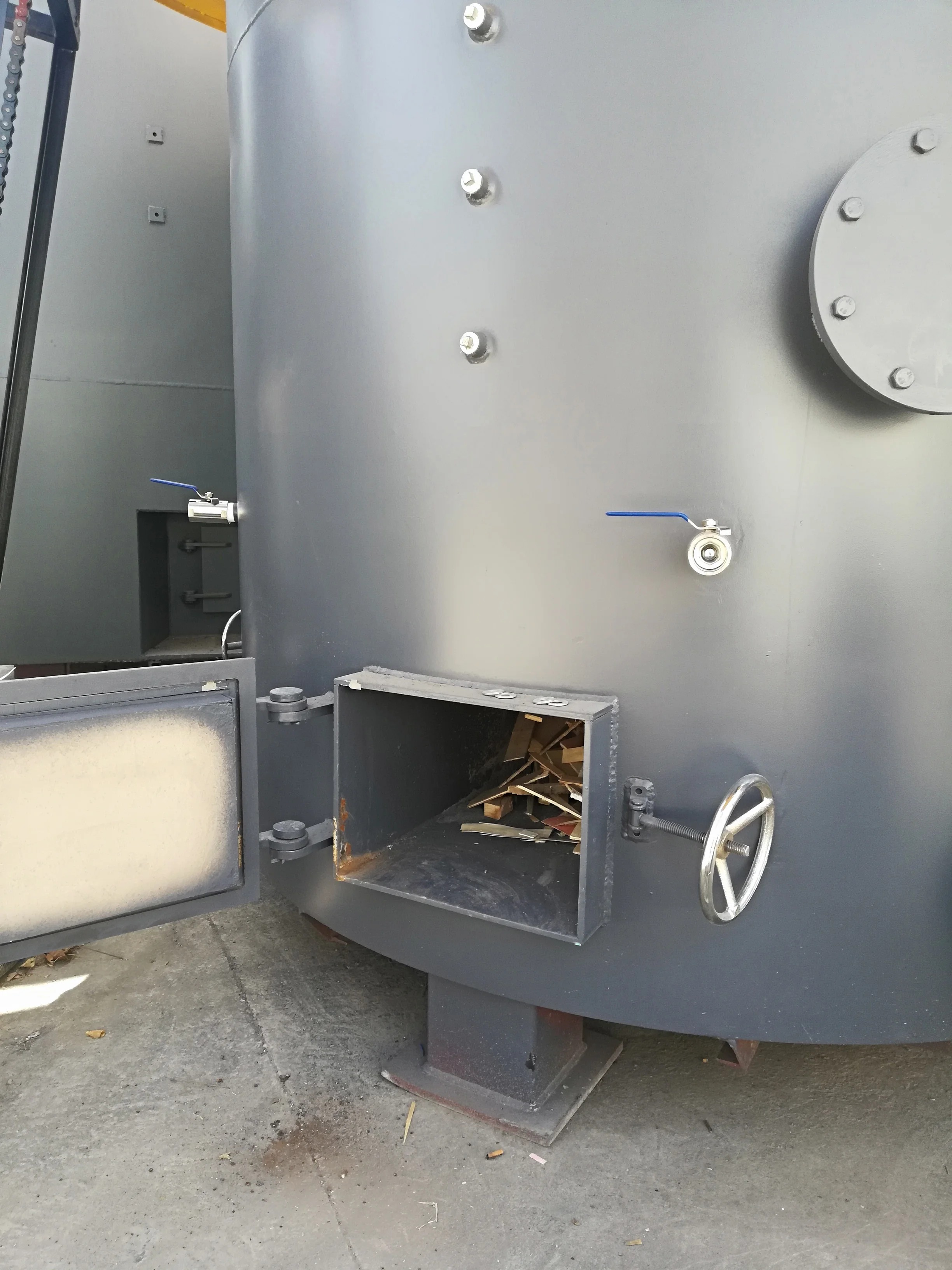

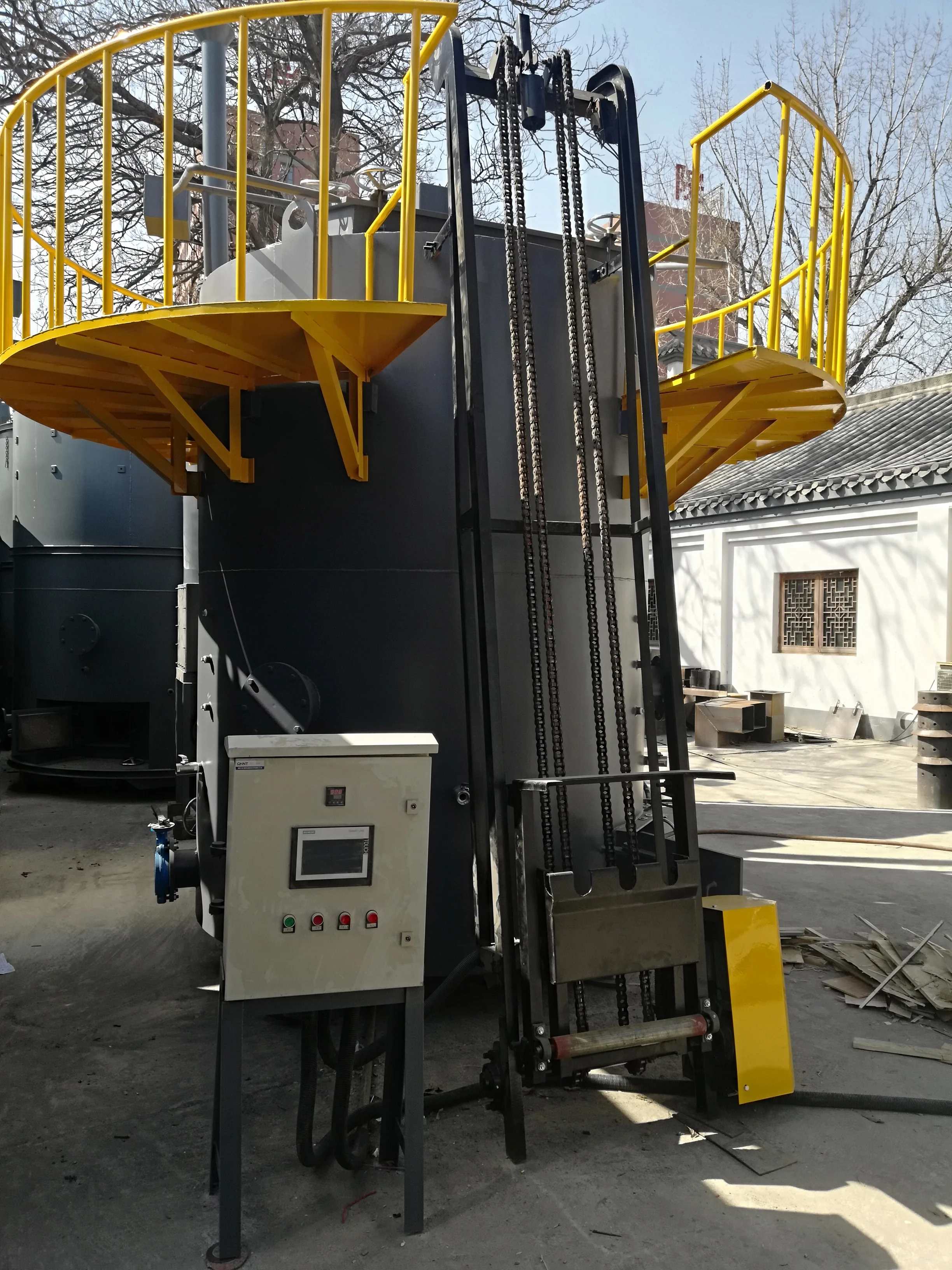

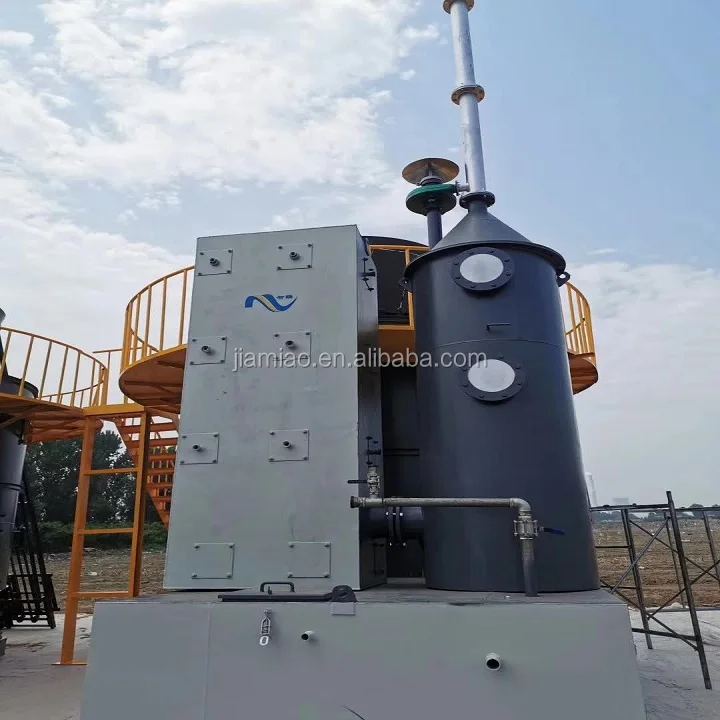

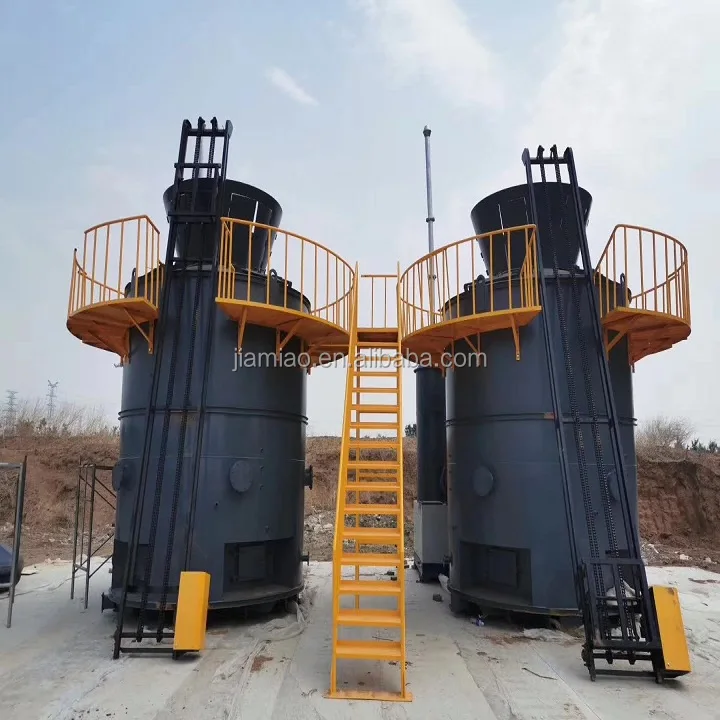

The Garbage low-temperature pyrolysis processor is a high technology and environmental protection product which has been successfully developed by our company. It has applied for the national patent.The products are mainly divided into the furnace body, flue gas purification device and magnetization chamber three parts. Through the depth of low temperature pyrolysis of garbage, the organic substances in the hypoxic state acceleration is decomposed into gas, water, inorganic ash. The flue gas generated by the flue gas purification device after discharge. Inorganic ash can be used as building materials, fertilizer use, can realize local processing.



     ⇒ ⇒





Scope of Application:



Remote or incomplete transportation of villages and towns, tourist attractions, high-speed service areas, enterprises, hotels and hospitals etc areas where garbage is not easily collected.

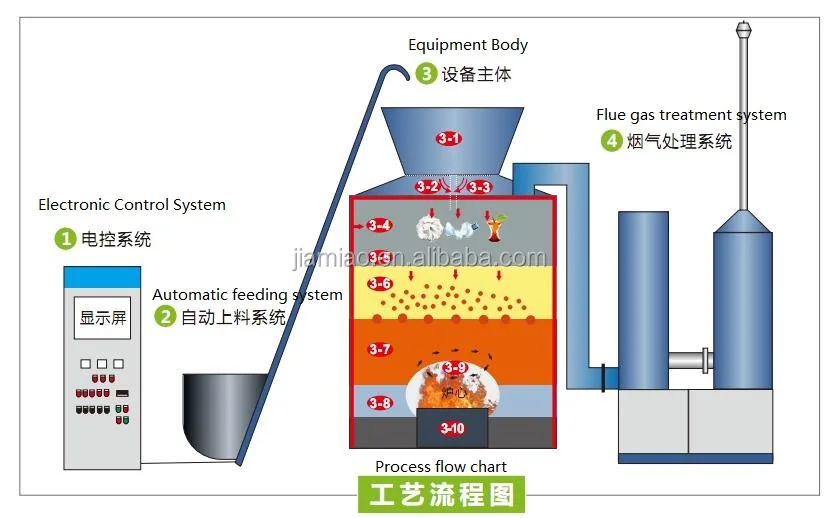

Operational Principle:







Classification of Substances:



* Decomposable Substance:	*Indecomposable Substance:
♦ Domestic Waste,Petroleum Products;	♦ Metel;
♦ Agriculture,Aquatic Products,Fisheries and others wastes;	♦ Glass,Ceramics etc;
♦ Animal Waste;	♦ Construction waste;
♦ Wood,Sawdust etc;	♦ Sludge,Sand etc.
♦ paper etc.



Product Features:



♦ Eliminate the production of dioxin completely: the technology and equipment reduce and decompose dioxin at a low temperature of 300 degrees Celsius by magnetizing low temperature pyrolysis, thus eliminating the production of dioxin.

♦ Low operating cost: waste pyrolysis does not require heat source and power, except for the first ignition need fuel ignition, the rest need no external power. Waste automatic pyrolysis. Flue gas treatment requires a small amount of energy, can be configured with solar power generation equipment. At the same time, the equipment is small, small investment, simple operation, less manpower, especially suitable for urban and rural domestic waste treatment.

♦ Flexible planning: the system covers a small area, sealed design, dust-free and odorless, can be used by a single or multiple sets of combined use, easy location, not subject to regional, seasonal, weather restrictions.

♦ The reduction reached 1 / 300: the residual amount was only 1 / 300 of the input waste, which could be treated locally, greatly reducing the cost of transportation, burial, etc. The ash discharged after processing could be used to lay roads, make heat preservation materials, or plant flowers etc.

♦ Less impact on the environment: no dust, no odor, no noise, no secondary pollution when the equipment is in operation, and the sanitary condition is good, and it has little impact on the environment in the process of garbage disposal.

♦ Each index of exhaust gas from discharge port is in accordance with the standard of pollution control standard of MSW incineration (GB18485-20014).



Comparison:



Item Item	Others Combustion Furnace	Low-temperature Pyrolysis Processor
Fuel	Electricity,Gas,Coal,Oil	No need
Furnace Temperature	High-Temperature (>800℃)	Low-Temperature (<300℃)
Processing Method	Incinerate with fire	Smokeless, low temperature magnetothermal decomposition
Ancillary equipment	Combustion-supporting device,filter etc	Smoke and deodorization device
By-Product	Ash needs to be retreated	A small amount of ash is produced,which can be used as fertilizer to improve soil.



Equipment Specification:



Model	Treatment Capacity (Ton/Per Day)	Population Qty	Area Covered (m2)
ZL-CHL-2	0.6	500-1000	30
ZL-CHL-3.5	1.0	1000-1800	60
ZL-CHL-6	2.0	1800-3500	65
ZL-CHL-9	3.0	3500-5000	65



Result Product:



Because of the low temperature and self-catalyst, which avoid the production of dioxin, NOX, hazardous substance. The residue and fog meet the national standards.



Item	Contminant	limit	Testing Time
1	PM(mg/m3)	30	1H
		20	24H
2	NOX(mg/m3)	300	21H
		250	24H
3	SO2(mg/m3)	100	1h
		80	24H
4	HCL (mg/m3)	60	1H
		50	24H
5	HG(mg/m3)	0.05	/
6	CD+T1(mg/m3)	0.1	/
7	Sb+As+Pb+Cr+Co+Cu+Mn+Ni(mg/m3)	1.0	/

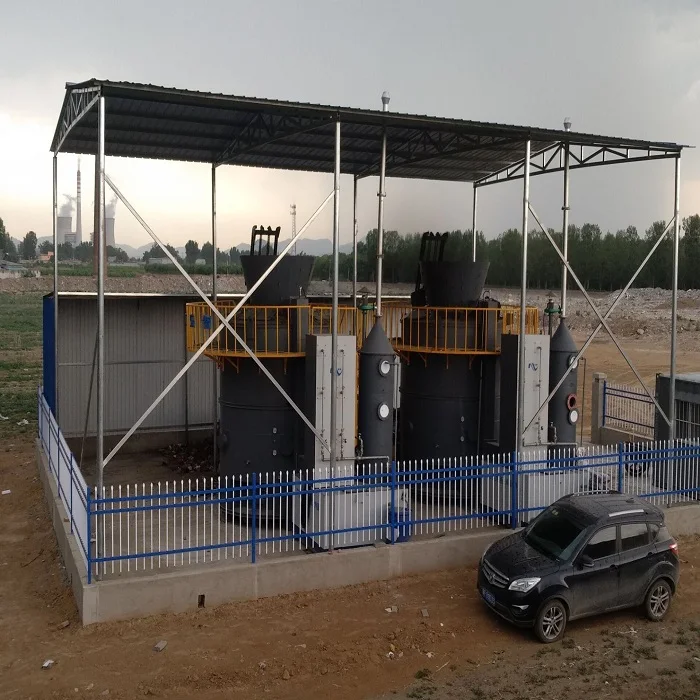

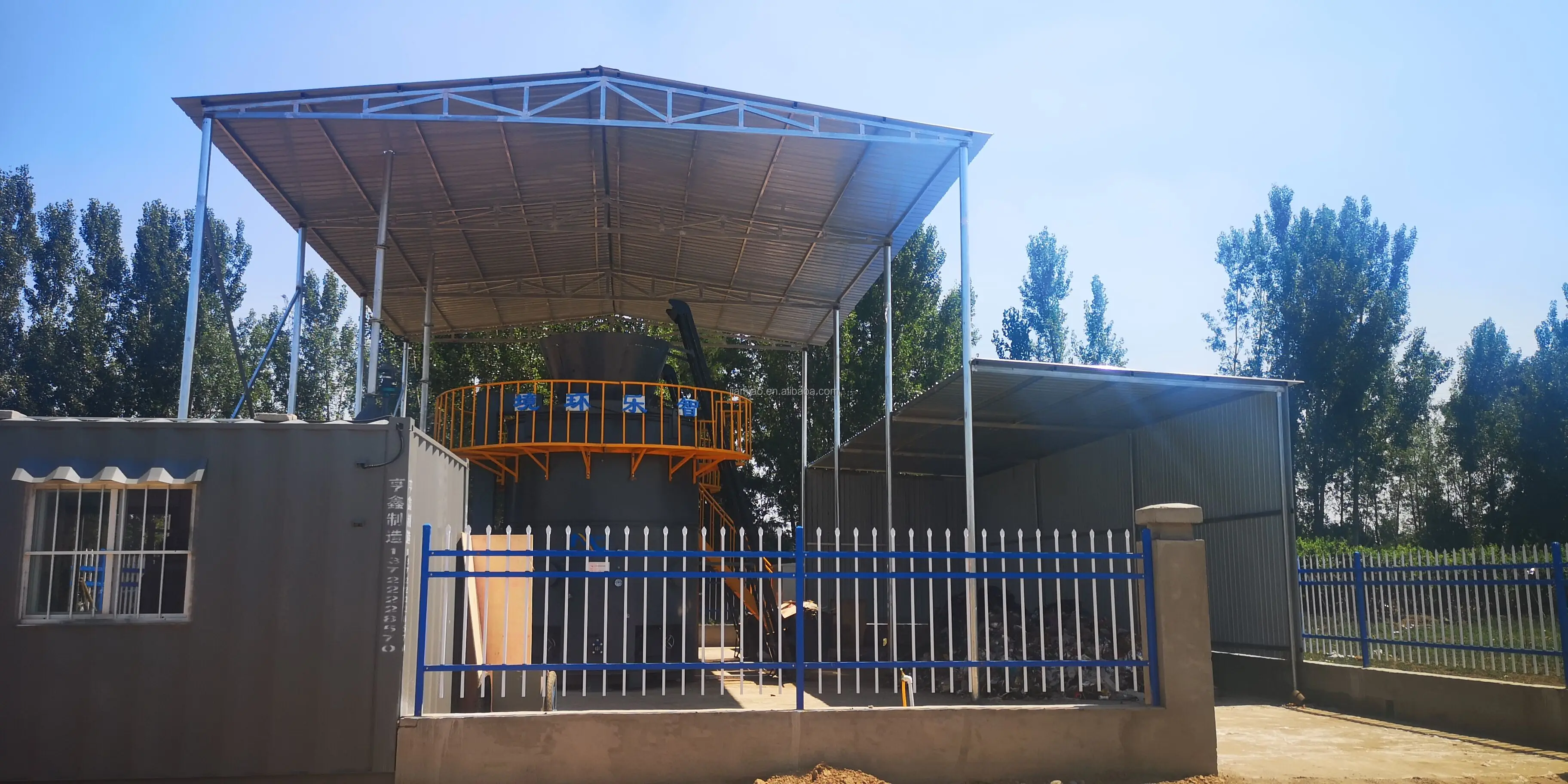

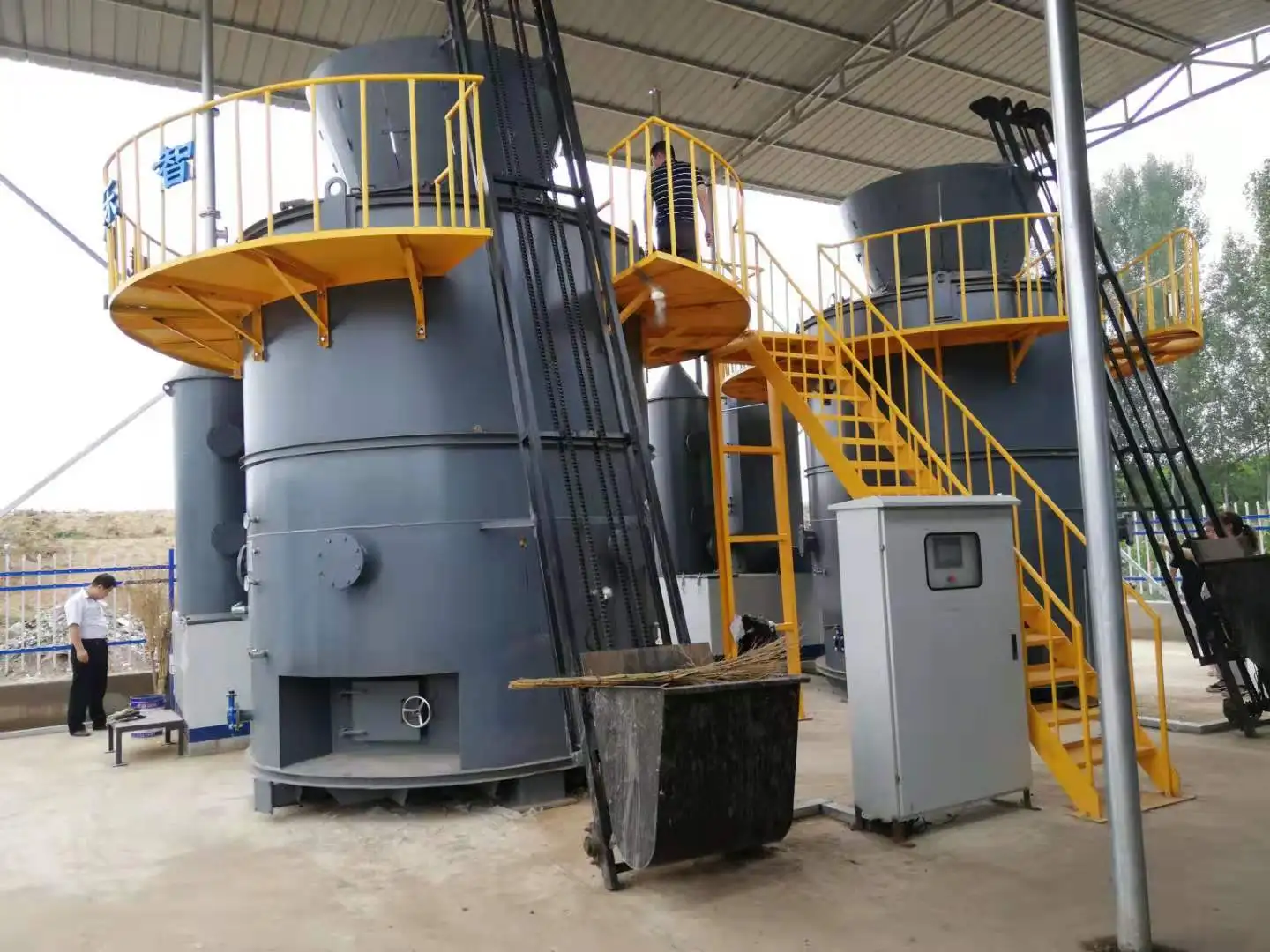

Equipment Application:
