Low cost mini CNC machine 3040 3 axis with USB connection
- Category: >>>
- Supplier: Shenzhen Gthink Tech Co. Ltd.
Share on (60743785229):
Product Overview
Description
Low cost mini CNC machine 3040 3 axis with USB connection
Product Description
Outstanding Features For our CNC 3040
This 3 Axis Mini CNC 3040 CNC Wood Engraving Machine can be widely used as below
Widely used in Industry,Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes, Building Model Making, PCB, Advertising Signs, Artwork,Crafts, Aircraft Models, RC Model parts, etc.
Can engrave wood,MDF board, native wood, PVC, Acrylic, non ferrous metal ect.

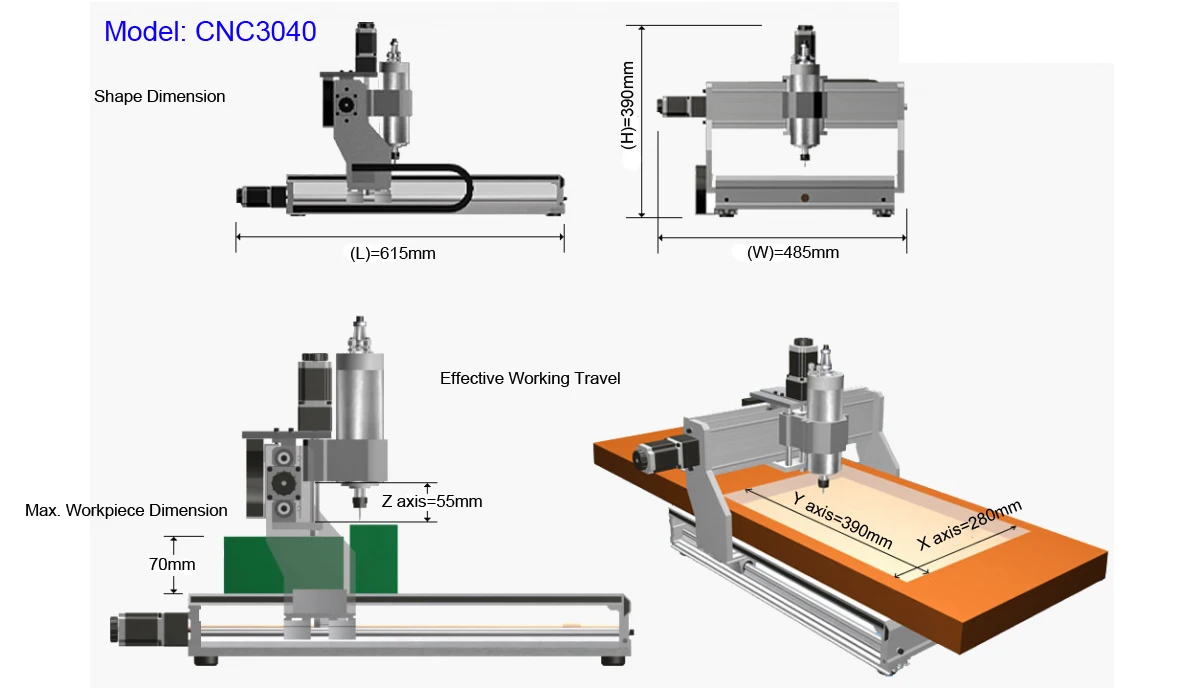

Technical detailes for this 3 Axis Mini CNC 3040 CNC Wood Engraving Machine
| Effective working travel | 370(X)mm*280(Y)mm*55(Z)mm |
| Shape dimension | 625*510*410mm |
| Table size | 520*320mm |
| Frame materials | aluminum alloy 6063 and 6061 |
| Driving units X/Y/Z axis | 1204 Ball Screw |
| Sliding units X axis | Dia.16mm chrome plate shafts |
| Sliding units Y axis | Dia.20mm chrome plate shafts |
| Sliding units Z axis | Dia.13mm chrome plate shafts |
| Stepping motor type | 57 two-phase 2.5A |
| Spindle motor | Brand new 500w dc motor 1000~8000PRM/Min |
| Principal axis collet | ER11/3.175 mm |
| Repeat accuracy | 0.05mm |
| Spindle precision | radial beat acuities 0.03 mm |
| Carving Instructions | G code, or any MACH3 support format file |
| Software environment | Windows xp/ Windows 7 |
| Maximum speed | 0-3500mm/min |
| Carving speed | 300-2500mm/min (different materials differ) |
| Computer connection | On board parallel port or USB port |
| Acceptable software | Mach3, USB CNC, EMC2 |
| Protection | Emergency stop button |
| Operating Voltage | AC220V |
| The 4th axis | |
| Size | 54*59*73mm |
| Top diameter | 15mm |
| Centre-height | 50mm |
| Clamping diameter | 40mm finger tight fitting |
| Reduction ratio | 1:03 |
| Error Range | 0.1 |

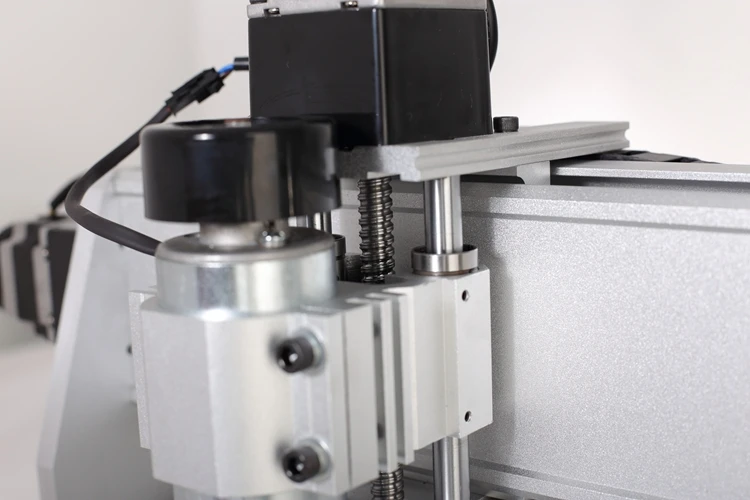

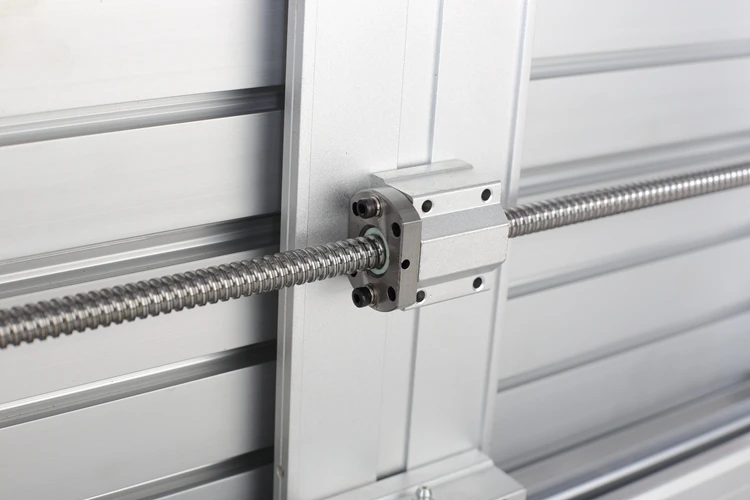

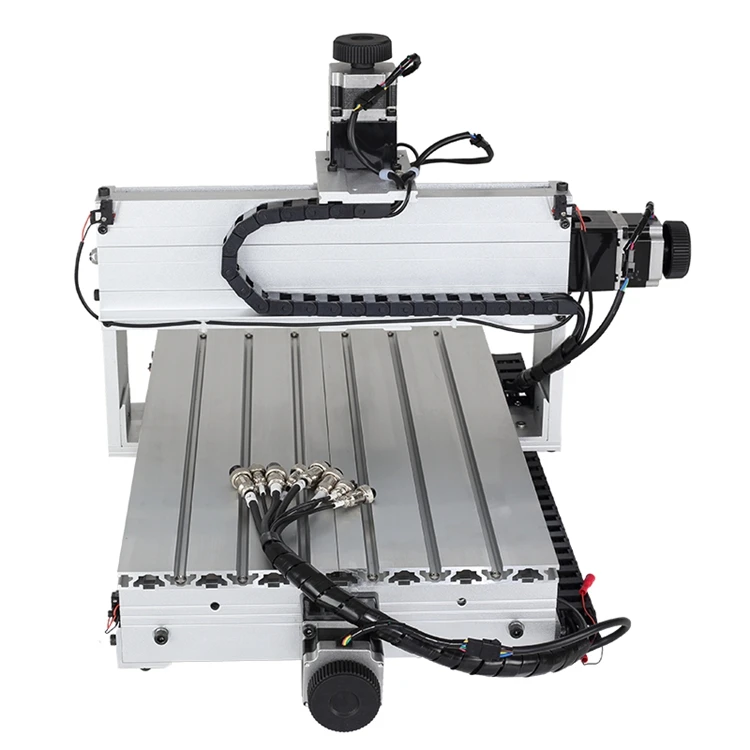

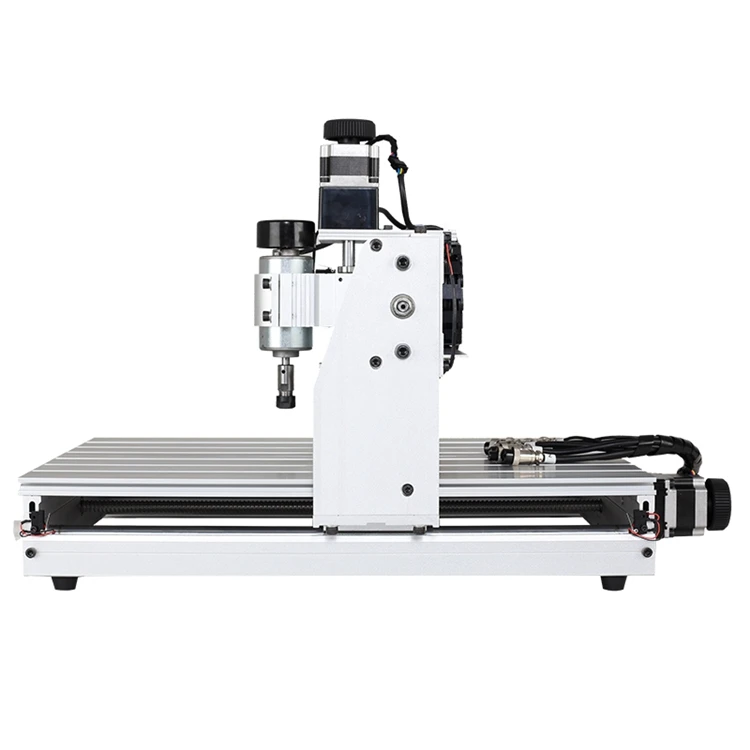

Detailed Image
Packaging & Shipping

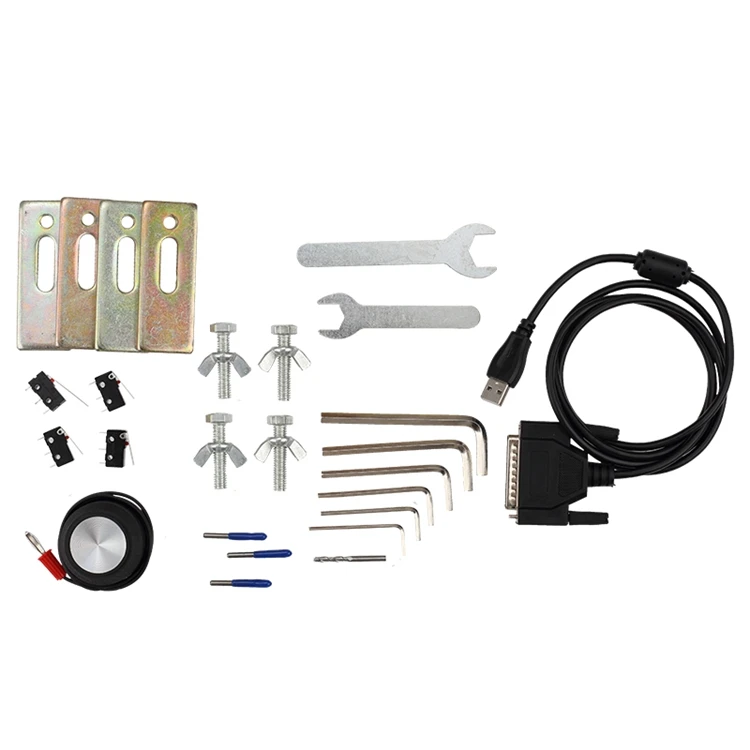

Packing List:
1. Clamp Tool*4
2. CD*1
3. Parallel Cable*1
4. Limited Switch*4
5. Clamp Tool*4
6. Spanner*2
7. USB Cable*1
8. Auto Checking Tool *1
9. Engrave Bits*3
10. Socket Head Wrench *1
Packing Method:
1. Carton box for small items and some machines.
2. Package size:62x50x40cm.
3. Safe carton box,Seven layers of corrugated paper.
Shipping Methods:
1. 1)Express(door to door):DHL/UPS/Fedex/TNT etc.
2)Air/Sea Shipment: Please provide us your air port information.
2. The shipping cost depends different weight,we will choose the cheapest and safest way according your order.
3. Shipping time:Usually it will take around 4-5days by Express from China to destination country.Please note that 1-3 more days will be needed for some remote place.
Shipment Time:
1. For samples within 1-3 workdays
2. Wholesales Orders : 2-5 workdays according to different quantities
3. OEM orders:7-10 days after receiving your sample confirmation and payment.
