Paint or hot dip galvanize professional light steel structure construction villa building design
- Category: >>>
- Supplier: Weifang Tailai Steel Structure Engineering Co. Ltd.
Share on (60743856008):
Product Overview
Description
Paint or hot dip galvanize professional
light steel structure construction villa building design

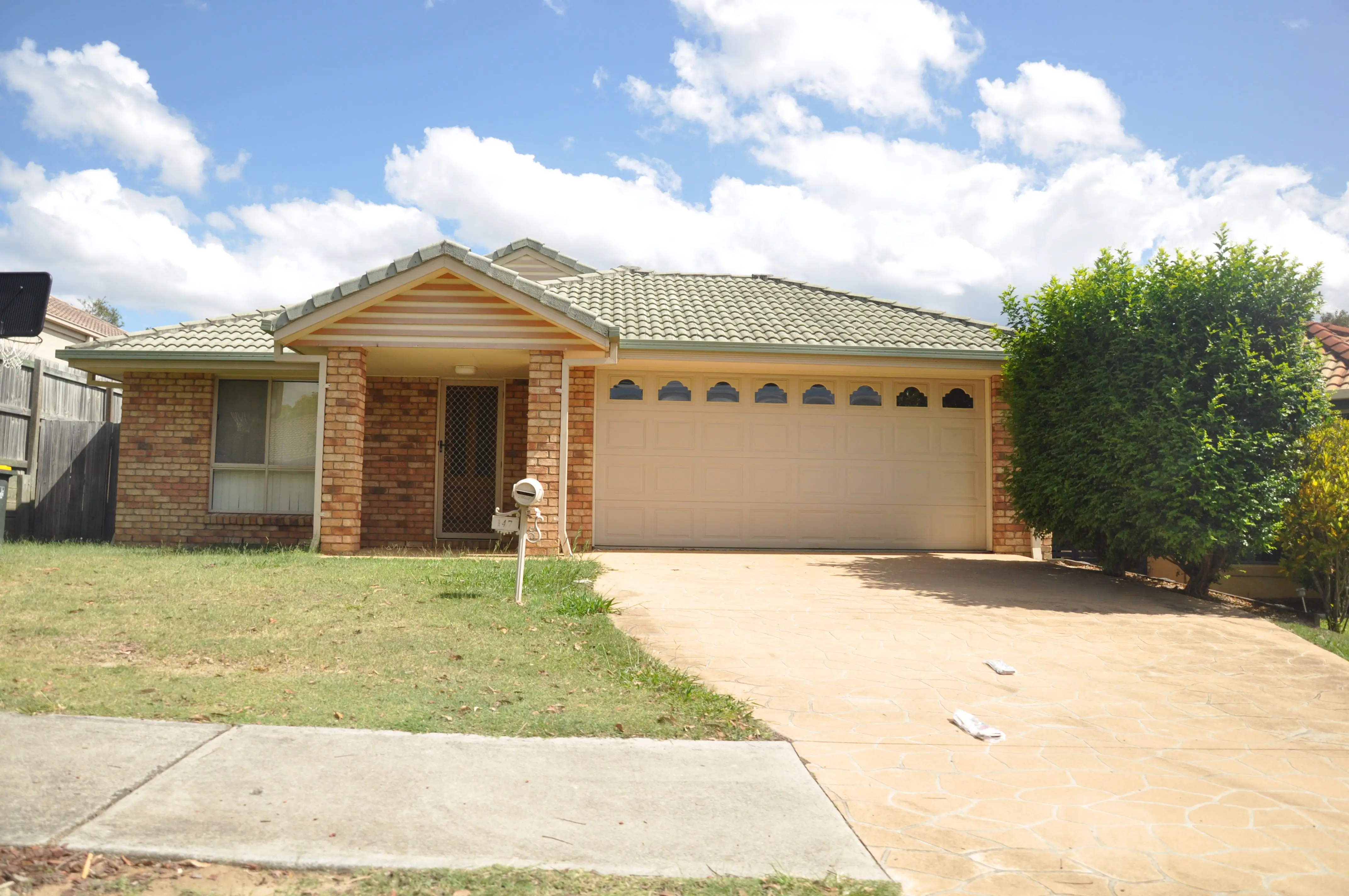

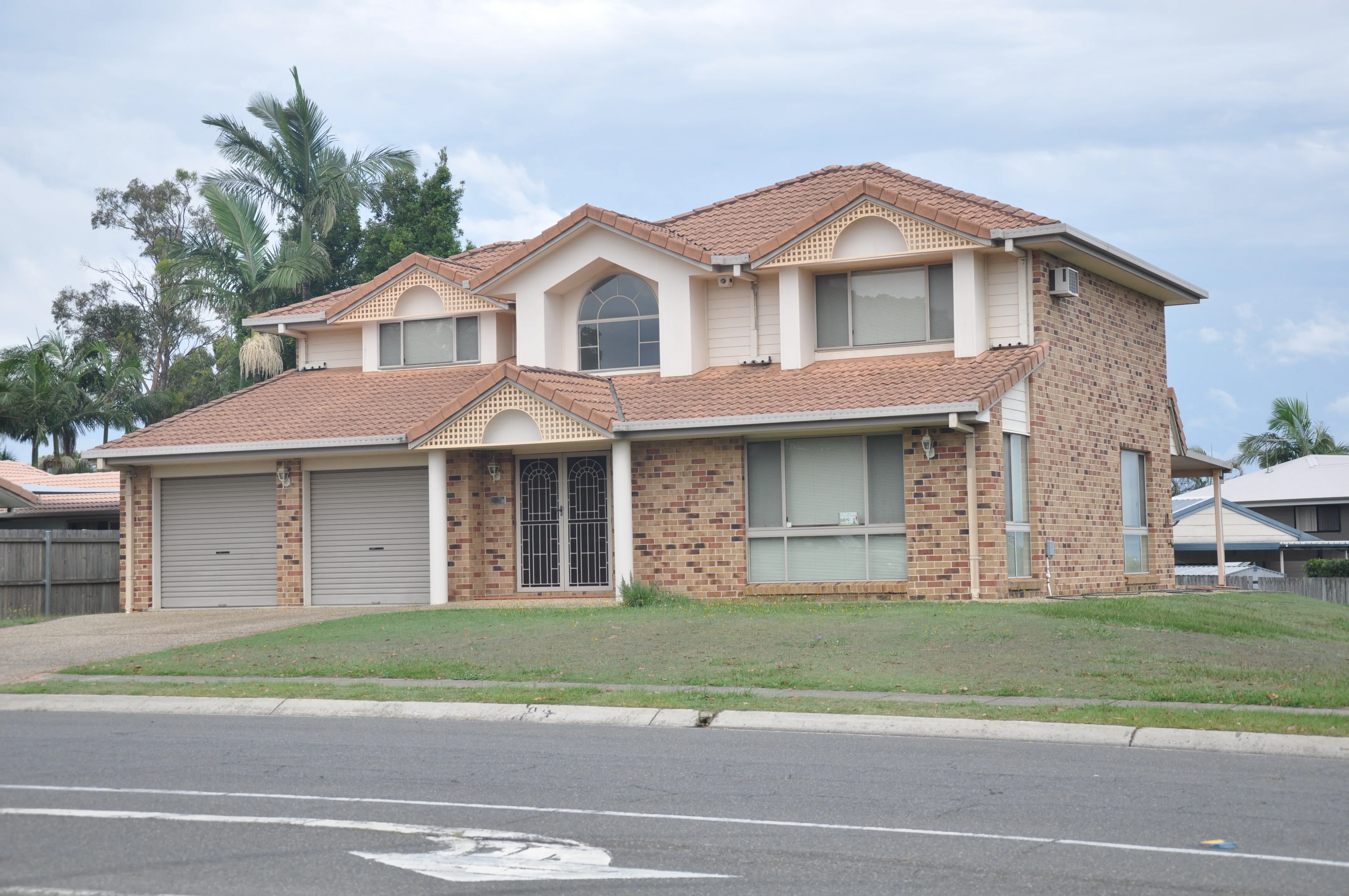

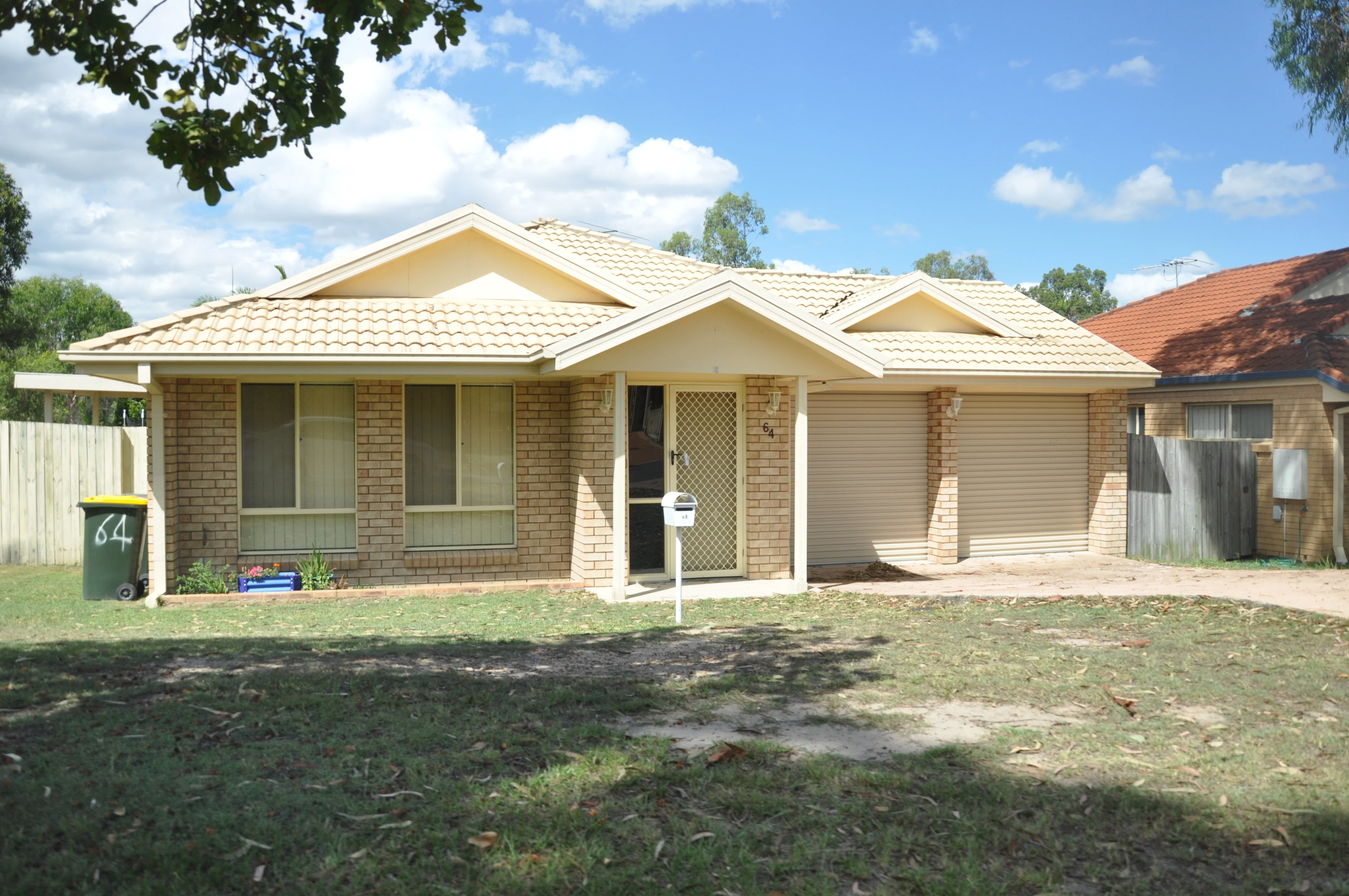

PRODUCT SHOW
Basic technology features:
1. High structural stability
2. Commercial process
3. Fast building
4. Fit for any kinds of groundsill
5. Construction with little influence of climates
6. Personalized housing inside design
7. 92% useable floor area
8. Diverse appearance
9. Comfortable and energy saving
10. High repeating utilization factor of stuff
1. High structural stability
2. Commercial process
3. Fast building
4. Fit for any kinds of groundsill
5. Construction with little influence of climates
6. Personalized housing inside design
7. 92% useable floor area
8. Diverse appearance
9. Comfortable and energy saving
10. High repeating utilization factor of stuff
item | value |
Warranty | 3 years |
After-sale Service | Online technical support, Onsite Installation, Other |
Project Solution Capability | graphic design, 3D model design, total solution for projects |
Application | Villa |
Place of Origin | China |
Product Type | Steel Structure |
Design Style | Modern |
Product name | Steel Structure Building |
Structure | Light Gauge Steel Structure |
Advantage | Environmental Protection Low Cost Recycle |
Style | Luxary |

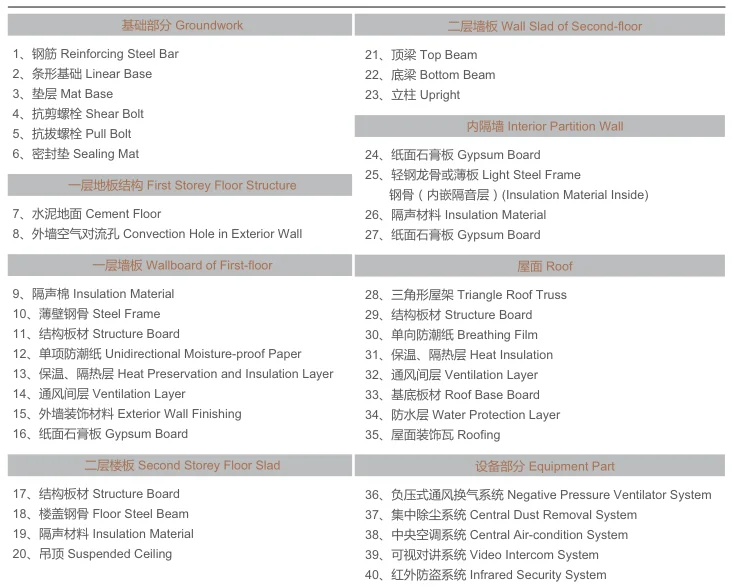

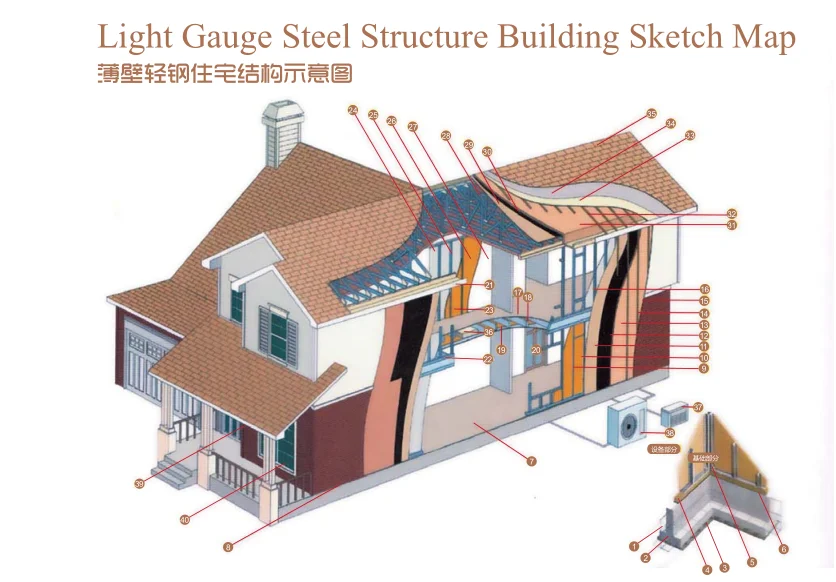

structural map details

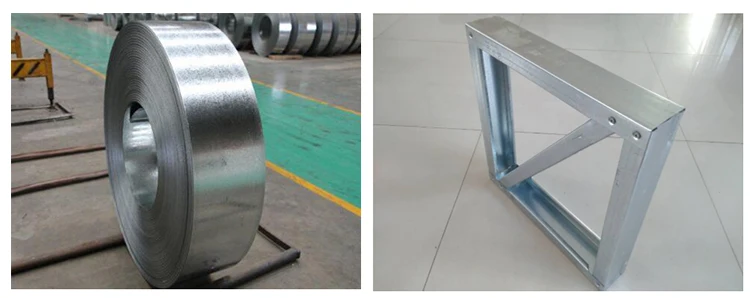

Material Description

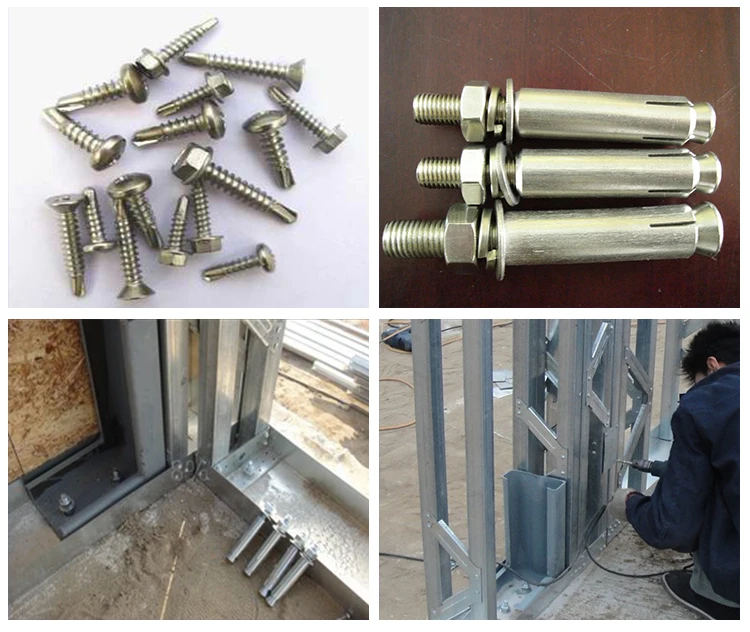

1. Galvanized Square tube steel and V model galvanized fastenings;2. Steel name:square tube light steel, people called: Web steel;
3. Every section frame is made up square tube with V fastenings : column, beam of roof, beam of floor , purline, stairs, and so on;
4. Convenience installation and shipment

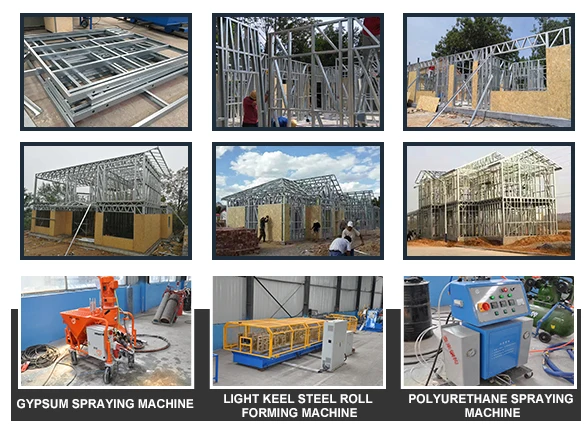

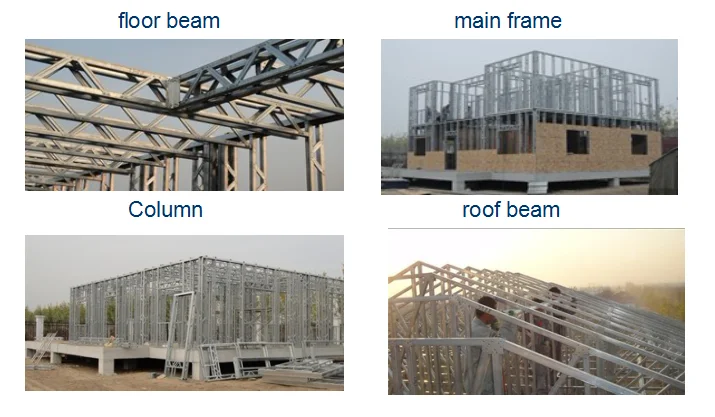

Steel structure frame

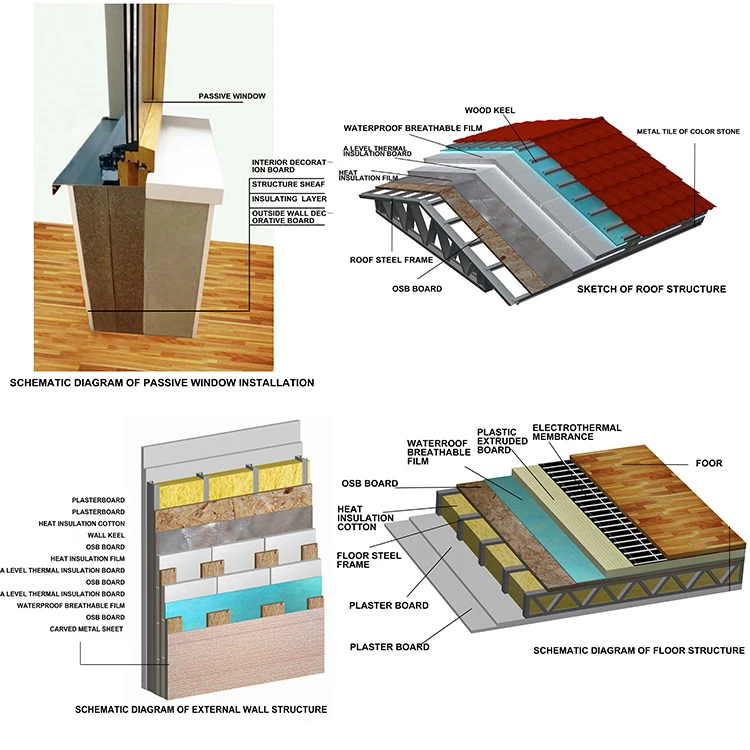

Roofing System Structure
Roofing system of light steel house: Light steel villa roof system is composed of roof truss, structural OSB panel, waterproof layer, light shape roofing tile (metal or asphalt tile). Light steel structure roofing appearance can be have a variety of combinations. Has a variety of materials. In order to protect the waterproof technology, the appearance have many choose idea.Foundation

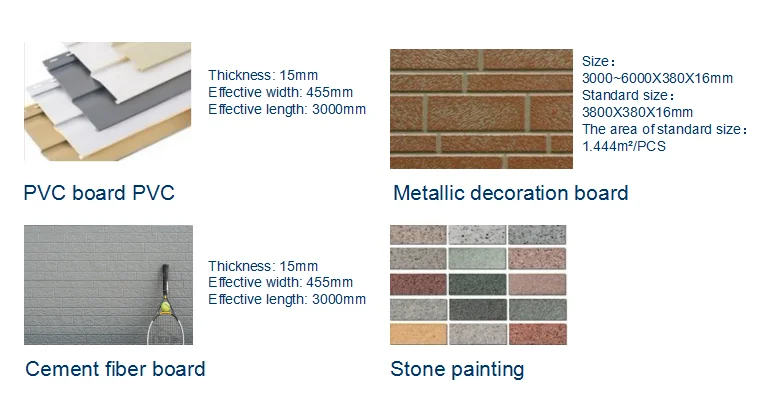

Exterior wall
Exterior Wall System Structure
Exterior wall system of light steel house : The exterior wall of the light steel house mainly composed of wall frame column, top beam of the wall, bottom of the wall beam, wall support, wall panel and a connecting piece. Light steel villa general will cross wall as bearing wall structure, wall columns for C shaped steel, the wall thickness according to by the load , usually 0.84~2mm,wall and column spacing generally for 400 ~ 600 mm, the wall layout of this light steel villa , effectively inherit and reliable transfer of vertical load, and the arrangement is convenient.
TYP OSB Panel
Other Data of Light Steel Building
--1. Seismic resistance of light steel residential buildings:Because of the light weight of the steel structure building, metal material properties and to shear wall structure determines the seismic performance of light steel structure system of innate. Due to the seismic activity is move up and down, so with the fastening piece even with light steel structure formed a stable and safe box, not because of the earthquake shaking and collapse of the wall or floor fall endangers the personal safety. When the earthquake intensity is 9, it can meet the requirement of not falling down.
--2. Light gauge steel residential sound insulation:
1). Sound insulation of wall≥45db
2). Floor impact sound pressure ≤70db thermal insulation according to requirement of the world climate,external walls, roof insulation layer thickness can be arbitrarily changed.
--3. wind resistance Wind load can reach 12 typhoon(1.5KN/m2).
--4. Light steel residential environmental protection:
Eco recyclable steel, wood, plastic 100% can be recycled .
--5. Light steel residential security:
permanent buildings and color Steel sheet house, activity house is essentially the difference. Housing service life reached the requirements of the national standard for 50 years
PRODUCT CATEGORIES

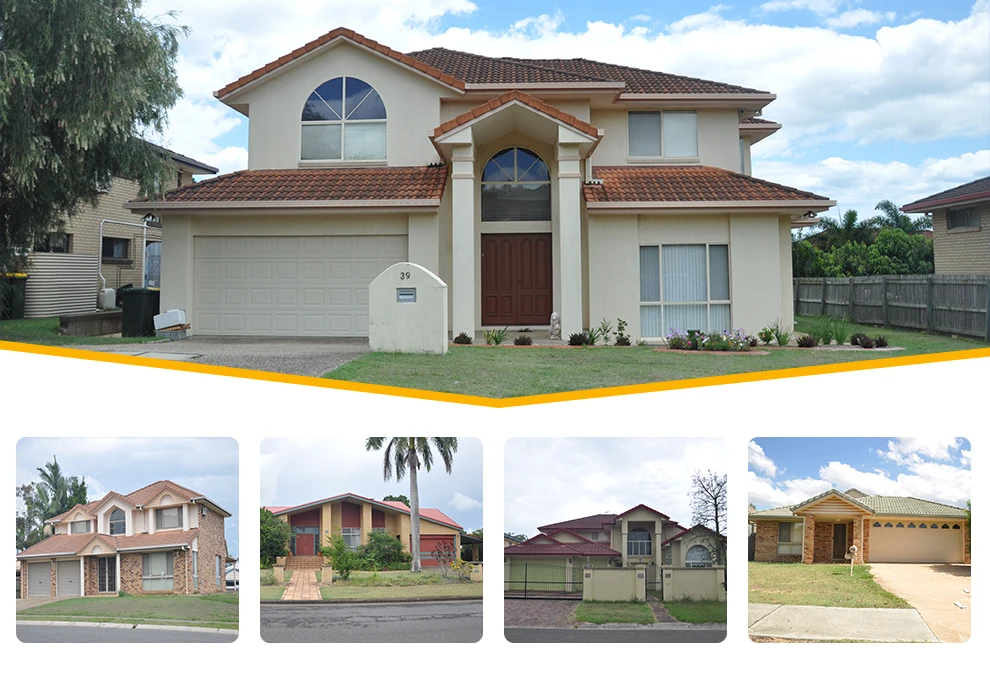

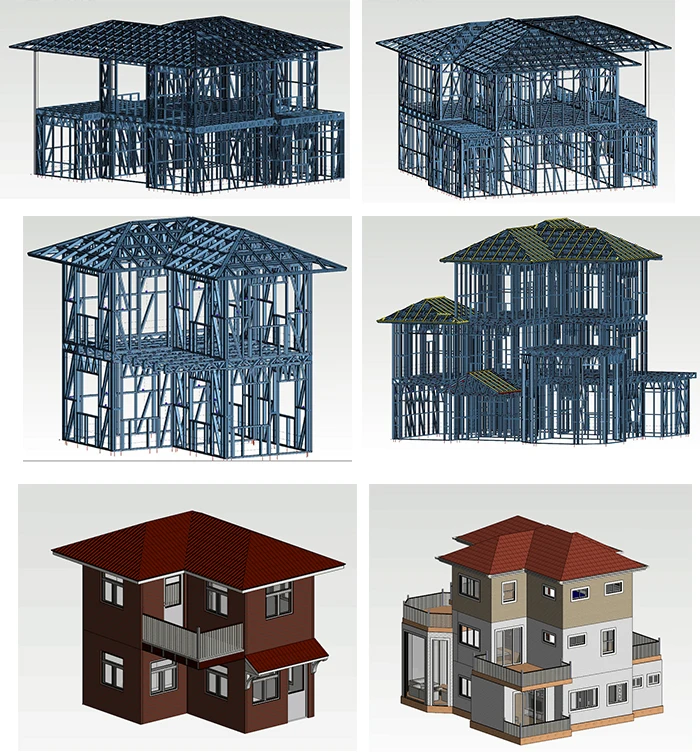

3D MODEL SHOW
Advantage
(1) Light steel house's structure parts produce as manufacturing factory type and high degree of mechanization, high degree of commercialization .
(2) Light steel housing construction speed is fast, it is a civilization construction and will not affect the nearby residents
(3) The steel structure of light gauge steel house is a sustainable development product of environmental protection.
(4) Light steel house is light weight, seismic performance is good.
(5) Because of the wall thickness of light steel structure housing is smaller .It can increase the effective use of the area than the brick concrete structure .
(6) Compared to the light steel structure building with reinforced concrete residential, due to the light steel structure of the
steel after recycling, but concrete cannot be recycled. later must be construction waste, causing environmental pressure and concrete need 40 years to completely dry, so easy to cause the indoor humidity, wet, is not conducive to human health. But light steel structure completely without concrete, and therefore does not exist the problem.
(7) Light steel housing have good anti-seismic performance . Due to the seismic activity is about and activities, so screw nail is tight with light steel structure to composed of a safety box, can't because of the earthquake shaking and collapse of the wall or floor fall endangers the personal safety.
(8) Light steel building construction using dry construction method, will not cause the waste of water , and save the cost .

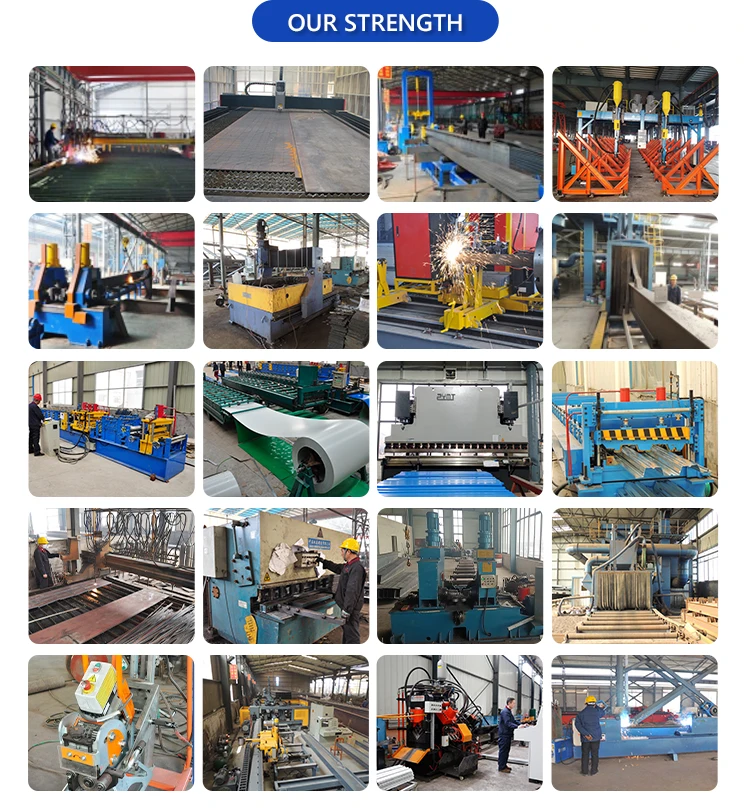

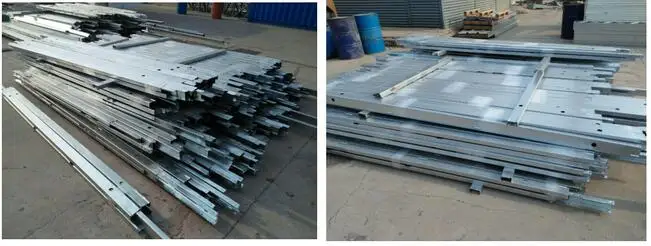

WORKING AND MACHINE
Packing And Shipping
FAQ
1.Q: Could you please design a new and unique light steel prefab house for me?
A: Absolutely! We are able to provide you with not only construction scheme and structural drawings, but landscape design! Besides, detailed drawings and 3Dmodels are surely included. One-stop service is our outstanding superiority
with no doubt.
with no doubt.
2.Q: What should I provide to build a light steel prefab house?
A: So easy! Sketch drawing would be a better reference for us. However, you will
never mind if you don't have any. Simply notify us your requirements, such as the
area, usage and the storeys of the house. Before long, you'll possess an amazing design.
never mind if you don't have any. Simply notify us your requirements, such as the
area, usage and the storeys of the house. Before long, you'll possess an amazing design.
3.Q: How could I ensure the cost of building a light steel prefab house?
A: Firstly, the designing scheme should be accepted. Then, the kinds of building materials should be confirmed since different types and qualities make various prices. After that, we will send you a detailed quotation.
4.Q: How Long does it take to build a light steel prefab house?
A: It depends on the size of the house. Generally, the construction period of is 1
month of a 200-square-meter house by a construction team of 5-6 people. It only
costs one week to build the steel structure frame.
month of a 200-square-meter house by a construction team of 5-6 people. It only
costs one week to build the steel structure frame.
5.Q: Is it difficult to build a prefab house?
A: totally not, you can build the house independently according to theconstruction drawings as long as you know how to use an electric tool.
6.Q: Does this kind of house can only be used in residential building?
A: Absolutely not. It can be used in all kinds of buildings, such as hotel,commercial office, school, entertainment club, light
industrial workshop, etc.
industrial workshop, etc.
7.Q: Is light steel prefab house stable?
A: Set your hearts at rest! You are completely safe living in light steel prefab house even if there are hurricanes of 200km/h and 9-grade earthquake outside.
8.Q: Does light steel prefab house look different from the ordinary one?
A: Yes. Light steel prefab house is more beautiful and suitable for any style.
