PTFE Diaphragm Hydraulic Metering Pumps

Product Overview

Description

HYDRAULIC DIAPHRAGM DOSING PUMP



JYPZ series hydraulic diaphragm pumps are an integrated pump that can offer precise dosing performance minimal maintenance. It is integrated safety valve against overload pressure. The PTFE diaphragm is durable and provides consistently accurate metering.
¨ Flow range: 5-410LPH@50Hz/6-492LPH@60Hz
¨ Pressure range: 11-200 Bar
¨ Power: 0.75kw IEC80 B5 (4 Pole) Motor
¨Material: SS304; SS316, other on request



Work Condition

Environment temperature: 0°C --- 60°C

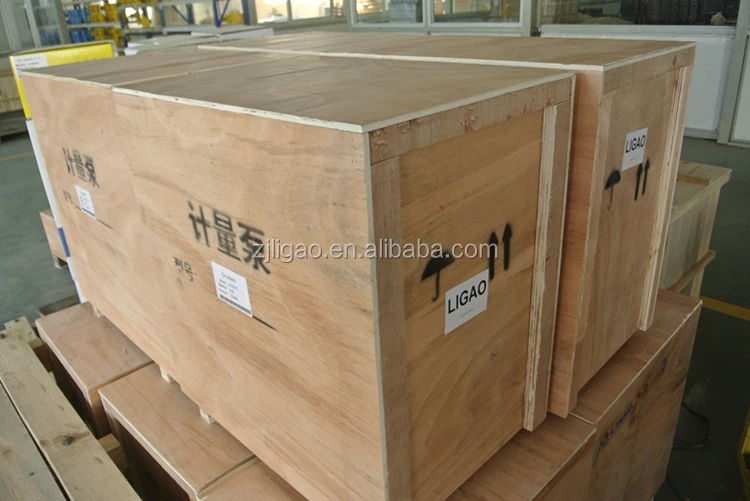

Package:

Material: Wooden Case



Material

Part	Material
Pump head	SUS304, SUS316,  PVC , PVDF
Diaphragm	PTFE
Valve	SUS304,SUS316,PVC,PTFE
Valve ball	Ceramic,ZrO2,SUS304,SUS316,Silicon Dioxide





Features

1.No leakage, maintained conveniently, low noise, durable in use.

2.Measuring precision is better than mechanical diaphragm pump,sealing property is better than piston pump.

3.Matching a stroke adjuster to realize remote automatic controlling.

4. The diaghragm is made of PTFE.
