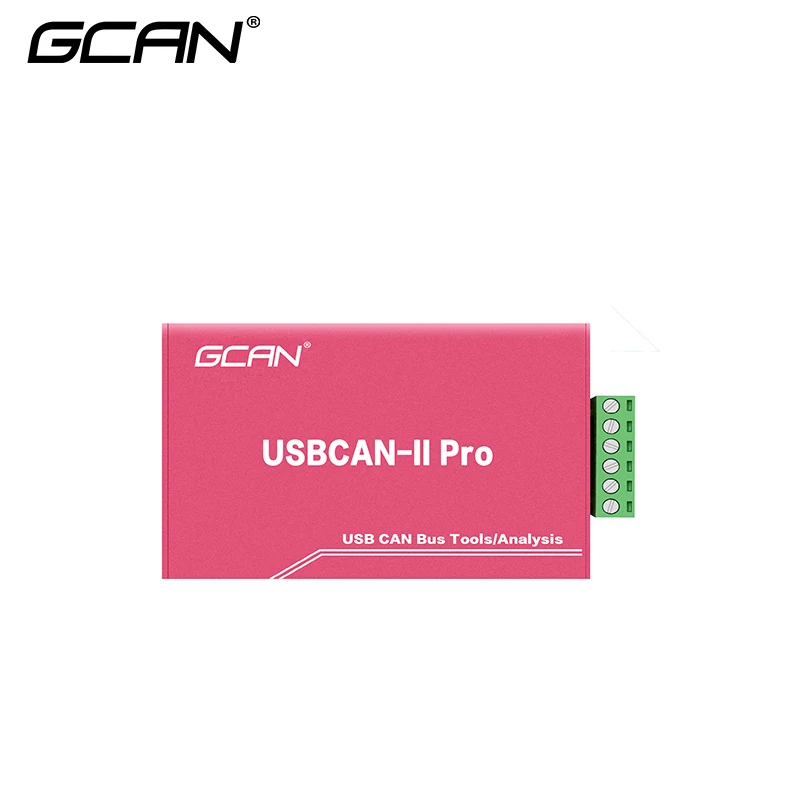

USBCAN-II Pro adapter is a debug or analysis tool with two CAN-Bus channel. Using this adapter, PC can quickly connect to CAN-Bus network through USB interface, and become a intelligent node of CAN-Bus to transmit/receive CAN-Bus data.
Adapter comes with isolation, and can be used in different Windows systems. Device driver, software and programming interfaces(VC, VB, Net, Delphi, Labview, C++Builder) exist for different operating systems, so programs can easily access a connected CAN bus.
Adapter comes with isolation, and can be used in different Windows systems. Device driver, software and programming interfaces(VC, VB, Net, Delphi, Labview, C++Builder) exist for different operating systems, so programs can easily access a connected CAN bus.
Properties
Physical | ||

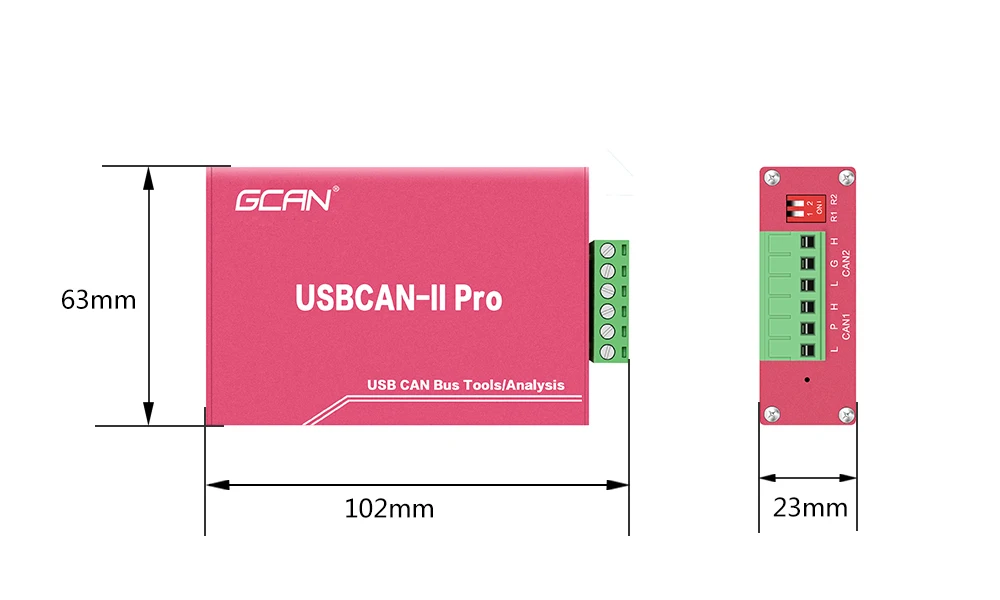

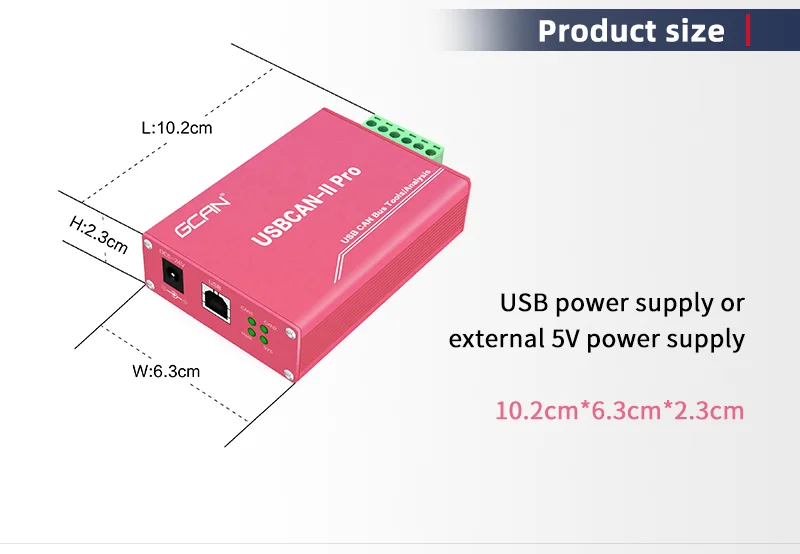

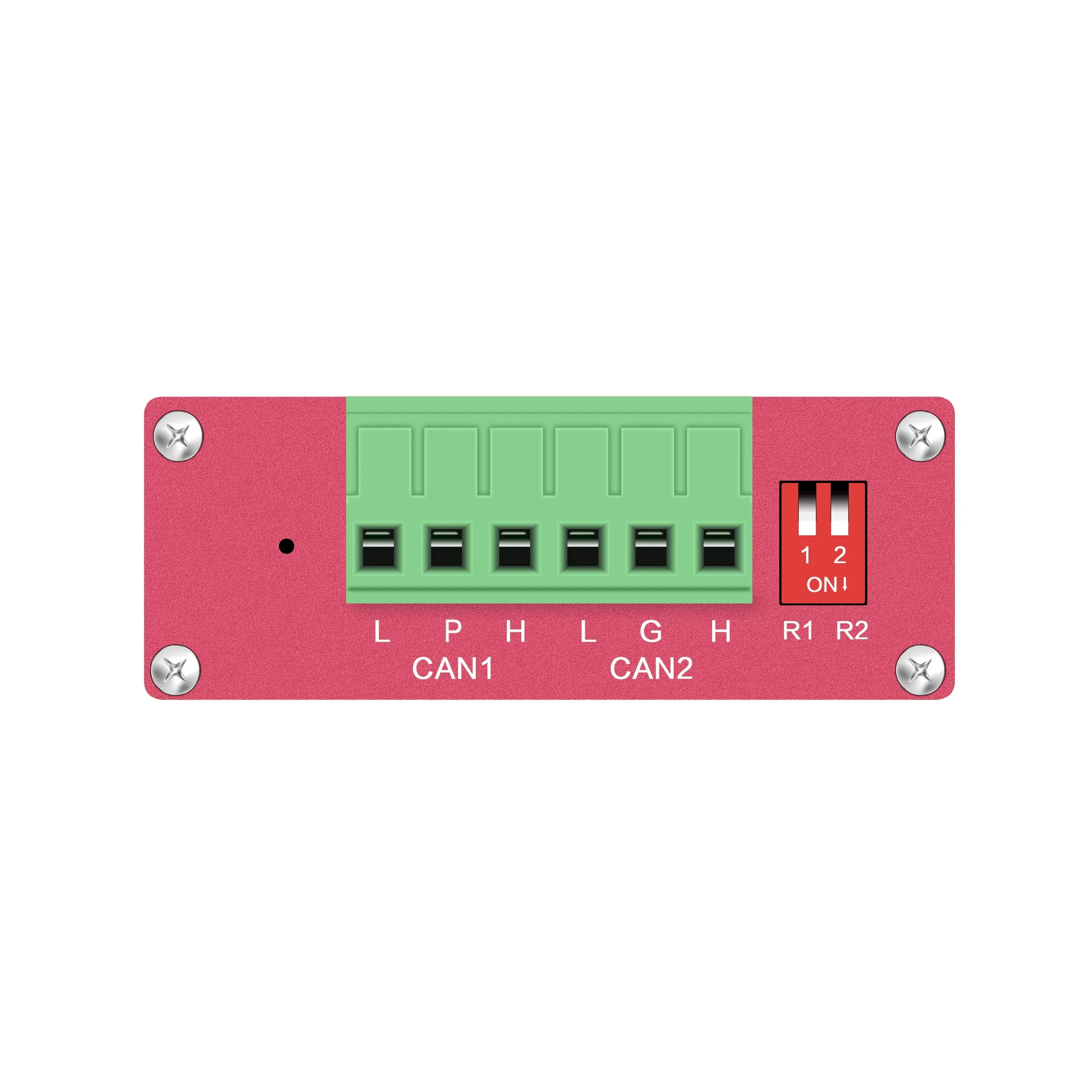

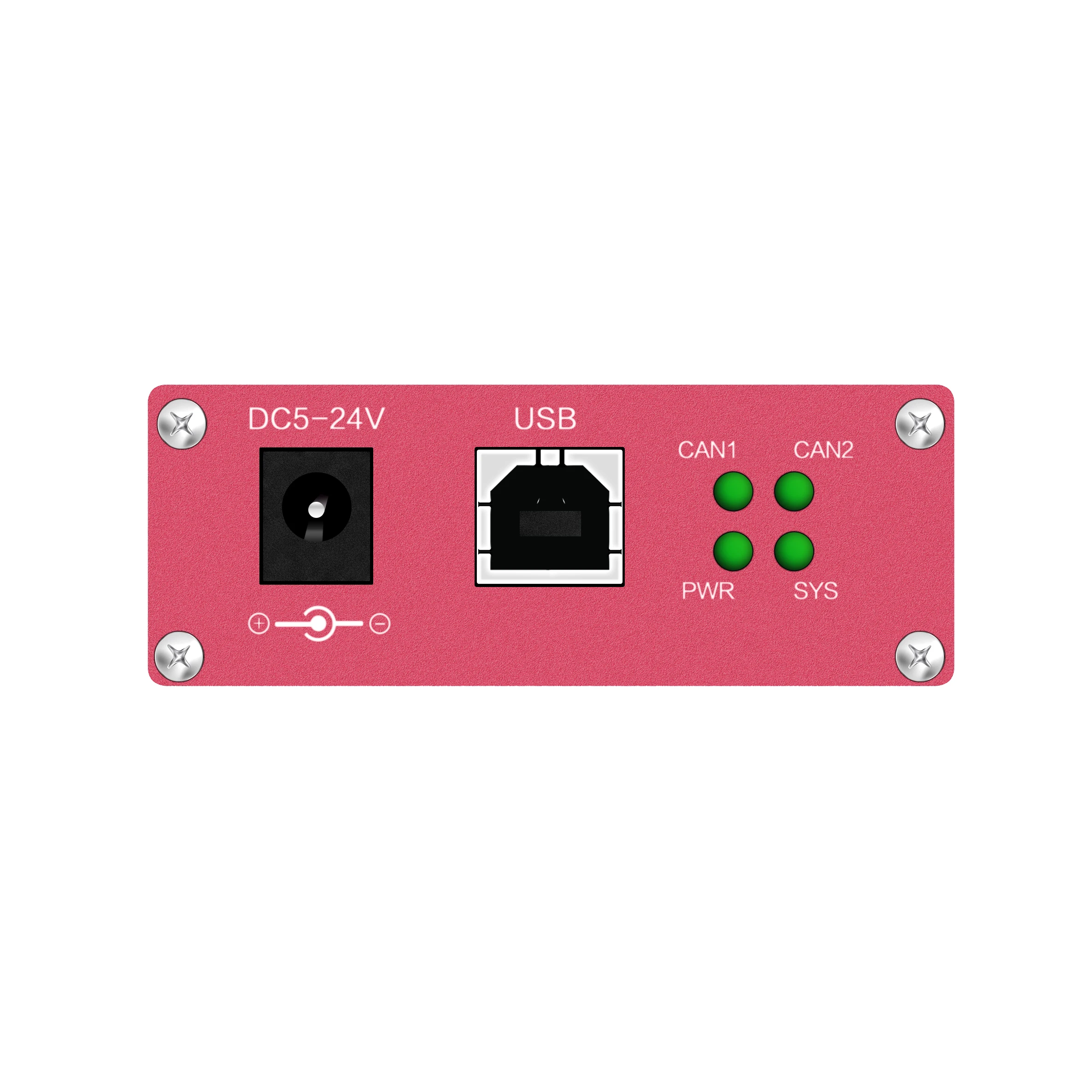

Size(LxWxH) | 102*63*23 | |
Operating temperature | -40°C~85°C | |
The shell material | Aluminum alloy | |
Interface form | Open 6 | |
CAN channel number | Double | |
Electrical | ||
Voltage supply | USB supply | |
Working voltage | 5V | |
Isolation voltage | Magnetic isolation of 3000V | |
System | ||
Support system | Windows 2000/2003 XP /7/8/10/ E.g. | |
development environment | VC VB C C+ C++ C++Builder NET Labwindows Delphi LabVIEW | |
CAN bus characteristics | ||
Baud rate | 5Kbps----1Mbps | |
Transfer speed | Send up to 8000 frames/s and receive up to 14000 frames/s | |
Execution standard | Support CAN 2.0A CAN2.0B ISO/DIS 1188-1/2/3 | |
USB bus characteristics | ||
Execution standard | Compliant with USB2.0 full speed Compatible with USB1.1 Spupport USB3.0 | |
1. Adapter for USB connection (USB 1.1, compatible with USB 2.0);
2. USB voltage supply;
3. Bit rates up to 1 Mbit/s Time stamp resolution 1μs;
4. Compliant with CAN specifications 2.0A (11-Bit ID) and 2.0B (29-Bit ID);
5. CAN-Bus connection via OPEH6;
6. NXP SJA1000 CAN controller;
7. NXP PCA82C251 CAN transceiver;
8. Support ECAN Tools software;
9. Galvanic isolation on the CAN connection up to 1500 V;
10. Extended operating temperature range from -40 to 85 °C;
11. Device driver and software support Windows 2000/2003/XP/7/8/10;

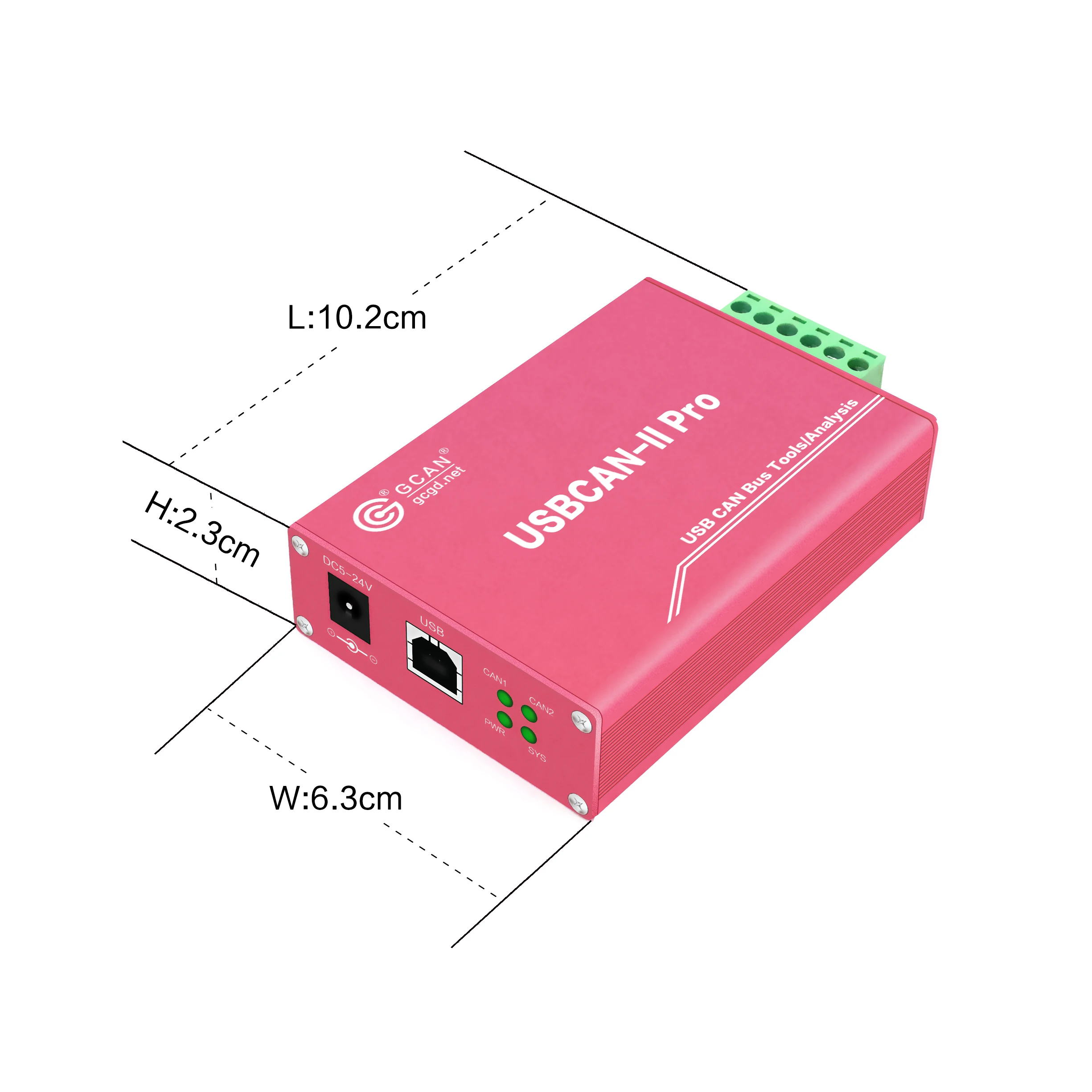

12. Dimensions：(L)102mm * (W)63mm * (H)23mm.
2. USB voltage supply;
3. Bit rates up to 1 Mbit/s Time stamp resolution 1μs;
4. Compliant with CAN specifications 2.0A (11-Bit ID) and 2.0B (29-Bit ID);
5. CAN-Bus connection via OPEH6;
6. NXP SJA1000 CAN controller;
7. NXP PCA82C251 CAN transceiver;
8. Support ECAN Tools software;
9. Galvanic isolation on the CAN connection up to 1500 V;
10. Extended operating temperature range from -40 to 85 °C;
11. Device driver and software support Windows 2000/2003/XP/7/8/10;
12. Dimensions：(L)102mm * (W)63mm * (H)23mm.
ECAN Tools Software
1 Transmit/Receive data

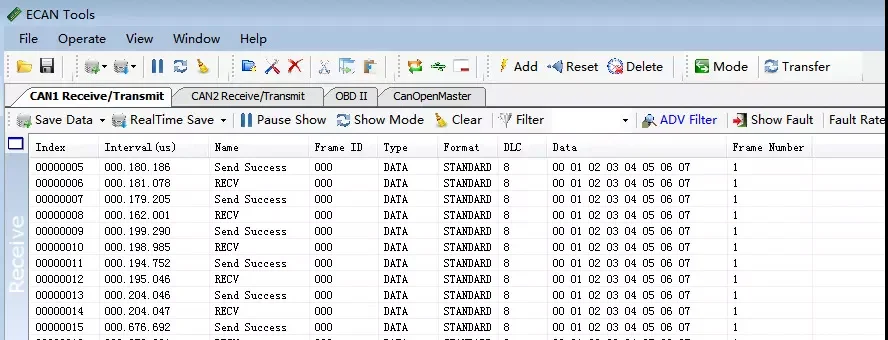

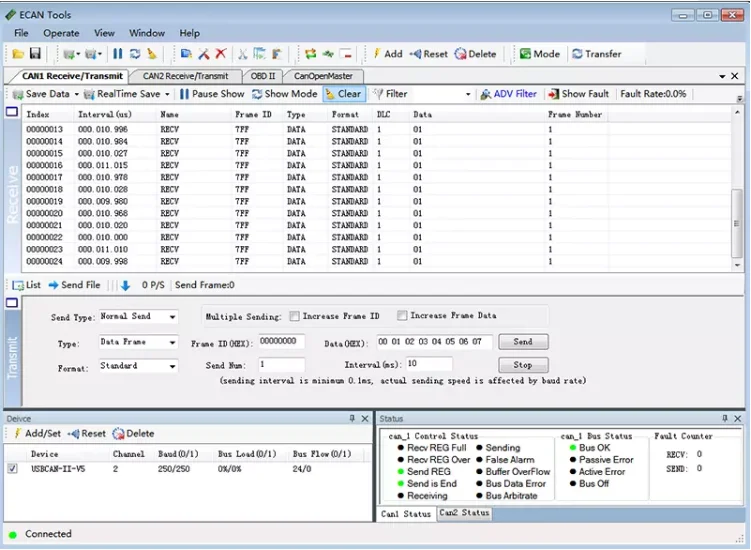

Transmitting and receiving is the basic function of ECAN Tools, in this interface,users can directly see the received CAN data, and send the data to CAN-bus.

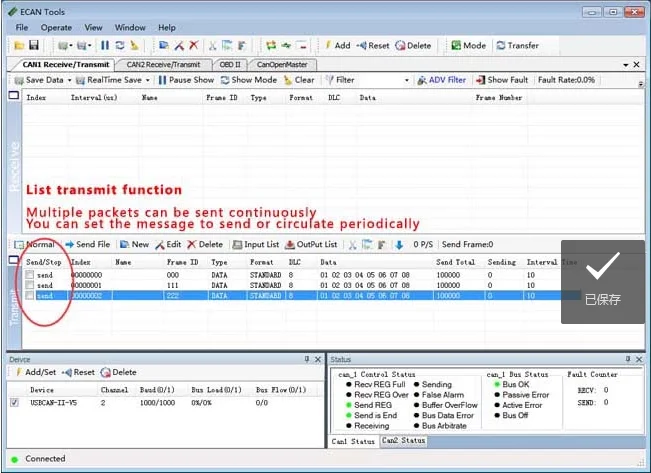

2 list transmit function
Transmit data can be set two modes—general data transmit and list transmit. List transmit mode allows users to edit data list and send it to CAN-Bus.Use this function, users can send multiple data at the same time.

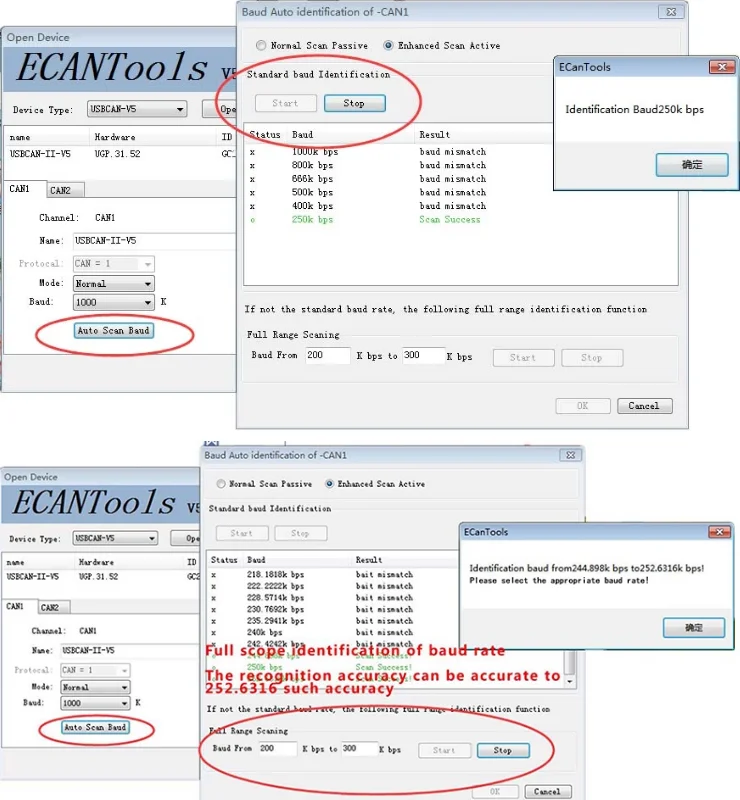

3 Automatic identification of baud rate
The adapter can search for unknown baud rate by two ways: automatic identification standard baud rate(1000K, 800K, 500K, 250K……);it's suitable all ranges baud rate(set the start-stop range, scan baud rate within the range).
Use this function, users can test almost all CAN-Bus system, even though they don’t know the baud rate.

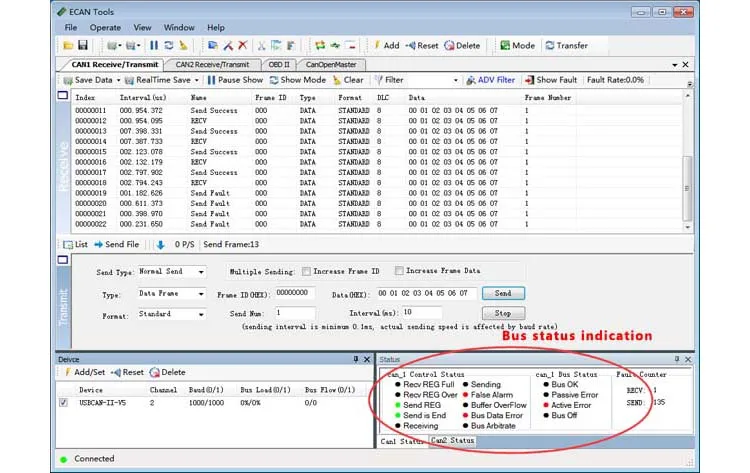

4 CAN-Bus diagnosis function
CAN-Bus diagnosis function can detect the error of the bus frames and bus arbitration lost.
a.CAN bus status display: indicate the CAN bus status include: bus normal,passive error, active error、 bus hung.
b.The CAN controller FIFO overflow: message within a certain period of time is too dense, lead to data loss.
c. The CAN controller error alarm: when many of errors on the bus, error counter exceeds the alarm threshold, and display the error count.
d. The CAN controller negative error: when many of send or receive errors and lead to the CAN controller into the negative state, and display the error count.
e. CAN bus controller error: when nodes send or receive errors, error counter value will be accumulate, and can catch the wrong information, such as ACK, CRC error and so on.
5 Relay & Offline
a.Relay mode
CAN relay function can connect two CAN-Bus together no matter what they have the same baud rate, the data flow can be seen in computer. This function can be used to see the two nodes of data flow, which data is from which node, it can be used to crack communication protocol between two nodes as well.
b. Offline mode
Users can create an instructions in notepad (.txt) and download it to the adapter,after that the adapter can into offline mode and do as the instructions each time the adapter power up. Instructions such as: transmit, delay, trigger, receive modified send and so on. This function can easily achieve automatic control and can be used in the production line test, crack communication protocol and so on, even though users can not secondary development.

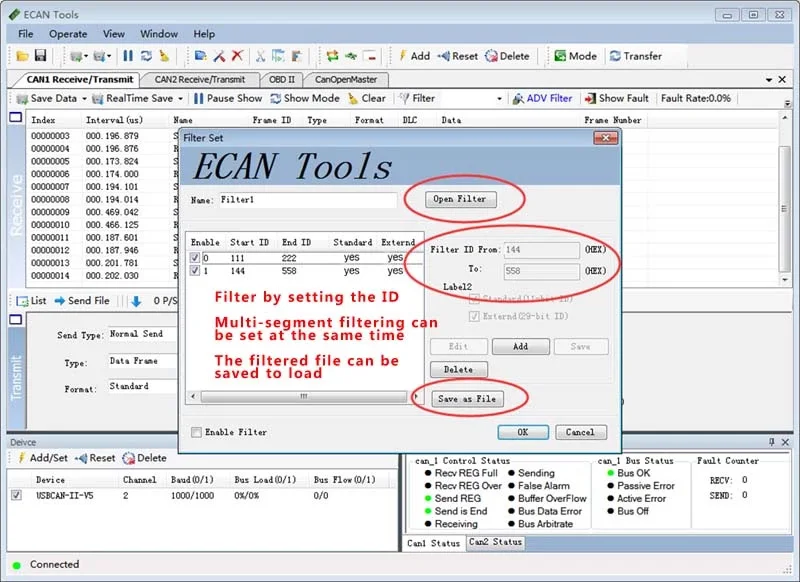

6 Multi-filters
ECAN Tools can set more filters than other software, users only need to set the ID or ID segment, then ECAN Tools can automatically filter out the data you want only.
7 Statistics mode
When ECAN Tools receiving data, software can classify these data in ID, data, name, format or type and counting the number of each data.This function is suitable for large data systems, engineers can easily observe and analyze other data after same data is combined.
8 Real-time stamp
ECAN Tools can show the time interval between each data, all the times are according to the real-time stamp from hardware, this time precision can reach 1us.
9 Data mask
The same function as multi-filters, just do not want to see the data is masked.
Secondary development

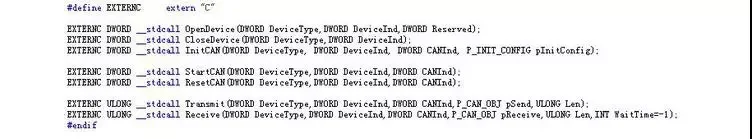

Guangcheng technology USBCAN series adapters are all support secondary development. We will provide users some API to develop their own software. In Windows operating systems this is a DLL(Dynamic Link Library) named ECANVCI.dll. We also provide users develop manual and some examples of procedures with VB, VC, C#,. NET, Labview, Labwindows, Delphi.
Each adapter has a unique SN number, and for those who want to purchase large quantity can customize a personal code. Users can use these to bind their own programs. OEM or dealers can ask for adapter with no logo.
If you want to know more about the software specific function and usage, please CONTACT US
If you want to know more about the software specific function and usage, please CONTACT US
