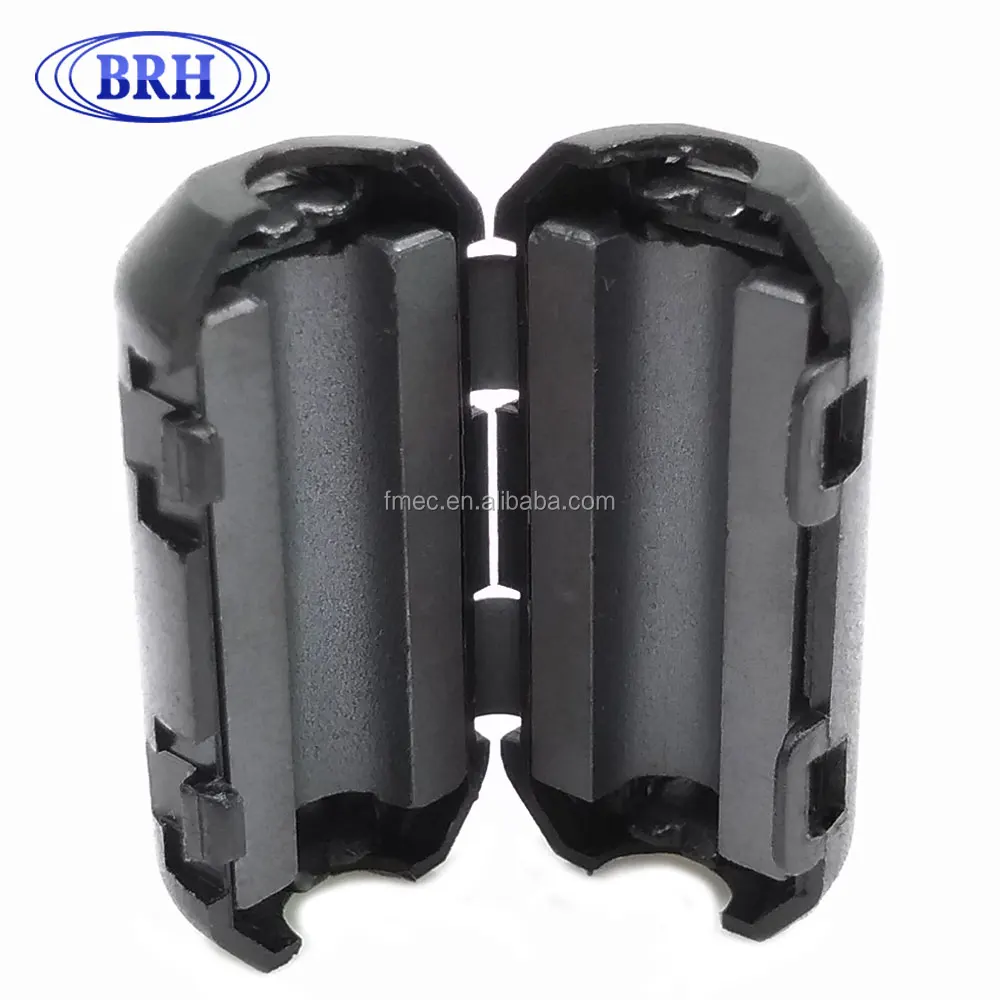

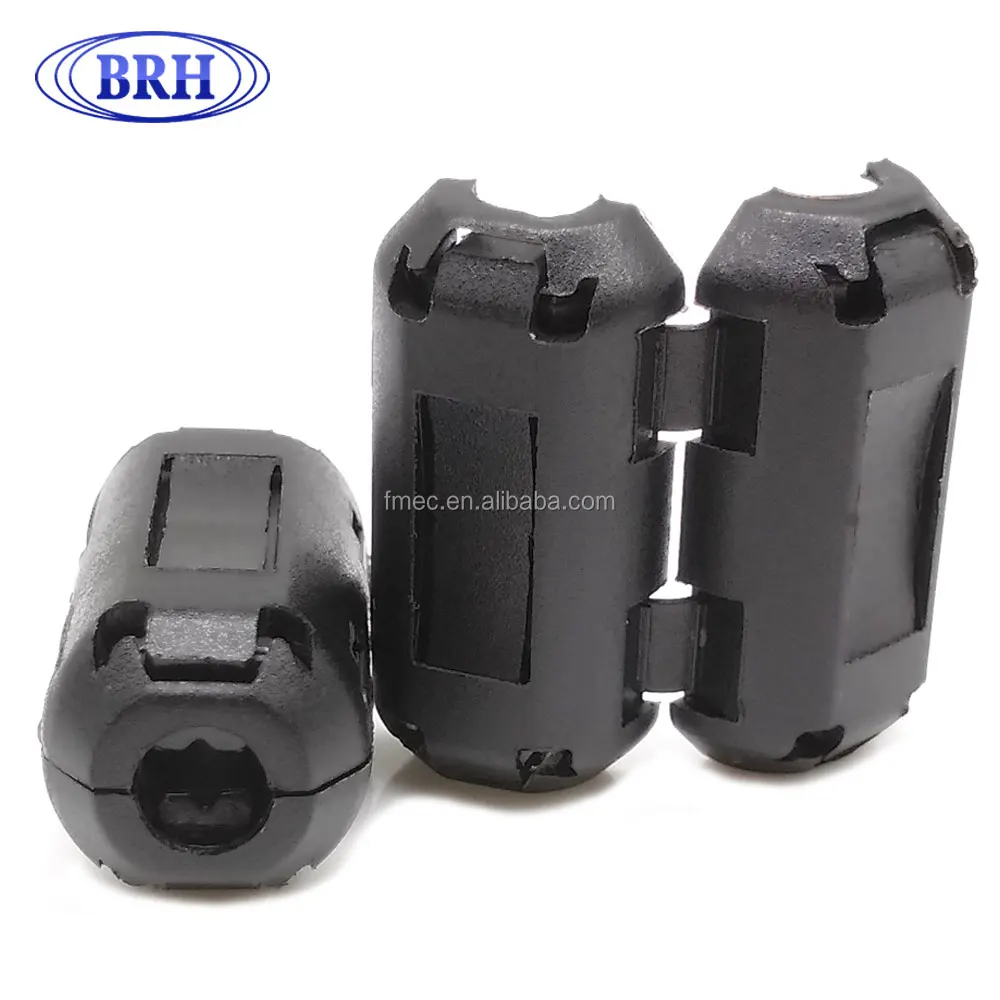

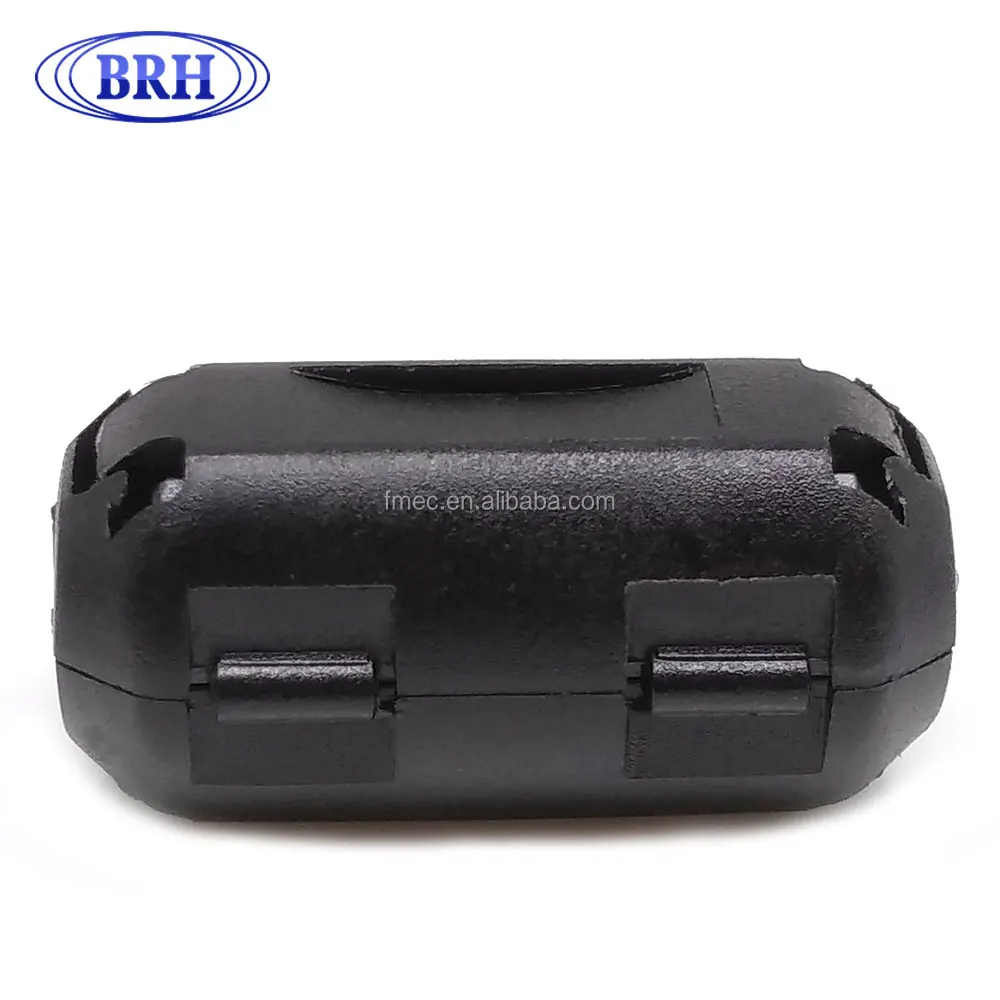

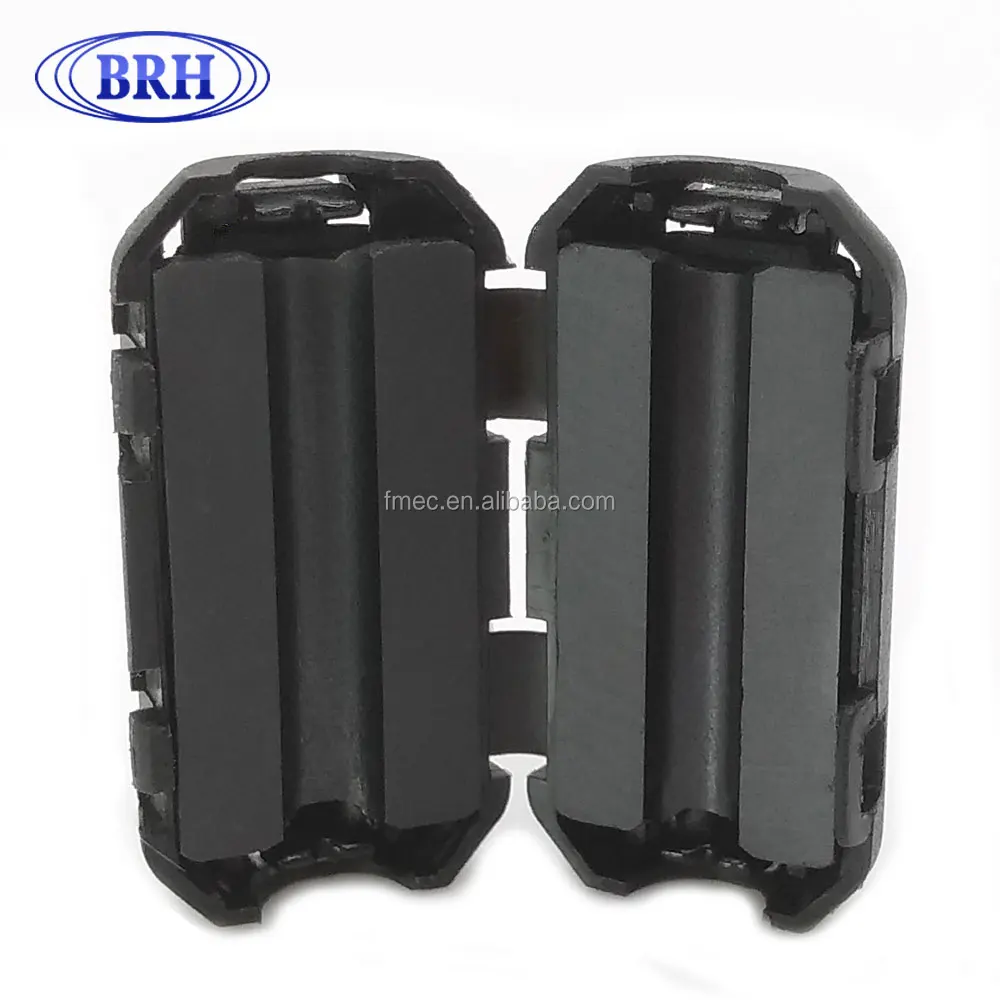

  • China Manufacturer High frequency ferrite core clamp For Audio Video Cable
China Manufacturer High frequency ferrite core clamp For Audio Video Cable
China Manufacturer High frequency ferrite core clamp For Audio Video Cable
China Manufacturer High frequency ferrite core clamp For Audio Video Cable
China Manufacturer High frequency ferrite core clamp For Audio Video Cable
China Manufacturer High frequency ferrite core clamp For Audio Video Cable
China Manufacturer High frequency ferrite core clamp For Audio Video Cable

China Manufacturer High frequency ferrite core clamp For Audio Video Cable

Share on (60744051318):


Price:RUB 21.23 - RUB 27.30

Quantity:


Product Overview

Description

Description

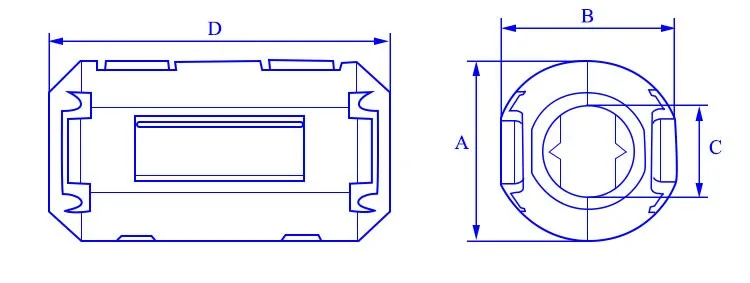

SIZE CODE （mm)
A
B
C
D
A2 RC 10*20*5-MB
13.0±1.00
11.8±1.00
5.0±0.80
25.2±1.00

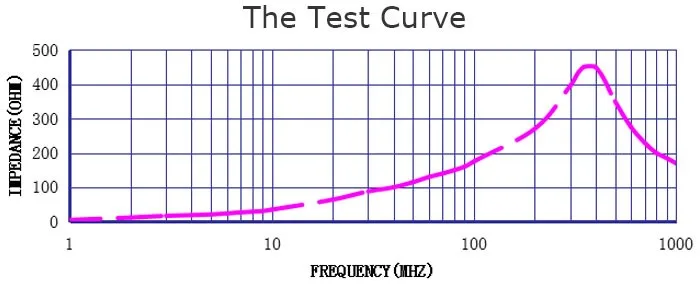

Parameter
Electrical Requirements
SIZE CODE （mm)
A2 RC 10*20*5-MB
25 MHz
60Ω MIN
100 MHz
130Ω MIN
TEST INSTRUMENTS
HP 4191A
LCR METER
HP 4286
WIRE
0.65T.C.W*100m/m 1/2Ts
TEMPERATURE
15℃ to 35℃
HUMIDITY
25% to 85% RH
Test Data For Pre Production Samples
MEAS.
 Item
Ω
 AT 25MHz
Ω
 AT 100MHz
A
 m/m
B
 m/m
C
 m/m
D
 m/m
Suggest
60Ω MIN
130Ω MIN
13±1
11.8±1
5±0.8
25.2±1
1
72.00
171.20
13.15
11.84
5.10
24.82
2
73.80
173.50
13.12
11.85
5.12
24.90
3
72.50
172.80
13.08
11.90
5.15
25.01
4
74.50
171.90
13.08
11.89
5.12
25.05
5
73.20
173.20
13.14
11.91
5.10
24.98
6
73.20
172.50
13.12
11.88
5.08
25.10
7
73.50
173.60
13.09
11.90
5.09
25.11
8
72.80
172.10
13.15
11.91
5.14
25.07
9
73.20
171.90
13.11
11.88
5.12
24.96
10
74.60
172.80
13.06
11.87
5.11
24.96






X-bar
73.33
172.55
13.11
11.88
5.11
25.00
R
2.60
2.40
0.09
0.07
0.07
0.29
The above test data for reference，Actual results may differ due to different production batches
