Product Description
Surface grinding is used to produce a smooth finish on flat surfaces. It is a widely used abrasive machining process in which a spinning wheel covered in rough particles (grinding wheel) cuts chips of metallic or nonmetallic substance from a workpiece, making a face of it flat or smooth.
Sumore surface grinder has characteristics as excellent structure, easy operation, large range of speed regulation, stable operation, no noise, high efficiency,and widely recognized by customers after the launch.The grinder is widely used in various industries’ small and special-shaped components as glasses accessories, textile machine components, electronic parts, etc
Features
--High rigidity & high sealing ensure no vibration- Accuracy
--Digital size controller –Longer machining Accuracy
--Simple operation
--Suit for fine Grinding, Lapping and Polishing etc
--Pre, main and post load position can be controlled by simple setting.
--Operator gets more space for loading from upper wheel Swivel device. It can be equiped with semi or full automatic Loading or Unloading device.

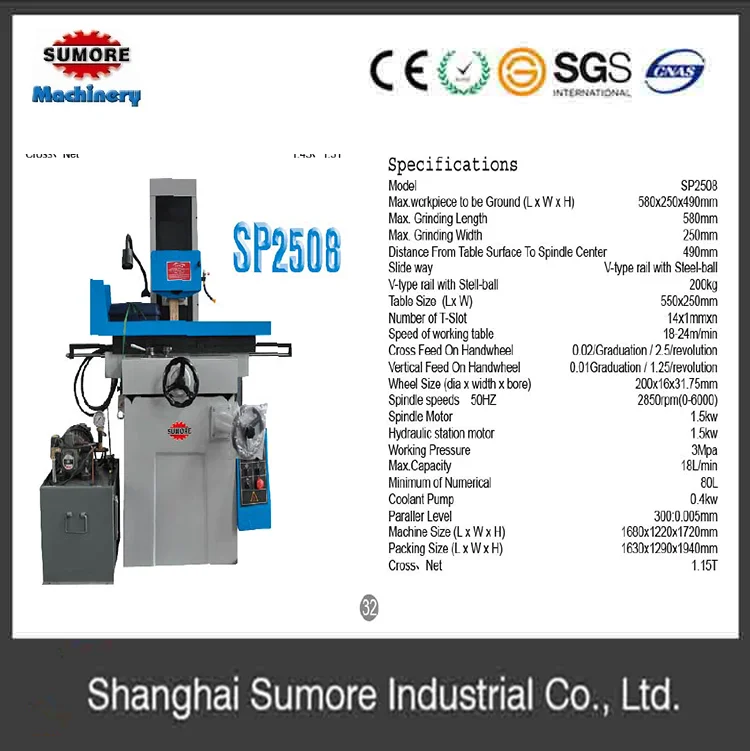

| Specifications | |
| Model | SP2508 |
| Max. workpiece to be ground(LxWxH) | 580x250x490mm |
| Max. grinding length | 580mm |
| Max. grinding width | 250mm |
| Distance from table surface to spindle centre | 490mm |
| Slide way | V type rail with steel-ball |
| Table size(LxW) | 550x250mm |
| Number of T slot | 14x1mmxn |
| Cross feed on handwheel | 0.02/graduation 2.5/revolution |
| Vertical feed on handwheel | 0.01/graduation 1.25/revolution |
| Wheel size(diaxwidthxbore) | 200x16x31.75 |
| Spindle speed 50HZ | 2850rpm(0-6000) |
| Spindle motor | 1.5KW |
| Hydraulic station motor | 1.5KW |
| Working pressure | 3Mpa |
| Minimum of Numberical | 80L |
| Coolant pump | 0.4KW |
| Paraller lever | 300:0.005mm |
| Machine size(LxWxH) | 1680x1220x1720mm |
| Packing size(LxWxH) | 1690x1290x1940mm |
| Cross Weight | 1.15T |
