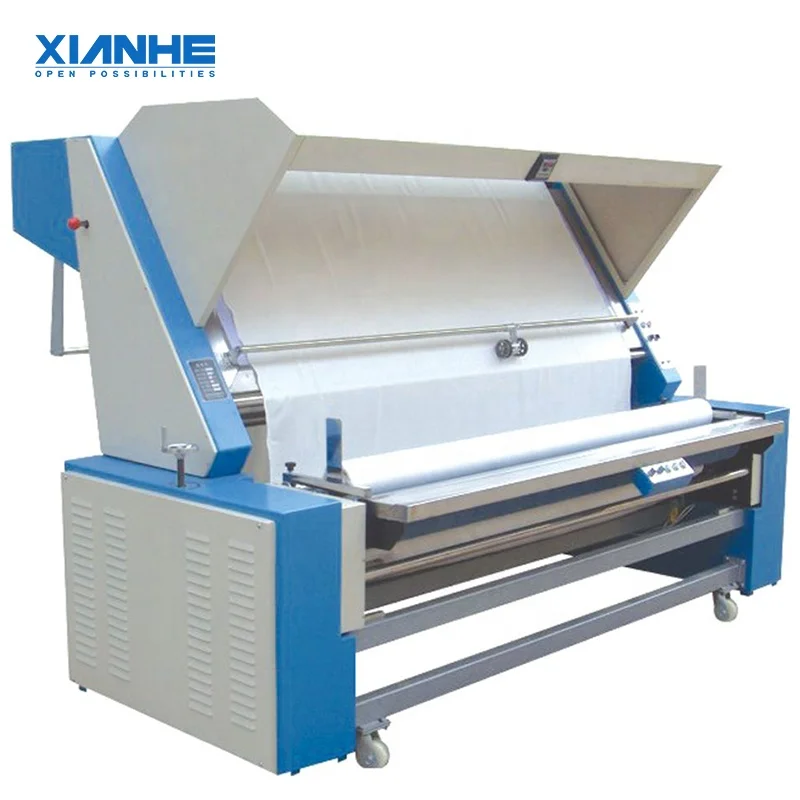

Home Textile Fabric Inspection Rolling Machine
Home Textile Fabric Inspection Rolling Machine
Home Textile Fabric Inspection Rolling Machine
Home Textile Fabric Inspection Rolling Machine
Home Textile Fabric Inspection Rolling Machine
Home Textile Fabric Inspection Rolling Machine
Home Textile Fabric Inspection Rolling Machine

Home Textile Fabric Inspection Rolling Machine

Share on (60744099045):


Price:RUB 595,171.30

Quantity:


Product Overview

Description

The machine is used for the inspection and rolling of finished products.It is also suitable for the winding of laminated materials.The width of machine can be added according to the needs of customers, so as to get requested width.

Features:
It uses box iron frame and integrates rolling and inspection.
1.Compact structure, simple operation, small sized and high availability. It is good in quality and beautiful in design.
2. It can use frequency control or adjustable-speed motor to regulate speed within a certain limits. It features easy operation. The computer controlled timing is conducive to site management as it can read the length of time.
3. Customers may choose: Infrared ray photo electricity edging control, hydraulic edging adjustment system with difference smaller than 5 mm.

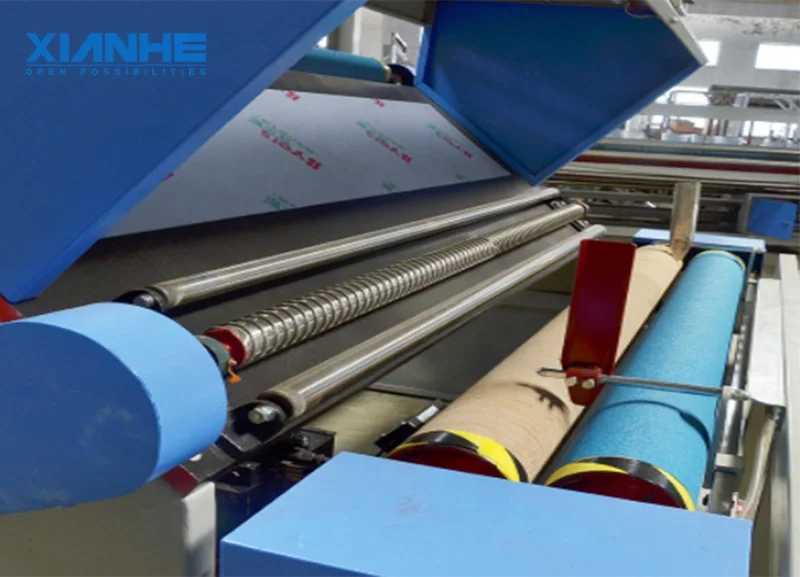

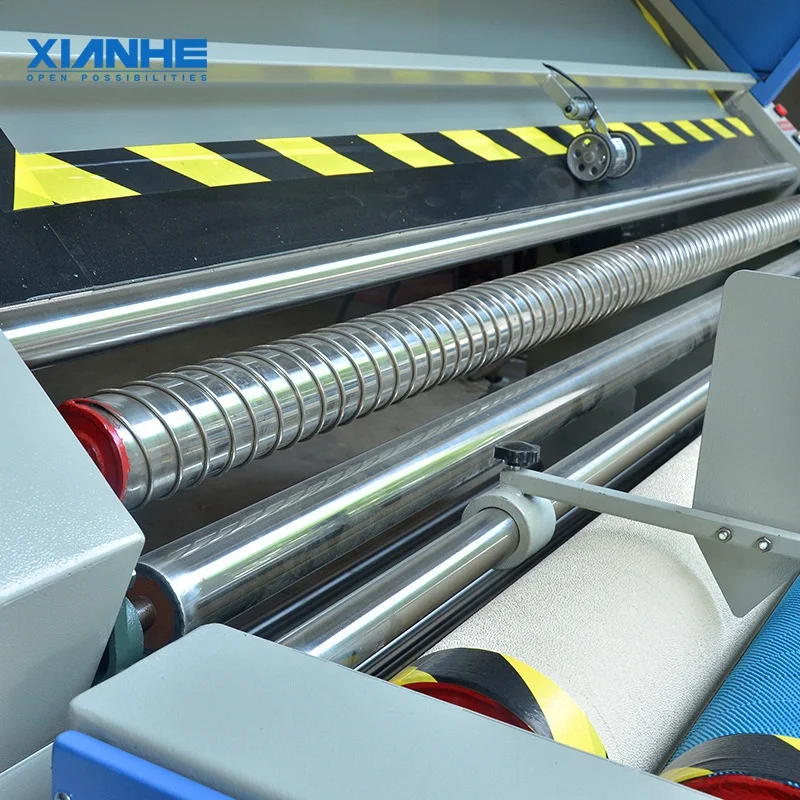

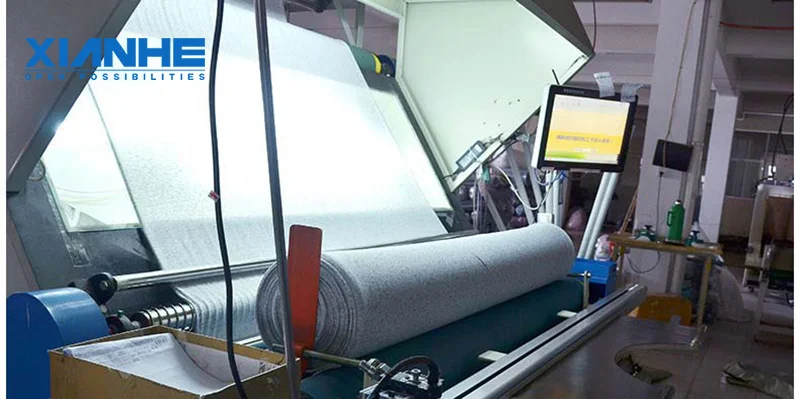

Detailed Images

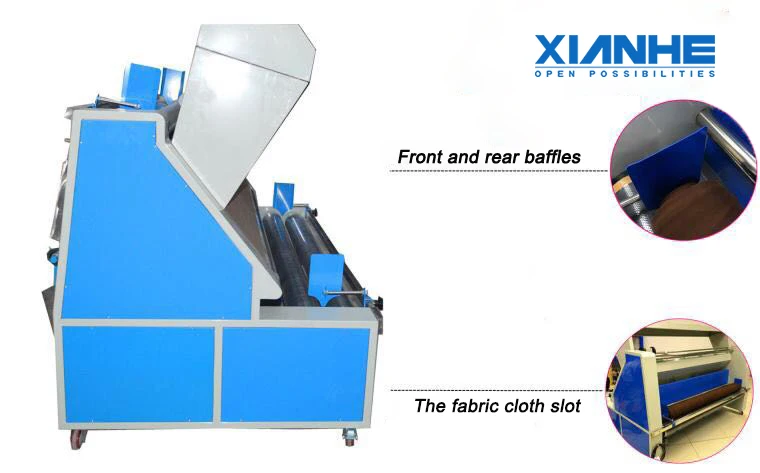

Size Information
Main Technical Specifications
Working width
1800mm
Max. Material Width
within 1600mm
Inspecting speed
0-80 m/min
Dimension (L*W*H)
about 2000 mm*1200 mm* 800mm
Voltage
380V/220V
Gross Power
about 1.5kw
Weight
about 300kg
Max. winding Dia
380mm
Warranty
1 year
Rectifying type
Hydraulic
Deviation correction accuracy
±3mm
