NTN Automotive Taper roller bearings CR 0740SATPX1 ET CR 0740 SATPX1
- Category: Taper Roller Bearings >>>
- Supplier: Shanghai Shengyue Bearing Co. Ltd.
Share on (60744114941):
Product Overview
Description
NTN Automotive Taper roller bearings CR-0740SATPX1 ET-CR-0740 SATPX1
BEARING DETAILS
NTN Automotive Taper roller bearings CR-0740SATPX1 ET-CR-0740 SATPX1 design :
4T means NTN 4-top tapered roller bearings, case hardened material,
ET means NTN endurance tapered roller bearings, case hardened material.
X means different bore, outer diameter, width or radius from basic part number
U means ISO series, internationally interchangeable through hardened steel
Tapered roller bearings ET-CR0740SATPX1
Bearing number : ET-CR0740SATPX1
Size (mm) : 36.512x90x35.25 mm
Brand : NTN
Bore Diameter (mm) : 36,512
Outer Diameter (mm) : 90
Width (mm) : 35,25

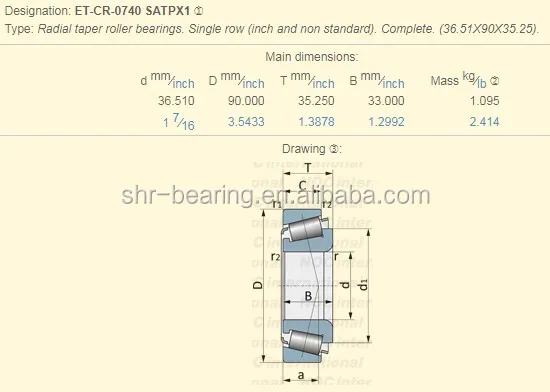

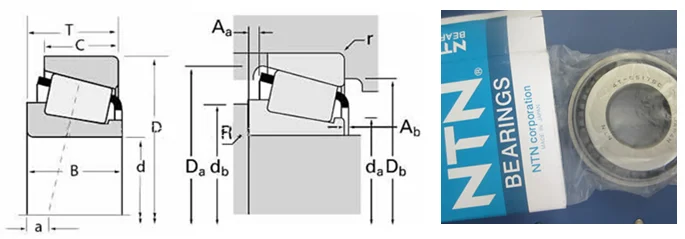

Bearing dimensions and specification in brand catalogue :
d - 36,512 mm
D - 90 mm
T - 35,25 mm
B - 33 mm
C - 27 mm
The following listed are part of our stock:
1) Less coefficient of friction, High limiting speed, Large size range, Variations of structure.
2) Tapered Roller Bearings are designed such like cup. Cone and rollers have tapered surfaces
whose apexes converge at a common point on the bearing axis.
3) Single-row tapered roller bearing is able to carry radial and axial load in one directions
simultaneously because an axial component of produced when this type of bearings loaded
radically, two bearings are used together facing one another, or two or more bearings are
matched and used.
ET-11590/11520 ET-16150STV2 ET-16284STPX1 ET-25523 ET-25590 ET-30202V2 ET-30204 ET-30204STDB+3.5DX ET-30205CST ET-30205CST#G ET-30205CST-G ET-30206 ET-30207ST ET-30207V2 ET-30208ST ET-30210EWP6X ET-30217 ET-30304BST#G ET-30304BST#GU70 ET-30304BST-G ET-30304BST-GU70 ET-30304BSTJX2 ET-30304BSTJX2-G ET-30304CAST ET-30304CAST#G ET-30304CAST-G ET-30304STPX1#G ET-30304STPX1#GU50 ET-30304STPX1#GU51 ET-30304STX1PX1 ET-30304STX1PX1-#01 ET-30304STX1PX1-#02 ET-30304STX1PX1-#03 ET-30304STX1PX1-G ET-30304STX2PX1-G ET-30304V3 ET-30306 ET-30306ST#G ET-30306ST-G ET-30307D#G ET-30307DEW ET-30307DEW-G ET-30308D#G ET-30308DB+0/17.#01 ET-30308DST ET-30308DSTV3 ET-30308DSTV4 ET-30308DV2 ET-30308DV2-G ET-30310D ET-30311 ET-30311DDT+6.5D#01 ET-30311EWP6X ET-30311EWP6XU35 ET-30311EWP6XU35K ET-30312 ET-30312/53.7V1 ET-30312DEW ET-30312DSTDT+6.#03 ET-30312STV1 ET-30313 ET-30313D ET-30314DSTDT+7DX4 ET-30315D ET-31320XSTPX3V2#01 ET-31320XSTV2 ET-320/22XST ET-320/22XV1 ET-320/22XV1#G ET-320/22XV1-G ET-32004X ET-32004XV4#G ET-32004XV4-G ET-32005XDB+0/3.#01 ET-32005XDB+0/3.#02 ET-32005XST ET-32007XST ET-32007XSTDB+13#01 ET-32007XSTDB+13#02 ET-32008X-G ET-32008XLX3PX16#03 ET-32008XLX3PX16#04 ET-32008XPX10V15 ET-32008XPX16V10#G ET-32008XPX17V11U75 ET-32008XPX19V10#G ET-32008XST ET-32008XST/80PX8#G ET-32008XSTMX#G ET-32008XSTMX-G ET-32008XSTX7-G ET-32009X ET-32009XASTX1 ET-32009XASTX1-G ET-32009XST#G ET-32009XX4 ET-32011X/102STP#06 ET-32012XEW ET-32014XV6 ET-32017XPX4 ET-32017XPX4V5 ET-32018X ET-322/28CST ET-322/28CSTU35K ET-32203V2 ET-32204V6 ET-32205RSTPX1 ET-32205RSTPX1#G ET-32205RSTPX1#GU42 ET-32205RSTPX1-G ET-32205RSTPX1-GU42 ET-32205RSTX1/20#01 ET-32205RSTX1/20#03 ET-32205RSTX1/20PX1 ET-32206CST#G ET-32206CST#GU53 ET-32206CST-G ET-32206CST-GU53 ET-32206ST ET-32207CRST ET-32208ST ET-32211STP6X ET-32211STP6XU35K ET-32212 ET-32216V2 ET-32217PX3V5 ET-32217PX3V5U35K ET-32217V5 ET-32305STPX1V2 ET-32305V1 ET-32308CSAT#G ET-32308CSAT/36.#01 ET-32308CSAT/36.#02 ET-32308CST/36.5#02 ET-32308ST ET-32310 ET-32310JX2M1P6 ET-32310U2 ET-32312 ET-32315C ET-32315C#G ET-32315C-G ET-32915XST/114 ET-32915XST/114#G ET-32915XST-G ET-32938XJXM1PX2 ET-33006V2 ET-33006V2#G ET-33006V2-G ET-33007ST ET-33008ST ET-33011 ET-33011#G ET-33011-G ET-33011P5 ET-33011U35K ET-33011U81 ET-33013 ET-33013#G ET-33013-G ET-33013U50 ET-33015STPX1V1 ET-33017 ET-33018DB+0/27P#02 ET-33018P5V2 ET-33108STPX1V2 ET-33116STV1 ET-332/28 ET-332/32 ET-33205STV2#G ET-33205STV4-G ET-33206 ET-33206STPX2V3 ET-33207STPX4V8 ET-33208CSTPX1 ET-33208STPX2V4 ET-33209STPX1V1 ET-33210STPX2V5 ET-33211 ET-33211/55.562PX5 ET-33211STPX6V4 ET-33212 ET-33213STPX3V5 ET-33213STPX3V5U35K ET-33214STPX2V1 ET-4395STV10 ET-64432/64708ST#01 ET-64708 ETA-30202R ETA-30205STPX1#G ETA-30205STPX1V5-G ETA-30206 ETA-30206PX5 ETA-30207STX5 ETA-30208 ETA-30213E4 ETA-30217DFDXCS2#01 ETA-30217DFDXCS2#02 ETA-30221ST/ETA-#05 ETA-30221ST/ETA-#08 ETA-30305DST ETA-30305STPX1#G ETA-30305STPX1V5 ETA-30305STPX1V5-G ETA-30307D ETA-30307DSTV3 ETA-30307DSTV3#G ETA-30307DSTV3-G ETA-30308DSTV5 ETA-30308DSTV5#G ETA-30308DSTV5-G ETA-30309DST ETA-30309DSTV3 ETA-30310D ETA-30311DST ETA-30312DSTDT+6#01 ETA-30312DSTDT+6#02 ETA-30313DSTDT+7#01 ETA-30313DSTDT+7#03 ETA-30313DSTDT+7#04 ETA-30313DSTV14 ETA-30313DSTV14U35K ETA-30314DSTV11 ETA-30316DSTV6 ETA-30316DSTV6U35K ETA-30317DSTU35K ETA-32007XSTPX8V6 ETA-32008XSTPX4V14 ETA-32008XSTV7#G ETA-32008XSTV7-G ETA-32008XV6#G ETA-32009XASATX1-G ETA-32009XASTX1-G ETA-32009XSAT#G ETA-32009XSAT#GU99 ETA-32009XST#G ETA-32010X ETA-32011XEW#G ETA-32011XV14-G ETA-32011XV15-G ETA-32024XU35K ETA-32026XU35K ETA-32030XU35K ETA-32206/25STPX#02 ETA-32206/25STPX#04 ETA-32206/25STPX#05 ETA-32206STPX4#G ETA-32211STPX7 ETA-32211STPX7U35 ETA-32211STPX7U35K ETA-32217EWDFDXC#01 ETA-32306 ETA-32306DFC3 ETA-32309/35PX4 ETA-32315CSTV1U35K ETA-33006V2#G ETA-33006V2-G ETA-33109 ETA-33210/40 ETA-33210EW#G ETA-33210PX1V4-G ETA-33211 ETA-33820BEW ETA-33889/33820BEW ETA-33889EW ETA-4367V8 ETA-4395STV12 ETA-493 ETA-497 ETA-529X/520XX3PX1 ETA-55175CPX2 ETA-55437PX1 ETA-66225PX1V4 ETA-66225PX1V7 ETA-67391/67322-#01 ETA-67391/67322-2V9 ETA-72200C/72487 ETA-72200CPX1 ETA-72487PX1 ETA-C1R-0706STPX1 ETA-C1R-1006PX1 ETA-C1R-1008 ETA-C1R-1008V1 ETA-C1R-1009JXPX1 ETA-C1R-1010V1 ETA-C1R-1012HC ETA-C1R-1104 ETA-C1R-1106HC ETA-C1R-1107HC ETA-CR-0103#G ETA-CR-0105-G ETA-CR-0256#G ETA-CR-0259-G ETA-CR-05A22STPX1#G ETA-CR-0813ST ETA-CR-08A27#G ETA-CR-08A27PX1-G ETA-CR-08A48#G ETA-CR-08A48PX1 ETA-CR-08A48PX1-G ETA-CR-08A67PX1-G ETA-CR-08A71STPX#01 ETA-CR-08A71STPX1 ETA-CR-08A71STPX1#G ETA-CR-08A71STPX1-G ETA-CR-08A72STPX1 ETA-CR-08A72STPX1#G ETA-CR-08A72STPX1-G ETA-CR-08A79STPX1 ETA-CR-08A79STPX1#G ETA-CR-08A79STPX1-G ETA-CR-08A80STPX1 ETA-CR-08A80STPX1-G ETA-CR-08B07#G ETA-CR-08B07-G ETA-CR-09A14STPX1#G ETA-CR-09A23STPX1 ETA-CR-09A43STPX#01 ETA-CR-09A43STPX#02 ETA-CR-09A43STPX1 ETA-CR-09A43STPX1#G ETA-CR-09A43STPX1-G ETA-CR-09A44STPX#01 ETA-CR-09A44STPX#02 ETA-CR-09A44STPX#03 ETA-CR-09A44STPX1 ETA-CR-09A44STPX1#G ETA-CR-09A44STPX1-G ETA-CR-09A44STPX2 ETA-CR-09A44STPX2-G ETA-CR-09A46STPX1 ETA-CR1-1272JXCS225 ETA-CR-11A01PX1 ETA-CR-1266#G ETA-CR-1271SAT#G ETA-CR-1271ST#G ETA-CR-1283SAT ETA-CR-1283SAT-G ETA-CR-1283ST-G ETA-CR-1293-G ETA-CR-1369SAT#G ETA-CR-1369SATPX1-G ETA-CR-1373 ETA-CR-1373#G ETA-CR-1373-G ETA-CR-1391PX1 ETA-CR-13A08PX1 ETA-CR-1573 ETA-CR-1667 ETA-CR-1680PX1 ETA-CR-1754PX1 ETA-CR-1759 ETA-CR-1973 ETA-CR-901 ETA-H913840/H913810 ETA-HM804848PX2V4 ETA-HM813840/HM8#02 ETA-HM88649/HM88#02 ETA-HM89446/HM89410 ETA-JM205149/JM2#04 ETA-JM205149/JM2#05 ETA-L44649/L4461#01 ETA-LM102949/LM1#08 ETA-LM11749/LM11710 ETA-M86649/M86610 ETA-T7FC045ST ETA-T7FC050STPX2V1 ETA-T7FC060ST ETA-T7FC060STDB+#01 ETA-T7FC070ST ET-C1R-1002JX ET-C1R-1004JX ETC-301A ETC-301B ETC-301D ET-CR-0479ST ET-CR-0480ST#G ET-CR-0480ST-G ET-CR-0481-G ET-CR-0484#G ET-CR-0593ST#G ET-CR-0593ST-G ET-CR-05A22STPX1 ET-CR-0606ST-G ET-CR-0606STPX3#G ET-CR-0614ST ET-CR-0614ST#G ET-CR-0614ST-G ET-CR-0618STPX1 ET-CR-0621ST ET-CR-0631STPX1 ET-CR-06A29SAT2P#01 ET-CR-06A29SAT2P#02 ET-CR-06A29SAT2PX1 ET-CR-06A36SATPX1#G ET-CR-06A36SATPX1-G ET-CR-06B05STXPX1 ET-CR-0707ST ET-CR-0740SAT#G ET-CR-0740SATPX1-G ET-CR-0791ST-G ET-CR-0791STPX3#G ET-CR-07A41HCSTXPX1 ET-CR-07A41STXPX1 ET-CR-0834ST ET-CR-0834ST#G ET-CR-0834ST-G ET-CR-08A11STPX1 ET-CR-08A34STPX1 ET-CR-08A35STPX1 ET-CR-08A44STPX1 ET-CR-08A45STPX1 ET-CR-09A14STPX1 ET-CR-09A15STPX1 ET-CR-09A15STPX1#G ET-CR-09A16STPX1 ET-CR-09A17STPX1 ET-CR-09A23STPX1 ET-CR-09A38STPX1 ET-CR-09A89STXPX1 ET-CR1-0678LLCS7#01 ET-CR1-0678LLCS7#02 ET-CR1-0787LLCS9#03 ET-CR1-0846LLCS1#01 ET-CR1-0846LLCS1#01ET-CR1-0846LLCS158/L109 ET-CR1-0846LLCS1#02ET-CR1-0846LLCS127/L109 ET-CR-10A42STXPX1 ET-CR-10A43STXPX1 ET-CR1-1267STJXC#01 ET-CR1-1275CS210#01 ET-CR1-1277CS210#01 ET-CR-1166PX1 ET-CR-1177 ET-CR-1266#G ET-CR-1266-G ET-CR-1271ST#G ET-CR-1271ST-G ET-CR-1283ST-G ET-CR-1290PX1 ET-CR-1355 ET-CR-1355#G ET-CR-1355#GU62 ET-CR-1355-G ET-CR-1355-GU62 ET-CR-1364 ET-CR-1364-G ET-CR-1373 ET-CR-1373#G ET-CR-1373-G ET-CR-1555 ET-CR-1555#G ET-CR-1555#GU62 ET-CR-1555-G ET-CR-1561 ET-CR-1561-G ET-CR-1755PX1 ET-CR-2263DB+8D1#01 ET-CR-2855PX1S20 ET-HH221449/HH22#02 ET-HM212011 ET-HM801310STPX3 ET-HM801346/HM80#01 ET-HM801346XSTPX3V2 ET-HM803149/HM80#05 ET-HM804849/HM80#02 ET-HM813839/HM81#02 ET-HM88510STPX5 ET-HM88542/HM885#08 ET-HM88542STPX2V2 ET-HM89210SAT ET-HM89210ST ET-HM89249/HM892#02 ET-HM89249/HM892#05 ET-HM89249SAT ET-HM89249ST ET-HM89449/HM894#07 ET-HM89449X1/HM8#01 ETJ100K002*803 ETJ100K002*F803 ETJ104B001 ETJ104K001 ETJ104K001*803 ETJ104K001*F803 ETJ109K001*F803 ETJ71B009 ETJ71B010 ETJ71B024 ETJ71B028 ETJ71B029 ETJ71B030 ETJ71B036 ETJ71B037 ETJ71B038 ETJ75B026 ETJ75B027 ETJ75B050 ETJ75B051 ETJ75B063 ETJ75B063A ETJ75B064 ETJ75B064A ETJ75B071 ETJ75B077 ETJ75B078 ETJ75B079 ETJ75B080 ETJ75B081 ETJ75B084 ETJ75B087 ETJ75K001*803 ETJ75K001*806 ETJ75K001*F803 ETJ75K001*F806 ETJ75K001*T803 ETJ75K001*T806 ETJ79B029A ETJ79B030A ETJ79B031A ETJ79B032A ETJ79B033A ETJ79B040 ETJ79B041 ETJ79B042 ETJ79B043 ETJ79B044 ETJ79B045 ETJ79B063 ETJ79B066 ETJ79B068 ETJ79B069 ETJ79B070 ETJ79B071 ETJ79B072 ETJ79B073 ETJ79B074 ETJ79B075 ETJ79B078 ETJ79B079 ETJ79B080 ETJ79B081 ETJ79B082 ETJ79B083 ETJ79B084 ETJ79K002*806 ETJ79K002*F806 ETJ82B001 ETJ82B001A ETJ82B018 ETJ82B037 ETJ82B038 ETJ82B042 ETJ82B043 ETJ82B044 ETJ82B045 ETJ82B048 ETJ82K001*K806 ETJ82K002 ETJ82K002*F803 ETJ82K002*K803 ETJ82K002*K806 ETJ82K002*T803 ETJ82K002*T806 ETJ87B009U0E ETJ87B010U0E ETJ87B031 ETJ87B052 ETJ87B053 ETJ87B055 ETJ87B066 ETJ87K001*F806 ETJ92B017 ETJ92B026 ETJ92K001*803 ETJ92K001*F803 ETJ95B023 ETJ95B024 ETJ95B061 ETJ95B066 ETJ95B076 ETJ95B077 ETJ95B078 ETJ95B079 ETJ95K001*803 ETJ95K001*F803 ET-JH415610 ET-JH415647A ET-JL69310ST ET-JL69349/JL693#01 ET-JL69349STX1 ET-JLM503319X1ST#01 ET-JM714249/JM71#03 ET-L44610STV3 ET-L44649/L44610#01 ET-L44649STV4 ET-L68149/L68111#09 ET-LM11710STV4 ET-LM11749/LM117#02 ET-LM11749ST ET-LM11949/LM119#02 ET-LM11949/LM119#04 ET-LM501310ST ET-LM501349ST ET-LM503349AX2ST#01 ET-LM806649/LM80#01 ETM-01 ET-M38549/M38510ST ET-M88043/M88010ST ET-QT9F ET-T2ED045STPX1V1 ET-T2ED045X1EW ET-T5ED080STPX1V1 ET-T7FC055STV1
BEARING PICTURES

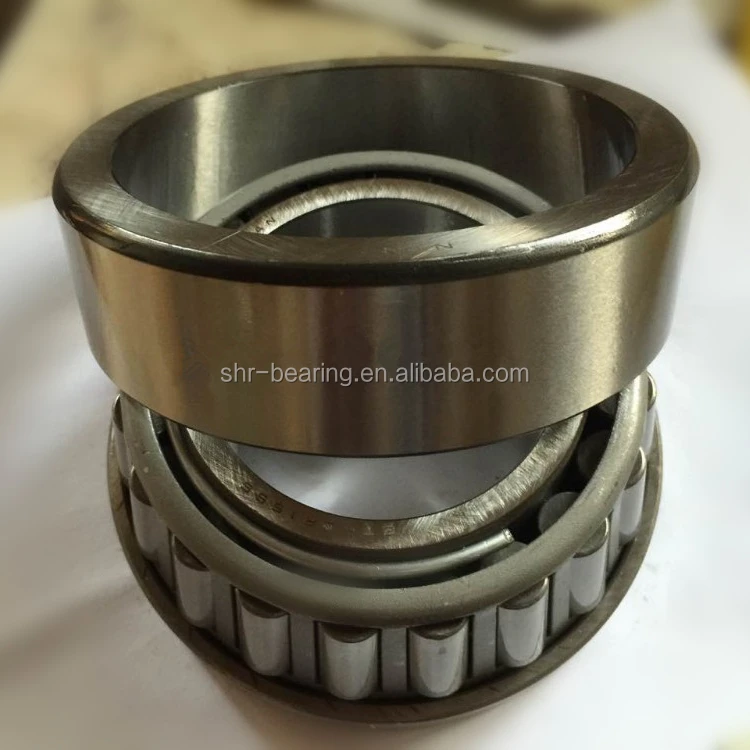

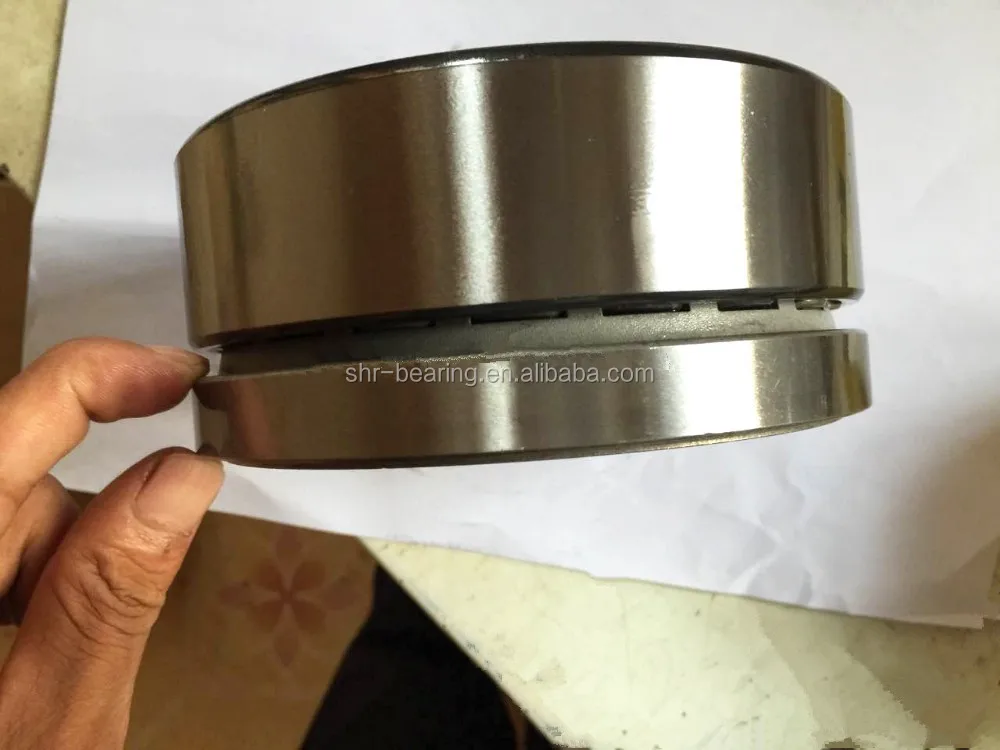

NTN Automotive Taper roller bearings CR-0740SATPX1 ET-CR-0740 SATPX1 pictures :
4T-30310 bearing Tapered Roller Bearing NTN
4T-30302 30302 4T30302R 4T-30203 4T-32203R 4T-30303 4T-32004X 4T-30204 4T-32204 4T-30304 32304 4T-32005X 4T-30205 4T-32205 4T-33205 4T-30305 4T-32305 33006 30206 4T-30206 32206 4-32206 33206 4T-30306 32306 4T-32306 32907 4T-32007X 4T-30207 30207 4T-32207 30307 4T-30307 4T-32307 32908 4T-32008X 4T-30208 4T-32208 4T-30308 32308 32308U 32909 32909XU 4T-32009X 30209U 4T-30209 4T-32209 4T-30309U 30309 32309U 32010XU 4T-32010 4T-32010X 30210 4T-30210 32210U 4T-32210 4T-30310 32310U 32011 4T-32011X 33111 30211U 4T-30211 32211U 4T-32211 4T-30311D 30311U 4T-30311 32311U 32012XU 4T-32012X 30212U 4T-30212 32212U 30312U 30312 32312U 32013XU 4T-30213 32213 30313 30313U 4T-30313 4T-30313D 32313U 32914XU 32014XU 4T-32014X 30214U 4T-30214 32214 32214U 30314 30314U 32314U 32015XU 4T-30215
32215U 32215 30315 30315D 30315U 4T-30315D
32315U 32016XU 30216 32216U 30316 32316U 32017XU 33017 30217 30317U 32317U 30218 32218U 30318U 32318U 32019XU 30219 32219U 30319U 32319U 32020XU 30220U 32220U 30320U 32320U 32021XU 32221U 30321U 32321 32022XU 30222 32222U 30322U 32322 32024XU 30224U 32224U 30324U 32324U 32026XU 32226U 32028XU 30228 32228U 32030XU 30230 32230U 32032XU 32034
BEARING PACKING
NTN Tapered Roller Bearing packing items :
1.For small ones:anti-rust oil+vacuum plastic bag+paper box+wooden box
2.For big ones:anti-rust oil+waterproof belt+professional belt+wooden box
4T-30310 bearing Tapered Roller Bearing NTN
BEARING APPLICATION
Application :
•Agriculture, Construction and Mining Equipment
•Various Axle Systems
•Conveyance Vehicles
•Gear Box, Engine Motors, Reducers
BEARING KNOWLEDGE
Know more about our bearings :
1. Inspection of bearing and judgment :
In order to determine whether removing bearings can be used to check after the bearings clean, carefully check the roller surface, scroll, status of the mating surfaces, wear of the cage, the increase in bearing clearance and there's no falling damage, abnormal size precision. Non-separation of small ball bearings, supporting inner rings with one hand horizontally, rotate the outer ring to confirm in a smooth rotation State. Tapered roller bearings are separable bearings, rolling element and the Raceway in the outer ring can be respectively checked. Larger bearings cannot rotate, check rolling element and the Raceway, cage, sidewall surface appearance. the importance of as high as possible shall be carefully inspected.
2. Basic knowledge for NTN bearings :
1. PREFIX
ET: NTN Endurance tapered roller bearings, case hardened material
4T: NTN 4-Top tapered roller bearings, case hardened material
E: Case hardened steel
T: Internationally interchangeable dimensions
2. SERIES
H: Heavy
HH: Heavier than heavy
HM: Heavy-medium
L: Light
LM: Light medium
M: Medium
ISO: Metric series 320X, 302, 322, 303 and 323
3. SUFFIX
A: Different bore, O.D., width or radius from basic part number
PK: Class K for J-Line
PXn: Special tolerance, n; from 1 onward
S: Different bore, OD, width or radius from basic part number
U: ISO series; internationally interchangeable through hardened
steel
W: Slot or keyway
X: Different bore, O.D., width or radius from basic part number
-0: AFBMA class 0
-00: AFBMA class 00
-2: AFBMA class 2
-3: AFBMA class 3
-4: AFBMA class 4
Contact with us :
==================================================================================
Shanghai Shengyue Bearing Co.,Ltd
Contact : Ms. Alice Xiong
Skype : alice.bear01
Tel:+86 18701870126
Email :shr0374(at)shr-bearing.net
Web://shr-bearing.en.alibaba.com/
Address: Room701,Yizheng Building,No.681 Xincun Road,Putuo District. Shanghai,China.
==================================================================================
