Tiantai 20 HL customized steam four vessel micro brewery brewing equipment nz
- Category: >>>
- Supplier: Shandong Tiantai Beer Equipment Co. Ltd.
Share on (60744136408):
Product Overview
Description
Tiantai 20 HL customized steam four vessel micro brewery brewing equipment nz
Introduction
A medium scale brewing equipment nz focuses on regional market. The capacity requested is not so high as large beer brewing system. Their beers are always sold on shelf in bottles or cans.We provide different types of medium scale microbrewery equipment to worldwide clients. The output is mainly 15KL, 20KL, 30KL, 50KL per working day. The complete setup of these breweries are in compliance with modern brewery standards and specifications. These products enable to do milling,mashing, fermentation, filteration, filling and other related processes. We subject each brewing system to strigent testing procedures before launching them in the market.
Specification
Output/Brew | 10HL | 12HL | 15HL | 20HL | 25HL | 30HL | 35HL |
Brews/Week | 6~12 | 6~12 | 6~12 | 6~12 | 6~12 | 6~12 | 6~12 |
Output/Week | 60~ 120HL | 72~ 144HL | 90~ 180HL | 120~ 240HL | 150~ 300HL | 180~ 360HL | 210~ 420HL |
Electric Supply | 3phase/380(220, 415,440)v/50 (60)Hz Single Phase/ 220(110, 240v)/50(60)Hz | ||||||
Heating Source | Steam/Directly Fired | ||||||
Area Request | >70M2 | >80M2 | >100M2 | >120M2 | >140M2 | >150M2 | >180M2 |
Brewmaster | 1 | 1 | 1 | 2 | 2 | 3 | 3 |
Note: 1hl=100liter; 1Gallon=3.7854liter; 1Barrel (BBL) =117Liter;
Configuration

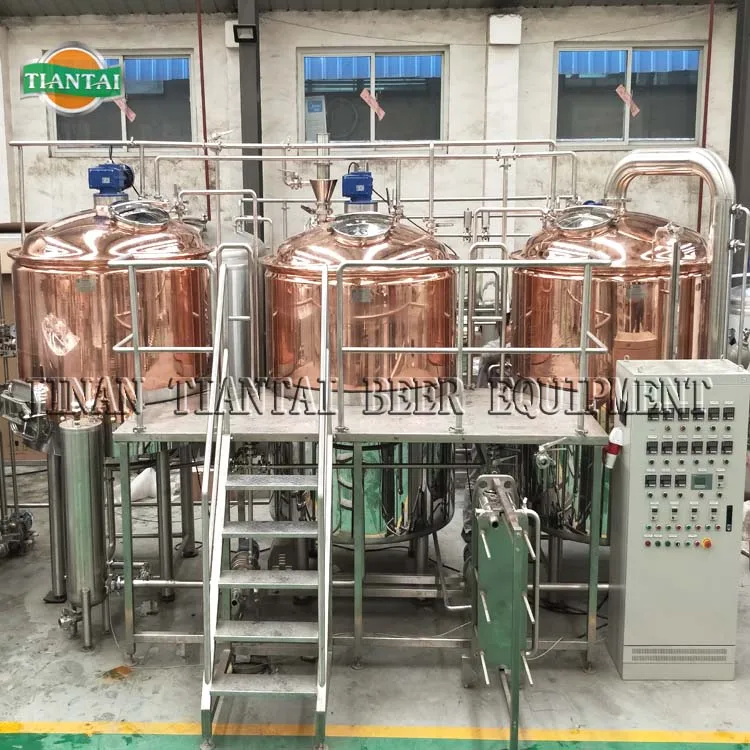

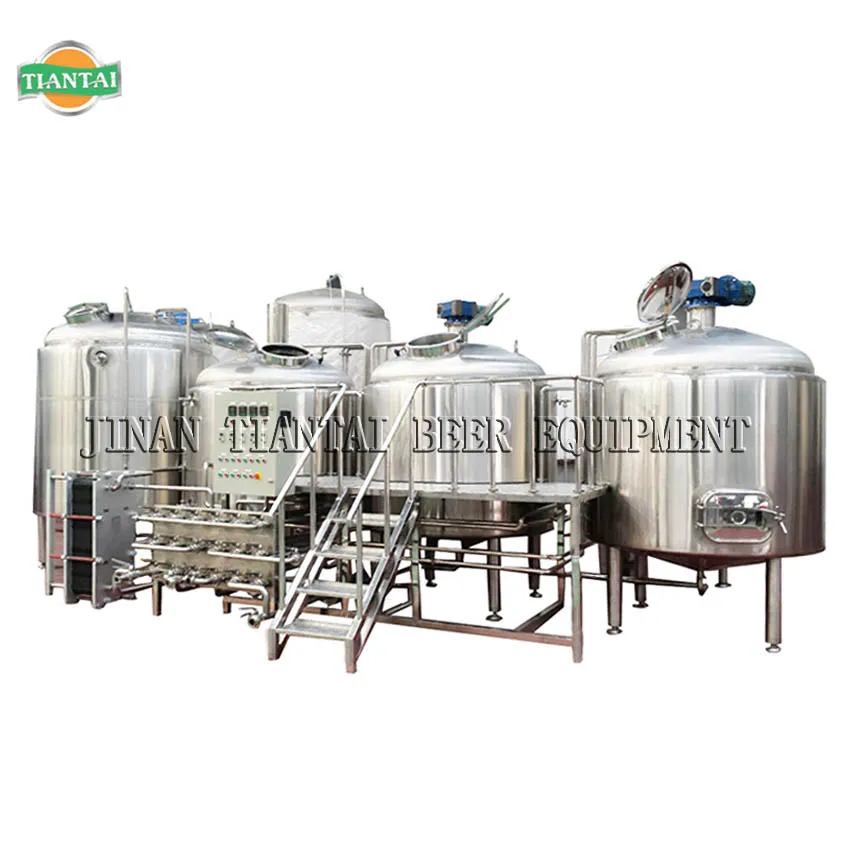

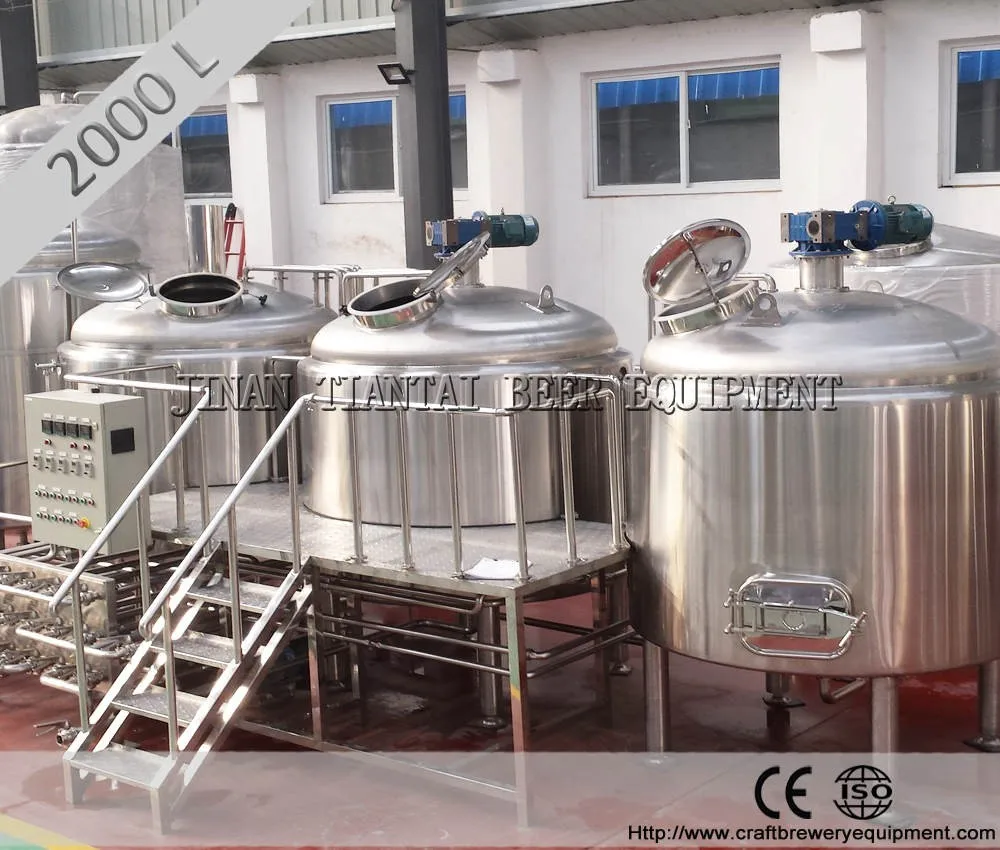

Brewhouse Unit
Mash tun, Lauter tun, Boiling Kettle, Whirlpool tun in various combination
Hot water tank and cold water tank for optional in special combinations
Infusion or decoction brewing methods are designed exactly
Stainless steel are popular because of easy maintenance and clean, copper cladding for optional
Two stages or single stage heat exchanger for wort cooling
Completely stainless steel integrated work platform
Sanitary and efficiency wort pump
All pipings and fittings
Fermentation Unit
Function:Wort Fermentation or maturation
100% TIG welding with pure argon gas shield
Interior Finish: Overall polishing to 0.2~0.4 μm without dead corner
Insulation: Polyurethane; TH=80mm
Glycol Jacket: Dimpled plate on cone and side
Stringent tank leakage test by water and pressured gas
Stringent Jacket leakage test by water and pressured gas
Dished head and 60 degree cone bottom
Sanitary side mounted manway
CIP arm with 360° coverage CIP spraying ball
CO2 blow-off arm with butterfly valve
Full sanitary sampling valve
Mechanical relief valve 2 bar on CIP arm
Shockproof pressure gauge on CIP arm
Rotating racking arm and port on cone with butterfly valve
Bright Beer Tank Unit
Standard stainless steel bright tanks for beer maturation, conditioning, service, carbonation
Single size or double size as fermenter is common used in restaurant or bar
Tanks quantity is exactly calculated for various beers and the function
All manhole, valves, stone, gauges, fittings etc are included
Cooling Unit
Insulated glycol water tank with or without copper coil for glycol liquid holding and mixing
Efficiency chillers or refrigerators with fryon to supply cooling energy
Sanitary centrifugal pump for glycol water recycle among tanks and heat exchanger
All pipes, fitting, insulation materials are included
Controlling Unit
Electrical controlling cabinet with temperature, on-off controlling for brewhouse
Electrical controlling cabinet with temperature, on-off controlling for cooling parts
Temperature controller, thermocouple, solenoid valves etc are included
PLC with touch screen panel for special request

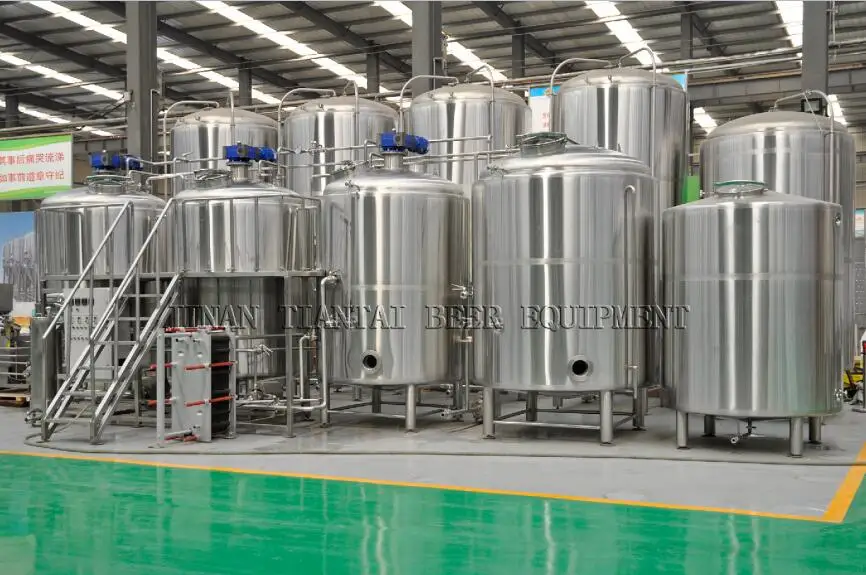

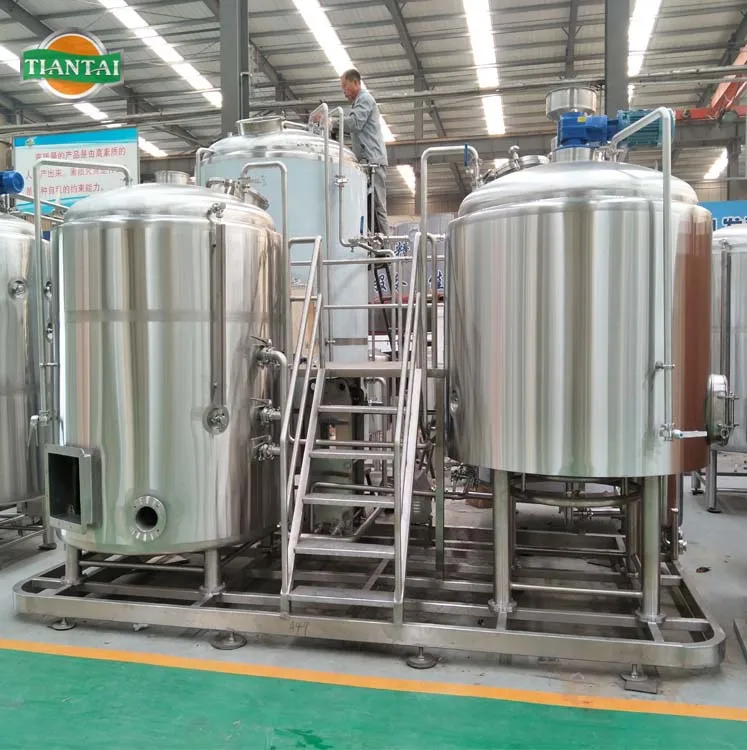

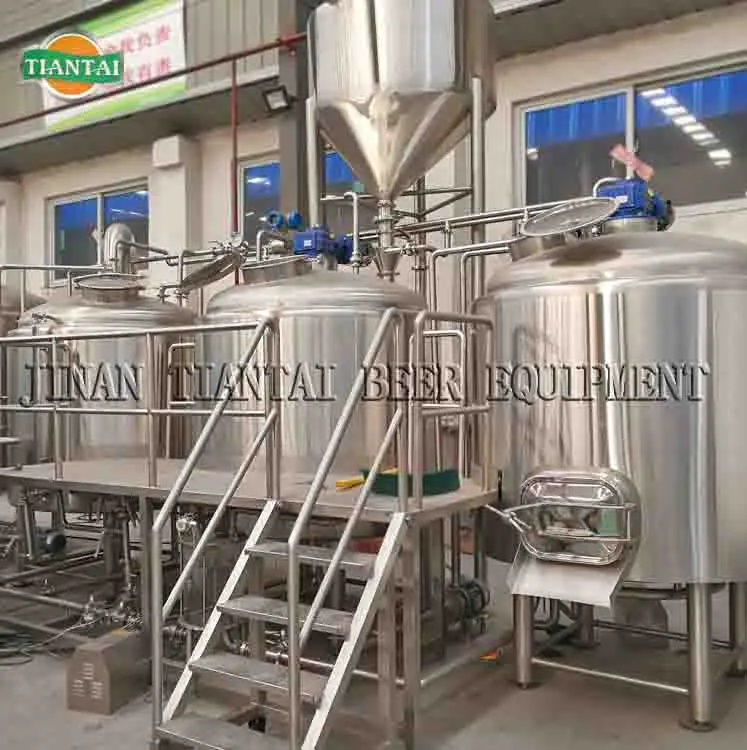

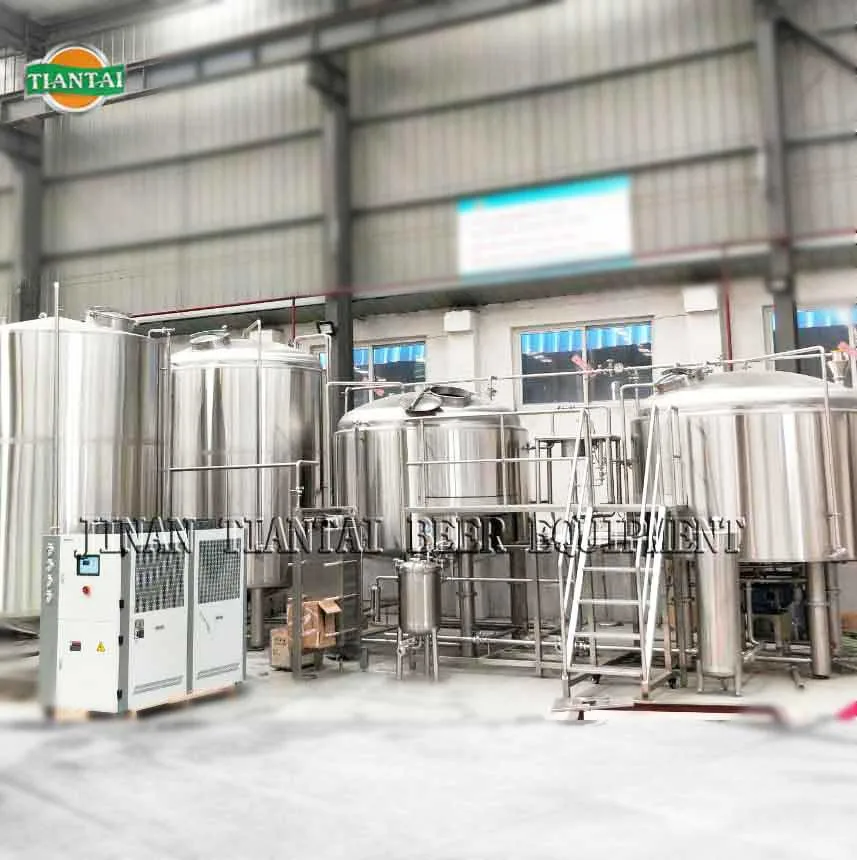

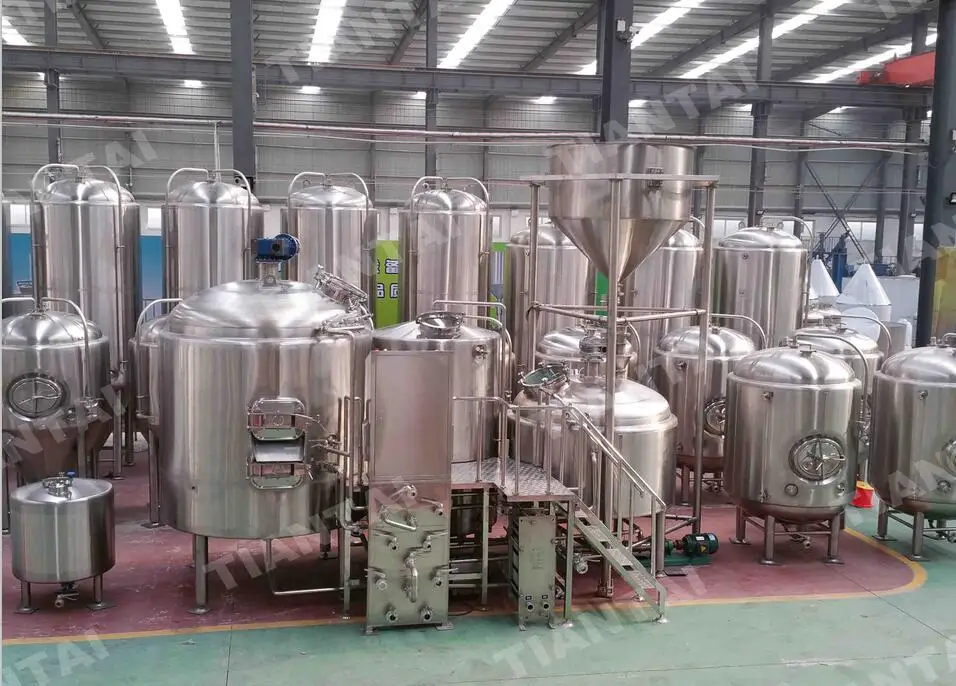

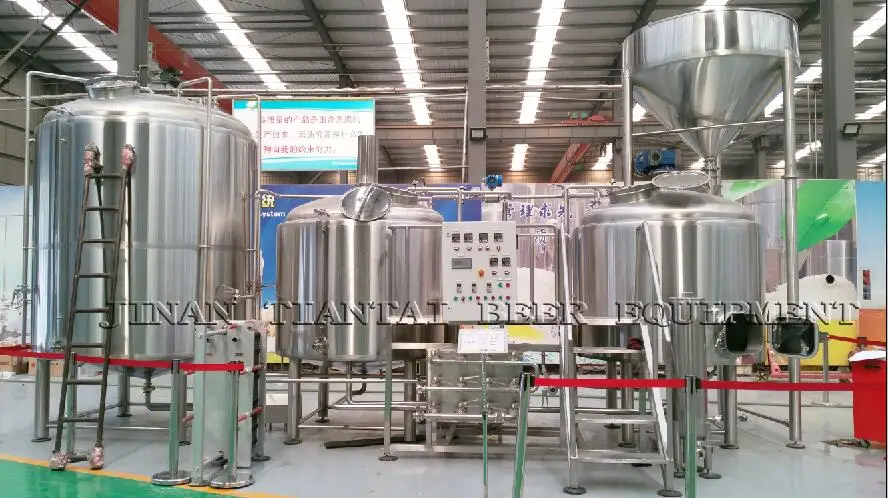

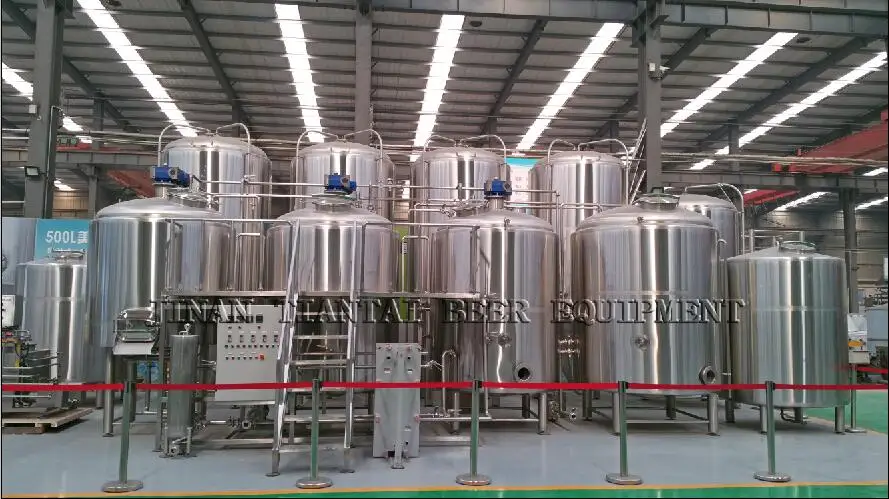

Pictures show

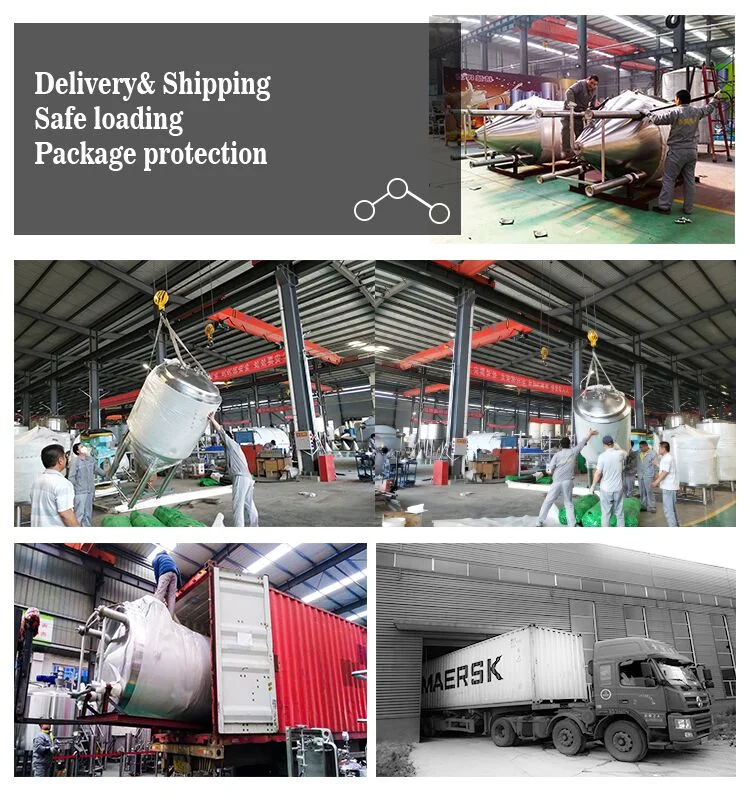

Packaging & Shipping
Our Services
| Service&Guarantee | ||||||
| a.) Free consultation service before, during, and after sales; | ||||||
| b.) Project planning and design services; | ||||||
| c.) Free debugging instruction of equipment until everything is functional; | ||||||
d.) Management of equipments' long distance shipping from seller's factory to named port or station by buyer; | ||||||
| e.) Training of equipment maintenance and operating personally; | ||||||
| f.) New production techniques; | ||||||
g.) Provide 36 months complete warrantee for tanks body and life-time maintenance service; All of the accessories and auxuliaries facilities are guaranteed for one year; The seller is responsible for the nature damage of the machinery in the warranty period except for man-made damage. All spare parts and wearing parts are attached with the machinery for free. |
