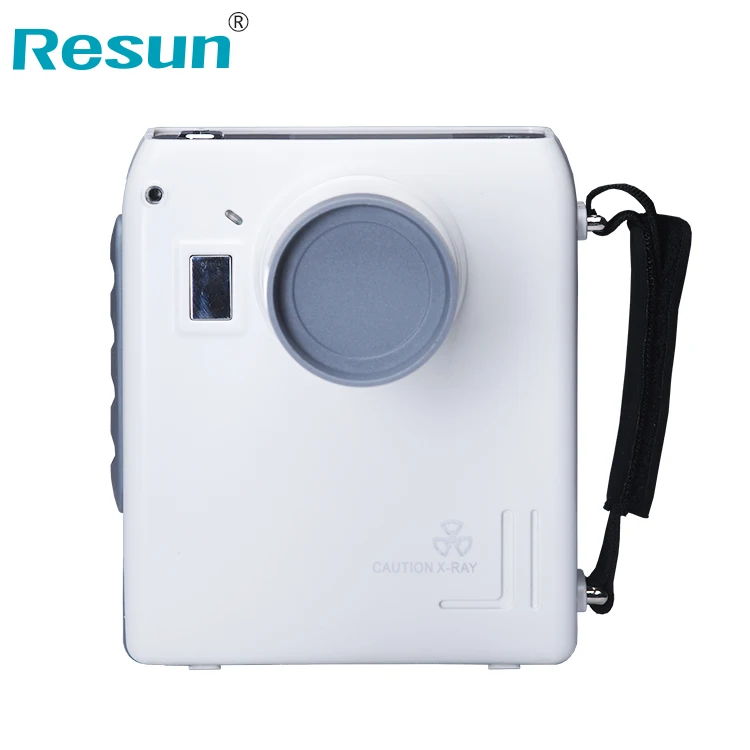

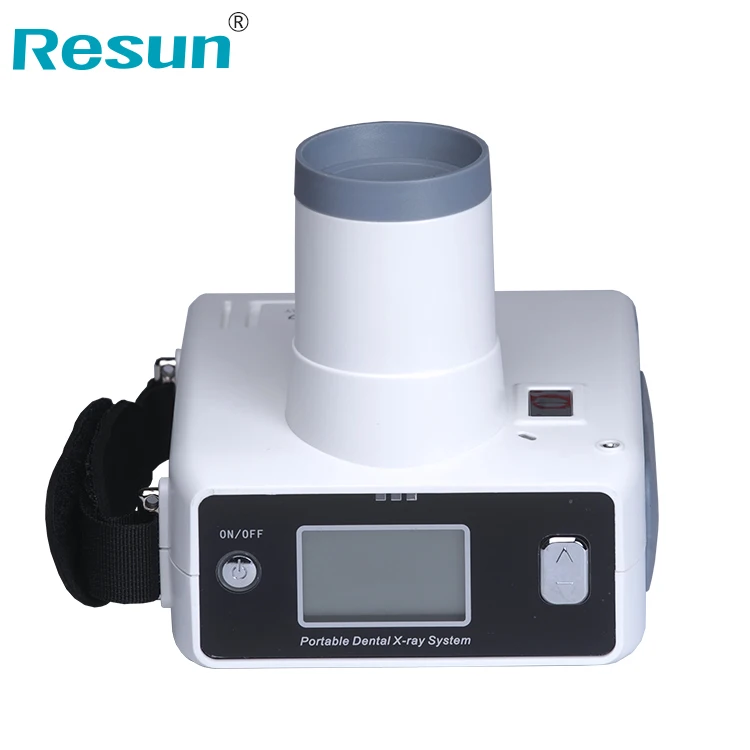

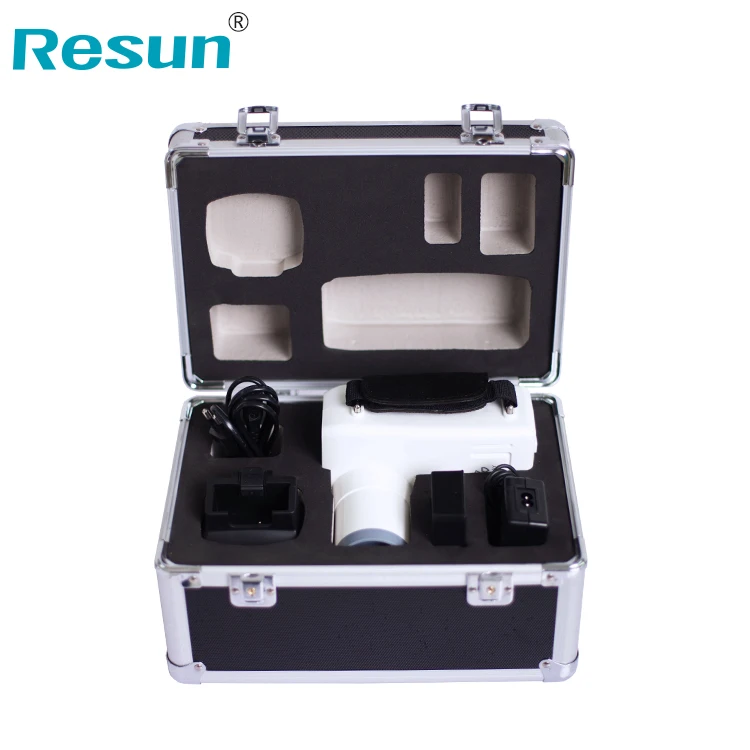

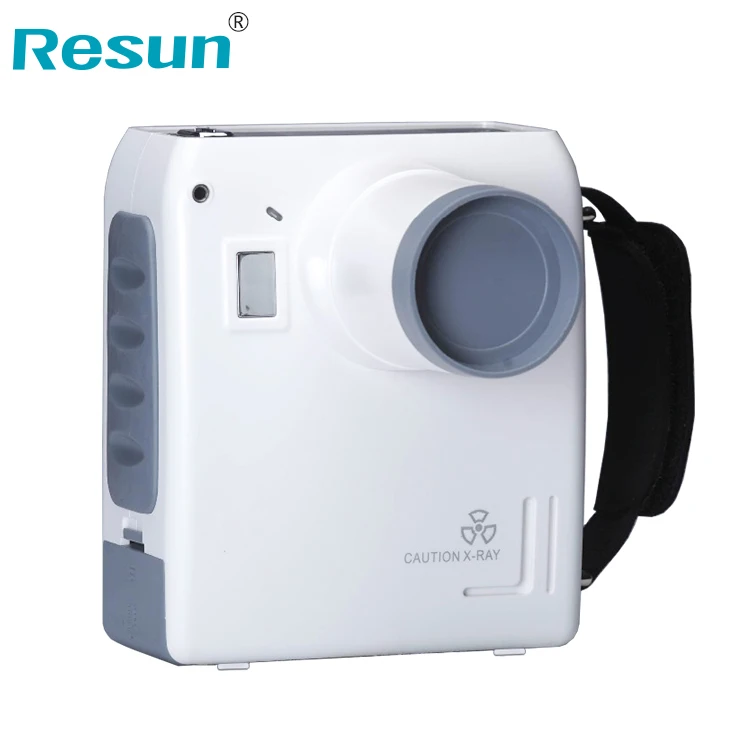

portable dental x ray machine digital xray machine

Product Overview

Description

CE approved dental x ray machine/dental x ray unit



Technical specifications:

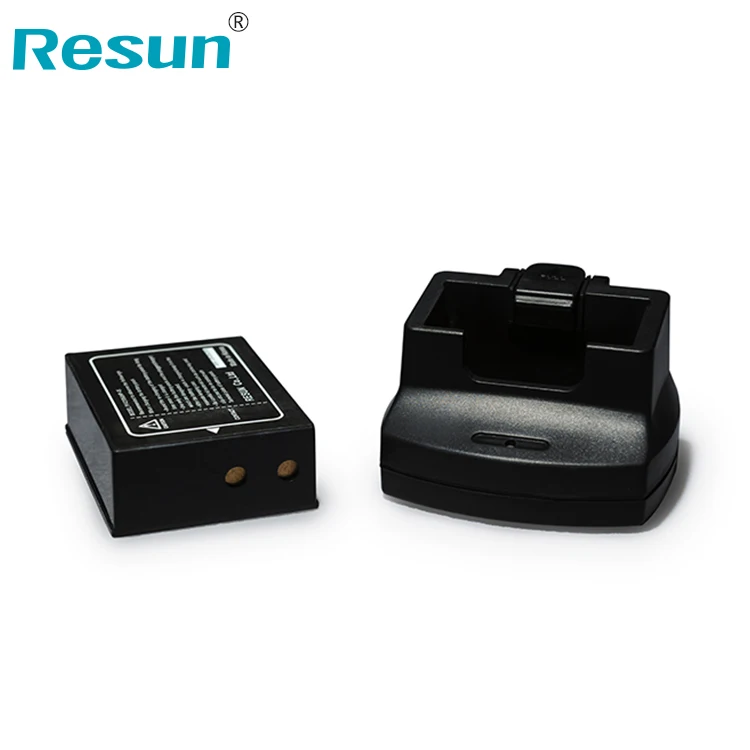

Rechargeable Lithium Polymer battery:24V

Maximum battery charge:25.2V

Battery current at 2mA,60KV output:10A

Power supply:JBL7451250750100FJ,Bridge Power Corp.

Input:AC100-240V,50-60HZ 1.0A

Output:DC25.2V,0.75A

Cable length of DC output:1550mm

Cable length of AC input:1550mm

Cable length of remote controller:3000mm



X-Ray control and Generator

Exposure time range:0.01-1.6sec

Maximum duty cycle:1:60

Maximum inherent filtration:1.6mm Al

Maximum output power:120W nominal at 60KV,2mA

Generator rating:2mA at 60KV±5%

Leakage technique factors:60KV,2mA,1.6sec



  This portable dental X-ray unit is high frequency machine. The body is small, light weight and nearly no radiation. It has excellent image quality, portable storage, save nore space. It uses high frequency and DC international power supply. All of the components installed in the central PC board concentrated. Shock, set-up, electron tubes, all of them are insulation vacuum, sealed stereotype protection. There are also manual buttons installed on the surface of shell, as well as batteries and charges. This unit mainly suitable for oral pre-treatment for learning internal organizational structure, root canal therapy, dental implant and so on, is indispensable in daily life clinic equipment, especially for dental implant surgery. It also can connect with sensor, is great convenience.
