Product Overview

Description

Products Name

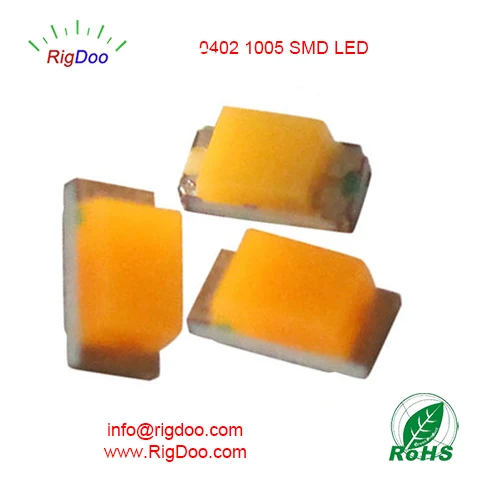

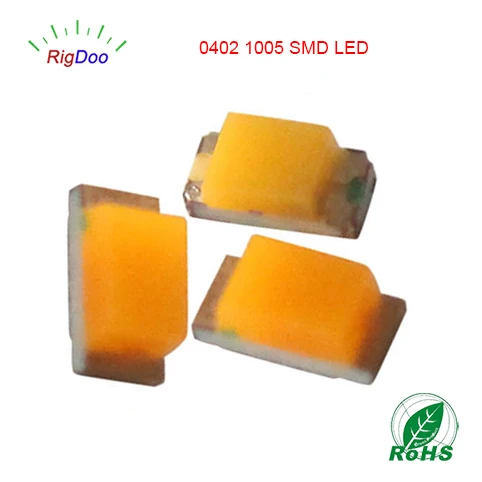

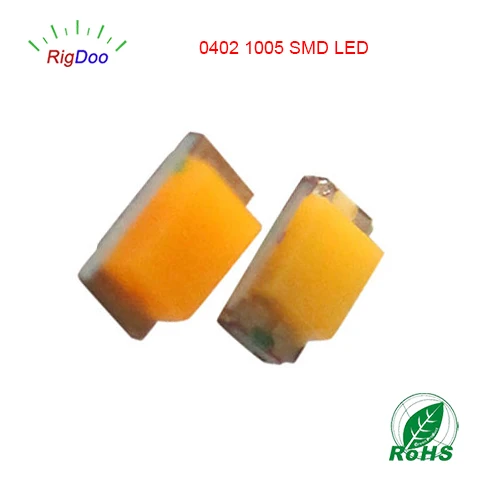

Micro 1005 White SMD Diode 0402 LED Chip Factory

0402 1005 LED chip Manufacturer, China LED Producer, China Diode LED Factory, 0402 White LED Chip Whotesale, White Diode LED Exporter

Products Description

Features

Package ( L/W/H ) : 1.0×0.5×0.4 mm
Color : Ultra High Bright White
Lens: Diffused Flat Mold
EIA STD Package
Meet ROHS, Green Product
Compatible With SMT Automatic Equipment
Compatible With Infrared Reflow Solder Process

Package Profile & Soldering PAD Suggested

Absolute Maximum Ratings At Ta=25℃

Parameter
Symbol
Rating
Unit
Power Dissipation
Pd
75
mW
Peak Forward Current
(1/10 Duty Cycle, 0.1ms Pulse Width)
IFP
25
mA
DC Forward Current
IF
20
mA
Reverse Voltage
VR
5
v
Operating Temperature Range
Topr
-40C ~ + 85C
Storage Temperature Range
Tstg
-40C ~ + 100C
Soldering Condition
Tsol
Reflow soldering : 260C For 5 Seconds
Hand soldering: 300C For 3 Seconds

Electrical Optical Characteristics At Ta=25℃

Parameter
Symbol
Min.
Typ.
Max.
Unit
Test Condition
Luminous Intensity
IV
600

3000
mcd
IF = 20mA
Viewing Angle
2θ1/2
---
120
---
deg
IF = 20mA
CIE 1931 Coordinate
X/Y
---
X:0.29 Y:0.29

nm
IF = 20mA
Color Temperature
CCT
--2800-

--12500-
K
IF=20mA
Forward Voltage
VF
2.8
---
3.6
V
IF=20mA
Reverse Current
IR
---
---
5
uA
VR=5V

Packing


Applications

Backlight for Indicator Board

   Backlight for Automobile Meter

Backlight for Digital and Marks

Backlight for Digital ,words and Marks

Indicator Application

Backlight for Keyboard and Nameplate

Certificates
Company information

Company Profile

         Shenzhen RigDoo Optoelectronics Co., Ltd is awarded High-Tech enterprise by China. It is one of the leaders in LED field in China, with more thShenzhan 10  years experience in LED industry, with most advanced equipment from Japan, Singapre, Hong Kong , ASM, K&S, DISCO, Singlewell etc., with production capacity of 300KK units each month, with our own industrial park in Shenzhen, China.
         RigDoo specially R&D, manufacture and sale LED, SMD LED, DIP LED (Lamp LED, Through Hole LED), LED Display Screen, LED Screen Module and  LED Lights, Good Quality, Competitive Price and Good Service!
         For LED, we have SMD LED and DIP LED (Lamp LED, Through Hole LED).
         For SMD LED, we have package 0402, 0404 (1010), 0603 (1608), 0605 (1615), 0805 (2012), 1206 (3216 3215), 1204 (3210), 3014, 3020, 3528 (1210), 2835, 5050 (5054), 5630 5730, Top View & Side View, in Single Color, Bi-color and RGB Full color, Red, Blue, Green, Yellow, Orange, White, Warm White, Purple, Pink, Red/Blue, Red/White, Red/Green, Red/Yellow, Blue/Green, Yellow/Green, RGB full color etc. with certificates of RoHS, CE, UL, SGS etc..
         For High Power LED, we have 1-300W, White, Red, Green, Yellow, Blue, Orange, Bi-Color, RGB etc.
         For DIP LED (Lamp LED, Through Hole LED), we have 3mm 5mm round single color, bi-color and RGB, Red, Blue, Green, Pure Green, Yellow, Orange, White, Warm White, Purple, Pink, Red/Blue, Red/Green (Common Anode & Common Cathode), RGB full color etc. with certificates of RoHS, CE, UL, SGS etc..
         For LED Display Screen and Modules, we have Surface Mount and Through Hole Indoor and Outdoor Display Screen and Modules P2, P2.5, P3, P4, P5, P6, P8, P10, P12, P16 and P20, RGB, Bi-color and Single Color.
         For LED Lights, we have LED Tube, LED Lamp, LED Spot light, LED Street Light etc..
         Our factory are with certificates of ISO9001 and ISO14000.
         Our products are with certificates of RoHS, CE, SGS, Reach Test etc..
FAQ

Q1. Can I have samples order for LED?
Yes, if quantity is small, we can supply samples free of charges. Just you need pay for shipping cost. It is better that you have account number of DHL, TNT, UPS, FedEx or Aramex. If you have no it, you could pay us shipping cost and we ship the samples via DHL, TNT, UPS, FedEx or Aramex.
Q2. What about the lead time?
If we have the products in our stock, lead time is 3-5 days. If we need special production, lead time is around 15 days.
Q3. Do you have any MOQ limit for LED order?
Yes, normally, MOQ is SPQ, Standard Packing Quantity.
Q4. How do you ship the goods and how long does it take to arrive?
Normally we ship the goods via international express. It is better that you have account number of DHL, TNT, UPS, FedEx or Aramex. If you have no it, you could pay us shipping cost and we ship the products via DHL, TNT, UPS, FedEx or Aramex. It takes around 2-6 days to arrive. And we can also ship the goods to your agent in China Mainland or HongKong.
