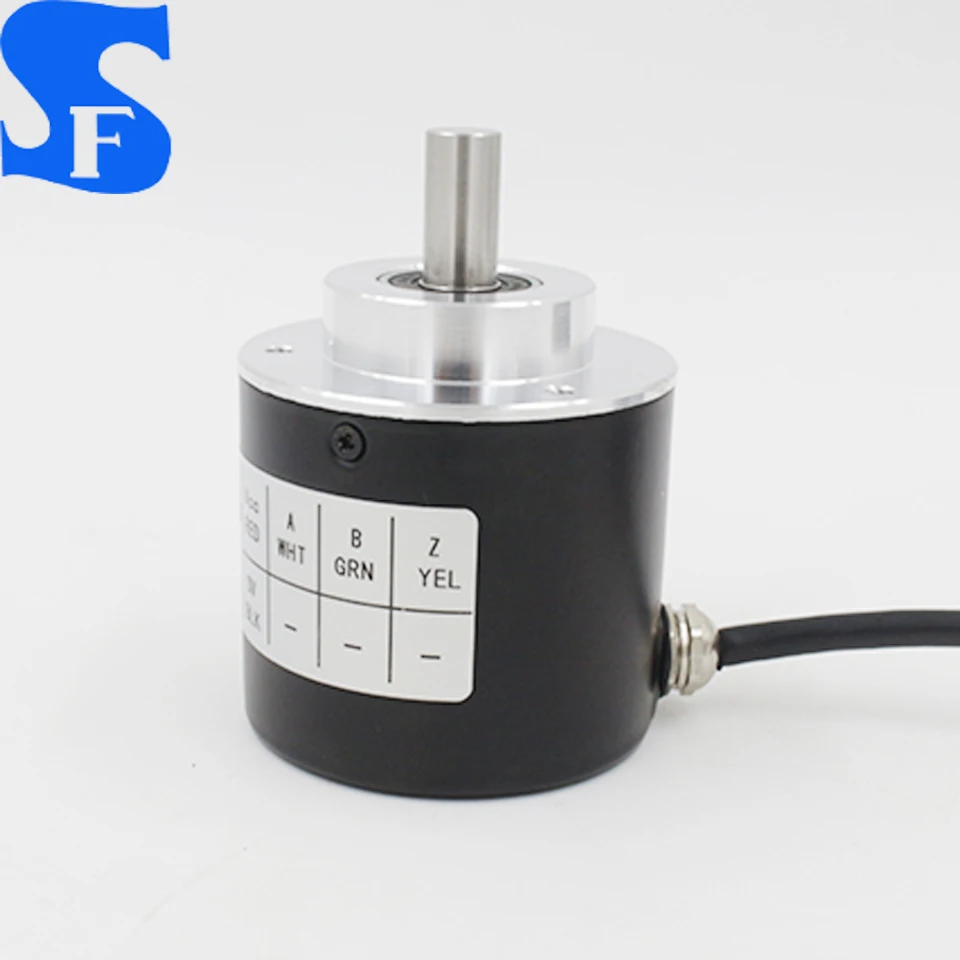

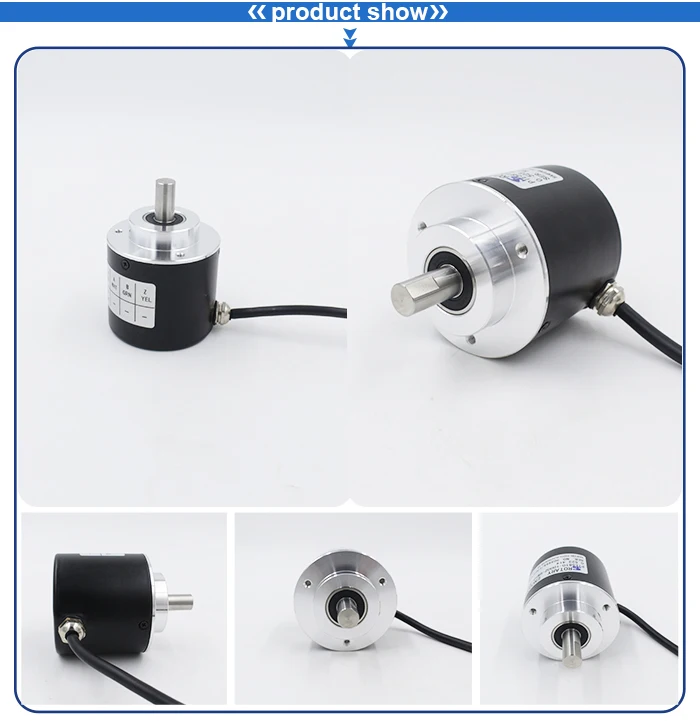

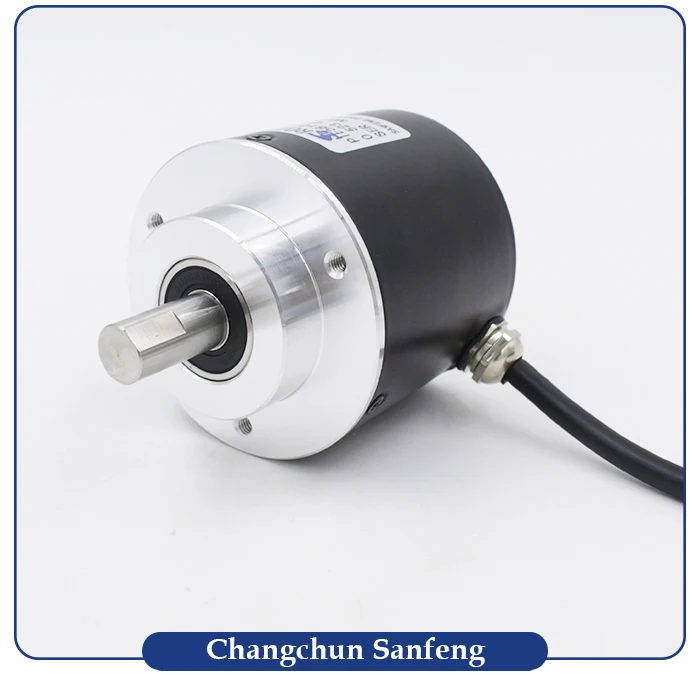

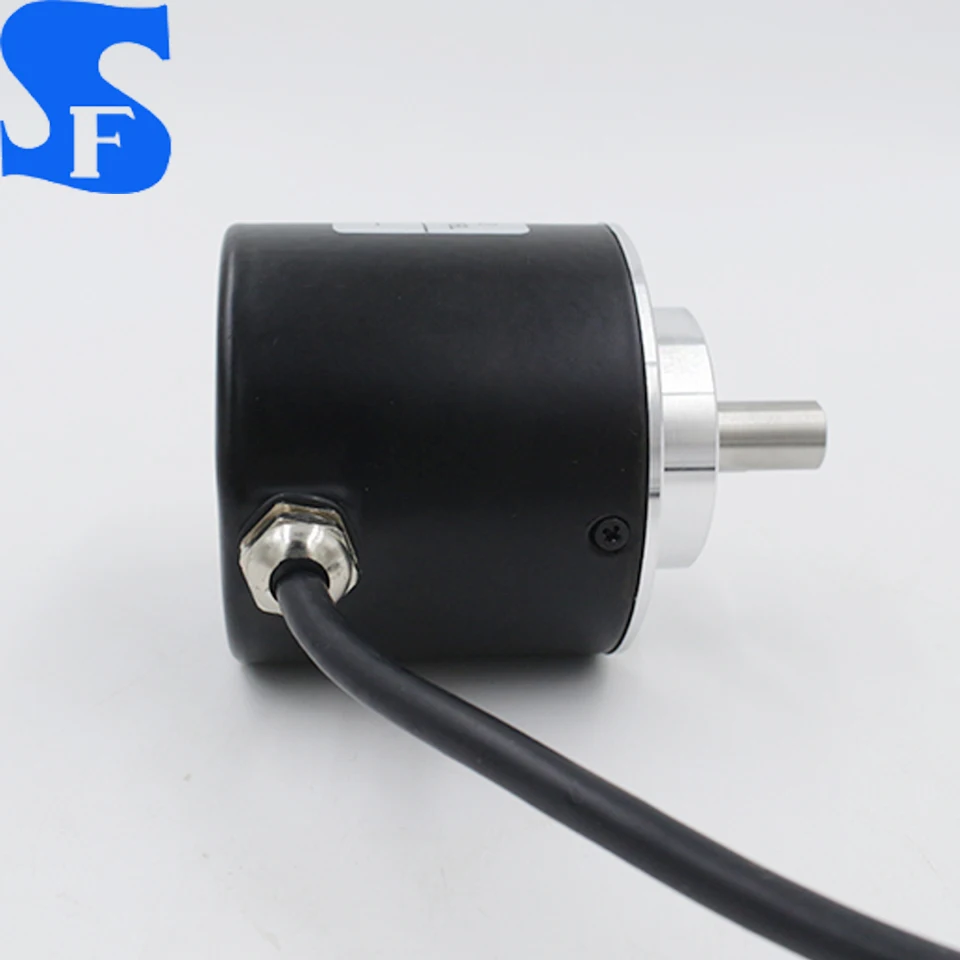

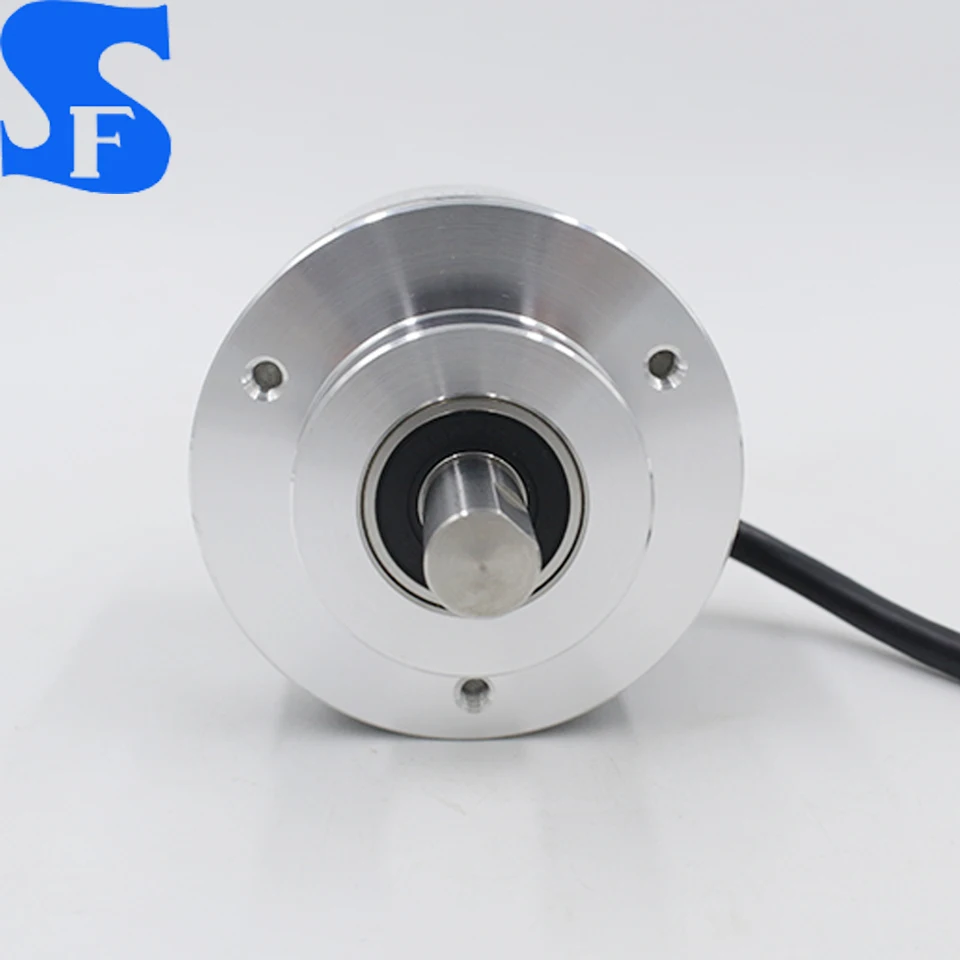

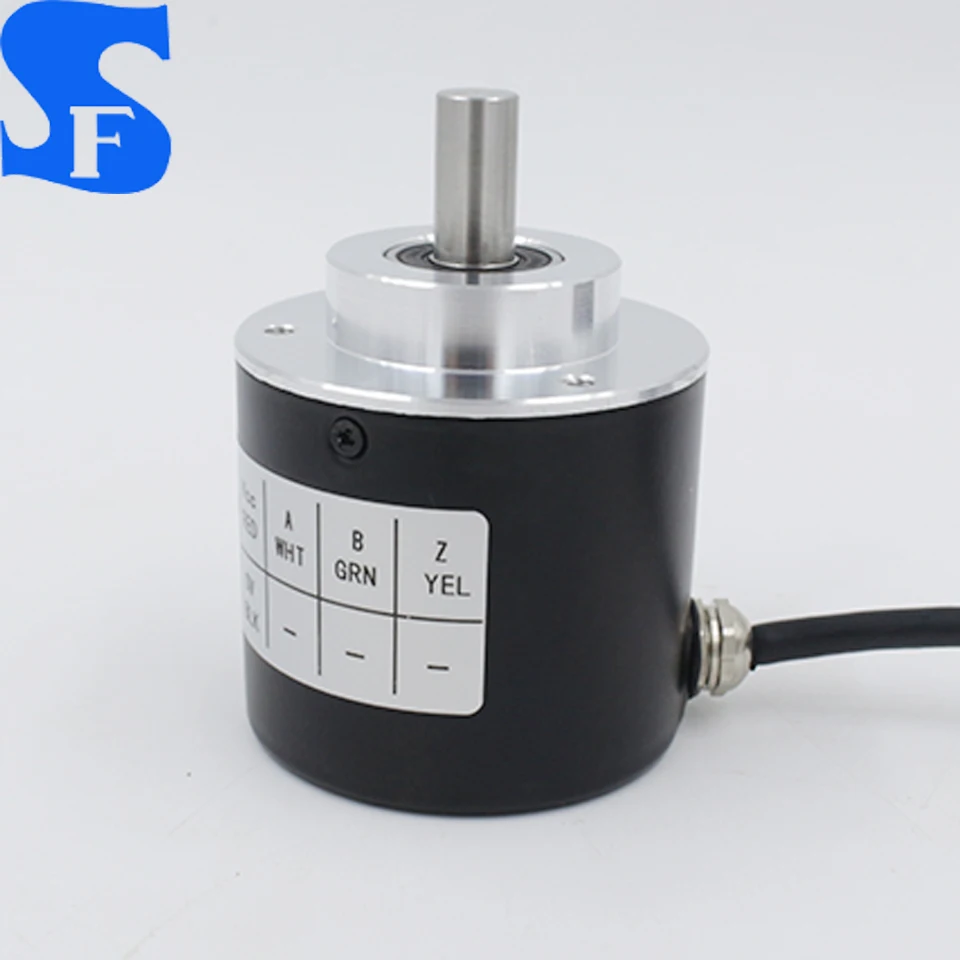

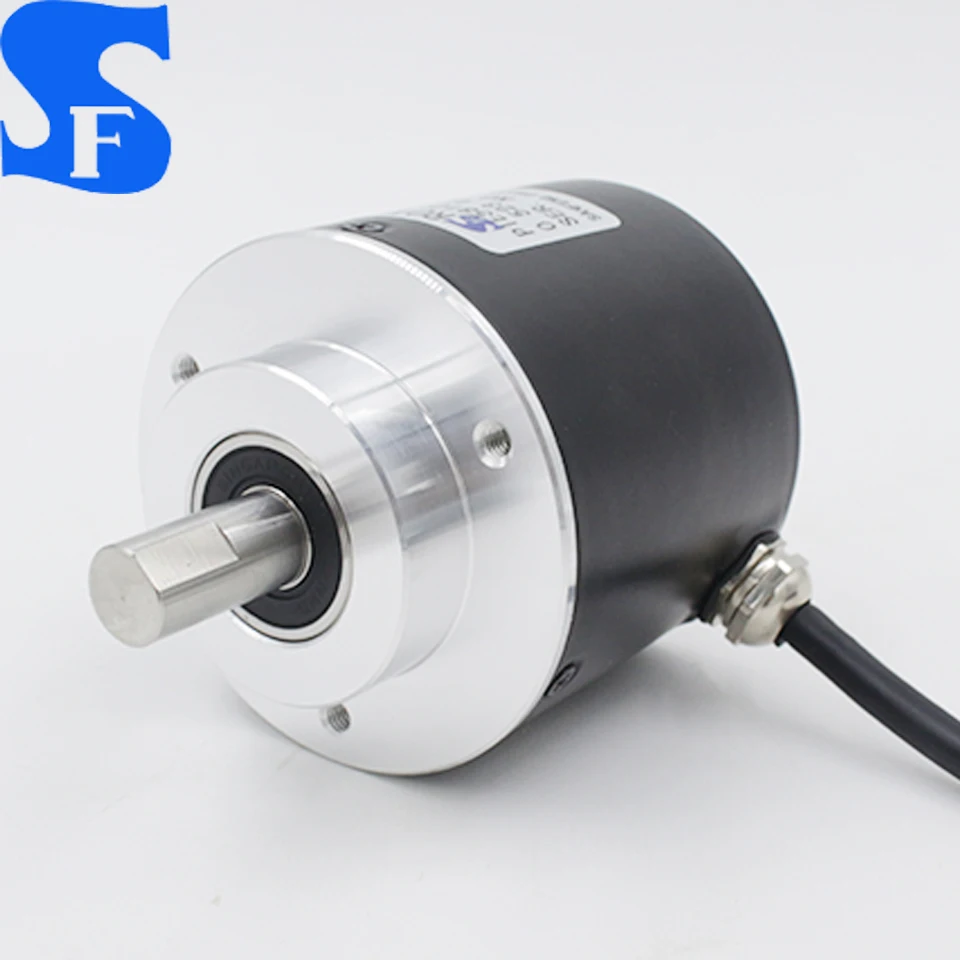

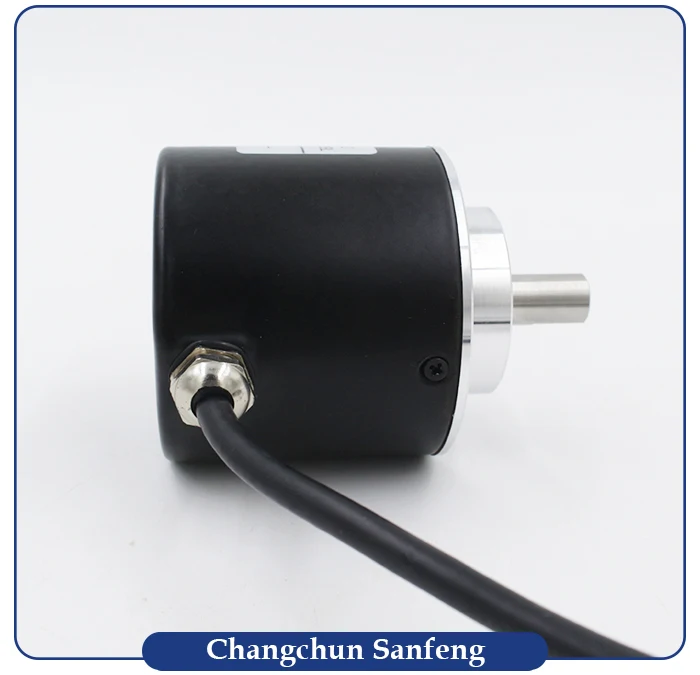

instead of autonics E50 series rotary encoder with good quality

Resolution

500~10000P/R

Supply Voltage

DC5V / DC 10V~30V

V_H  Output Voltage

≥Vcc*70%

V_L Output Voltage

≤0.5V

Current Consumption

≤150mA

Output Phase

A.B.Z

Frequency Response

100kHz Max

Rise / Fall Time

≤1μS / Driver≤0.1μS

Starting Torque

3*10^-3N*m(+25℃)

Shaft Loading

Radial

40N

Axial

20N

Rotating Inertia

4*10^-6Kg*m²

Max Rotating Speed

5000r/min

Vibration Resistance

50m/s²(10~200Hz)(2Hours in XYZ Direction)

Shock Resistance

980m/s²(3 Times in XYZ Direction) Continue 6mS

Protection

IP54

Operating Temperature

-10℃~+70℃

Storage Temperature

-20℃~+80℃

Operating Humidity

30~85%RH

Weight(no cable)

0.35Kg

Accessories

SE/PE Coupling

Cable Color

Red

Black

White

Green

Yellow

Blue

Pink

Brown

Shield

Output Form

C/E/F

VCC

0V

A

B

Z

-

-

-

FG

T

VCC

0V

A

B

Z

A(_)

B(_)

Z(_)

FG

7 Core Socket Subscript

1

7

3

4

5

6

9 Core Socket Subscript

4

3

1

2

5

8

9

6

7

Are you a trading company or a manufacturer?

We are a manufacturer of 20 years experience.

Do you accept OEM brand?

Accept large OEM brand customers, or a large number of customers.

Does your product have a factory inspection?

Every product we send is strictly factory inspection.

How long will you ship the goods?

Our delivery time ranges from 3 days to 3 weeks.

Can you provide free samples?

Regular products provide samples according to the original price. Customized products are provided at cost price.

What kind of packing do you send?

We use high-quality corrugated paper packing box, internal environmental protection buffer material.

What is our loading port?

Dalian port, or apply for other ports.

How long is your quality guarantee period?

The guarantee period for our products is one year.
