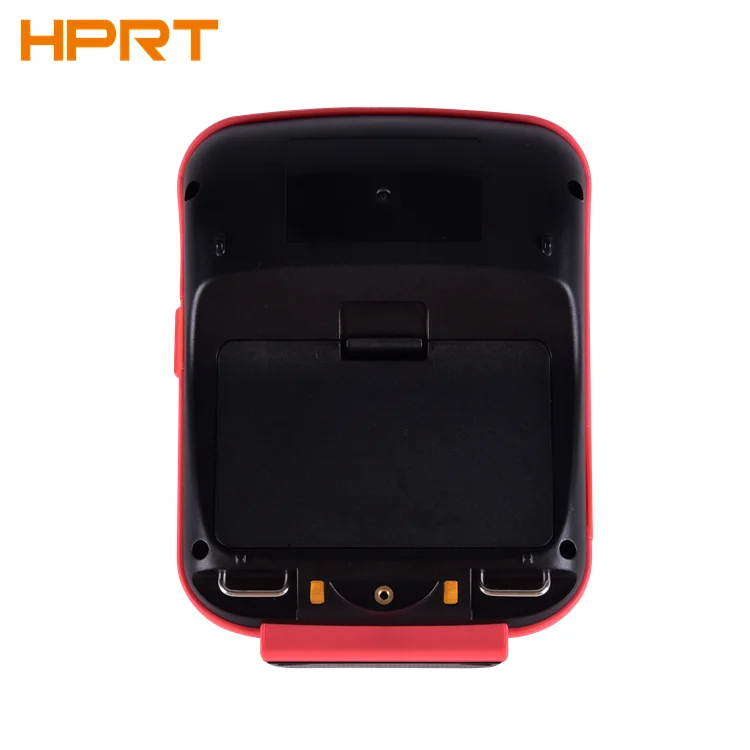

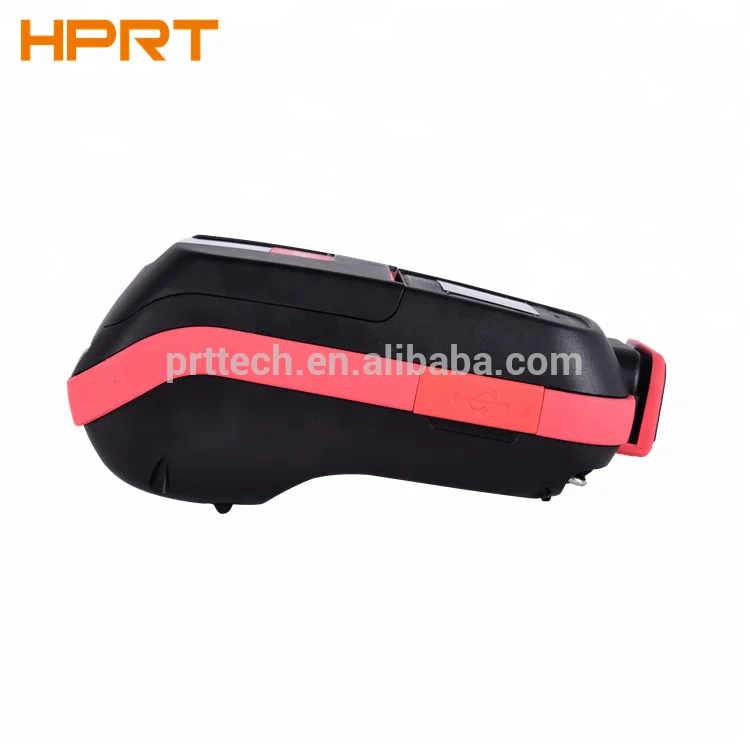

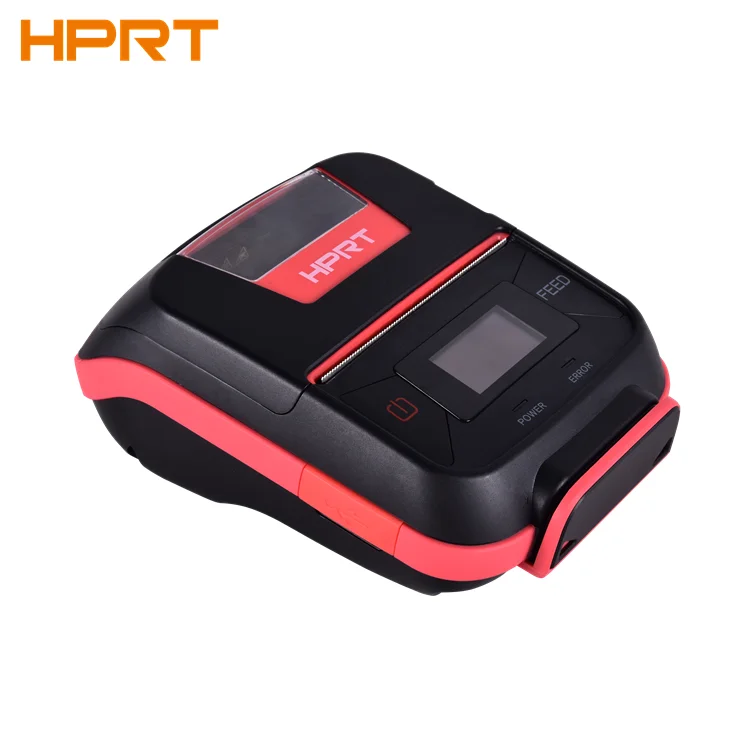

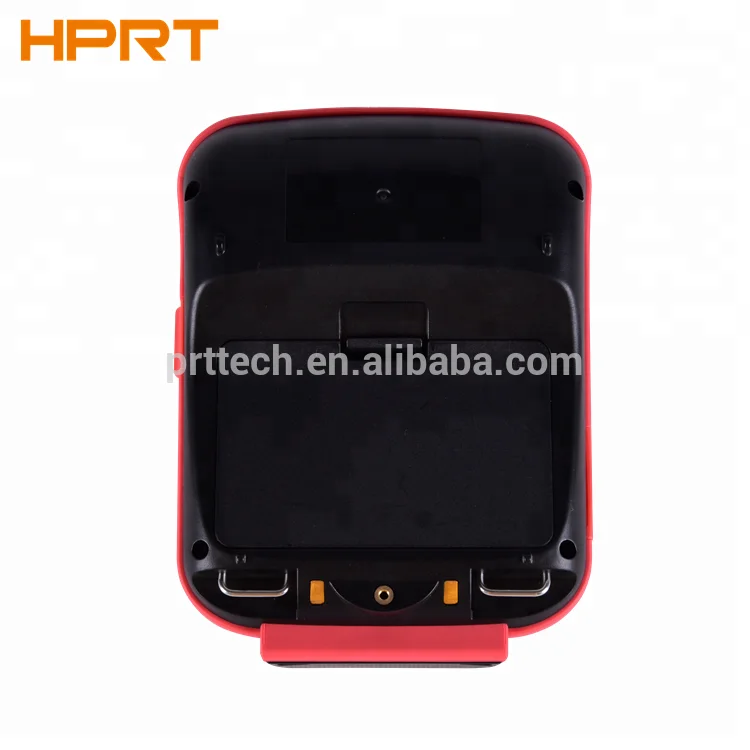

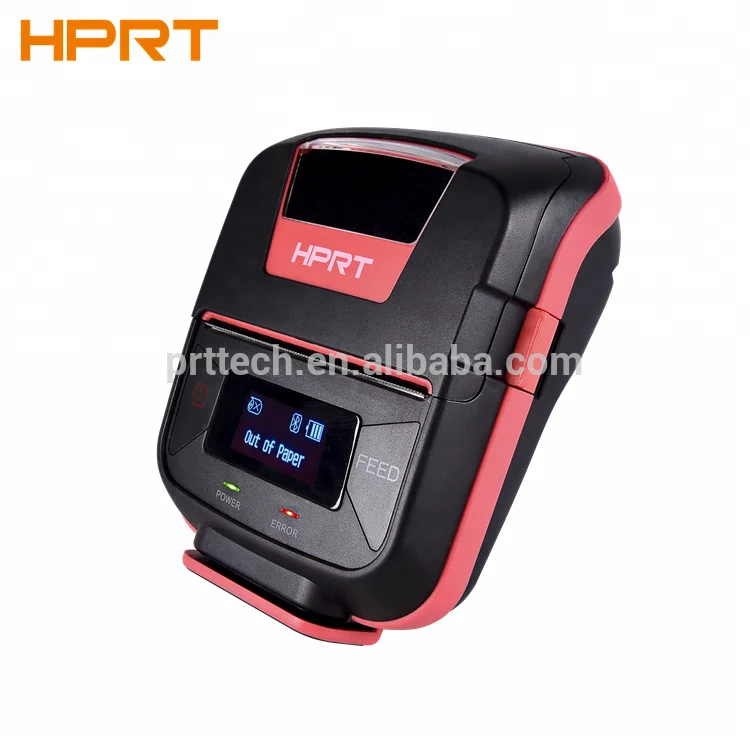

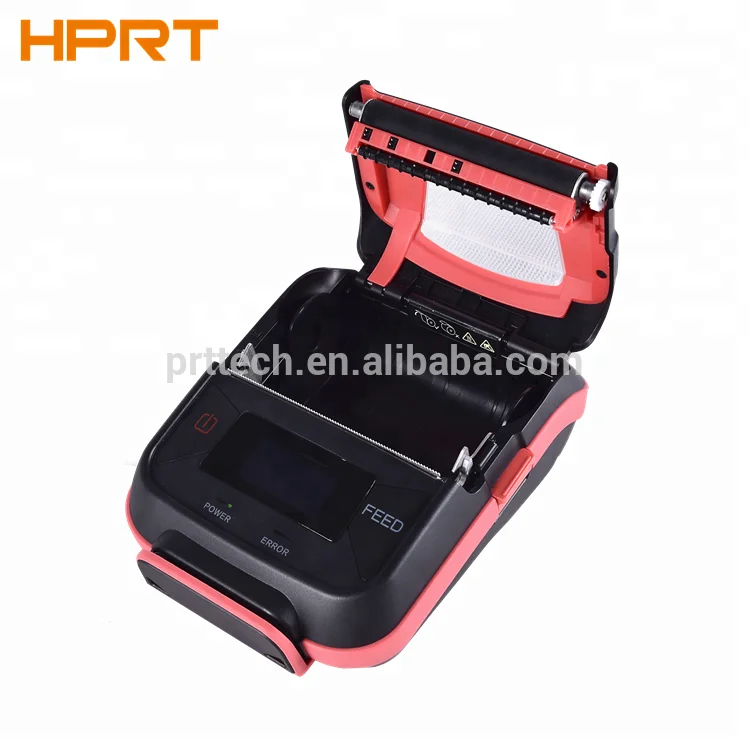

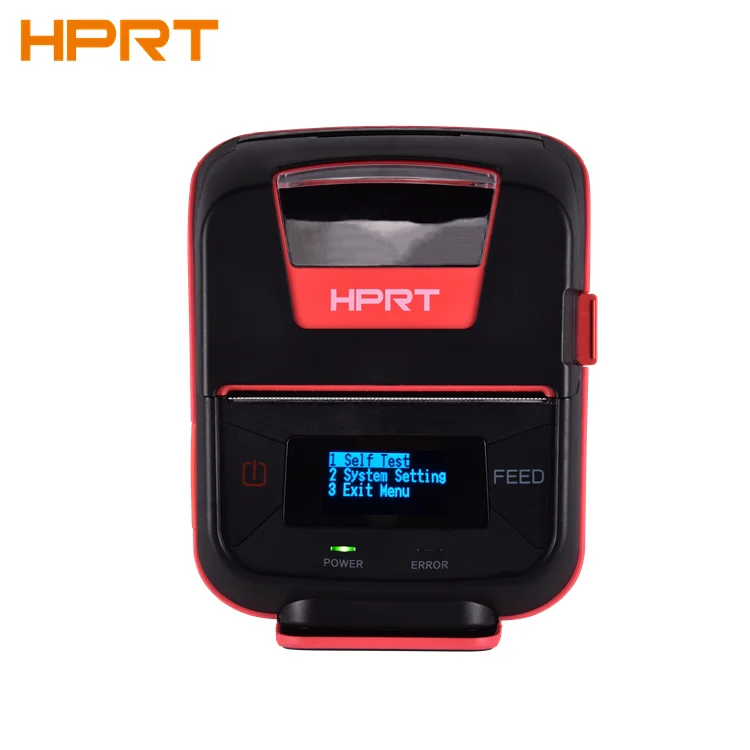

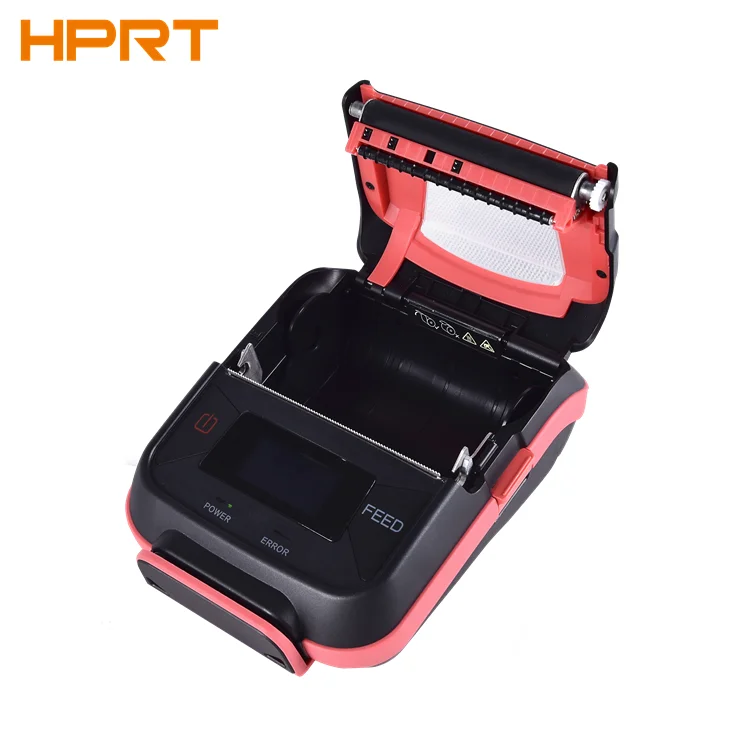

HM E300 3 Inch Android Micro Mobile Receipt Printer

HM-E300

Printing

Print Method

Direct Thermal

Resolution

203 dpi (8 dots/mm)

Print  Speed

Max.70mm/s

Print Width

72 mm

Interface

USB, Bluetooth3.0/4.0

Power Saving

Sleep Mode

YES

Memory

RAM

4 MB

Flash

8 MB

Programming Language

ESC/POS

Fonts

Alphanumeric; Simplified Chinese, Traditional Chinese; 42 International Character Sets

Barcode

Linear Barcodes

UPC-A, UPC-E, EAN-8, EAN-13, CODE39, ITF, CODEBAR, CODE 128, CODE 93

2D Barcodes

PDF417, QR Code

Graphics

Support bitmap printing with different density and user defined bitmap printing

Interface

Standard

MicroUSB, Bluetooth 3.0/4.0

Option

N/A

Sensors

Standard

Paper out Detector, Cover open Detector, Black mark Detector, Gap Detector

Option

N/A

LED indicator

Power

Green

Error

Red

Power

Input

AC 100 ~ 240 V, 50/60 Hz

Output

DC 5V, 1A

Battery

7.4V rechargeable Li-polymer battery, 2300mAh

Paper

Type

Continuous paper, black mark paper, linerless label, gap label

Width

80 mm

Thickness

0.053 ~ 0.13 mm

Diameter of Paper Roll

Max. Φ50 mm (O.D)

Paper Loading

Easy loading mechanism

Physical Characteristics

Working Condition

-5°C ~ 50°C, 25% ~ 85% R.H, no-condensing

Storage Condition

-30°C ~ 60°C, 5% ~ 95% R.H, no-condensing

Dimension

138.8(L)×106.3(W)×61.2(H) mm

Weight

476 g

Options and Accessories

USB Cable, Belt Clip, Docking Cradle, Paper Roll, Quick Start Guide, CD

Software

Driver

Windows XP/ Vista/ 7/ 8/ 10; Linux

SDK

WinCE, Windows Mobile, Android
