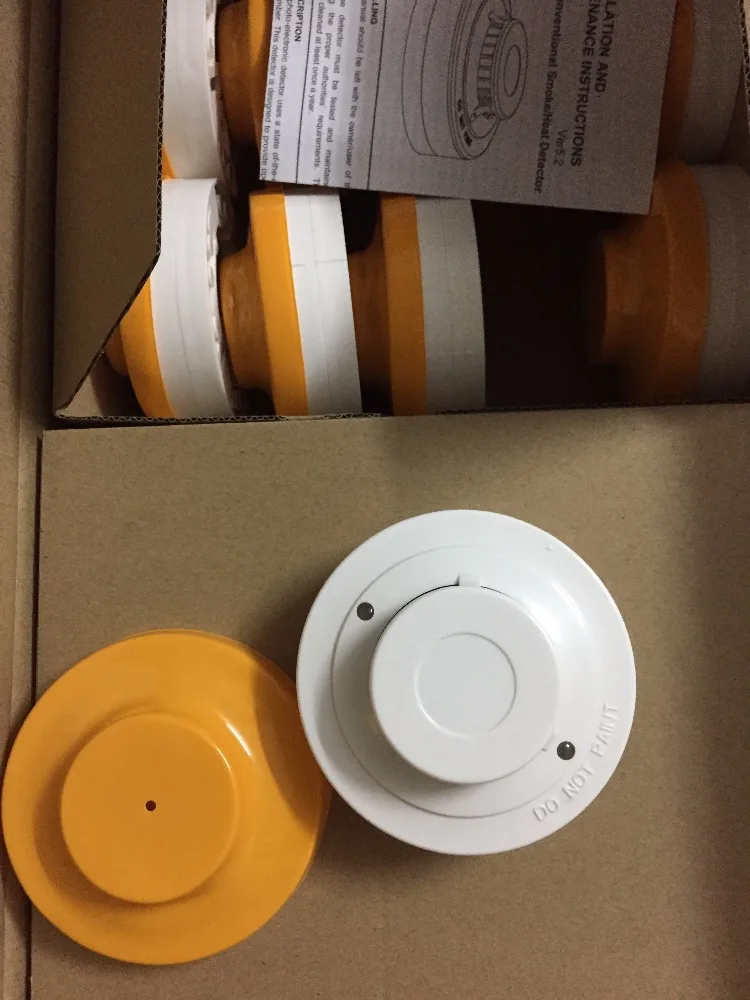

24V Fire Alarm Optical Smoke Detector

              24V Fire Alarm Optical Smoke Detector

Product Introduce:

AS-SD102 smoke detectors are photo-electronic detector uses a state of-the-art optical sensing chamber. This detector is designed to provide open area protection and to be used with most conventional fire alarm panel.

Two LEDs on each detector provide local 360° visible alarm indication. They flash every six seconds indicating that power is applied and the detector is working properly. The LEDs latch on in alarm. LEDs will be off when a trouble condition exists indicating that the detector sensitivity is outside the listed limit. The alarm can be reset only by a momentary power interruption.

The detector that initiated the alarm condition will have its red LED and relays latched until reset by panel.

Heat detector and smoke & heat detector combine a photo electronic sensing chamber and a temperature heat detector.

Product Features:

Operating Voltage Range: 9 to 32 VDC Volts Non-polarized
Standby Current: ≤100μA @ 24 VDC
Maximum Alarm Current (LED on: ) ≤ 55mA @ 24 VDC
Operating Humidity Range: 10% to 93% Relative Humidity, Non-condensing
Operating Temperature Range: 14°F to 120°F (-10°C to 49°C)
Adjustable Sensitivity: 1-2.5%/FT
Height: 55 mm installed in Base
Diameter: 103 mm
Weight: 155 g

1. The Professional OEM & ODM Service.

2. Prompt Response.
3. Support Factory Quality Inspection.
4. Standard Quality Control System.
5. Sample&Customized Order Can Be Supported.
6. Independant R&D dept, Designing Dept,to Service you.
7. Whole Set Of Technical And Solution Supports .
8. Manufacturer Is With Offer Better Price&Service.
9. Direct Control On Materials, Production Status, Quality Checking.
10. Reliable After-sales Service, With One Year Waranty.

ANSORL LTD is a building automatic control system and fire alarm system solution provider. Over the past years, We have always been dedicated to serving the diverse needs of our customers. Although we started out as a tiny engineering and manufacturing company in China and have grown into a global player in the international safety market, Ansorl continues to work hard to earn your trust and retain your confidence in our product line.

We focuse on providing advanced buidling automatic control system and fire alarm / fire fighting system. Ansorl works harder to tailor our solutions to meet your needs.

Ansorl is an ISO 9001:2000 certified manufacturer with number of testing facilities. We are also planning to expand our manufacturing and testing facilities in China to ensure that our products and manufacturing practices continue to meet the highest standards.

We invite you to get to know Ansorl better. Experience the best fire alam technology and solution. We are convinced that you will find Ansorl superior to any other detector company in China. You'll see it in our facilities, in our people, and in the products that Ansorl makes. It's our uncommon commitment to excellence and quality, and to the automation and productivity of our customers.
