Low Speed Dc 18v 2500rpm~20000rpm Micro Motor RS775
- Category: >>>
- Supplier: Ningbo Longkang Tech Limied
Share on (60744252057):
Product Overview
Description
Micro Dc Motor Manufacturers
Product Description
| Motor Name | Rated Volt. V | No load | Load torque | Stall torque | |||||
| Current | Speed | Current | Speed | Torque | Output power | Torque | Current | ||
| mA | r/min | mA | r/min | gf·cm | W | gf·cm | mA | ||
| RS-775123000 | 12 | ≤420 | 3000 | ≤1300 | 2430 | 408 | 10.4 | 2484 | 6.7 |
| RS-775124500 | 12 | ≤750 | 4500 | ≤2100 | 3710 | 476 | 17.6 | 2714 | 10.4 |
| RS-775126000 | 12 | ≤1300 | 6000 | ≤3500 | 5195 | 478 | 25.5 | 3129 | 18.6 |
| RS-775243000 | 24 | ≤210 | 3000 | ≤600 | 2590 | 364 | 9.87 | 2050 | 3.2 |
| RS-775244500 | 24 | ≤480 | 4500 | ≤1300 | 3850 | 482 | 18.5 | 3335 | 5.3 |
| RS-775246000 | 24 | ≤630 | 6000 | ≤2100 | 5233 | 574 | 30.8 | 4565 | 12.1 |

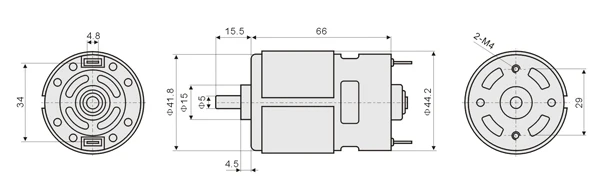

Technical Drawing
