Product Overview

Description

Each port operates independently.

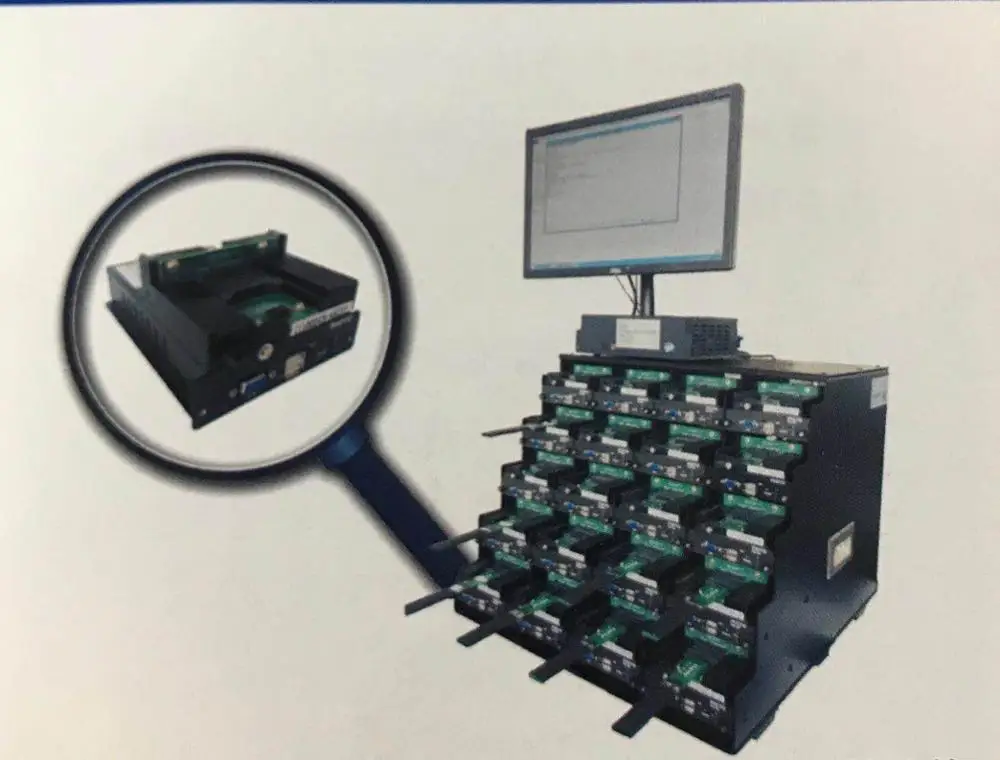

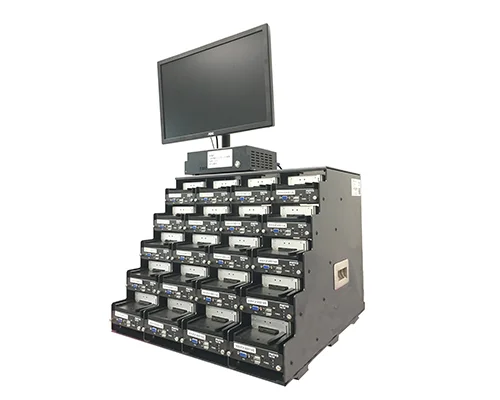

20 port product schematic diagram, each port operates independently.

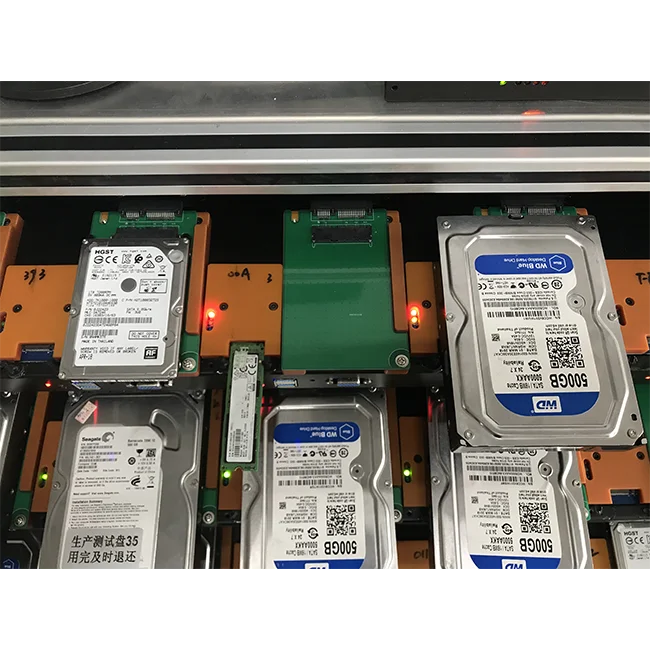

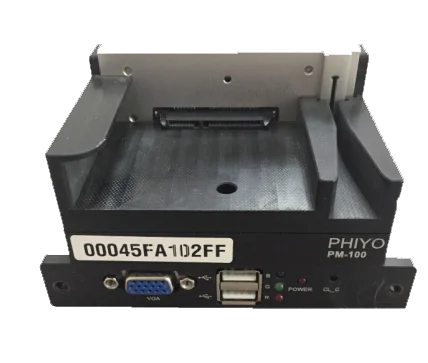

PM-100 is a network duplicator including SATA& PCI-E Nvme protocol duplicator, which is designed for duplicating HDD and/or SSD for mass production, downloading image file from remote network server, making source file and Sync image from remote network server, download the shared file to the special volume of SSD/HDD from the shared folder of server.





• Support several protocol: SATA&PCI-E (AHCI&NVMe).
• Support several image making modes: make source image to local unit, make source image to remote sever, copy image from local unit, copy image from remote sever and Server image synchronization.
• Design special HDD&SSD detected technology, can automatically start duplicate when insert the HDD or SSD without press any key.
• Friendly firmware updating design: can update FW through USB flash Disk or network updating.
•

Model	PM-100
Duplicate number	1
	RAM	DDR3 2GB
	Maximum copy speed	18GB/min
	Operate mode	Internet mode
	Support language	Chinese,Enghish
	LED status	Red(Fail),Green(Pass),Yellow(Power)
	Ethernet specification	Gigabit LAN
	Internal storage	256GB,PCI-E NVMe SSD
		Multiple MBR Copy
		Make image and Copy from image
	Comparison function	Support CRC32,MD5,CHECKSUM32 Verify
	Erase function	Full clean, Quick clean, Mark clean, Safe clean, Custom clean
	Ethernet function	Copy image from server, Server image synchronization, Upload image to server
Advanced function	Software Update	USB2.0
	Extended Display	Support
	Store working record	Support store working record in local or server, support connect the ERP system.
Compatibility	Support OS	All Windows OS,All Lunix ,Mac OS,DOS
	Directly connect HDD	1.8"/2.5"/3.5"SATA interface HDD & SSD.
	Support maximum storage HDD	18EB(1EB=1024PB=1,048,576TB)

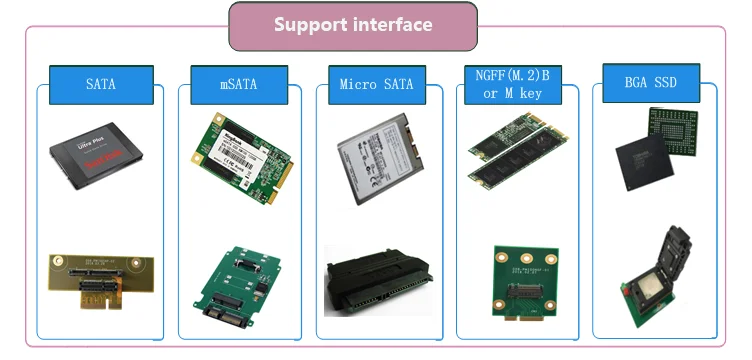

	Indirectly connect SSD,HDD	IDE HDD,mSATA SSD,Micro SATA,eSATA,USM,NGFF(M.2),
	Whether support GPT/MBR	YES
Hardware specification	I/O Port	USB2.0*2,RJ45*1,VGA*1
	Machine size	150mm*234mm*43mm
	weight	1.5KG
	Input power	60W,12V/DC,5A
	Output power	DC +5V,+12V
	Intelligent power off	Support
	Work temperature	0℃ ~ 45 ℃
	Work humidity	20%~85%





Warranty:

The machine is one year warrenty for hardware. ( Consumable parts do not contain.)
It is free to update firmware for life time. ( Customised firmware do not contain.)



Customized Service:

PHIYO has a great Research and Development team, we can do customized functions and customized machine for customers. Welcome all customers  in need to consult us.



Partnership - Agent:

If you are interested in our products and want to build up good partnership with our company, we are very glad you to join us.
