Magnesium etching plate
- Category: >>>
- Supplier: Shanxi Province Yangquan Metals & Minerals Imp. Exp. Co. Ltd.
Share on (60744315643):
Product Overview
Description
Product Description
Magnesium photo engraving plate
AZ31B magnesium alloy plate with coating
PE plate for printing
Magnesium etching plate for hot stamping dies
Magnesium Photo Engraving plate (PE plate) is used for a variety of applications, particularly in the printing industry
General size:610*914mm,500*1000mm,etc
Thickness: 1.0mm,1.5mm,2.0mm,3.0mm,4.0mm,5.0mm,6.35mm,7.0mm,etc.
Also we can supply it as per customers' requirements.

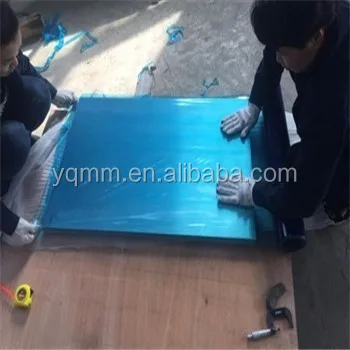

Coating : BlueDetailed Images

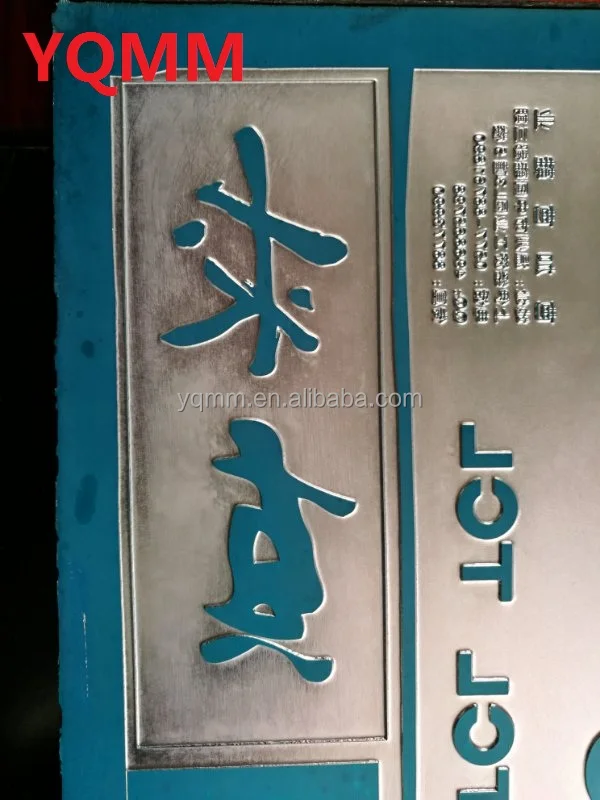

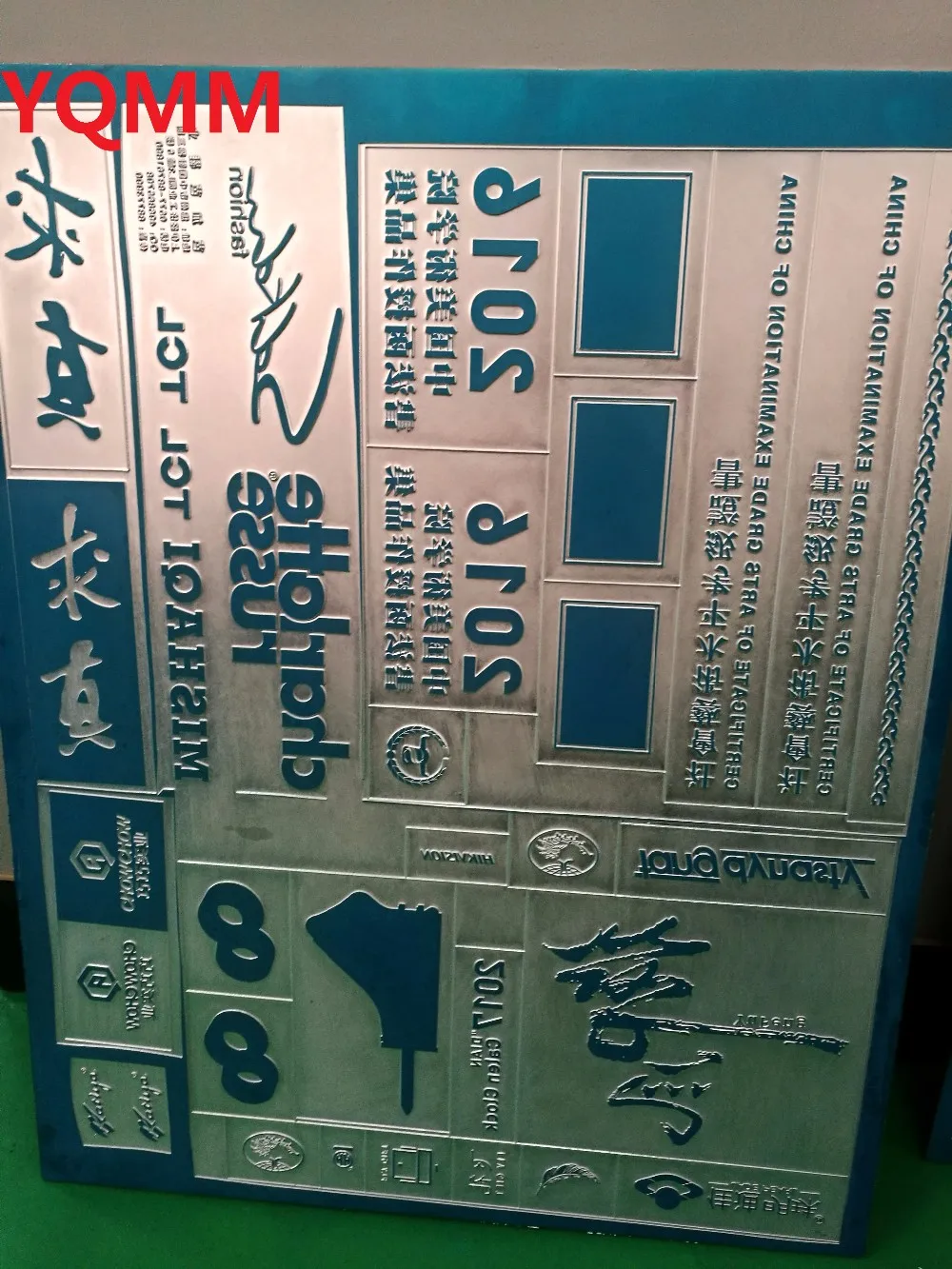

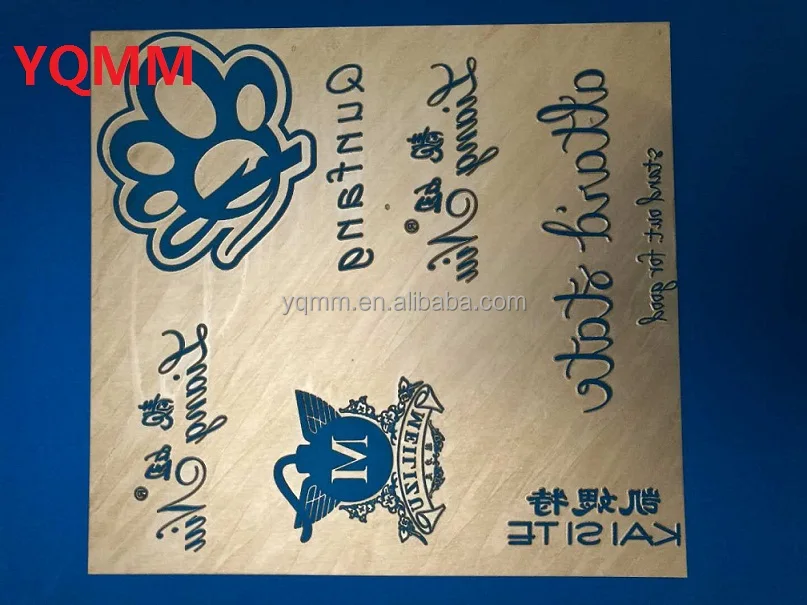

Etching
Blue

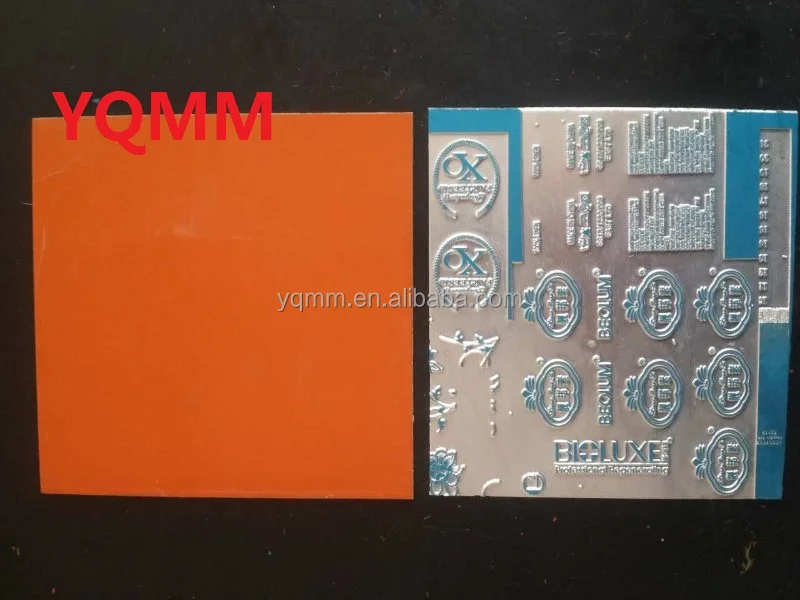

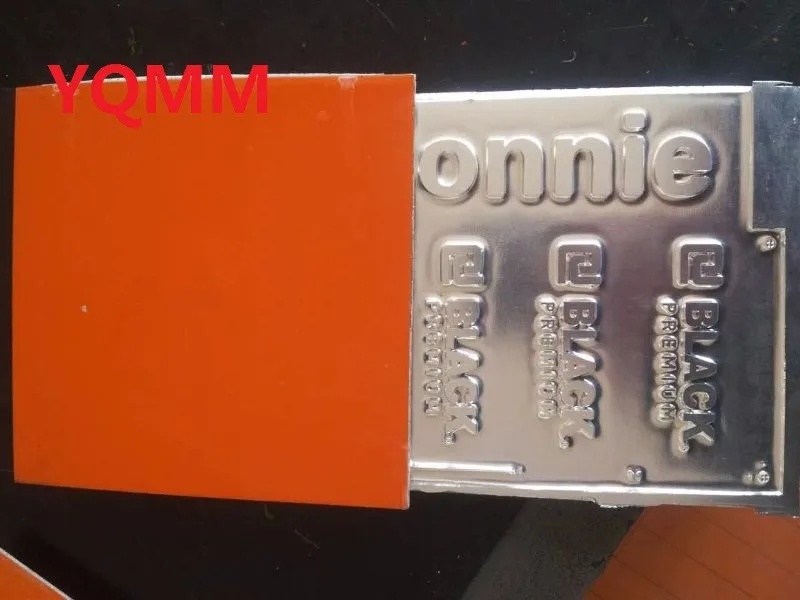

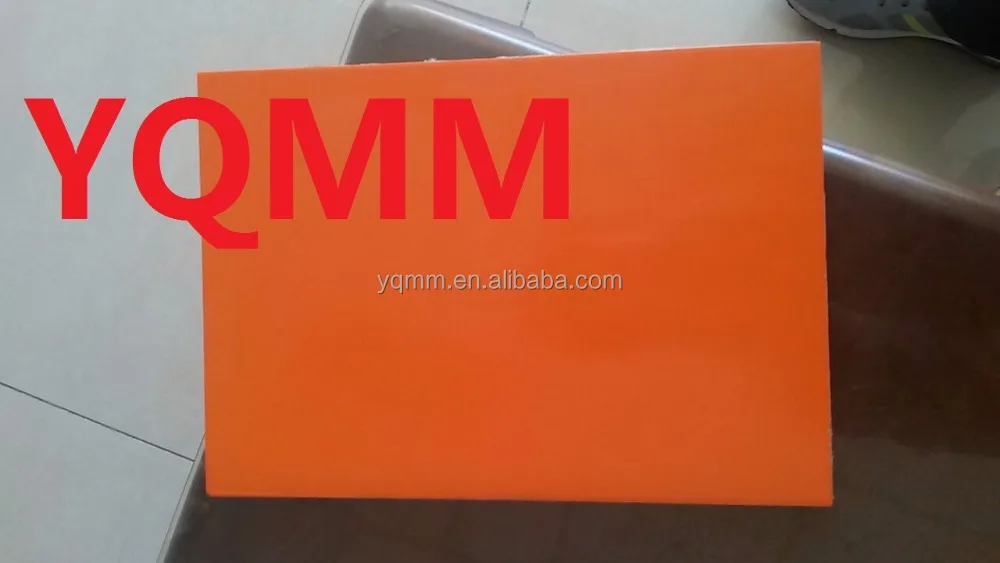

Red
For the magnesium engraving plates,We're more professional.
The magnesium engraving plates we offer are light weight,fast etching,and environmentally-friendly.
They are used for a variety of applications inluding foil stamping,embossing,thermal dies,flexography,plaques,awards,fabric and leather embossing.
The magnesium engraving plates are available pre-sensitized with traditional red top photoresist.
Sheets are also available uncoated(polished) for CNC engraving.Our complementary designed chemical products function together to produce optimum results for shallow or deep etching.
Magnesium photoengraving plates available in gauges:1.0mm,1.5mm, 2.0mm,3.0mm,4.0mm,5.0mm,6.35mm,7.0mm,10mm.and so on.

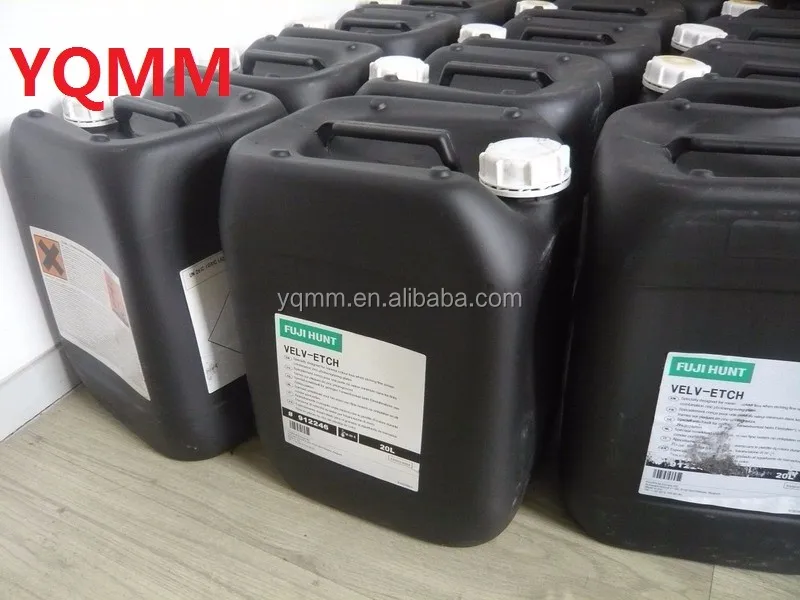

Our company also provides the magnesium etching oil Fuji revflex and znic etching oil VELV-ETCH
Packing & Delivery

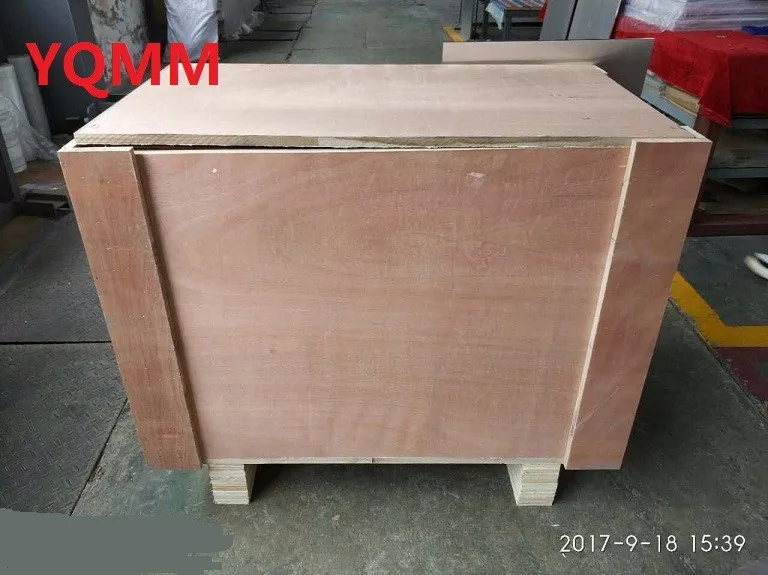

Wooden case
1.5MM FOR 25PCS/BAG 1.5MM FOR 25PCS/BAG
2.0MM FOR 20PCS/BAG 3.0MM FOR 15PCS/BAG
4.0MM FOR 10PCS/BAG 5.0MM FOR 8PCS/BAG
6.0MM FOR 8PCS/BAG 6.35MM AND
7.0MM FOR 5PCS/BAG
Then packed in wooden case.
Etching Details
Halftone screen "9" is OK to obtain a correct exposure. For fine form, "11" is enough.
400-600mJ/cm2 is required for exposure.
400-600mJ/cm2 is required for exposure.
Development
Put the exposed plate into 1% sodium hydroxide (NaOH) aqueous solution for 8-10 seconds, or into 5% sodium carbonate (Na2CO3)
Put the exposed plate into 1% sodium hydroxide (NaOH) aqueous solution for 8-10 seconds, or into 5% sodium carbonate (Na2CO3)
Aqueous solution or Hydro-Solve developer concentrate for 1 minute, in temperature 300C, then take out the plate from the solution,Wash and wipe it with sponge in clean water softly.
Repeat above step to develop again if the plate is not clear enough.
Then dry it with compressed air or by absorbent paper.
A faster developing will happened while the solution was heated.
Touch-Up
Touch it if necessary, no "Burn-in" is needed.
Weight
Record the weight in log.
Descum
Put the plate into 3% Nitric acid (HNO3) aqueous solution in room temperature and brush it lightly, then wash it with clean water.

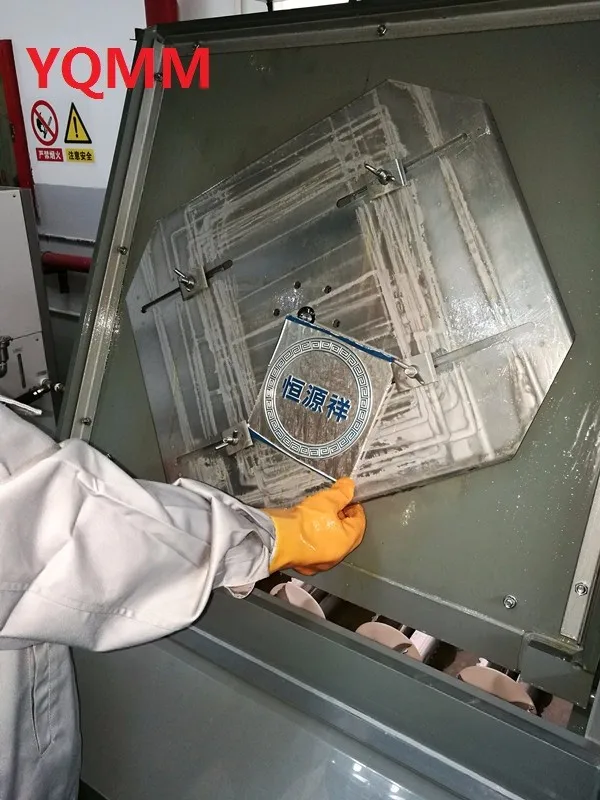

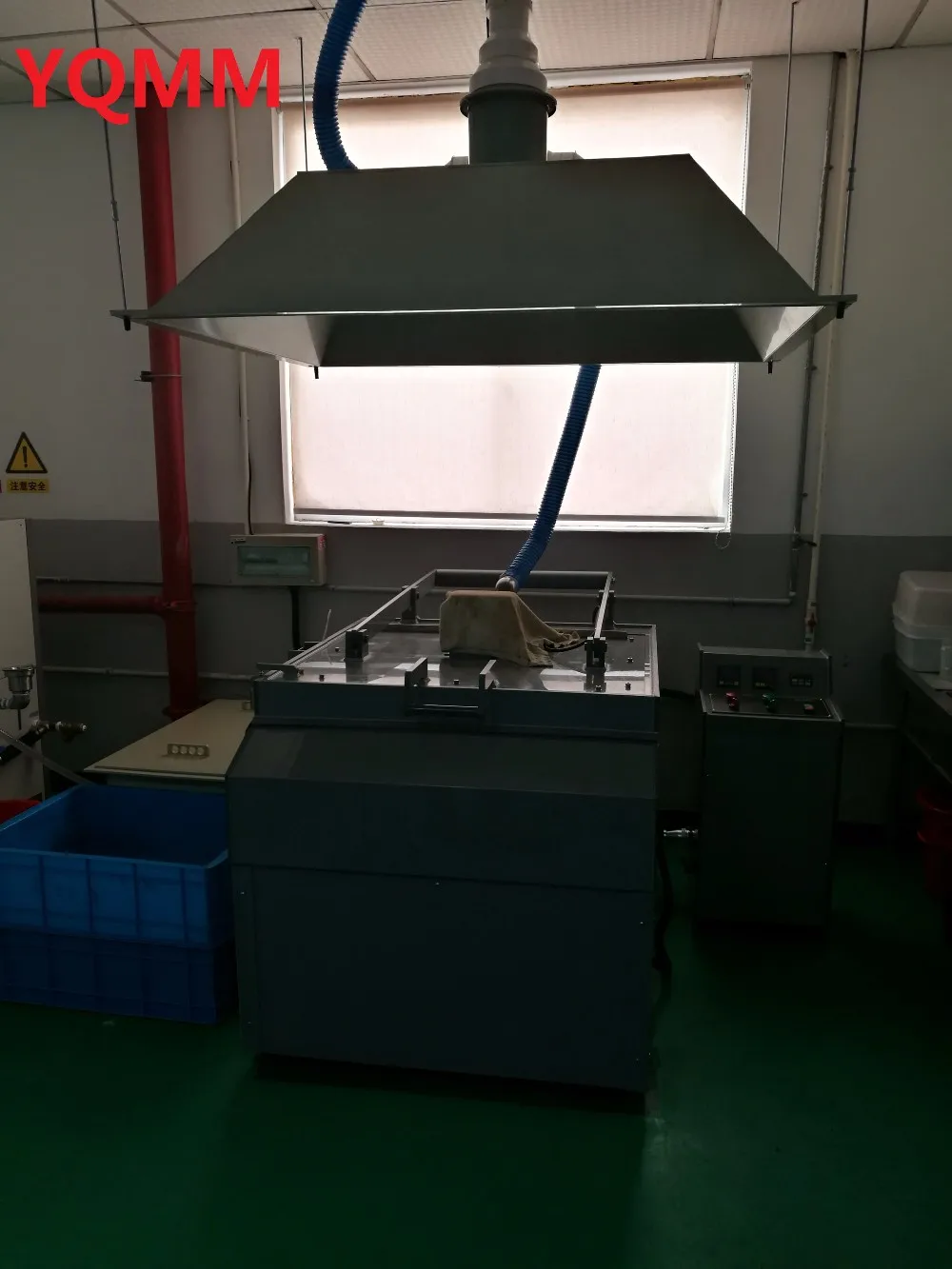

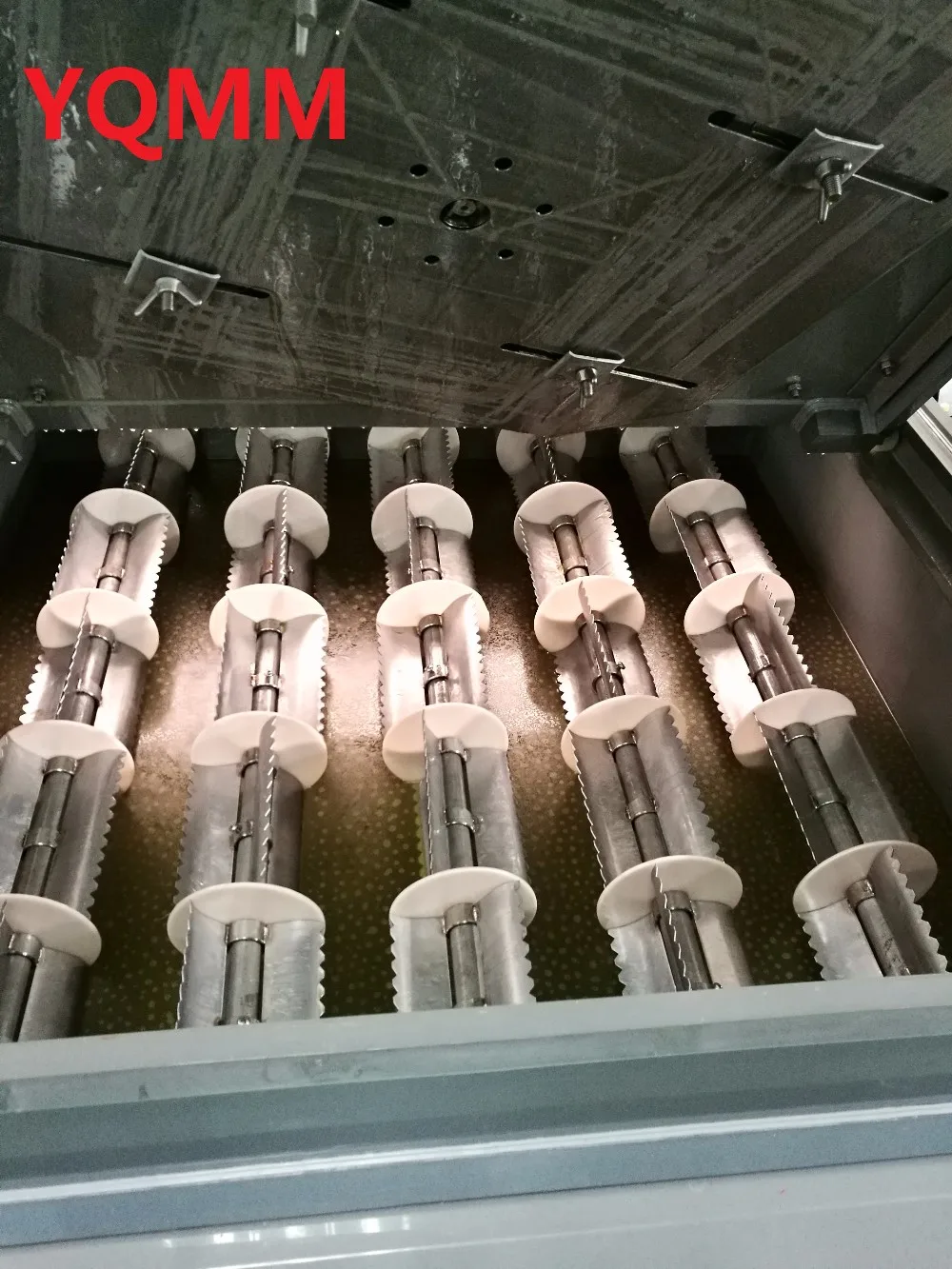

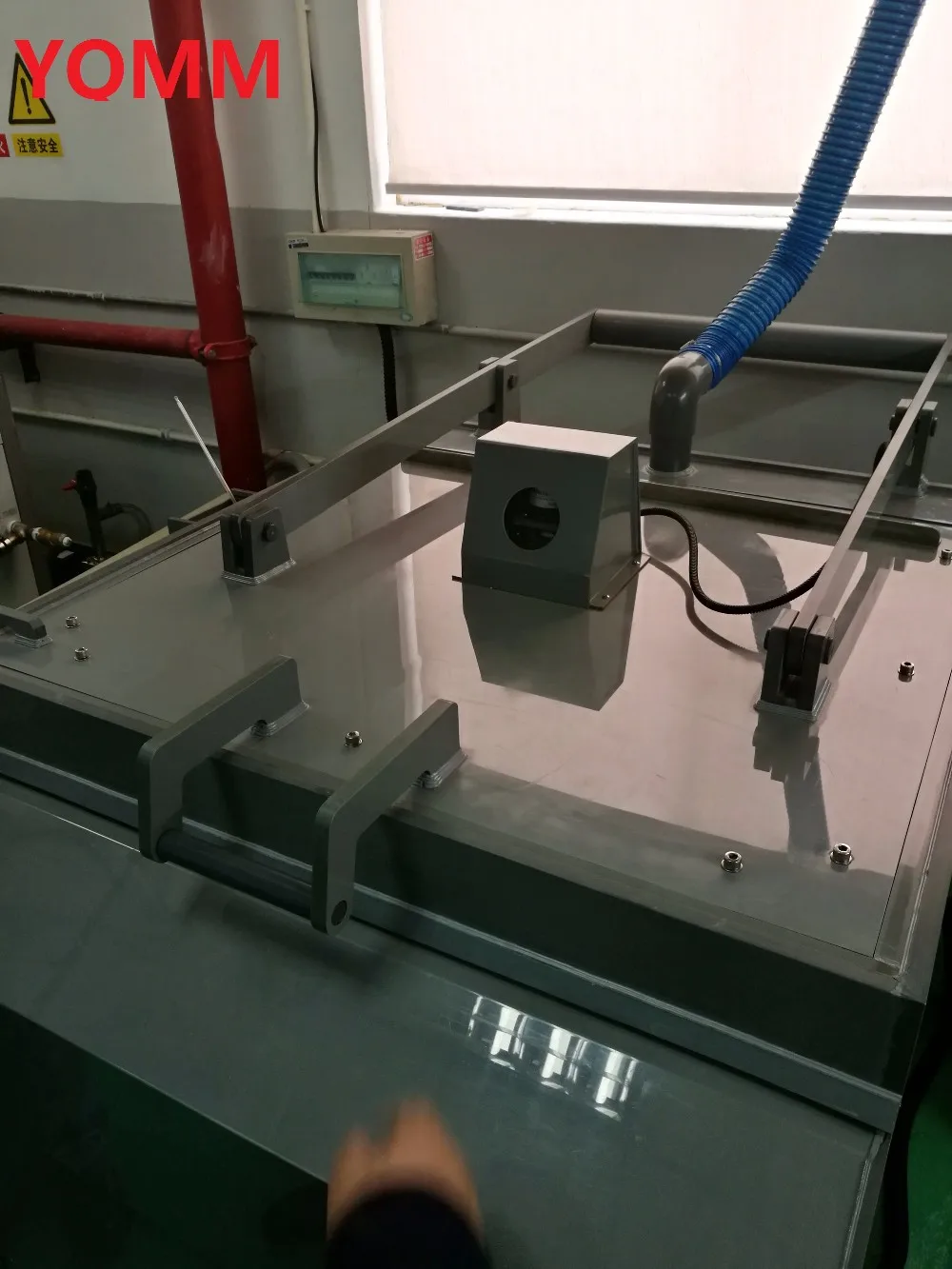

Etching

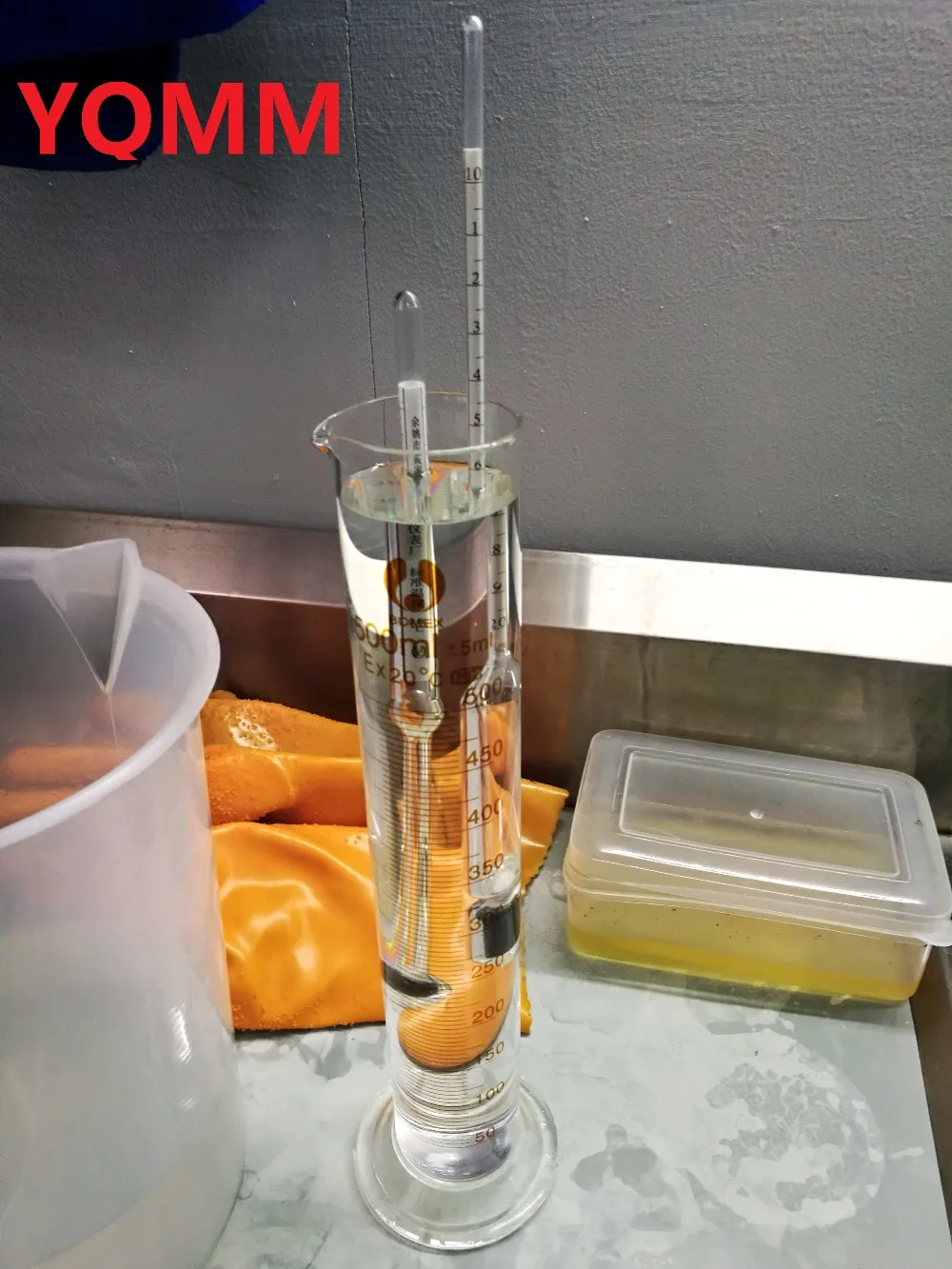

Replenish acid
Top removal Soak the plate in a 10% sodium hydroxide (NaOH) aqueous solution or in top remover concentrate solution in temperature 30OC
About 3 minutes, then remove and brush it with water.
Related products
We are more professional for the exporting of metal magnesium producing and processing.
Our strong products includes magnesium alloy sheet,magnesium photo engraving plate,Forged magnesium alloy wheel rims for car,magnesium anode,Magnesium rod for water heater,Magnesium extrusion,Magnesium alloy die castings,Magnesium tube,Magnesium target,etc.
Contact Details
In case your co. have any interest importing
these materials from China,
pls feel free to contact us.
We are 24 hours for you!!!!
