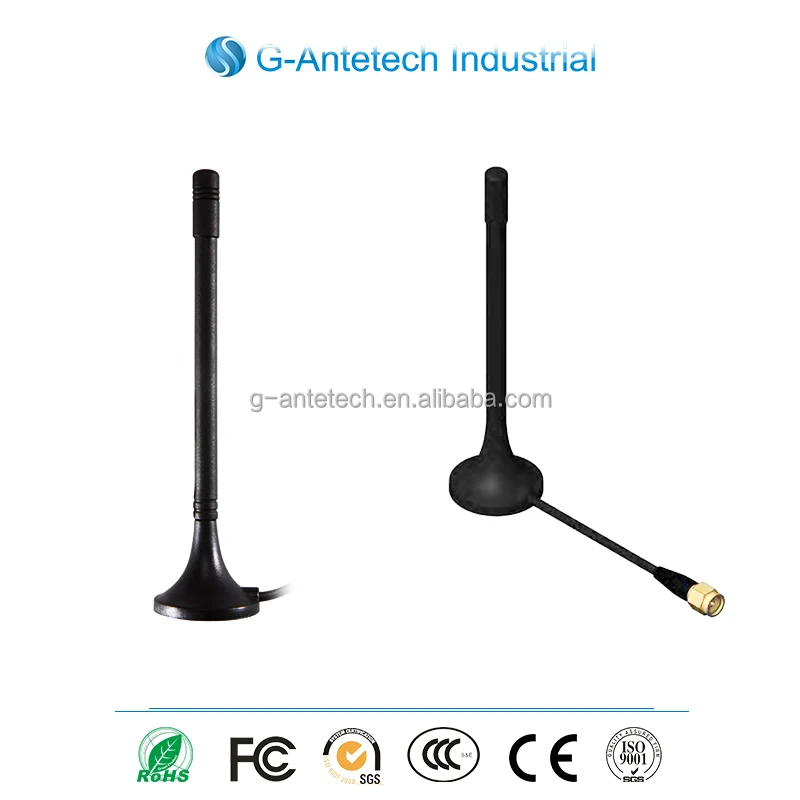

(manufactory) 2.4 ghz wifi communication magnetic Antenna with sma/smb/smc/fakra connector
- Category: >>>
- Supplier: Guangzhou G-Antetech Telecom Antenna Factory
Share on (60744324149):
Product Overview
Description
Product Description

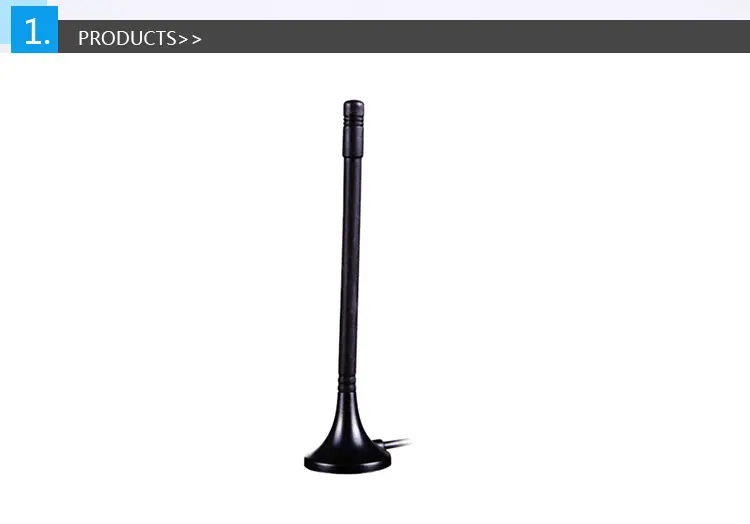

Wholesale (manufactory) 2.4GHz wifi communication magnetic Antenna with sma/smb/smc/fakra connector
Antenna Electrical
| Frequency | 2400-2500Mhz |
VSWR | ≤1.5 | |
Gain | 5 dBi | |
Polarization | Vertical | |
Rated power | 50w | |
Input Impedance | 50Ω | |
Cable Length | 3 Meter or customized | |
Cable Type | RG174 or others | |
Connector Type | SMA/SMB/SMC/Fakra or etc. | |
Mounting Method | Magnet | |
Antenna Radome Material | TPE | |

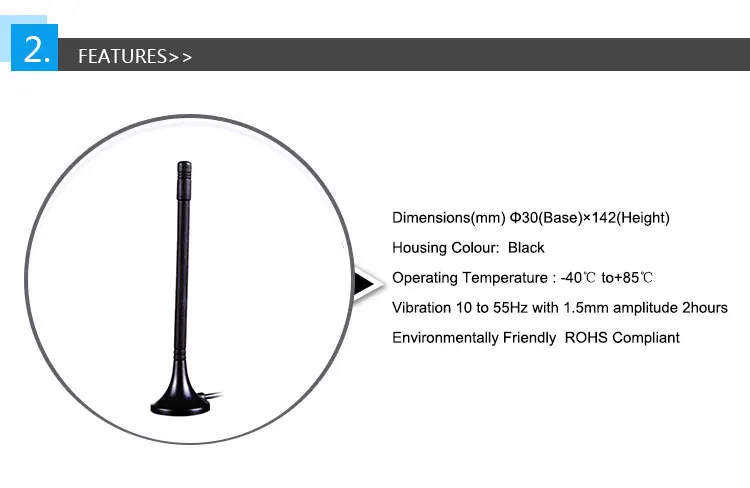

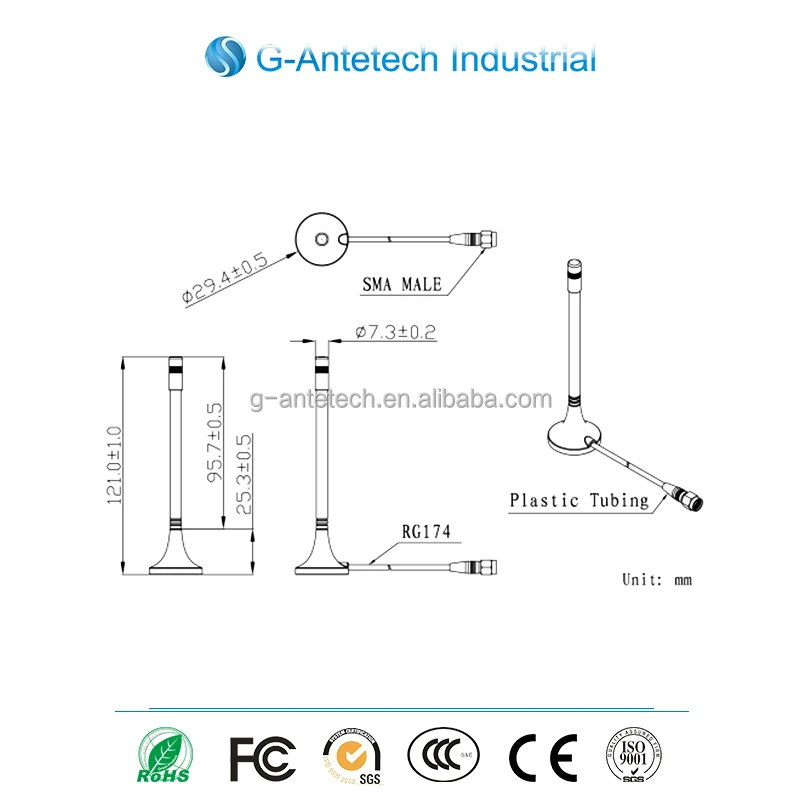

Mechanical | Dimensions(mm) | 30(Base)×142(Height) |
Housing Colour | Black | |
Operating Temperature | -40℃ to+85℃ | |
Vibration | 10 to 55Hz with 1.5mm amplitude 2hours | |
Environmentally Friendly | ROHS Compliant |
