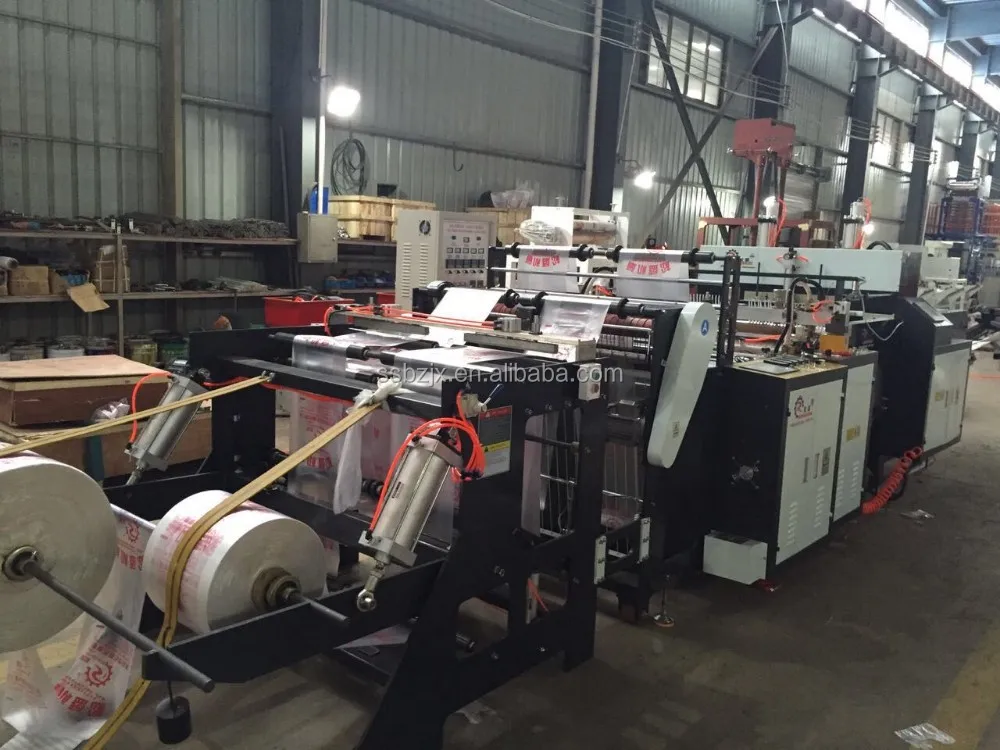

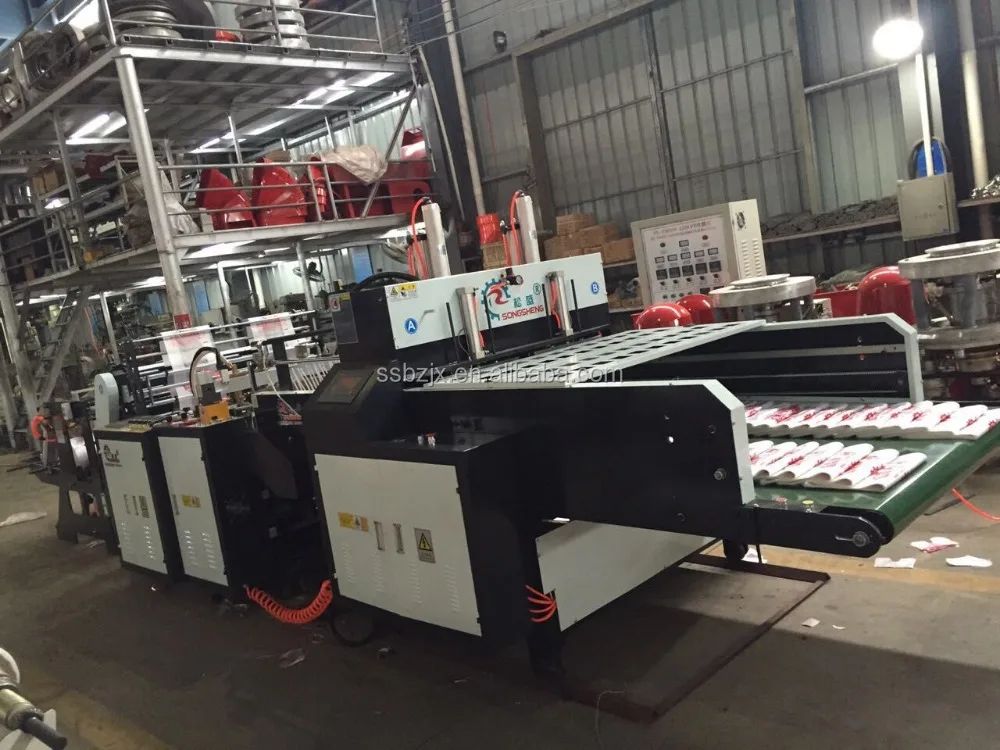

Полностью автоматическая биоразлагаемая упаковочная машина для пластиковых ручек, машины для изготовления мешков для футболок, супермаркетов, 300 м/мин

Machine Parts

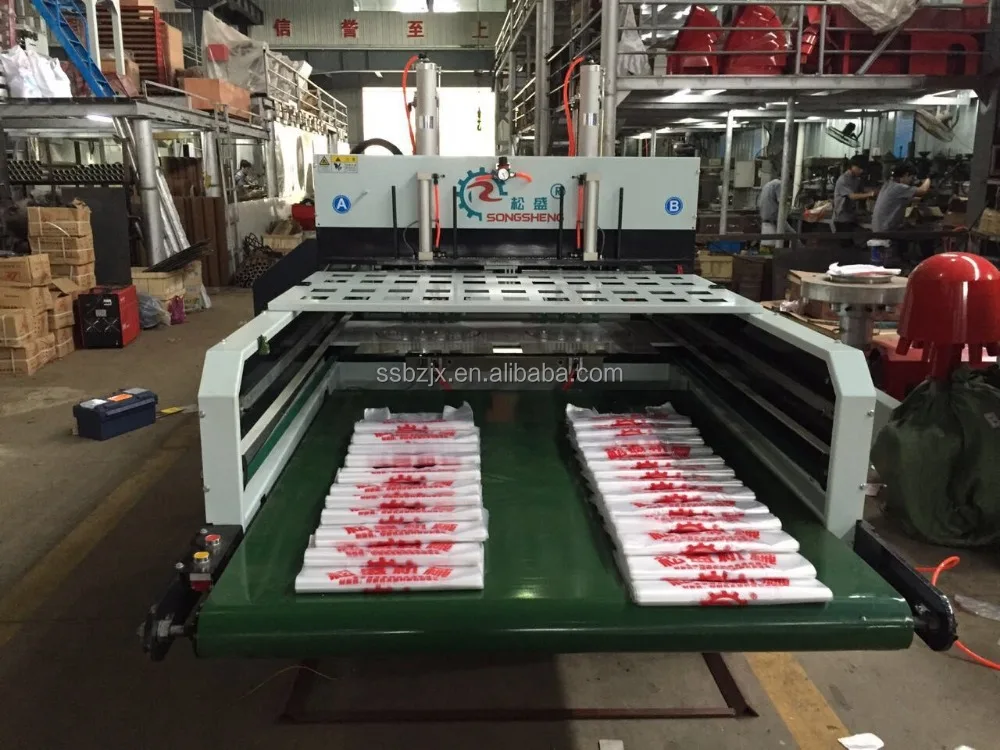

Name: Auto t-shirt punching part

A. Machine part:Cast aluminum machine hand to catch bags evenly.
B. Air pressure0.15-1.0mpa, pressure cylinder 0.3-0.8mpa.
C. Effective folding length:700mm, folding 350mm.
D. 1.5m conveyor, able to convey more than 50 bunches finished bags.

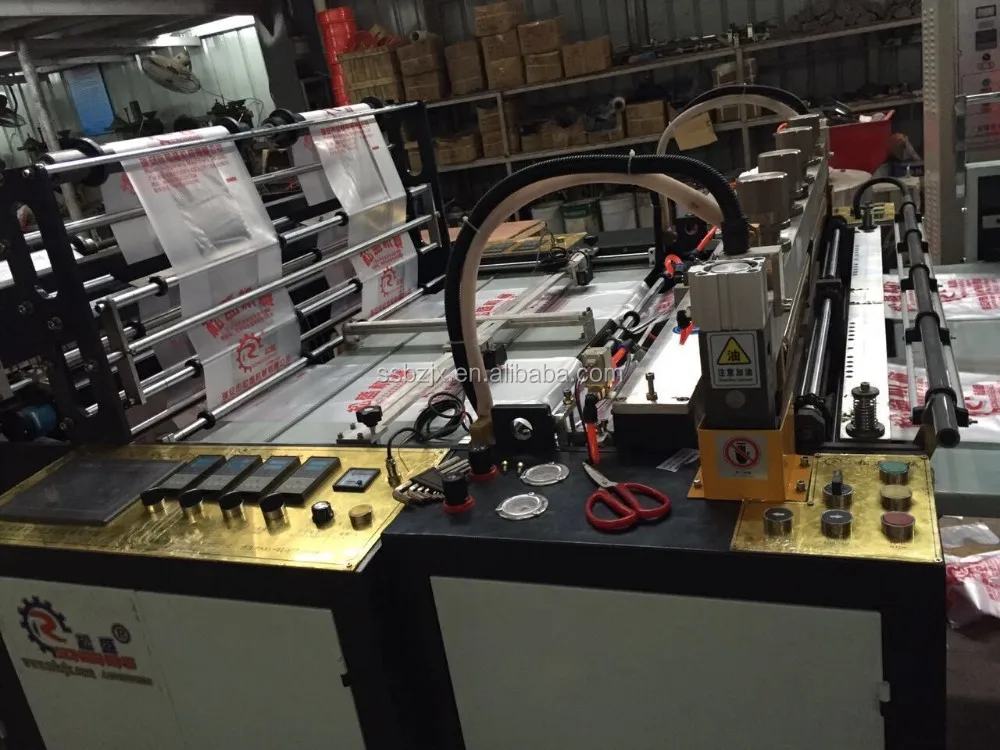

Heat Sealing Keen Knife Cutting

A.Max. Bag Length:700mm, Max Bag Width:400mm
B.Thickness of material film:0.006mm-0.05mm.
C.Machine speed: 250-300pcs/min * 2

Machine Parts

PLC control
Servo motor: 2*5kw, Yaskawa brand, Japan.
Main Motor: Germany Siemens

Inverter: Ourui Brand

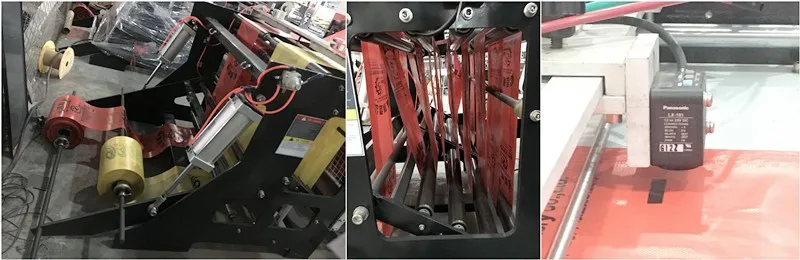

Auto foll feeding by air cylinder                          Material stock part                                Photocell tracking

Easy operation because of automatic loading                            Because this is a very high speed bag machine       If the bag have printed pictures

If the roll is very large or heavy, somtime it's hard for                 the max bag speed can reach 350 pcs x 2 line       then the photocell tracking is the

workers to change it when going to be finisihed.                        means 700 pcs per min. When in high speed,          point. So we used imported Jan-

And also it will save many times: working time is money.          and when the cutting stop for 1 second if setted    pan photocell tracking device

                                                                                                          100pcs/patch, then need the stock part to save        to ensure its best quality and

                                                                                                            material and to keep machine running.                    longterm use.

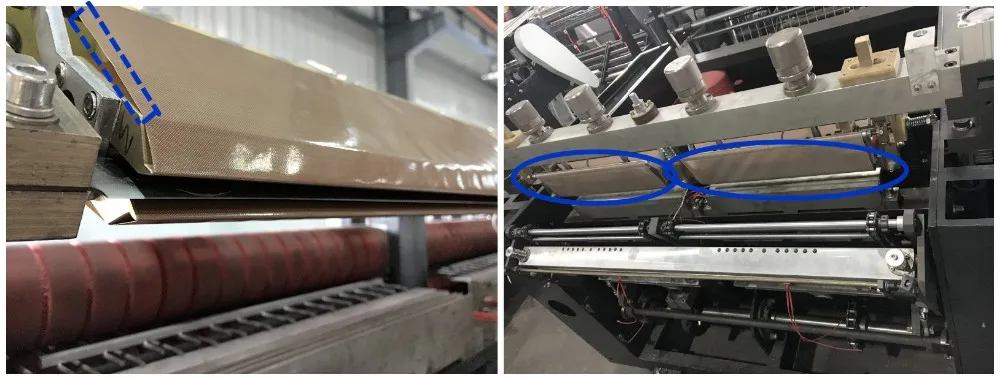

We use Taiwan Type and Technology Heating Cutter

Material Quality of Sealing cutter: 62# brass, heating in center hole.

And the fabric covered on the cutter is high temperature resistance. Its can rotary if the fabric under the cutter is broken when used long time.

Which can save time to change the fabric, better quality and longer time use.

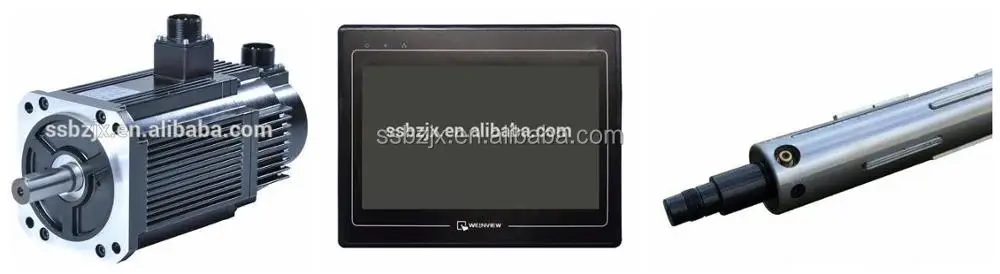

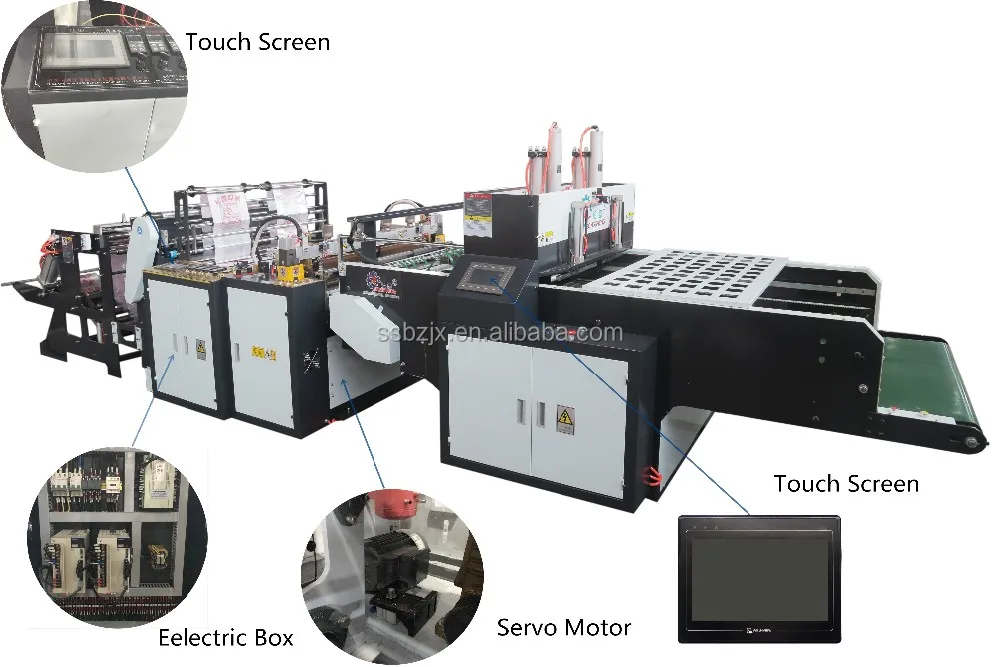

Servo Motor: Yaskawa, Japan             Touch Screen: Weinview, Taiwan                     Air Shaft

Company Information:

1. Since 2006 Year, 12 Years Experience
2. Fast Delivery Time: 30 days
3.15 years experienced R & D support
4. More than 500 sets machines be sold per year.
5. Exported to more than 50 countries

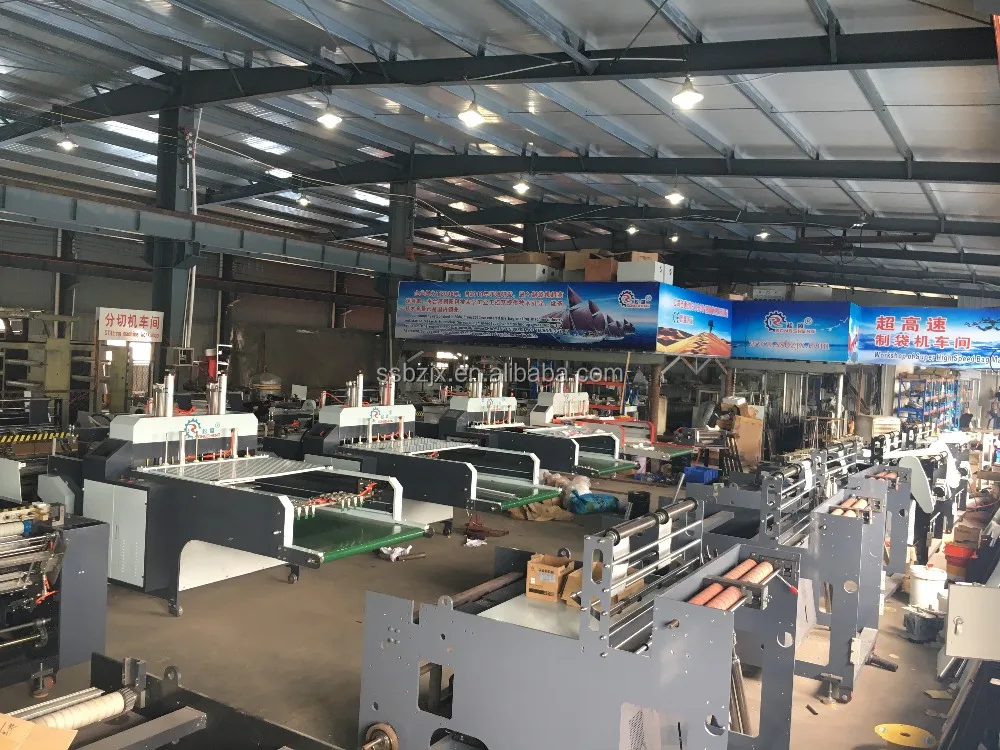

6. FactoRy area: 2500 square meters
7. CE and ISO verified
