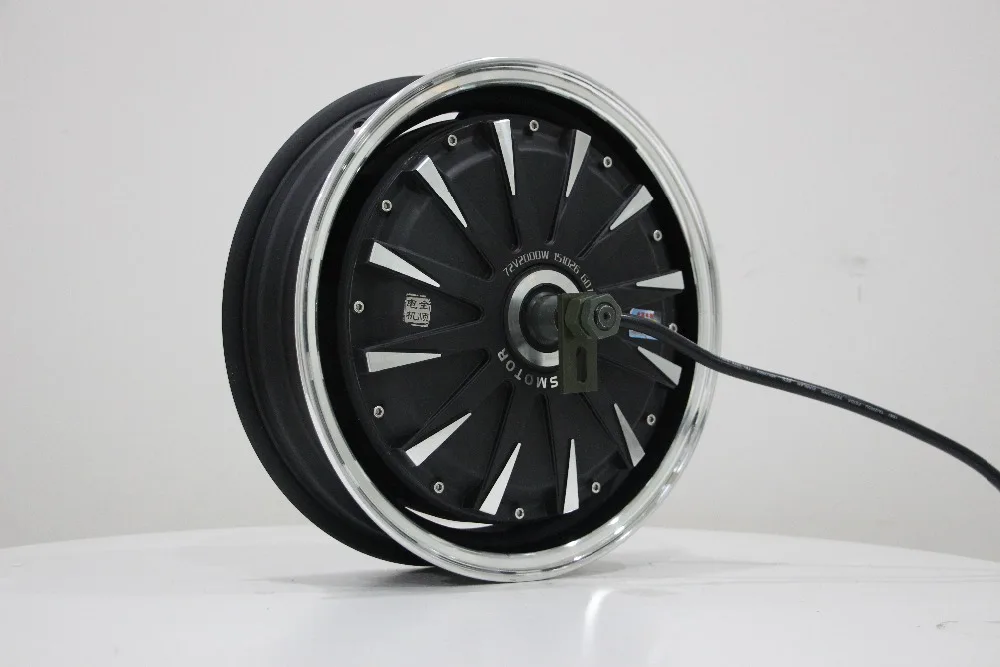

Quanshun QS Motor 13inch 1500W 260 30H V1 BLDC Electric Scooter Motorcycle Hub Motor for E scooter
- Category: >>>
- Supplier: Taizhou Quanshun Motor Co. Ltd.
Share on (60744349252):
Product Overview
Description
Quanshun QS Motor 13inch 1500W 260 30H V1 BLDC Electric Scooter Motorcycle Hub Motor for E-scooter
Application SPEC - Electric Scooter(tested)
Curb Weight: 100kg
Motor: 1piece X 1500w brush-less in wheel hub motor
Top speed: 40Km/hour @ 48V(optional)
Product Description
Motor Specification
1. Motor Type: BLDC PMSM Outer Rotor Scooter Hub Motor(air cooling)
2. Axle configuration: Double Axle
3. Stator diameter: 260
4. Magnet Height: 30mm V1
5. Pole Pairs: 23
6. Rated Power: 1500w
7. Peak Power: 2500w(in few seconds)
8. Volt & Speed: 605rpm (KV10.08, others are optional)
48v 30km/h~50km/h
60v 30km/h~50km/h
72v 30km/h~50km/h
9. Max. Torque: >141N.m(denpends on speed)
10. Temp Sensor: no including for small power hub motor
11. PCD&CB of brake: 3*80mm, 58mm
13. Hall: One Hall, waterproof/normal optional
14. Cross Section of Phase Wire: 4mm²
15. Sugget Peak Battery Current: 30A(depends on voltage)
16. Suggest Peak Phase Current: 80A(depends on winding)
17. Efficiency:86%
18. Color:Black
19. Logo: With ”QSMOTOR” logo(OEM available)
20. Customzied tems: phase wire length, LOGO, Hall, drop-outs, speed etc.
21. Package size: 34cm*34cm*33cm
22. Application:electric scooter etc.
Drawing and test report for this feature of motor is to be decided. We will update as soon as we have any confirmation from our technical department.

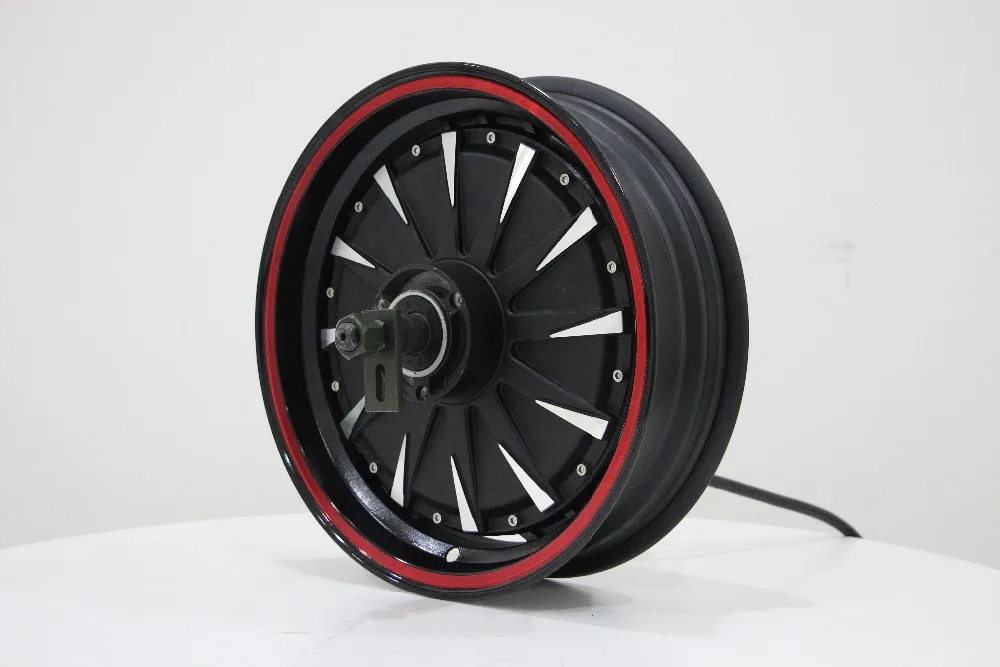

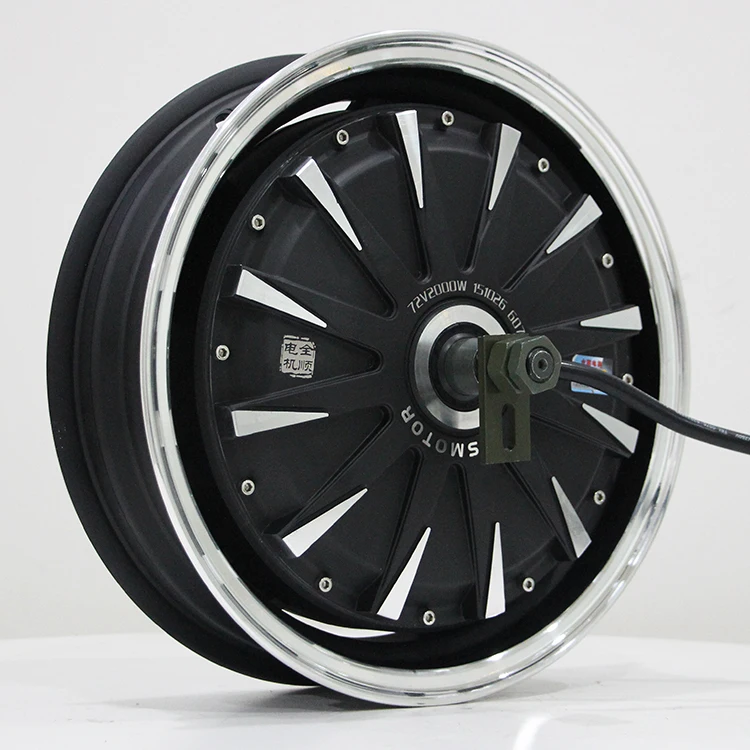

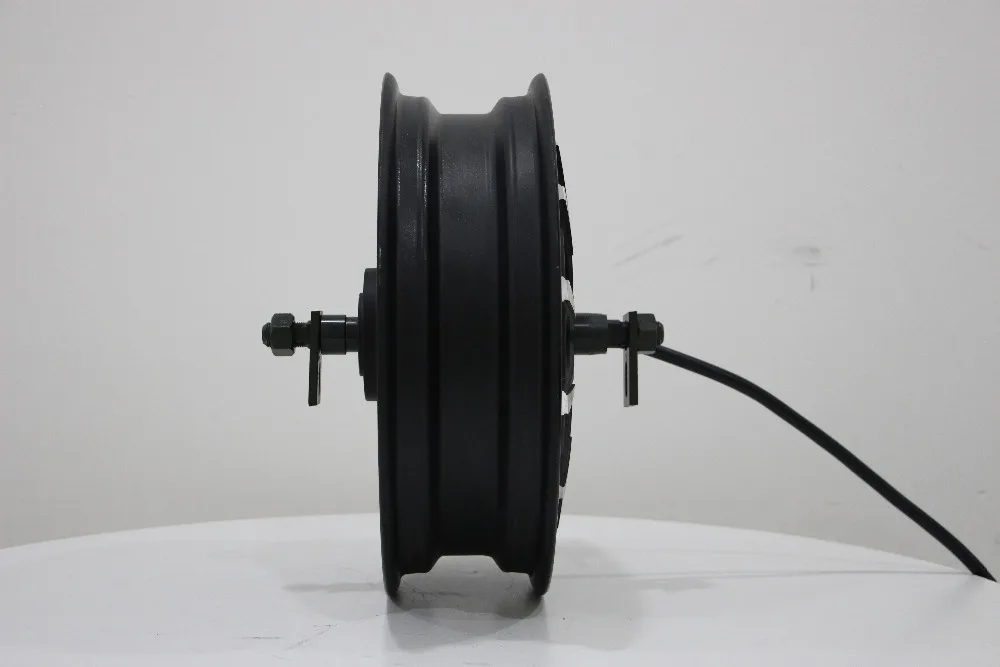

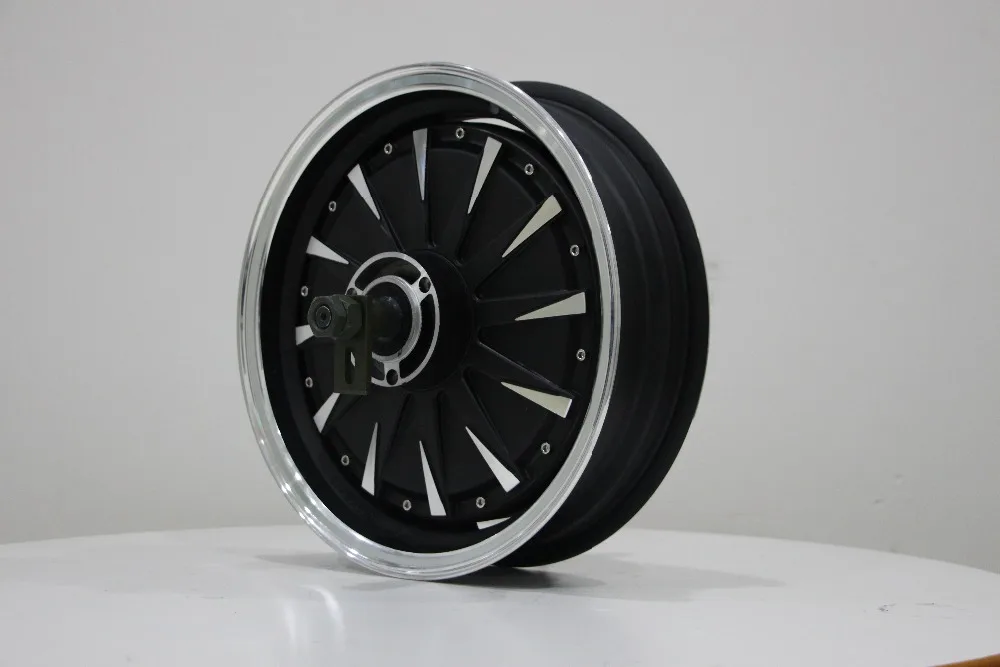

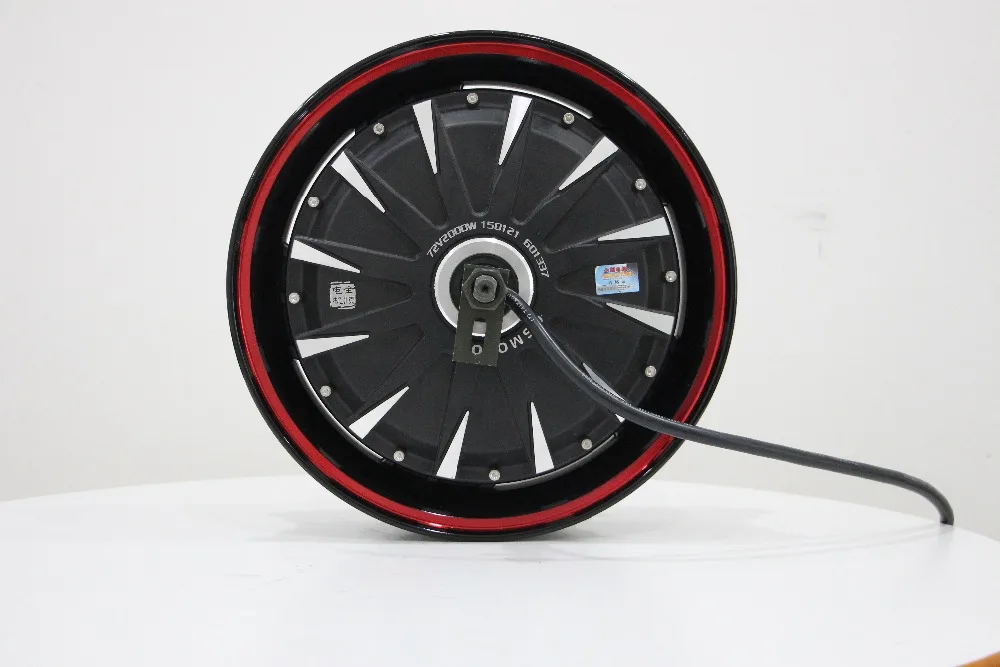

Motor Pictures
Motor Inner Configuration
There are three types, Normal/V1 type (low cost), Export/V2 type (Cost-effective) and Extra/V3 type (Best Performance).
1. Comparison between V1 and V2.
Holder: Iron(V1), Aluminum (V2) Hall: One hall with Normal connector(V1), Two halls with Waterproof connector(V2) Stator: V2 have a stronger configuration, more cooper, thicker section surface, energy saving in usage. Magnetic Steel Grade: V2 ≥ V1 Efficiency: 84~87%(V1) 86~88%(V2) In short, normal type is standard configuration, while export type is high configuration. The price differs because of the cost of raw materials.
2. Comparison between V2 and V3.
The raw materials are alike, main difference in inner construction. For V3 (16 Pole Pairs): stronger configuration than V2, wider lamination, more cooper wire/phase wire and thicker Cross-sectional area section, bear more current in usage. Magentic Steel: V3 is wider and thicker. Efficiency: 86~88%(V2) 88~92%(V3) Thus, V3 have best performance.
Related Products

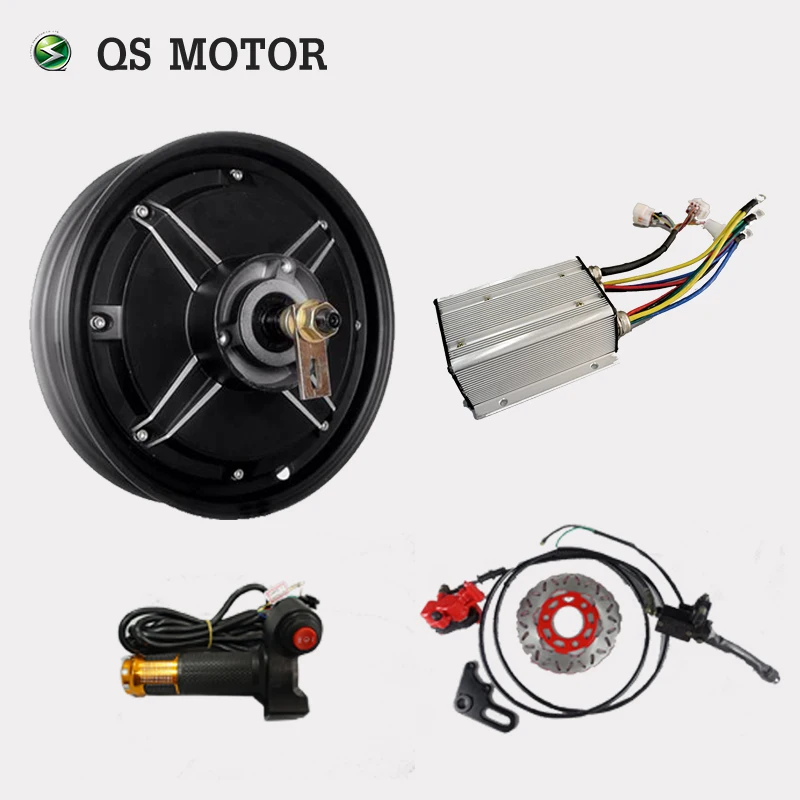

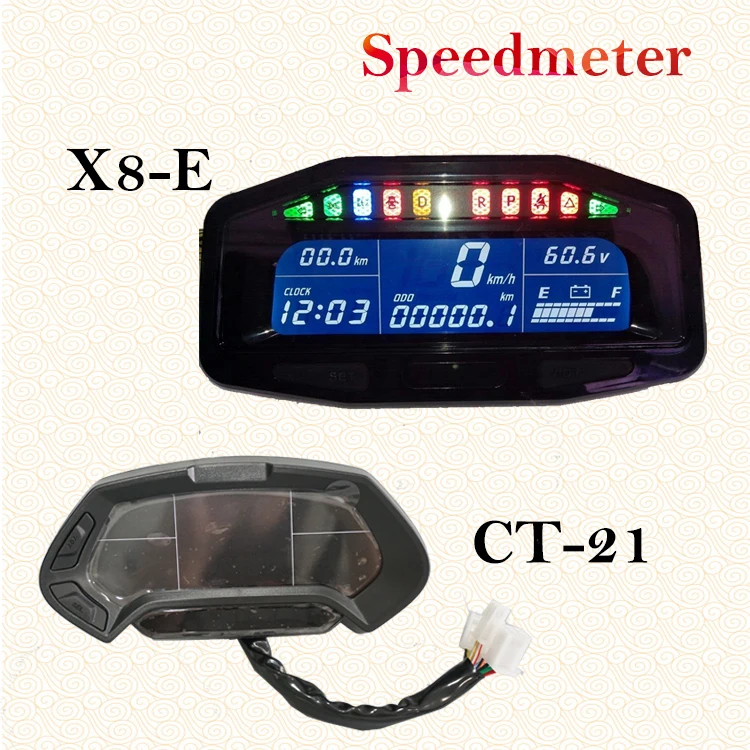

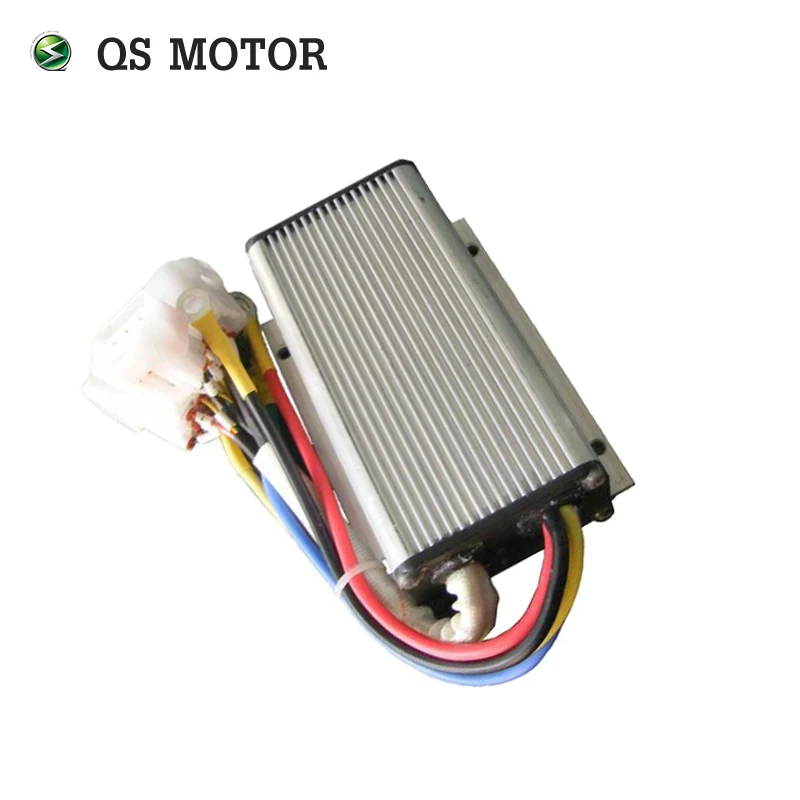

motor kits Matched Controller speedometer Disc brake assembly

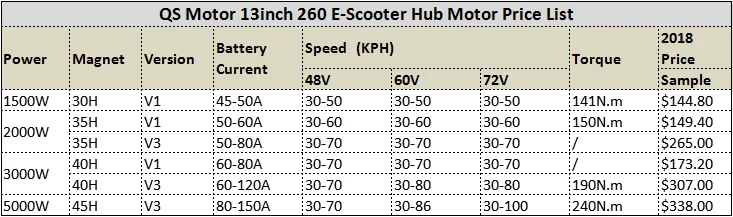

Full power list of 13inch electric scooter motor.
Why Choose Us
QSMOTOR are noted for their electric driving system throughout the world. At QSMOTOR they also happen to be our specialty, so you can rest assured that convert your gasoline vehicle to electirc/hybrid type, or building your electric vehicle(bicycle, scooter, motorcycle, tricycle, car etc.)– we guarantee it!
Our professional team of technicians is backed by over 18 years of experience with motors, controllers, brakes and electrical work. Always feel confident that the interior and exterior of your vehicle will be developed in best performance. It’s all part of our high quality and solution to handle your vehicle!

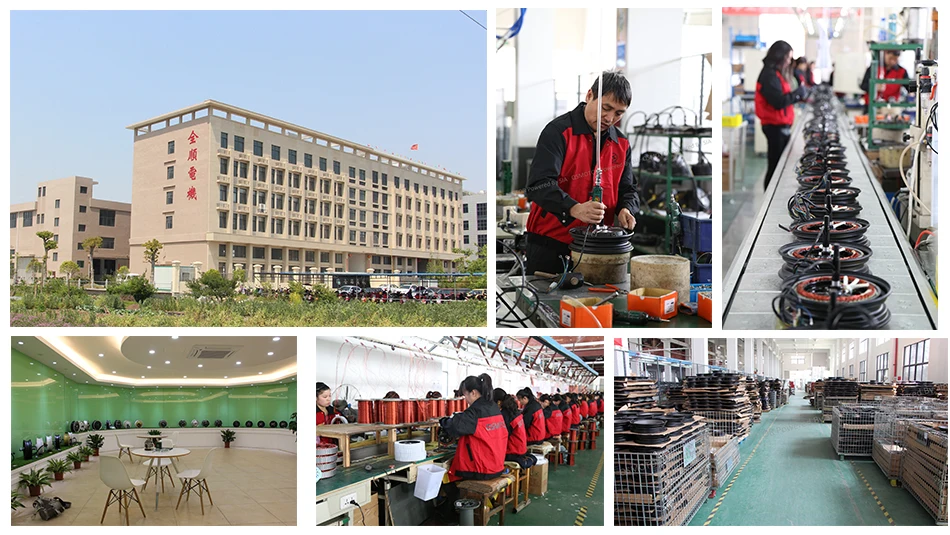

QSMOTOR is conveniently located on the Taizhou City(P.R.C), just a 30 minute drive from Taizhou Airport. We provide a clean and pleasant conference room to waiting for you. Make an appointment today or come by for a visit and we’ll show you why we make a difference.
Buying Guides
In order to recommend you suitable motor kits, would you like to confirm me below ponits firstly?
1. Your scooter weight and loading weight?
2. Voltage and max. speed?
3. Climbing performance?
4. Your wheel size and tire perimeter?
5. Other requirements?
FAQ
Q1. Are you a trade agency or manufacturer?
A: We're a manufacturer.
Q2. How long is your production time?
A: Generally, the production period is 12-14 working days(6 working days per week).
The specific delivery time depends on the items and the quantity of your order.
Q3. What is your warranty?
A: For motor, the warranty is one year and three months. For other parts, the warranty is one year.
Q4. About Customs Clearance
For some countries there is a very strict customs rule for import, so please confirm it to us up front that you have the ability to do customs clearance, otherwise we will not be held accountable for the failure of delivery, and we will not return money nor goods.
Attentioned Countries list:
Argentina, Brazil, Egypt, Turkey, Iran,Portugal,Romania, Kazakhstan, Ukraine, Yeman etc.
Some countries name not listed, the salesman will inform you in time if you placed the order online directly.
Thank you for your understanding.
