3kg Portable Gold Melting Furnace for Jewelry Tools Goldsmith
- Category: >>>
- Supplier: Zibo JC Eco-Tech Co. Ltd.
Share on (60744352254):
Product Overview
Description
3kg Portable Gold Melting Furnace for Jewelry Tools Goldsmith
Product Specs
JC Gold Melting Furnace Automatic thermostat controls monitor the precise temperature you require, regardless of metal quantity. The furnace holds temperature within ±5°F (±3°C) to a working temp of
2102°F (1150°C), reducing metal temperature overshoot and protecting against element burnout.
•Digital pressure–sensitive touchpad and LED display.
•Built–in pyrometer and extended–life heating element.
•Graphite crucible and stirring rod.
•Automatic shut off/on.
•Digital pressure–sensitive touchpad and LED display.
•Built–in pyrometer and extended–life heating element.
•Graphite crucible and stirring rod.
•Automatic shut off/on.
The unit is widely used in melting gold, silver, copper and other metals;
It is a best choice for small heating , melting equipment.
Product Description
Model | JC-K-220-2 |
Voltage | 220AC single phase 50/60Hz |
Power | 1500Watts |
Heating | Silicon Carbide chamber |
Working temp | 2102F (1150C) |
Melting Speed | 15-20mins |
Melted Material | Aluminum, Gold, Lead, Silver, Sterling Silver, Tin & Zinc |
Capacity | 3kg list for gold |
Feature | 1.Designed for handheld pouring directly from the crucible |
Product Feature
* PID Digital Temperature Controller
* SSR relay.
* Easy to operate & maintai
* Low Maintenance Heating Element.
* Heat On/Off Indicator
* Safe & Shock Hazard free
* Transformer based (low voltage)
* Nichrome, Lanthal (DST or A1) heating coils are used for
* quality uniform heating.
One Furnace Unit delivery with:

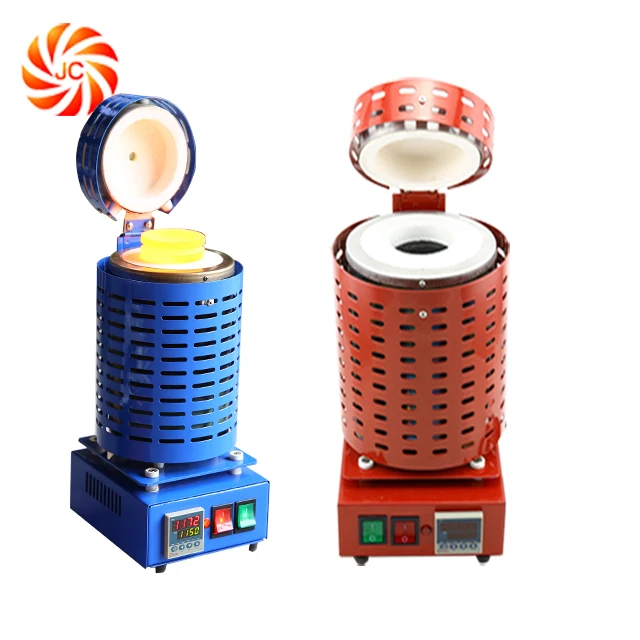

Model JC-K-220-2(220V 1.5kw) Red,Blue ,Gray color is optional
1-3kg graphite crucible
1-crucible tongs.
1-replacement fuse.
1-insulating heat glasses.
1- gloves.
Gold bar melting Operating Process as follows
Step 1 Put gold bar into the crucible.
Step2 Heat up the furnace with 15 minutes
Step3. Take out the Melting crucible from the furnace,then put it on tray.
Step4.Pour slowly the gold liquid from the crucible.
Step5.Wait the liquid cooling in the mould within several seconds.
Gold Melting Furnace Instruction
The furnace has two on/off switches: the GREEN switch turns on the temperature thermostat
allowing you to set the desired melting temperature.
The RED switch turns on the heating element to start the melting process.
The thermostat has two digital read-outs: the bottom readout (SV) displays the setting you
enter into the furnace. The top read-out (PV) displays the actual temperature inside the
crucible during operation.
Certificate
ISO CE
Gold Melting Furnace Shipping
We can accept T/T,Paypal,Western Union,Trade Assurace,the best and fast way is
Paypal.
We choose DHL/Fedex/UPS usually takes about 3-5 working days to the destination
We will send the goods within 3 working days after the full payment has been confirmed
Warranty and Return:
All the products have been tested before ship out.
All products electrical parts have 1 year warranty,including temperature controller,
relay, thermocouple,heating elements have 6 months warranty,including chamber,
heating coil etc. If there is no man-made problems,we will replace or repair for you freely.
