- Top configuration, advanced imaging technology, extremely clear and delicate image
- Complete imaging, display modes and functions including anatomical M imaging, wide-field imaging,
elastography, etc.
- Support phased array, 4D and other probes
- Rich and powerful measurement function
- High cost performance
Specifications:
-Imaging technology: Pulsed Inverted Harmonic Imaging, Filtering Harmonic Imaging, Harmonic Fusion Imaging, Multi-Beam Combining, Spatial Composition, Adaptive Blur Suppression, 14-bit A / D Converting to 60M / s Sampling Rate, point by point dynamic focus and dynamic aperture technology, synthetic aperture technology

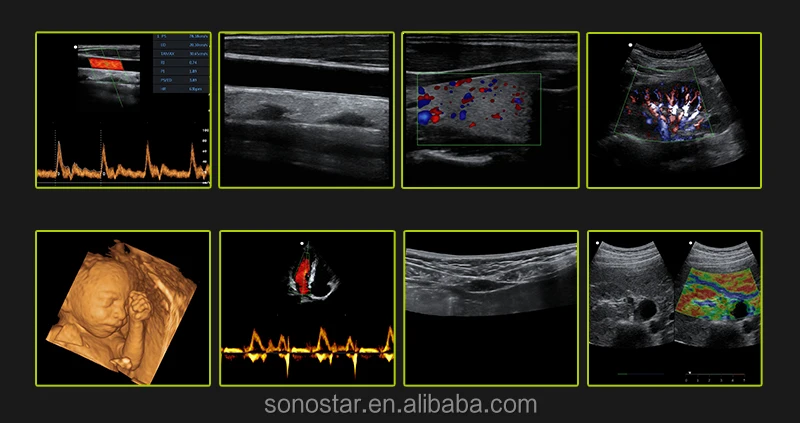

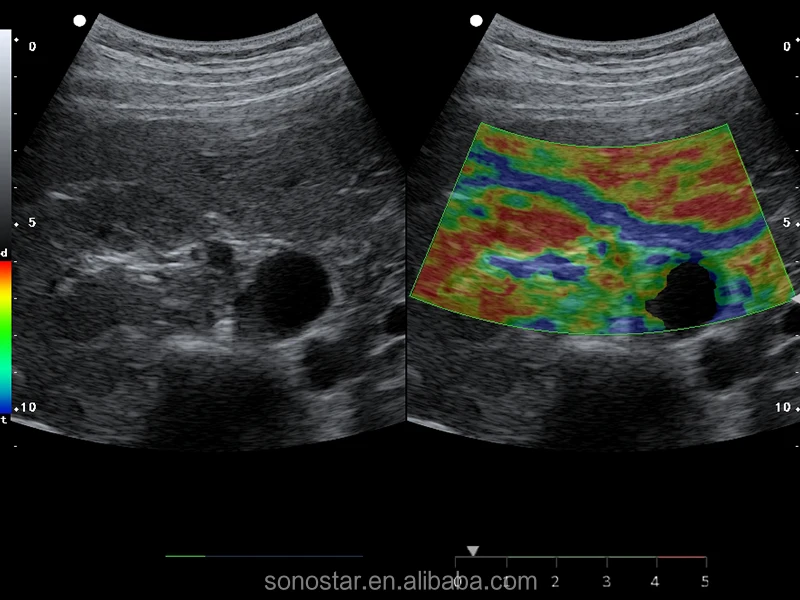

-Imaging modes: B, M, Color Doppler, Power Doppler imaging (PDI), Pulse Wave (PW), Anatomy M-mode imaging, Blood flow motion mode imaging (MC) , Wide-field imaging, elastography, strain rate imaging, Tissue Doppler imaging (TDI), Directional Power Doppler imaging (DPDI), parallelogram imaging, trapezoidal imaging, B / C / D real-time triplex imaging, real-time four-dimensional imaging (4D) (optional), Continuous Wave Doppler imaging (CW) (optional)
-Imaging display modes:B, 2B, 4B, B + M, BCM, B + Color, B + PDI, B + DPDI, B + PW, B + Color + PW, B + PDI + PW, B + DPDI + PW, B + C / PDI / DPDI dual real-time, B / SRI dual real-time, B + AMM, B + E, CW, 4D
-Transducer frequency and frequency conversion: 2.0-12.0MHz, B / M mode 5 files fundamental frequency + 2 files harmonic frequency, Color mode 3 files, PW mode 2files

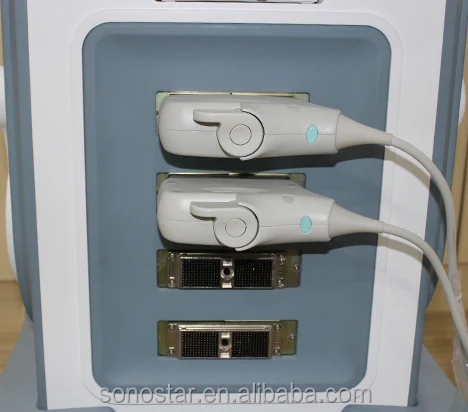

-Transducer connector: 4
-Cine Loop: B mode ≥ 1000 frames, Color and PDI mode ≥ 500 frames, time line mode (M, PW) ≥ 200s
-Image magnification: Real-time Scan (B, B + C, 2B, 4B) Status or Level 5 magnification in Freeze status.
-Image Storage: JPG, BMP and AVI, local storage, DICOM, conform DICOM3.0 standards
-Built-in workstation: support for large-capacity hard disk (≥ 500GB), support for patient data retrieval and browsing
-Multilanguage support: Chinese / English operating system, support for other languages according to user requirements,full screen Chinese and English annotation input
-Imaging specification:
B mode: grayscale mapping ≥ 20 files, pseudo color ≥ 6 files, noise suppression ≥ 5 files, frame correlation ≥ 4 files, edge enhancement ≥ 5 files, speckle suppression ≥ 5 files, image style adjustable, Space composite three gears adjustable, Sound power adjustable, Dynamic range adjustable, high and low scanning density adjustable, image flip up and down adjustable, maximum scanning depth ≥ 360mm
M mode: Sweep Sleep ≥5 files adjustable, afterglow ≥5 files, sampling volume adjustable, pseudo color ≥6 files, edge enhancement ≥4 files, Sound power adjustable

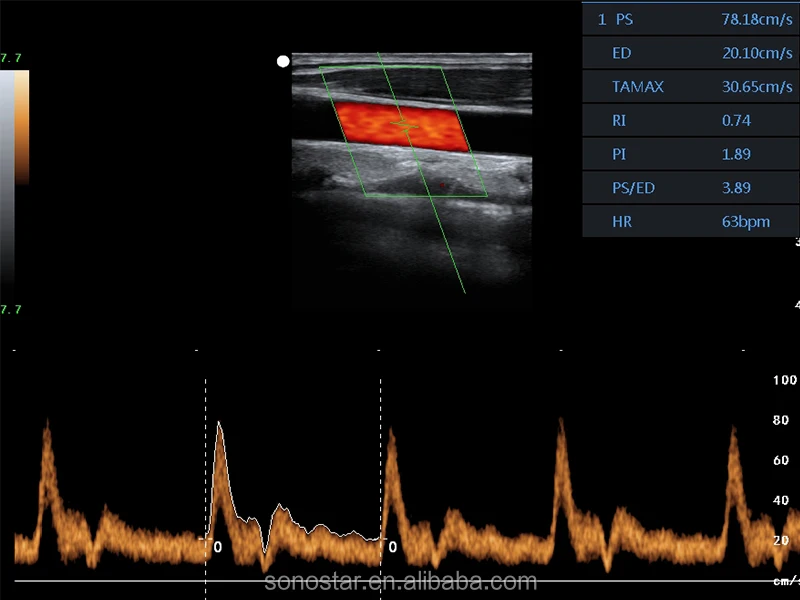

Color / PDI / DPDI mode: PRF≥32 files 0.2KHz-20KHz, color map≥20 kinds, frame correlation≥4 files, smooth≥4 files, linear density in low, medium and high adjustable, frequency adjustable, sound power adjustable, frame rate adjustable, wall filter ≥ 6 files, blood flow priority ≥ 8 file, sampling packets6/8/10/12/16/20/24, speed through ≥ 8 files, B suppression ≥ 8 files
-Measurement and calculation:
B / C Mode Routine Measurements: Distance, Area, Perimeter, Ellipse, Crosshairs, Volume, Volume (Ellipse), Angle, Area Ratio, Distance Ratio, Joint Angle
M mode Routine measurements: time, slope, heart rate, distance
Obstetrics B, PW mode application measurement: including comprehensive obstetrical diameter measurement, weight, single gestational age, amniotic fluid index, etc.
Gynecological B-mode application measurement
Heart B, M, PW mode application measurement
Vascular B, PW mode applications measure and support auto-measurement of carotid intima (IMT)
Small Organs B-mode application measurement
Urinary B- mode application measurement
Abdominal B-mode application measurement
Certifications
Exhibition
Our Services
1. We offer18 months warranty period, 24 hours calling service. 2. There is OEM&ODM service for distributor. 3. Support iOS, Android, Windows connection, APP belongs to Sonostar, free for lifetime use. 4. 100% Calibration before Shipment. 5. All products will be shipped within1-3 working days upon payment.
