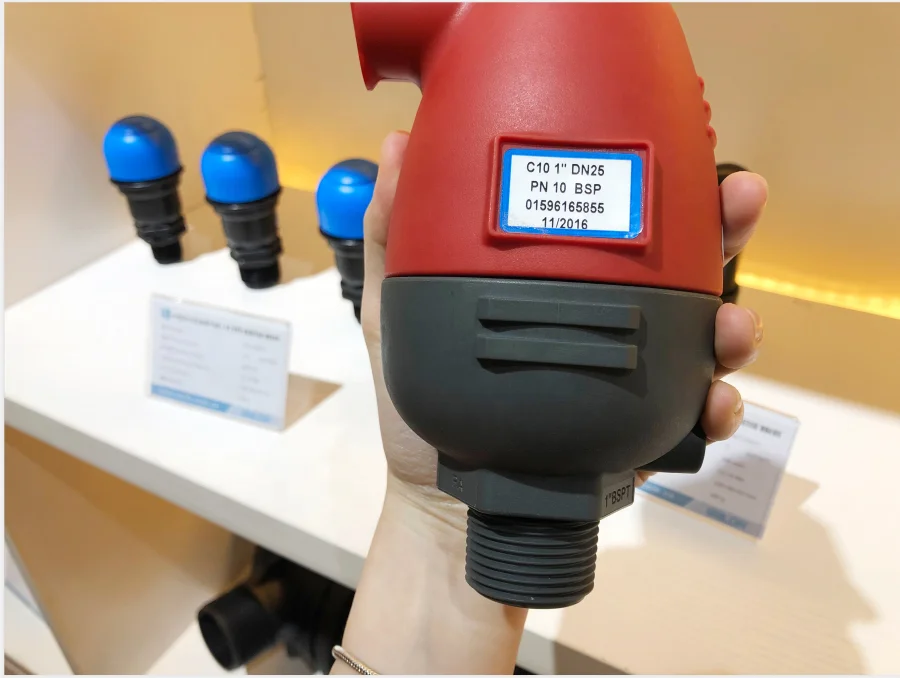

arka 3/4 ' Inch Industrial Automatic Air Brake Valve for Irrigation Drip System

Product Overview

Description



                                        ARKA

           FUZHOU HIAFENG PLASTIC PRODUCTS CO.LTD

1.PRODUCT DESCRIPTION

ARTHAS AIR VALOVE

1. Gas Dynamics DC Design. modualrity ,versatility ,compatibility.

2. Power quick exhaust port and trace automatic exhaust port

4. Float anti-blowing design to prevent high-speed airflow blowing the float prematurely close the exhaus

5. Resistance  to chemical products.

6.A variety of installation caliber to meet different customer needs

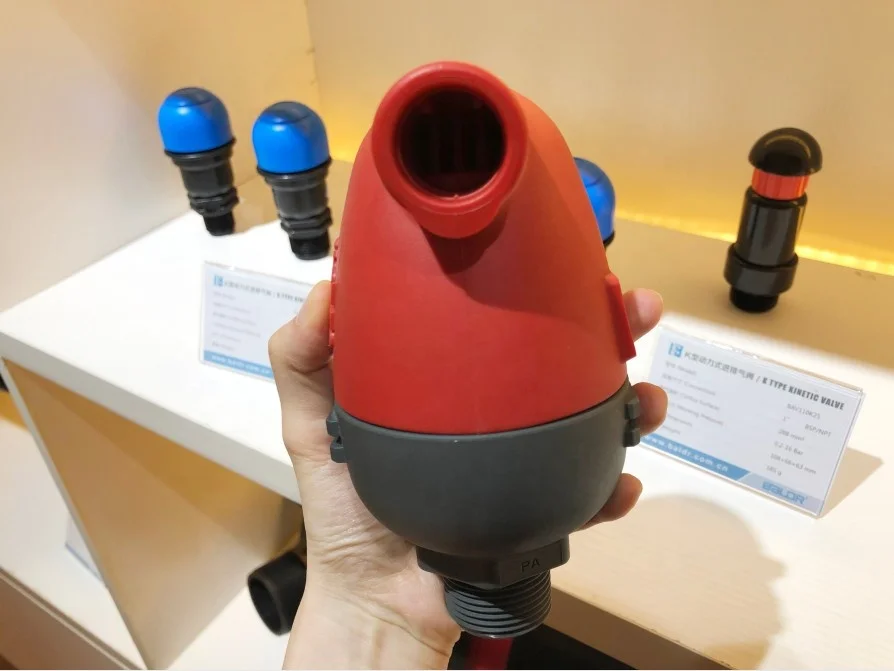

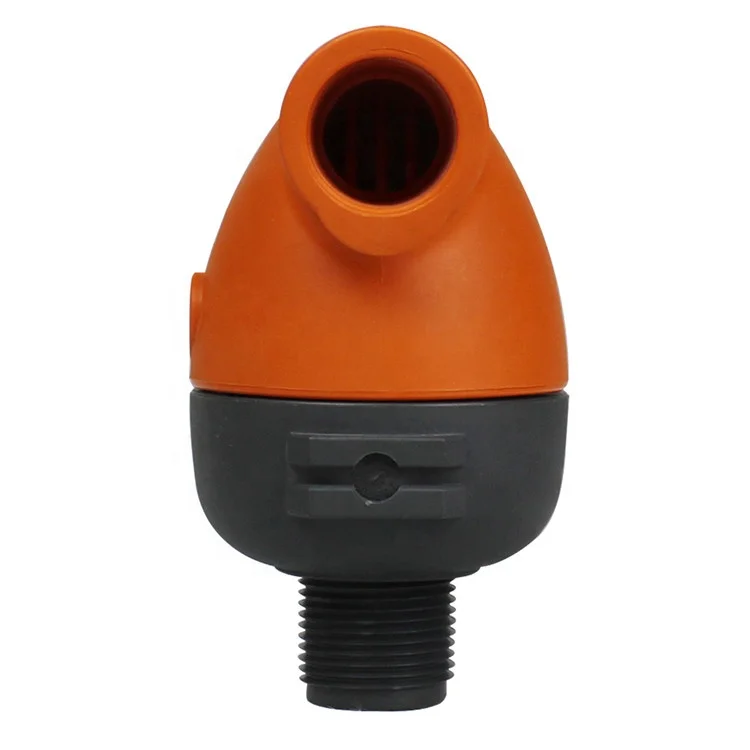

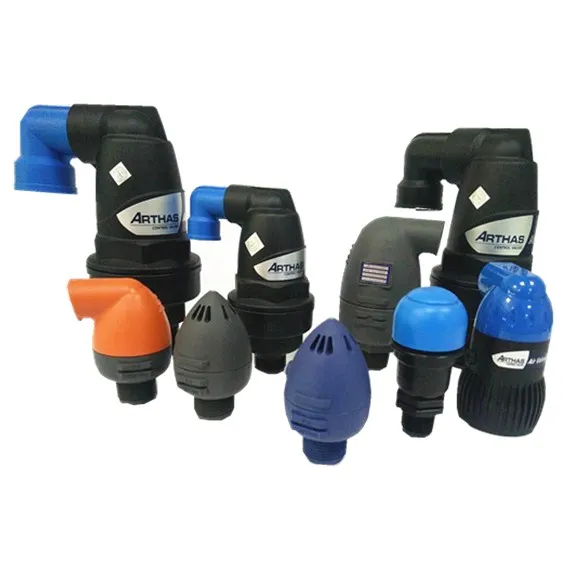

2.PRODUCT  PICTURE



 PRODUCTS DESCRIPTION
K type kinetic valves - K type kinetic valves are applicable to all kinds of irrigation system.It evacuates air quickly during pipeline filling and take in large volume air while draining.Its advanced aerodynamic design and kinetic orifice, this valve provides excellent protection against vacuum formation and large volume air existing, with improved sealing under low pressure conditions.

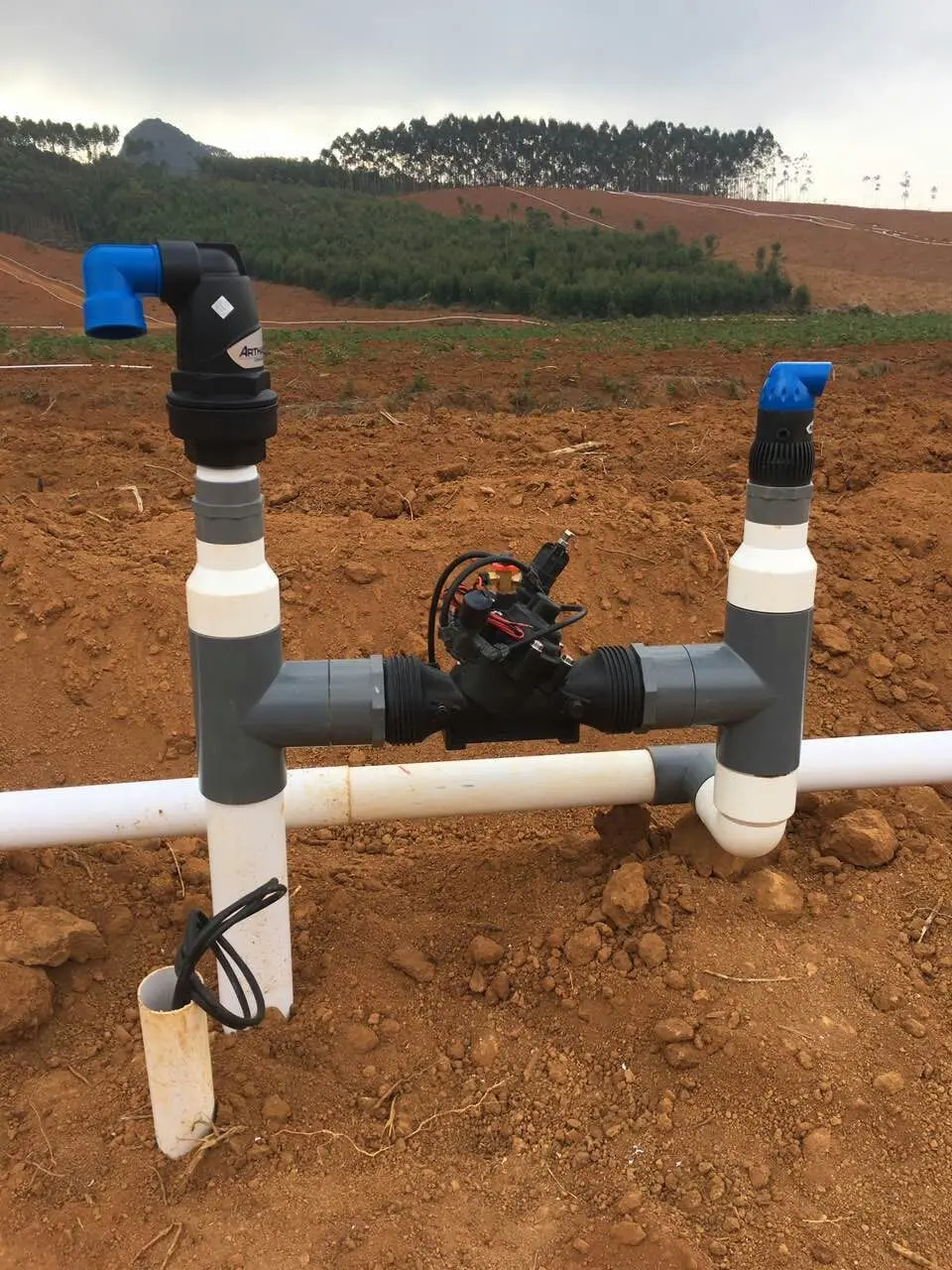

TYPICAL APPLICATION
Pipe system: Protection against air accumulation in horizontal, ramp turning point and road/river crossings.
Water supply system: against air accumulation and vacuum formation.
Near control valves and water metre: increase the accury of meter and a better performance of control valves.
Industrial and residential networks: Protection against air accumulation.
FEATURE & ADVANTAGE
• Advanced aerodynamic design;
• Big inlet size allowing massive air flow;
• One- piece floating ball design ensure ontime shutting of outlet while the high speed airflow occurs;
• Quality sealing - prevents leakage under low pressure conditions (0.1 bar/1.5 psi);
• PP material with corrosion, acid, alkliane resistant features to be long lasting;
• Multi-installation size for various market demands;

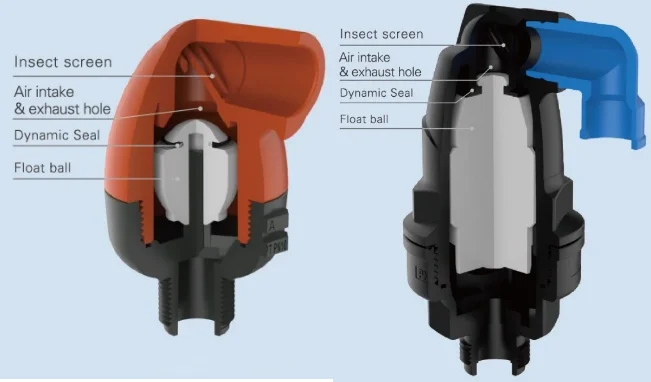

HOW IT WORKS
System filling - During filling water into the pipeline, massie air will be evacuate from kinetic air intake & exhaust hole. The floating ball moves upwards to close the orifice after water flows into the champer. With aerodynamic design and the anti-blow design, the floating ball ensure ontime shutting of outlet while the high speed airflow occurs.
Pressurized Operation - The kinetic valves keeps closed under pressure from water.
System draining - When the system or pipe is drained empty, negative pressure forms in the kinetic valve. Meanwhile the float move down to take in air against vacuum formation.

3.PRODUCT  TYPE

AIR VALVE

SPECIFICATION:

MODEL	CONNECTIONS SIZE (BSP/NPT)	ORIFICE   SIZE  (mm2)	WORKING PRESSURE (bar)	DIMENSION    (mm)	WEIGHT   (g)
A11	DN20  3/4''	288	0.2-16	110x80x66	205
A11	DN25  1''	288	0.2-16	110X80X66	205

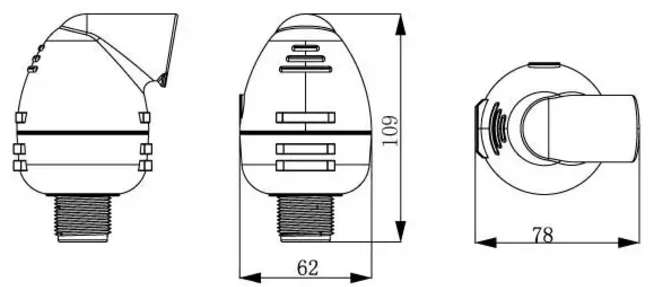

 DIMENSION

Our Services

1. providing professional technical guidance and design solution FOC.

2. professional production line ,strict quality control system and rich manufacturing skills ,make sure the products high-level quality.

3. OEM/ODM services are provided.

4. Warranty: One year since the date after delivery.

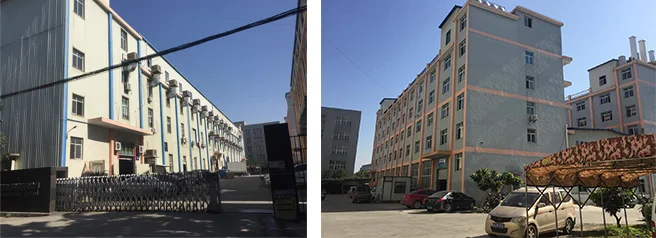

COMPANY  PROFILE

* Founded in 2008, located in Fuzhou, china

* A Professinal Environmental equipment manufacturer.

*Strong capacity in supplying chain managerment, integrated production and manufacturing.

*Unique innovation in the development and design of water recycling system control integration.

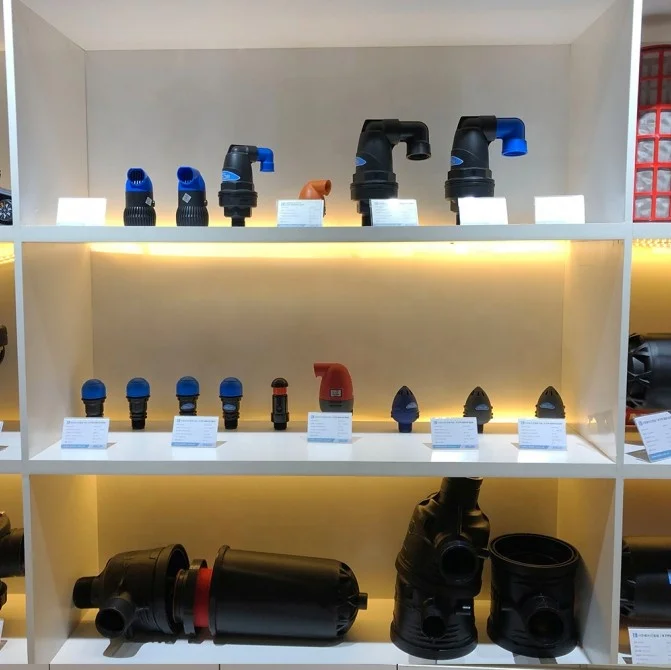

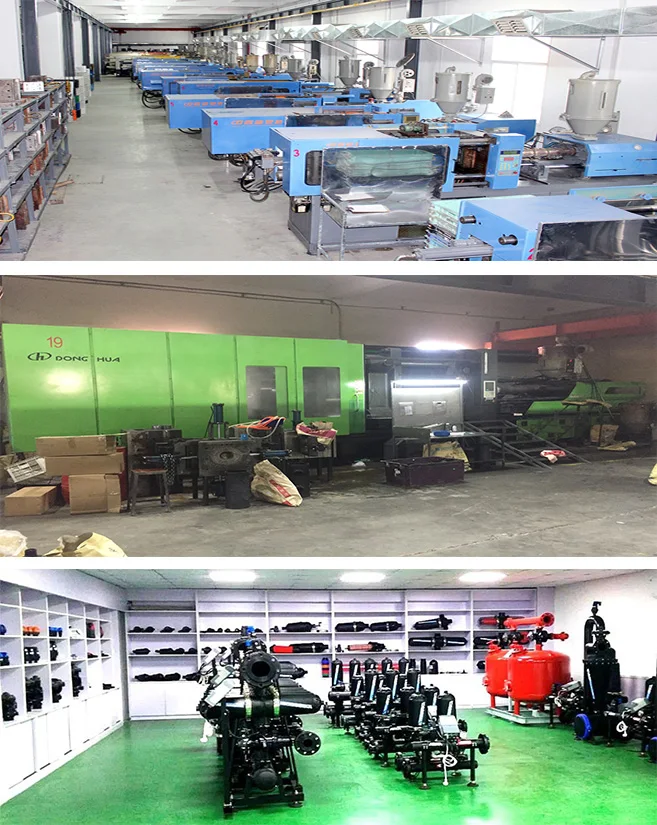

WORKSHOP AND SHOWROOM
