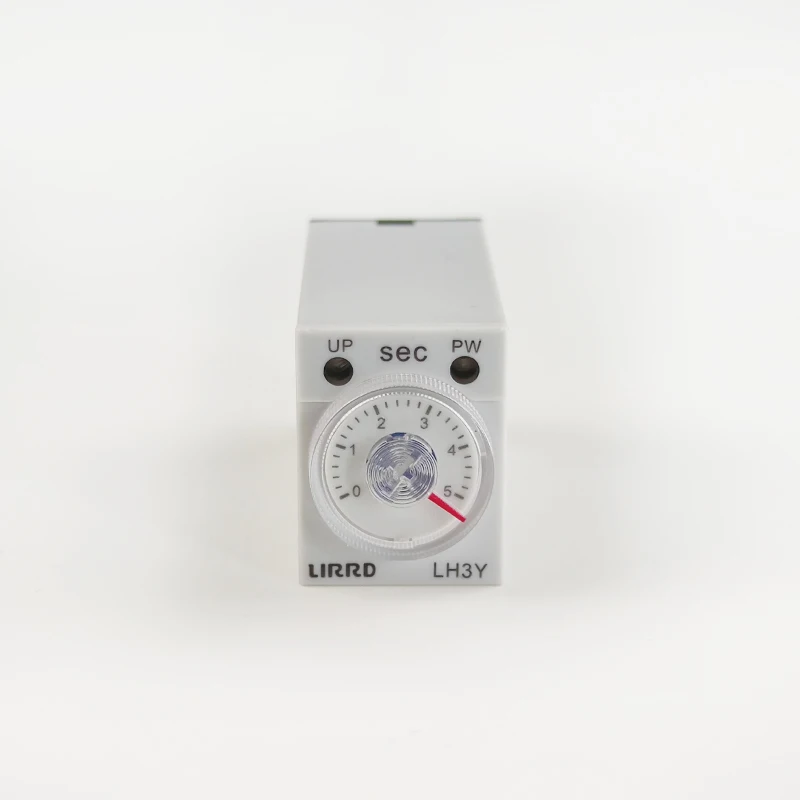

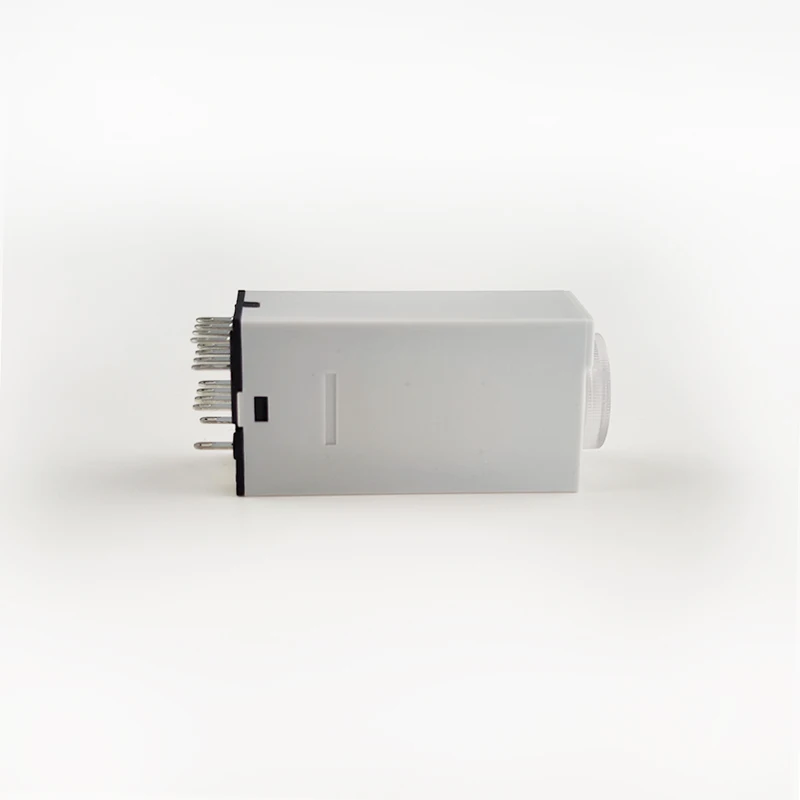

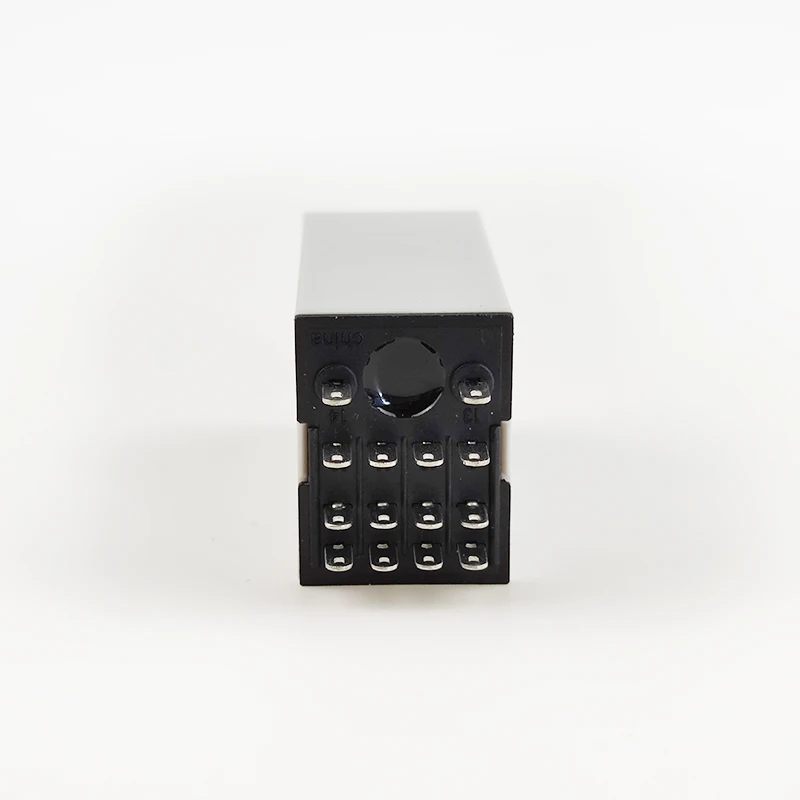

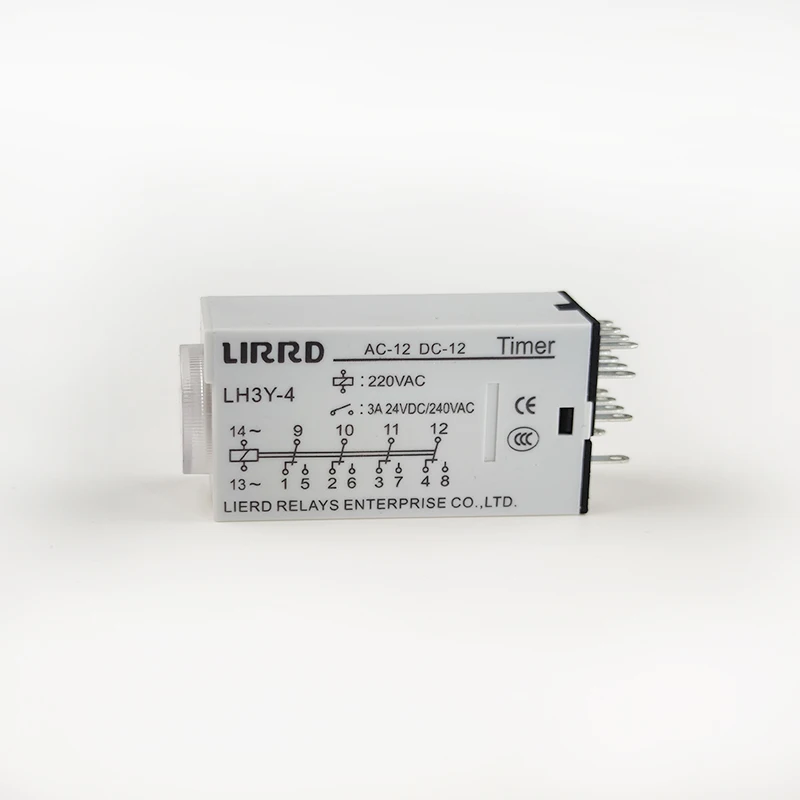

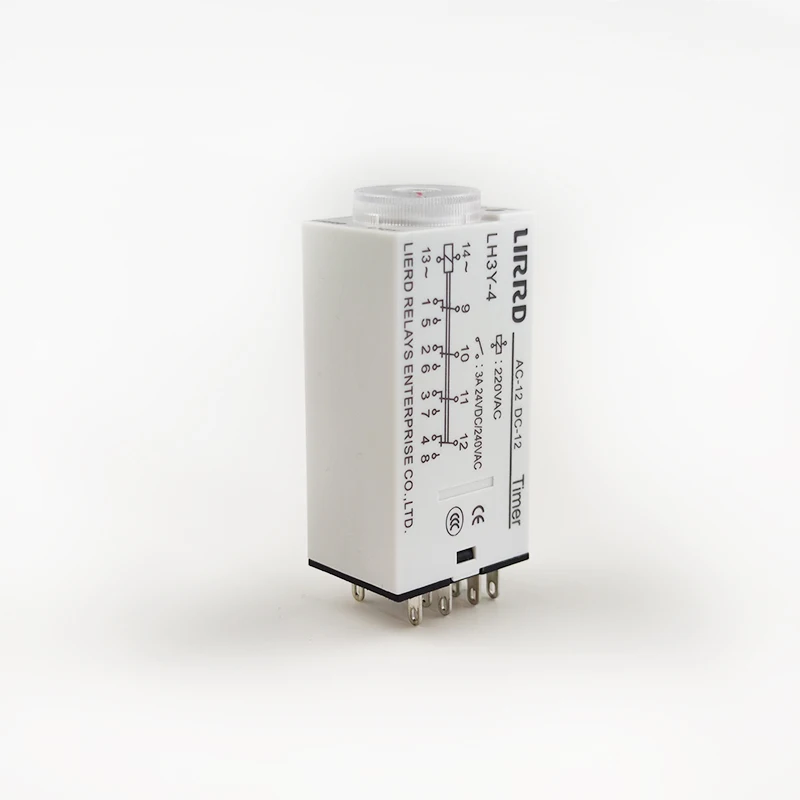

H3Y 4 Time Delay Relay 4 Poles Plug in Type Terminal 220VAC
- Category: >>>
- Supplier: Zhejiang Lierd Relays Enterprise Co. Ltd.
Share on (60744388099):
Product Overview
Description
Application
General Specifications
| Classification | Time Relay | ||
| Model | LH3Y | ||
| Dimension(mm) | 28.0H * 21.5W * 63.0L | ||
| Full Timing Range | SEC:1, 5, 10, 30, 60 | ||
| MIN:3, 5, 10, 30, 60 | |||
| HR:3, 5, 10, 12 | |||
| Rated Voltage | AC: 110V, 220V 50/60Hz | ||
| DC: 12V, 24V | |||
| Indicator Operating | Power, up | ||
| Contact | Model | H3Y-2(ST6P-2) | H3Y-4(ST6P-4) |
| 1C Time Limit | |||
| 2C Time Limit | 5A | 3A(4C) | |
| 1C Instantaneous | |||
| Service Life | Mechanical | 5*106 times | |
| Electrical | 105 times | ||
| Accuracy | Repeat Error | ±3% max. | ±1.5% max. |
| Setting Error | ±10% max ± 50ms | ||
| Voltage Error | ± 2% max. | ||
| Temp Error | ± 5% max. | ||
| Reset Time | 0.2sec max. | ||
| Power Consumpting | 3VA | ||
| Ambient Temperature | -10~+55 °C | ||
| Ambient Humidity | 48~85%RH | ||
| Weight | 45g | ||
| Mounting&Socket | Surface | PYF08A | PYF14A |
| Flush | With Y-20 adapter | ||
Installation Dimensions And Connecting Diagram
Company Information
Established in 1995, Zhejiang Lierd Relays Enterprise Co., Ltd has been focusing on the relays for industrial control for 24 years.
Main products are electromagnetic relay, solid state relay, time relay, relay socket, ampere/voltage meter, time switch, counter and so on.
The application covers deomestic appliances, automatic control equipments, powering generating facilities and power grids, vehicle appliances, instruments, electronic equipments, communication equipments, machine equipments, office facilities, etc.
LIRRD(our brand name) has been cooperating with one of a leading company in industrial control in Northeast Asia for about twenty years. Quality is always our first resonsibility in business.
LIRRD has passed the management system certifications ISO9001:2015, ISO14001:2015. Quality certificates CCC, CQC are approved for domestic market. CE, UL are qualified for export market.
