High quality SMT spring loaded 2.54mm pitch magnetic pogo pin battery connector
- Category: >>>
- Supplier: Dongguan Lanbo Electronics Technology Co. Ltd.
Share on (60744394608):
Product Overview
Description
High quality SMT spring loaded connector pogo pin 2.54mm pitch magnetic pogo pin battery connector
Product Description
We are connector supplier in Dongguan,China,over 20 years experience,provide different types of connector,and also could customize the product based on your requirement,accept OEM/ODM,so if possible,pls just send me email about your inquiry,we will provide the most competitive price,high quality and best service,thanks!
Contact Name:Catherine Tang
Phone/Whatsapp:86-18692238587
Skype:catherine.peng888

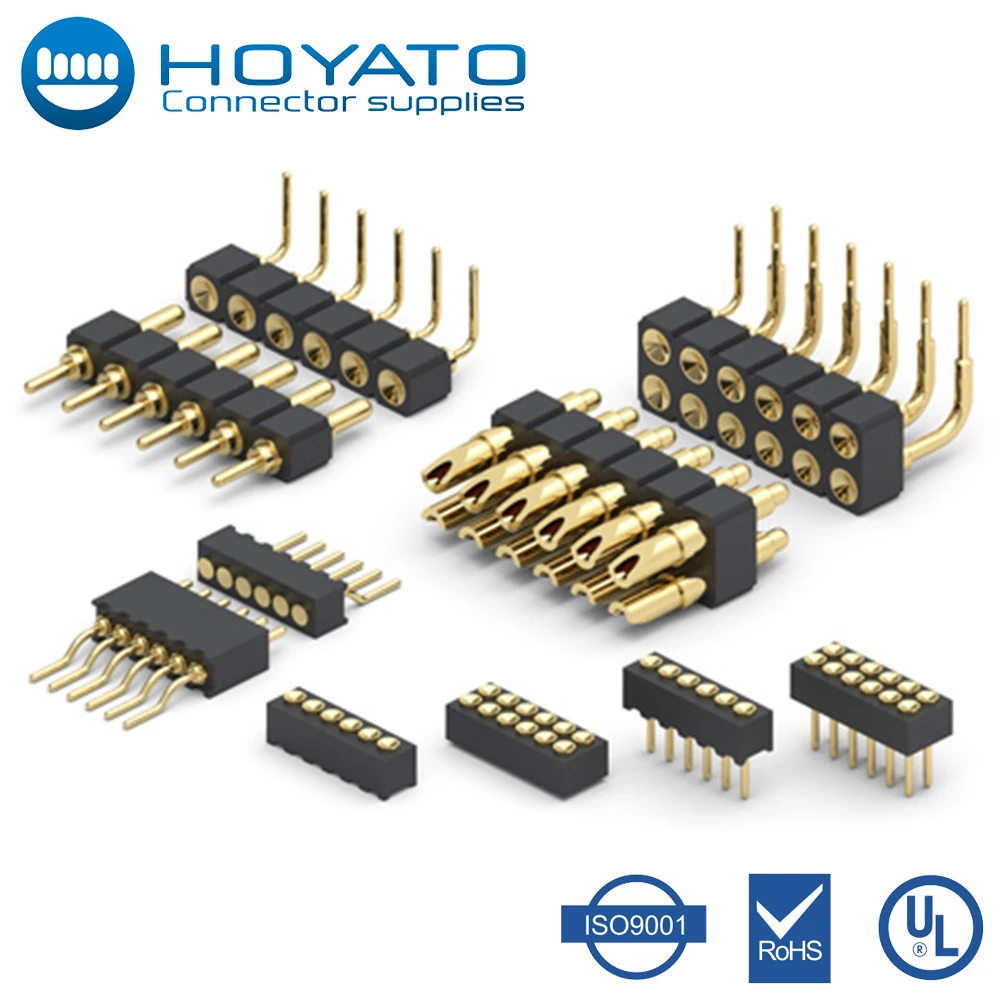

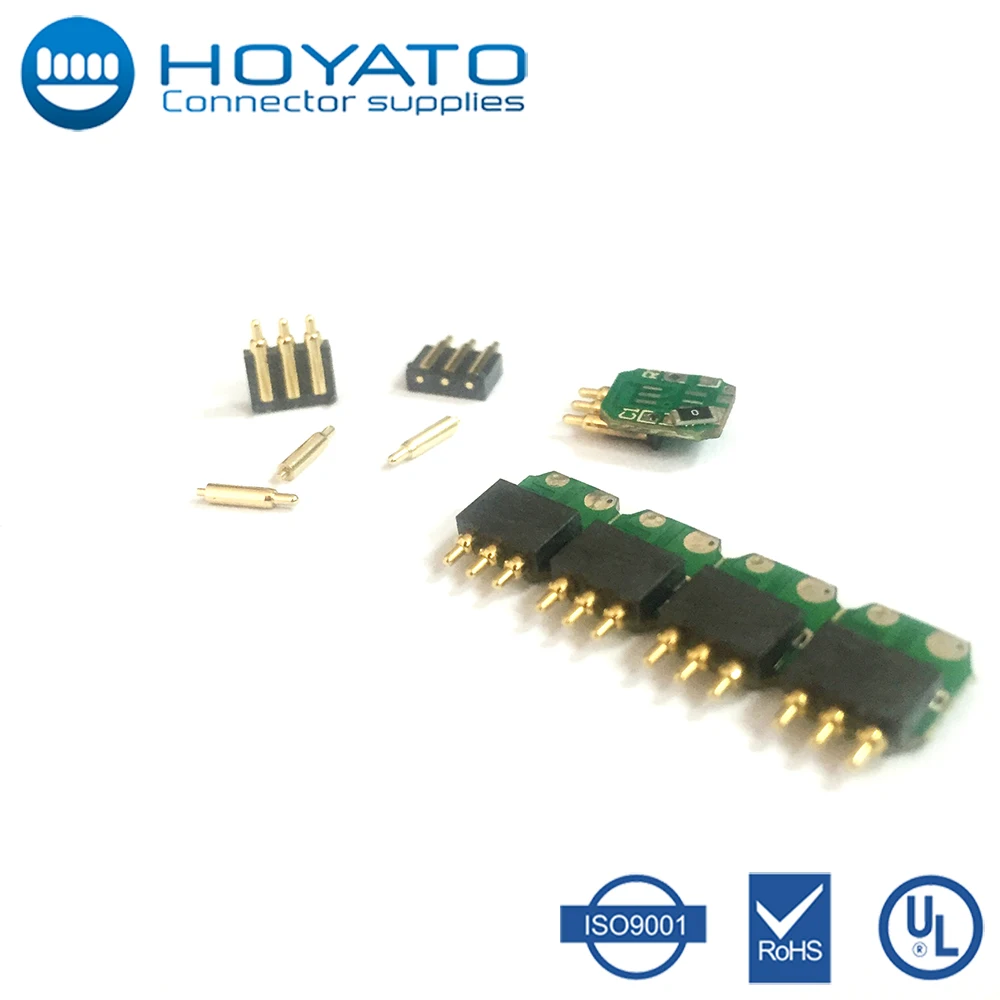

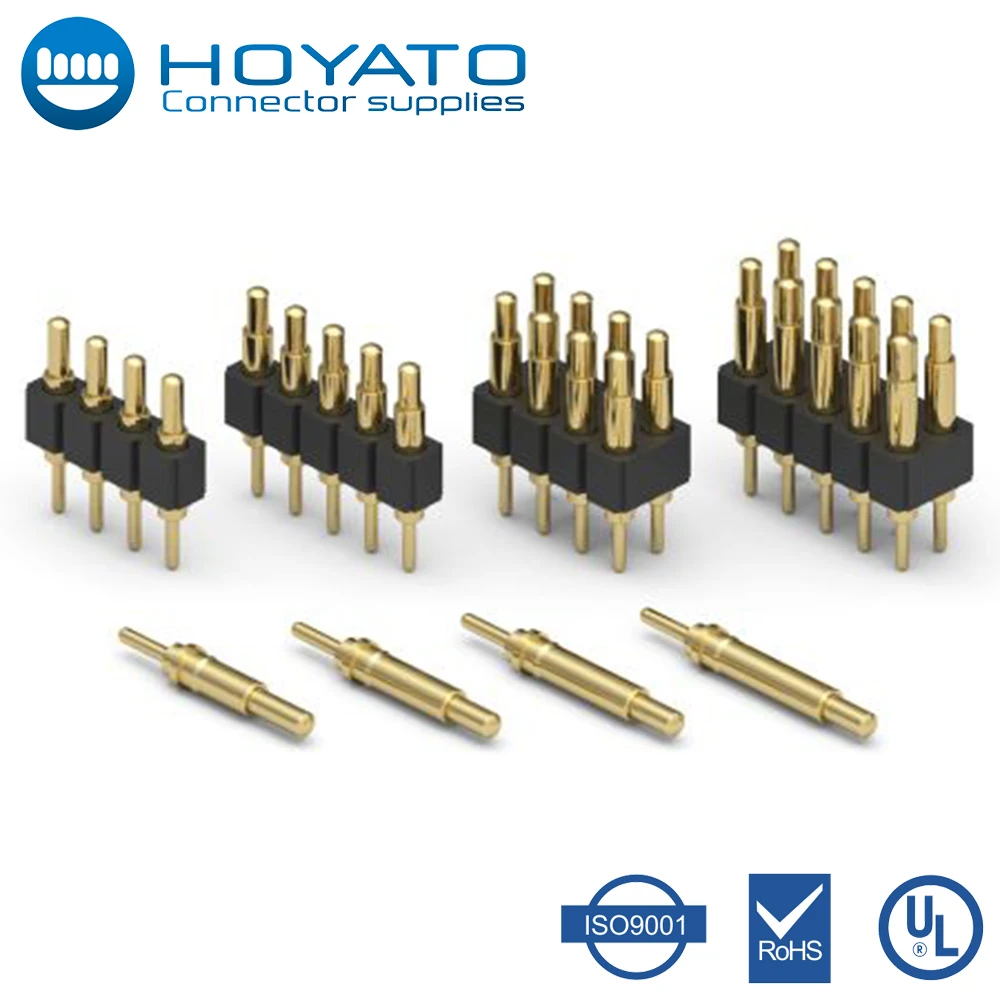

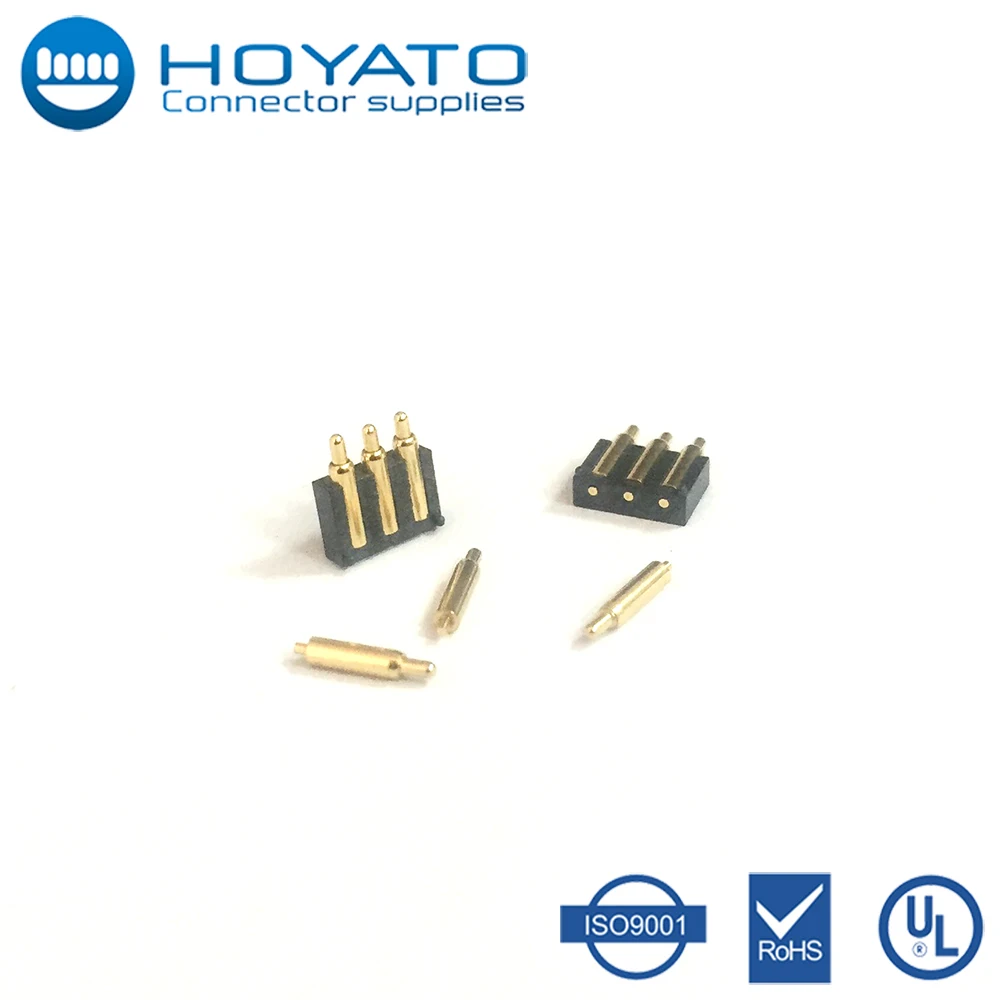

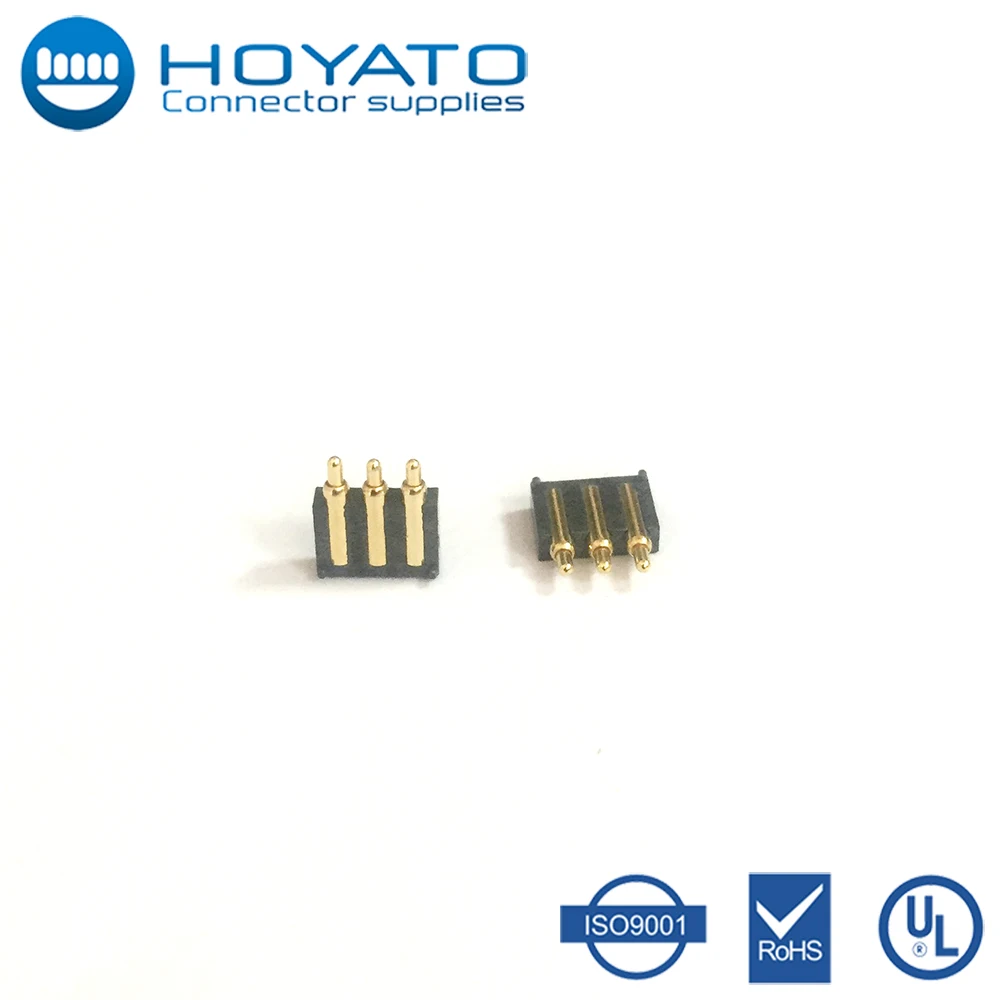

Products Picture High quality SMT spring loaded connector pogo pin 2.54mm pitch magnetic pogo pin battery connector
Products Description High quality SMT spring loaded connector pogo pin 2.54mm pitch magnetic pogo pin battery connector
| Technical Parameters. |
| A. Elextrical |
| 1) Operating voltage: 12V Max. |
| 2) Opetating current: 1.0A. |
| 3) Contact resistance:30mohm Max. |
| at working height(Quiescence). |
| B. Mechanical |
| 1) Total stroke: 1.3mm. |
| 2) Normal working position: 4.5mm(spring force Min. 25gf) |
| 3) Mechanical life: 10,000 cycle min. |
| 4) Don't exceed the Max. allowed compression |
| C. Material/Finish |
| 1) Plunger & Barrel:Green copper brass(Lead content is |
| less than 1000ppm), Nickel free Plating 3-16µ" |
| 2) Spring: Stainless steel wire. Nickel free Plating 3µ". |
| 3) Housing:PA46+30% glass fiber; Black(UL94V-0) |
| D. Environmental |
| 1) Storage and operating temoperature range: |
| -40°C~+85°C |
| 2) Humidity range: 10% RH to 90% RH |
| 3) Salt spray: 24H |
| E. Others |
| 1) The dimensions marked are critical, |
| Should be checked in production |
| 2) No deformation,Burr,scratch,oxygenation,etc allowed. |
Products Process PCB battery connector pogo spring contacts connectors pogo pin connector
Related Products
Application
Packaging & Shipping
Company Information
FAQ
Q1. Do you have any MOQ limit for an order?
A1: Basically, no! We have an Aliexpress store, it sells goods in retailing qty, you are welcomed to buy there for small qty. But customized items, MOQ yes!
High quality SMT spring loaded connector pogo pin 2.54mm pitch magnetic pogo pin battery connector
Q2: How to proceed an order?
A2: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production and ship once it's ready.
High quality SMT spring loaded connector pogo pin 2.54mm pitch magnetic pogo pin battery connector
Q3: Do you accept Alibaba online orders?
A3: Yes, we highly like them. It's easy, convenient and both parties' safty assued by Alibaba.
High quality SMT spring loaded connector pogo pin 2.54mm pitch magnetic pogo pin battery connector
Q4: Do you provide samples ? is it free or extra?
A4: Yes, normally we could offer the sample for free charge but do not pay the cost of freight.
High quality SMT spring loaded connector pogo pin 2.54mm pitch magnetic pogo pin battery connector
Q5: How long is your delivery time?
A5: Generally it is 2-10 working days if the goods are in stock. Or it is 15-30 days if the goods are not in stock, it is according to quantity.
High quality SMT spring loaded connector pogo pin 2.54mm pitch magnetic pogo pin battery connector
Q6: Is it OK to print my logo on the packing?
A6: Of course, customized packing accepted!! But it may bring some cost, it depends on the qty and the packing.
High quality SMT spring loaded connector pogo pin 2.54mm pitch magnetic pogo pin battery connector
Q7: What is your terms of payment ?
A7: Small Order amount, 100% better by PayPal or T/T in advance. Large amount like more than 5000USD, 30% T/T in advance , balance before shipment.
High quality SMT spring loaded connector pogo pin 2.54mm pitch magnetic pogo pin battery connector
Q8: How do you guarantee my goods right?
A8: Order will be arranged exactly as requested, we will doubly check the packing and qty before delivering out also we will take you photos if required or necessary.
High quality SMT spring loaded connector pogo pin 2.54mm pitch magnetic pogo pin battery connector
