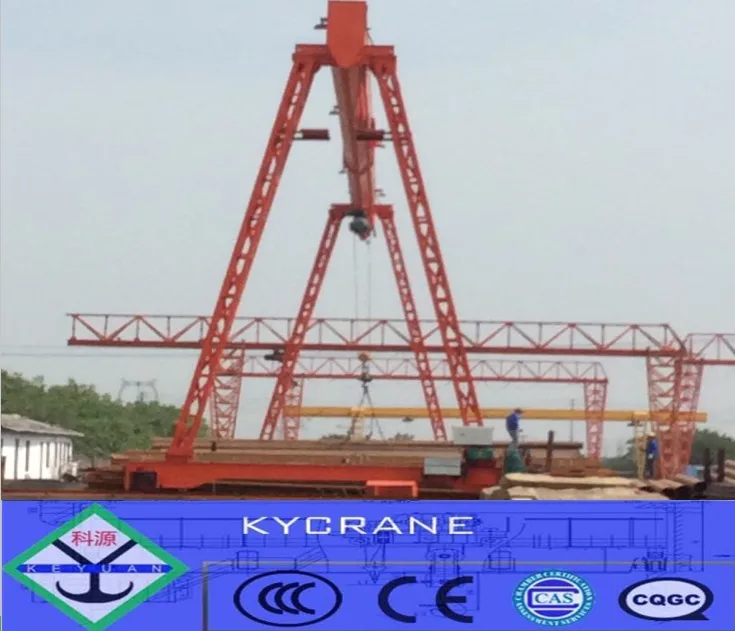

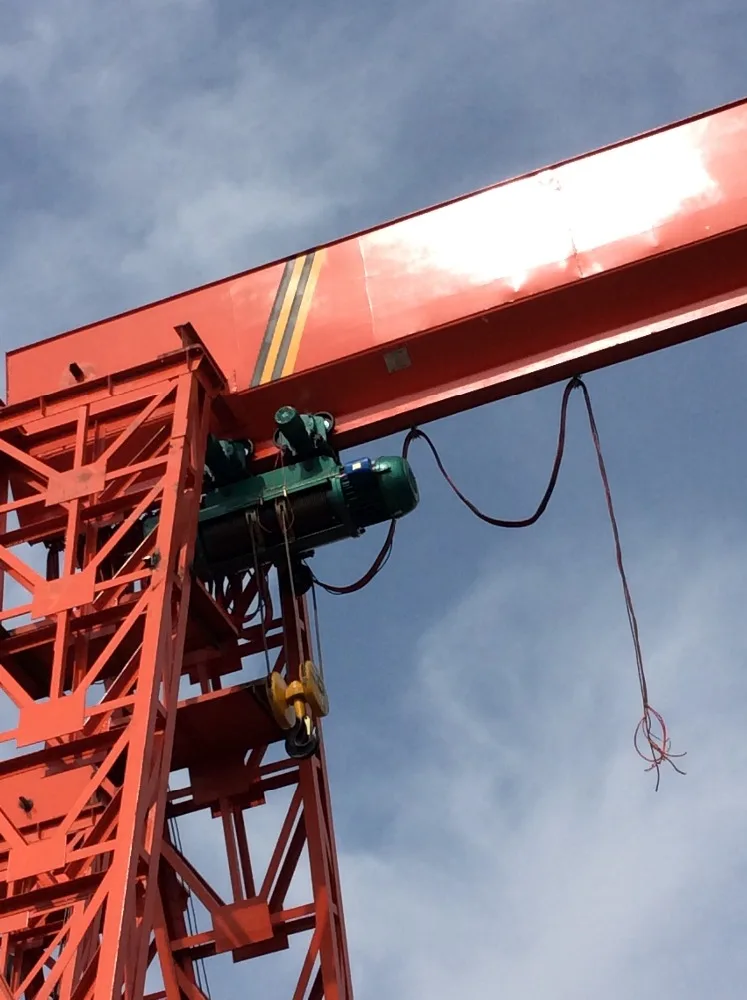

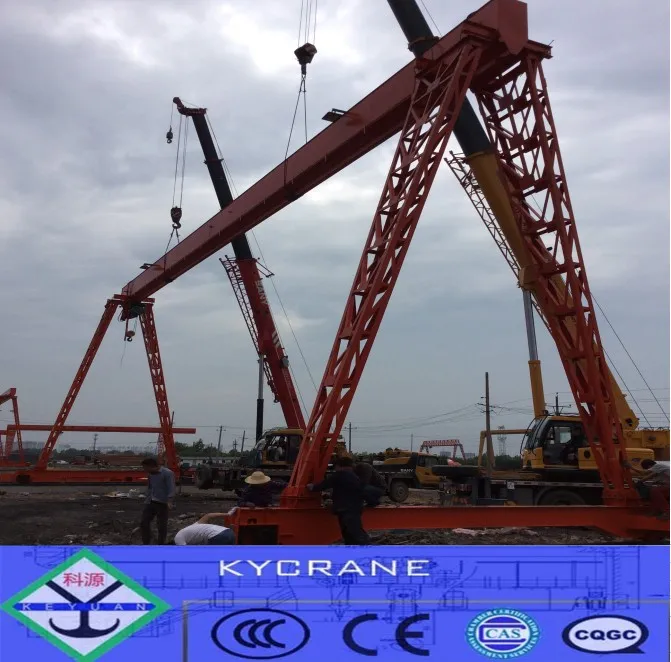

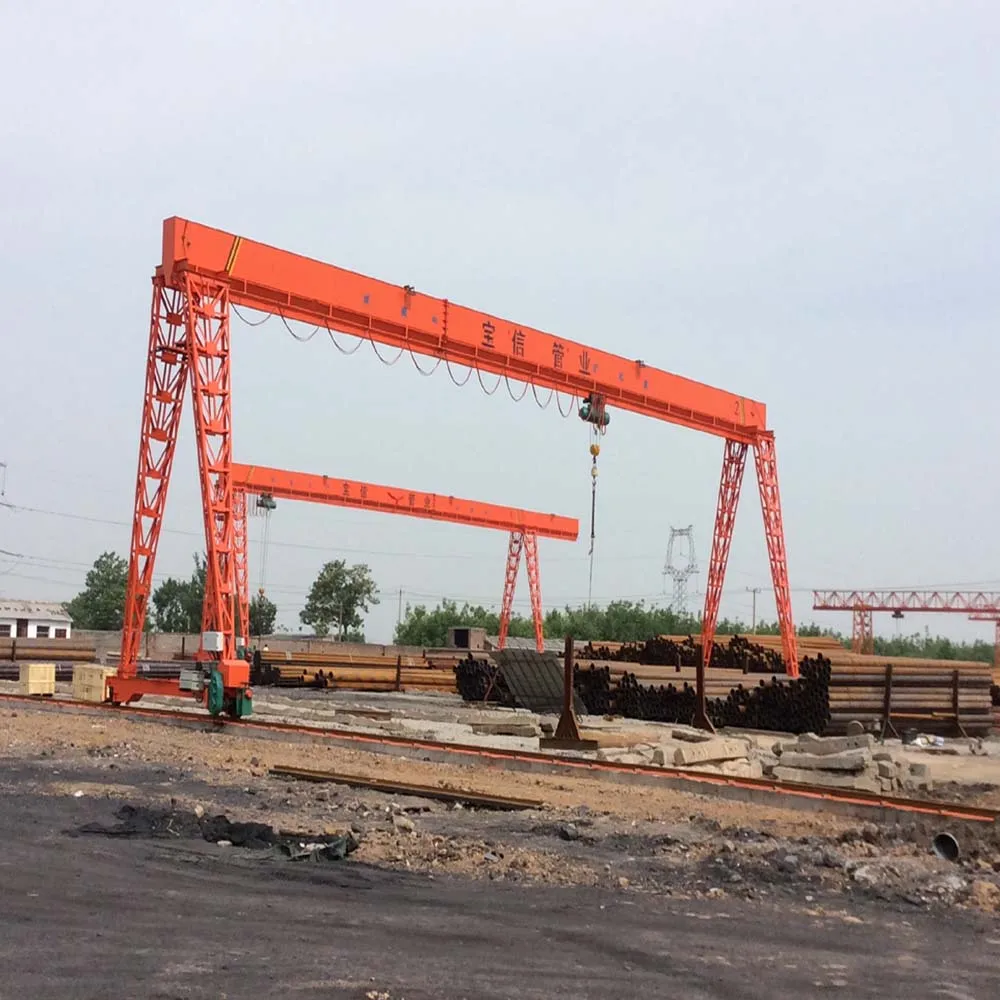

Outside electric hoist single girder gantry crane
- Category: >>>
- Supplier: Shaanxi Keliyuan Crane Equipment Co. Ltd. [Shaanxi China]Shaanxi
Share on (60744411229):
Product Overview
Description
Outside electric hoist single girder gantry crane
Product Description

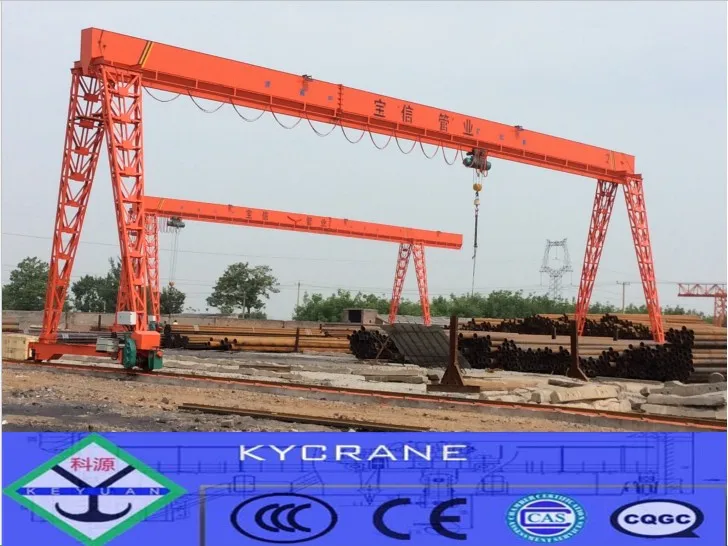

Description of product MH Model Electric Hoist Girder Gantry Crane is used together with CD MD Mofel electric hoists. It is a track travelling small and mediun-sized crane. Its proper lifting weight is 3-32tons, proper span is 12-30 meters, proper working temperature is -20 to +40oC.
|
| Working condition | Features |
* Working temperature:-25~40°C * Power Source:3PH,380V,50HZ or other under customer requirement * Forbidden to use in easily combustible, explosive, corrosive environment. | * Widely used outside * Light duty type * Stronger structure * Safe traveling * Fluent starting and sto |

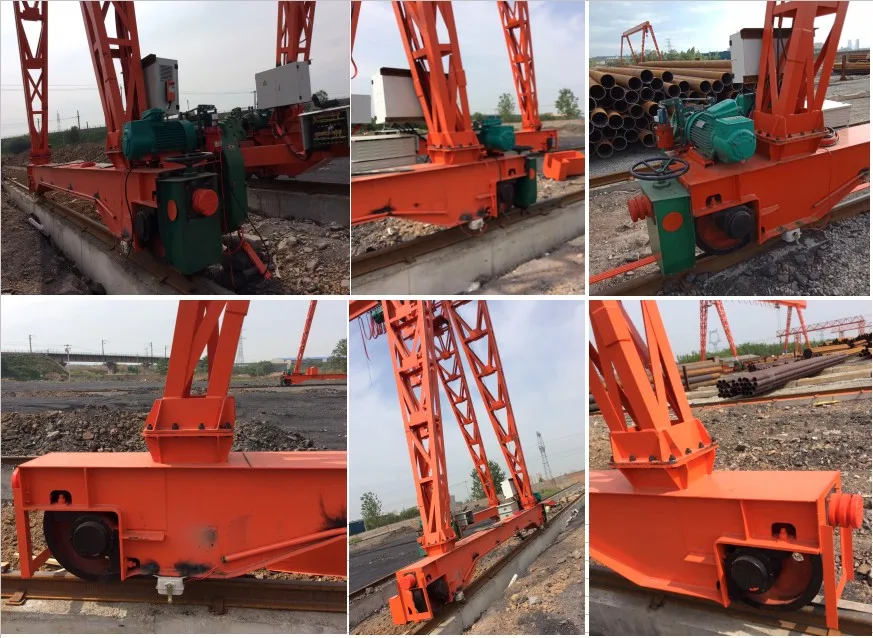

Crane traveling system :

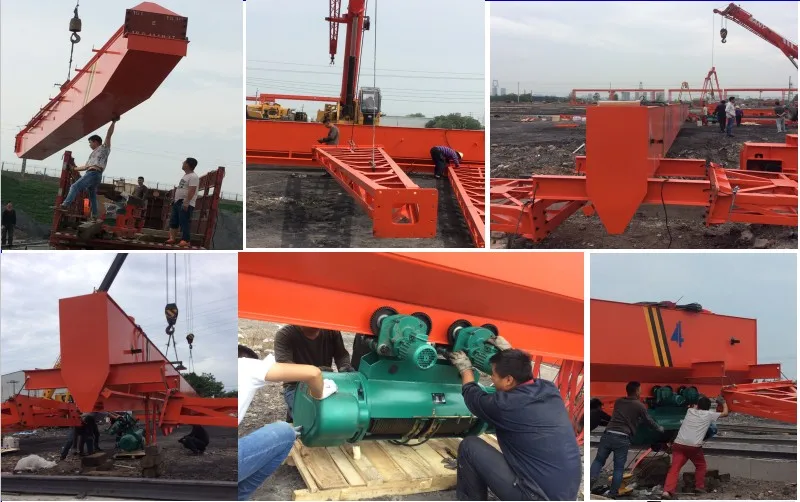

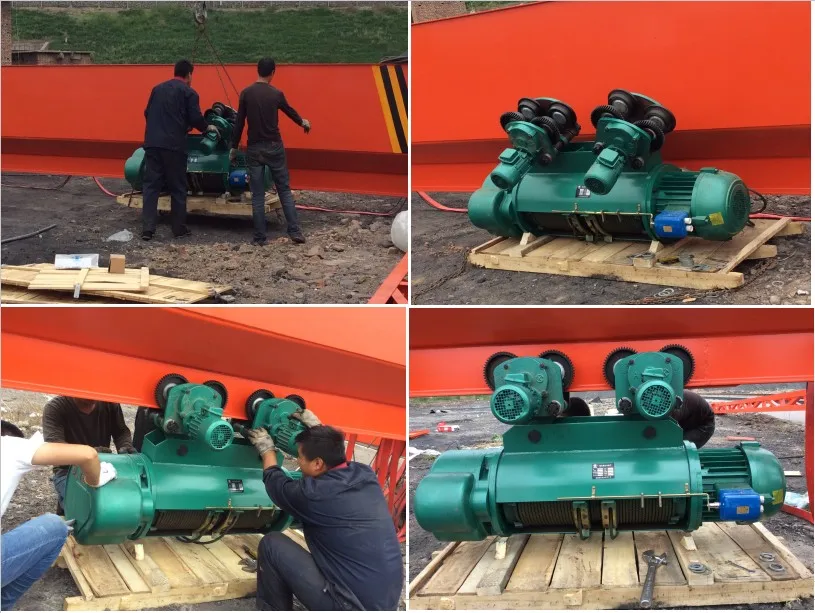

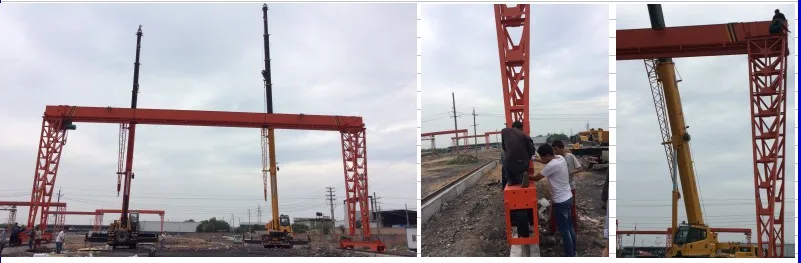

Installation steps :
1)Overloading protection 2)Top quality long time bearing polyurethane materials buffer 3)Crane traveling and cross limit switch 4)Voltage lower protection function, reduce energy consumption 5)Main lifting motor with thermal protection 6)Hooks with latch 7)Rubber buffers 8)Protective earthing 9)Sub-assembly characteristic are tested before assembly 10)Emergency stop system, current over-load protection system,Excellent exchangeability for |
Technical parameters
Capacity | T | 3 | 5 | 10 | 16 | 20 | ||
Operational method |
| Pendent line with push button /cabin | ||||||
Speed | Lifting |
m/min | 8 ,8/0.8 | 8,8/0.8 | 7,7/0.7 | 3.5 | 3.5 | |
Cross travelling | 20 | 20 | 20 | 20 | 20 | |||
Long travelling | Ground | 20 | 20 | 20 | 20 | 20 | ||
Cabin | 30,40 | 30,40 | 30,40 | 30,40 | 30,40 | |||
Motor | Lifting | Type /kw | ZD41-4/4.5 | ZD141-4/7.5 ZDS10.8/4.5 | ZD151-4/13 ZDS11.5/4.5 | ZD151-4/13
| ZD152-4/18 | |
Cross travelling | ZDY12-4/0.4 | ZDY121-4/0.8 | ZDY21-4/0.8×2 | ZDY121-4/0.8×2 | YZD-4/0.8×4 | |||
Long travelling | Ground | ZDY21-4/0.8×2 ZDY21-4/1.5×2 | YZR132M1-6/2.2×2 YZR132M2-6/3.7×2 | YZR160M1-6/6.3×2
| YZR160M1-6/6.3×2 YZR160M2-6/8.5×2 | YZR160M1-6/6.3×2 YZR160M2-6/8.5×2 | ||
Cabin | ZDR22-4/1.5×2 ZDR24-4/2.2×2 | YZR132M2-6/3.7×2 YZR160M1-6/5.5×2 | YZR160M1-6/6.3×2 | YZR160M2-6/8.5×2 YZR160L2-6/11×2 | YZR160M2-6/8.5×2 YZR160L2-6/11×2 | |||
Electric hoist | Type | CD1/MD1 | CD1/MD1 | CD1/MD1 | CD1 | HC | ||
Lifting height | m | 6,9 | ||||||
Working duty |
| A5 | ||||||

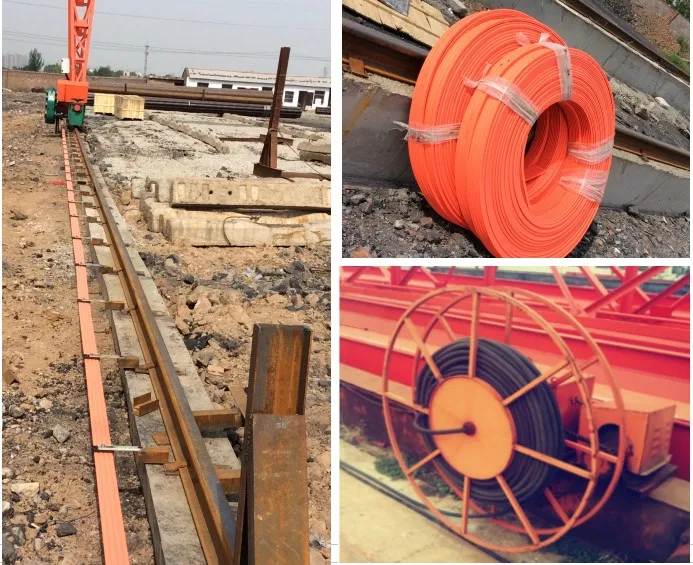

Power supply |
| 380V 50HZ 3phase AC | ||||||
Span | m | 12,16,20,24,30 | ||||||

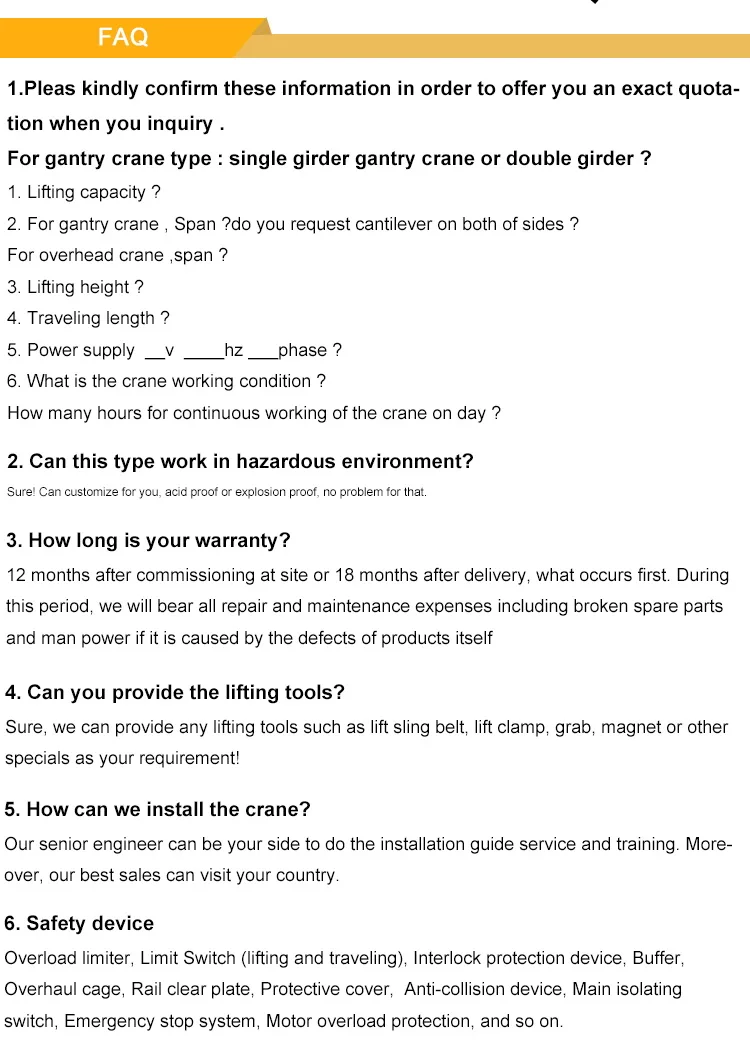

FAQ
Contact us
Our addvantage :
Customizing according to every client .
Our cranes are exported to all over the world
Double girder overhead crane in Hongkong,Bangladesh,Tunisia ,Saudi Arabia,in Uzbekistan,
JIb crane project in Australia ,Hungary,Bahrain
Single girder overhead crane in USA ,India ,Kazakhstan,Malta
Lifting equipment in Pero ,Ireland,Holland ,Malta ,Singapore,Philippines,Argentina,Paskistan ,in Georgia
Cast heavy duty double bridge crane in Bangladesh . in Georgia
Crane parts in Saudi Arabia ,Indonesia,Vietnam,UAE ,
Gantry crane project in indonesia,kenya,Tanzania ,Lraq .Iran
