Product Overview

Description


Multifunction combination woodworking machines also can be called as multi function woodworking machine, multi purpose woodworking machine or multi use woodworking machine,  ZQM is the professional manufacturer of woodworking versatile machine, we can offer ML393, ML393A, ML392, MQ443, MQ443A, MQ442, MQ442D, MQ431Z etc.

MQ443A multifunction combination woodworking machine features:

1. Fixed up with the patent sliding table for the sawing section, (sliding table is steel, 6mm thickness)
2. Adopts double worm and worm gear lifting system for thicknesser;
3. Two types mortising sections can be chosen.
4. Equipped with 4HP copper motor with two valve capacitor, 220voltage, single phase, 50HZ
5. Green color or yellow color can be chosen.
6. Equipped with 4 planing knives.
7. Cast iron cutting fence with guide bar (not aluminium fence)
8. The working table with angle support to avoid the deformation and blending.
Customize service is acceptable. 65 sets one 20GP container.

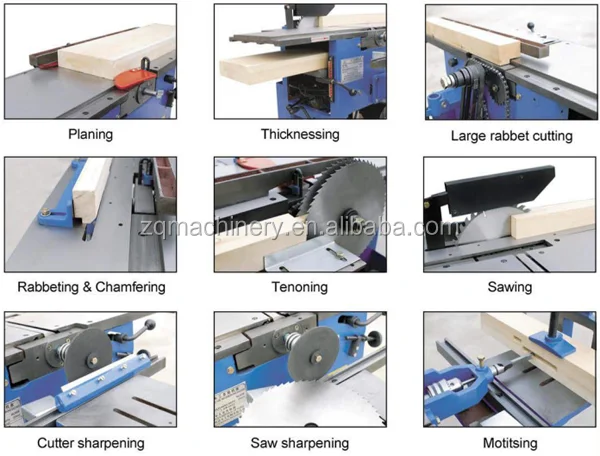

Main function of MQ443A multifunction combination woodworking machines :






MQ443A (1).png



MQ443A (3).png

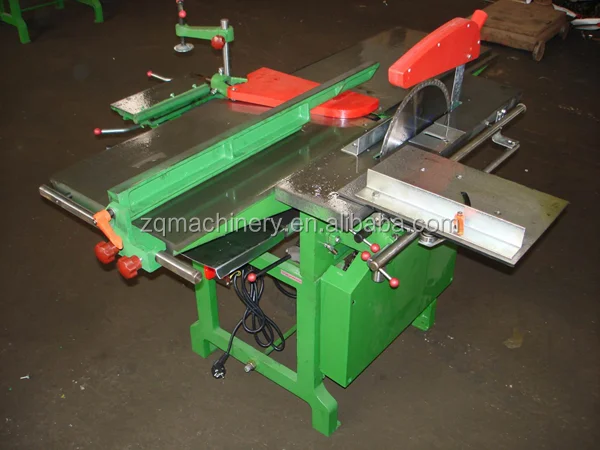

MQ443A (5).png



MQ443A (6).png

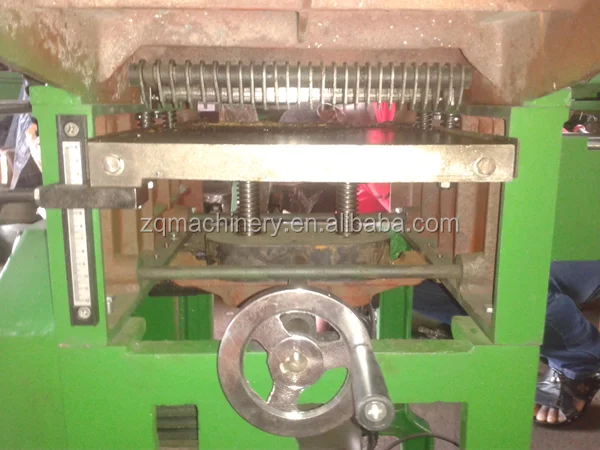

MQ443A (4).png









Specification of MQ443A multifunction combination woodworking machines :
Max. planing width: 300mm
Max. planing depth: 3mm
Arbor diameter: Ø77mm
Knife assembled amount: 4pcs
Height of thicknesser entrance: 10-120mm
Min. working length of thicknesser: 130mm
Feeding speed of thicknesser: 10mm
Mortising capacity: 16mm
Longitudinal stroke of mortiser: 100mm
Horizontal stroke of motiser: 118mm
Arbor speed: 3500rpm
Max. sawing thickness: 80mm
Motor power: 4HP
Dimension: 1300 x 1305 x 900mm
Weight: 248KGS

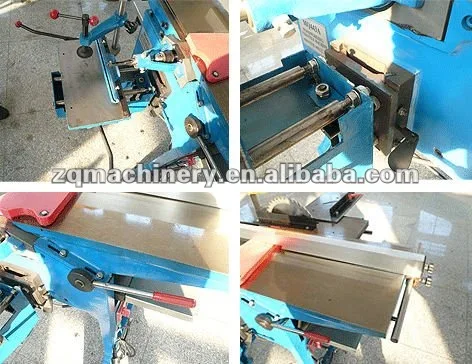

Heavy duty MQ443A Multi use woodworking machine



Workshop of MQ443A versatile woodworking machine :




Any questions, please contact me freely.
