Sincerity High Accurate Coriolis Measurement Wireless Peak Lpg Dispenser Gas Flow Meter
- Category: >>>
- Supplier: Beijing Sincerity Automatic Equipment Co. Ltd. Tongzhou Branch
Share on (60744428328):
Product Overview
Description
Product Description
Upper Limit of the normal usage of gas measurement:
| Insertion Type | Segment Type | |
| Measuring media | Various gases (except for acetylene gas) | |
| Range of pipe diameter | DN80-6000 mm | DN15-2000 mm |
| Velocity range | 0.5-100 Nm/s | |
| Accuracy | ±1.0% | |
| Working temperature | Sensor: normal temperature type -10℃ to +200℃, high temperature type -10℃ to +350℃; converter:-20℃ to +45℃ (for special environment, please specify) | |
| Working pressure | Media pressure≤2.5Mpa | Media pressure≤4.0Mpa |
| Power supply | Integrated type machine (DC24V or AC220V ≤18W), detachable converter (AC220V ≤19W) | |
| Response speed | 1S | |
| Output signal | 4-20mA (photoelectric isolation, maximum load 500Ω) RS-485 (photoelectric isolation) |
|
| Pipeline material | Carbon steel, stainless steel and plastic, etc. | |

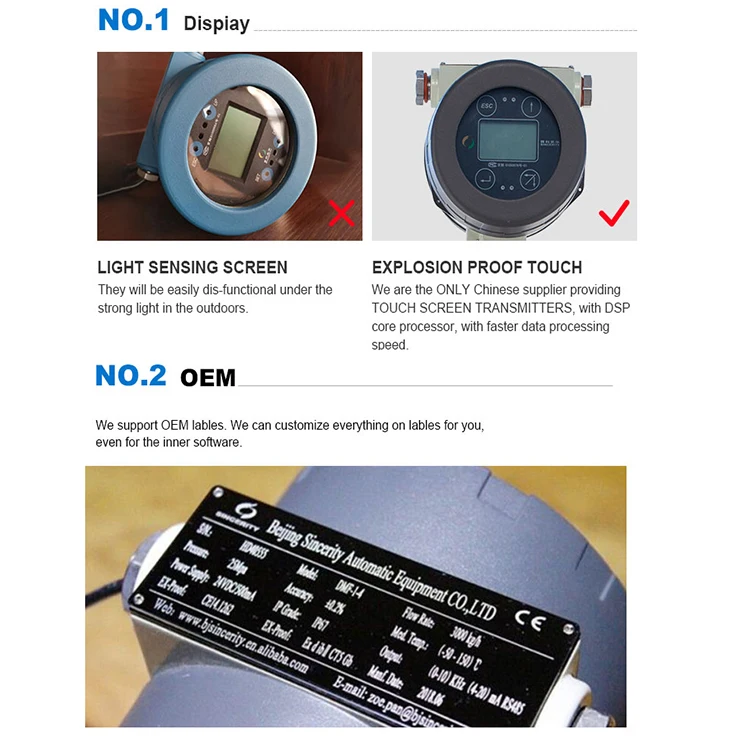

| Display | Integrated type: 8-bit field + 24 prompts Detachable type: 10x2 Chinese characters |
|
| Display content | Mass flow, volume flow under normal condition, integrated flow, standard time and integrated runtime, etc. | |
| Outline of detachable converter | Wall-hanging type: 213x185x107mm Panel-mounting type: 160x80x160mm |
|
| Distance between detachable converter and primary instrument | ≤25m(primary instrument is powered by detachable converter), ≤1000m (primary instrument is powered on the site) |
|
| Degree of protection of detachable converter | Wall-hanging type: IP65 Panel-mounting type: IP52 |
|
| Degree of protection of primary instrument | IP67 | |
| Explosive-proof grade of primary instrument | ExdⅡCT4 | |
| Sensor materials | Stainless steels | Stainless steel, carbon steels |
| Model | DN(mm) | Air | N2 (Nitrogen) | 02 (0xygen) | H2 (Hydrogen) |
| DMF-1-980-3 | 3 | 2 | 2 | 1 | 0.4 |
| DMF-1-980-6 | 6 | 10 | 10 | 5 | 1.6 |
| DMF-1-980-8 | 8 | 18 | 18 | 9 | 2.8 |
| DMF-1-980-10 | 10 | 28 | 28 | 14 | 4 |
| DMF-1-980-15 | 15 | 65 | 65 | 32 | 10 |
| DMF-1-980-25 | 25 | 175 | 175 | 89 | 28 |
| DMF-1-980-32 | 32 | 290 | 290 | 144 | 45 |
| DMF-1-980-40 | 40 | 450 | 450 | 226 | 70 |
| DMF-1-980-50 | 50 | 700 | 700 | 352 | 110 |
| DMF-1-980-65 | 65 | 1200 | 1200 | 600 | 185 |
| DMF-1-980-80 | 80 | 1800 | 1800 | 900 | 280 |
| DMF-1-980-100 | 100 | 2800 | 2800 | 1420 | 470 |
| DMF-1-980-125 | 125 | 4400 | 4400 | 2210 | 700 |
| DMF-1-980-15O | 15O | 6300 | 6300 | 3200 | 940 |
| DMF-1-980-200 | 200 | 10000 | 10000 | 5650 | 1880 |
| DMF-1-980-250 | 250 | 17000 | 17000 | 8830 | 2820 |
| DMF-1-980-300 | 300 | 25000 | 25000 | 12720 | 4060 |
| DMF-1-980-40O | 40O | 45000 | 45000 | 22608 | 7200 |
| DMF-1-980-50O | 50O | 70000 | 70000 | 35325 | 11280 |
| DMF-1-980-60O | 60O | 100000 | 100000 | 50638 | 16300 |
| DMF-1-980-700 | 700 | 135000 | 135000 | 69240 | 22100 |
| DMF-1-980-800 | 800 | 180000 | 180000 | 90432 | 29000 |
| DMF-1-980-900 | 900 | 220000 | 220000 | 114500 | 77807 |
| DMF-1-980-1000 | 1000 | 280000 | 280000 | 141300 | 81120 |
| DMF-1-980-1200 | 1200 | 400000 | 400000 | 203480 | 91972 |
| DMF-1-980-1500 | 1500 | 600000 | 600000 | 318000 | 101520 |
| DMF-1-980-2000 | 2000 | 700000 | 700000 | 565200 | 180480 |
