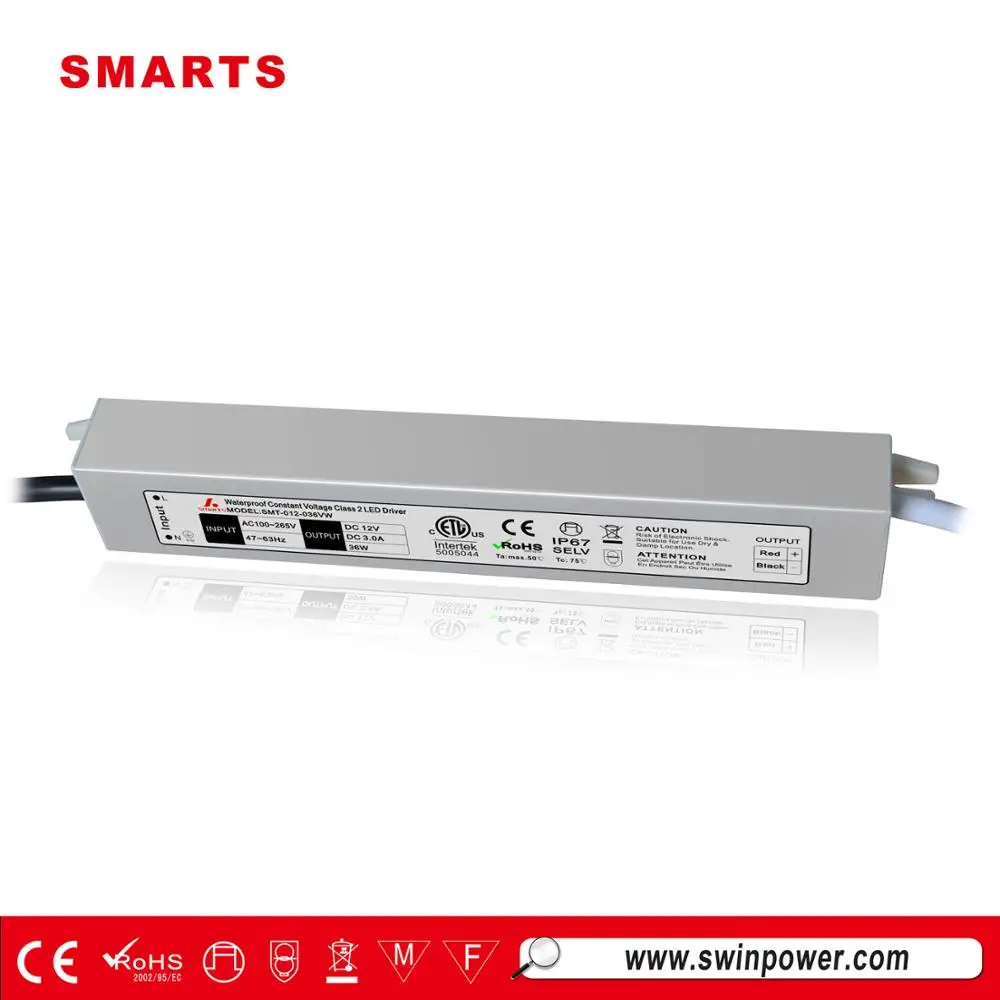

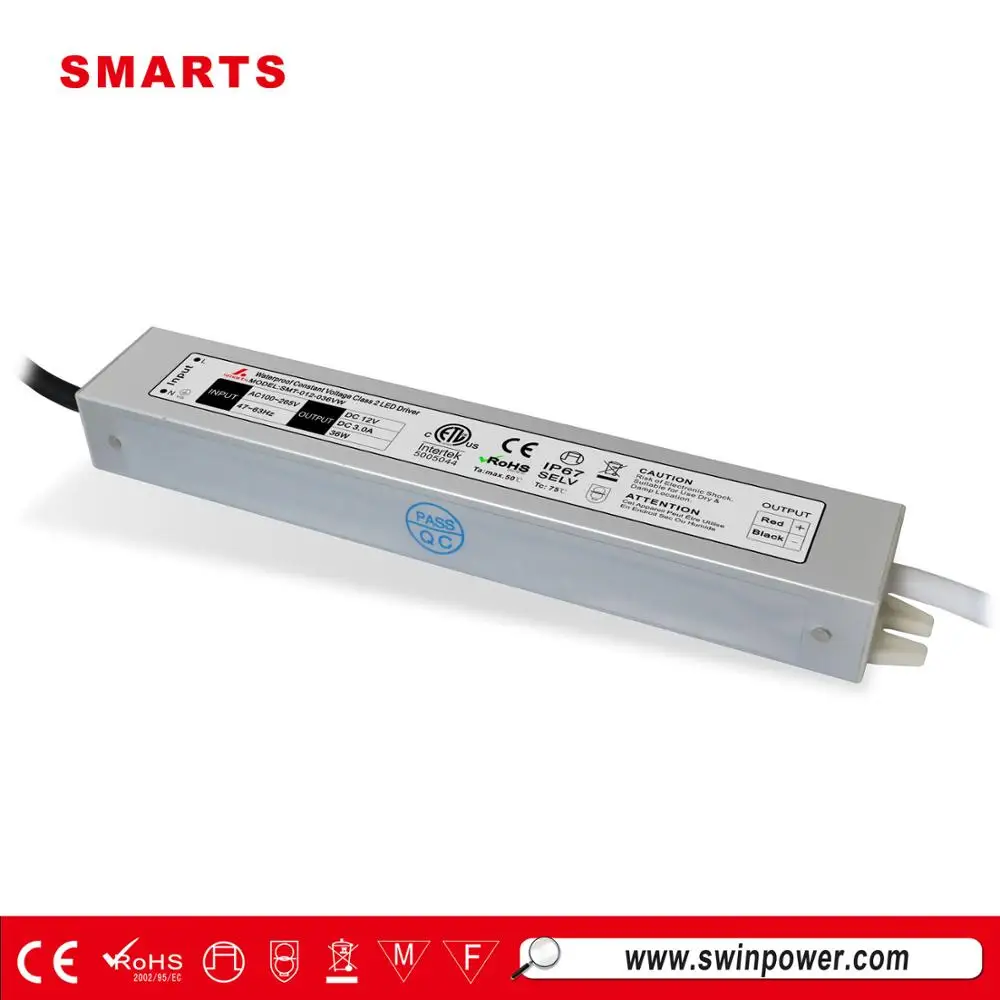

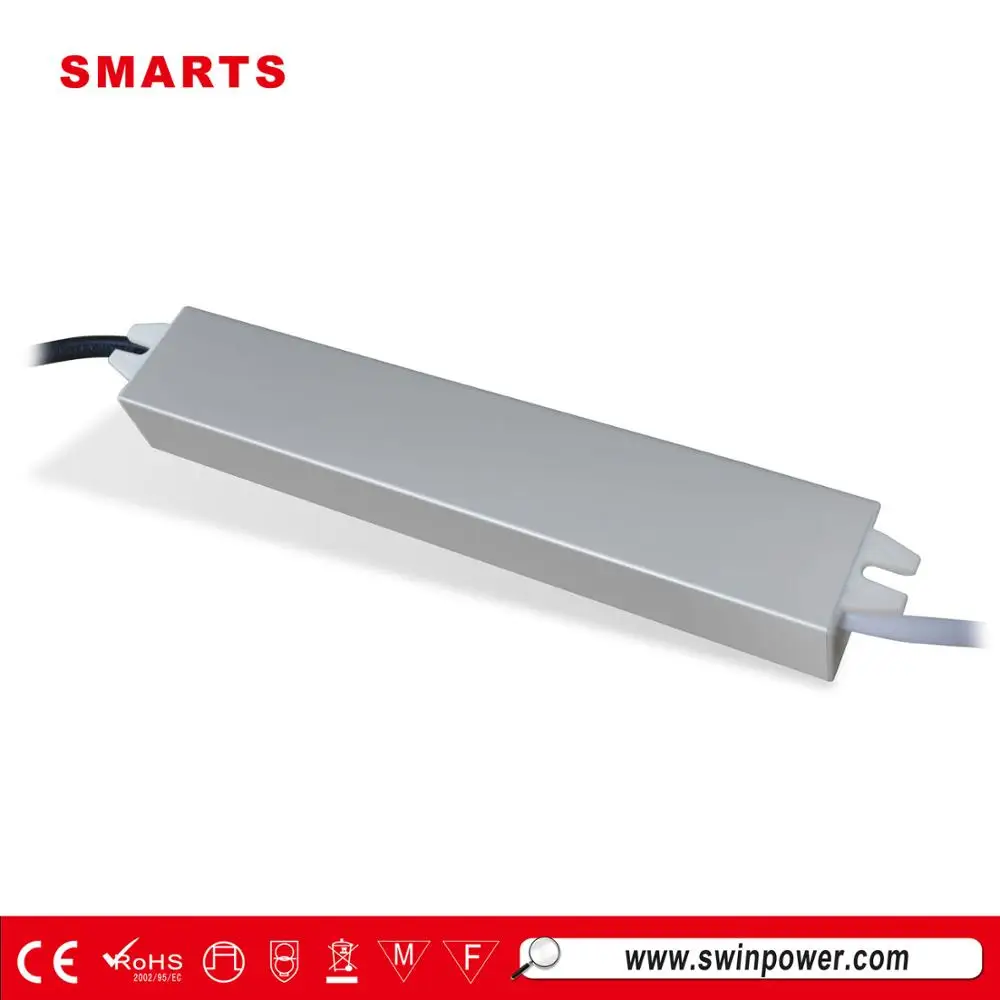

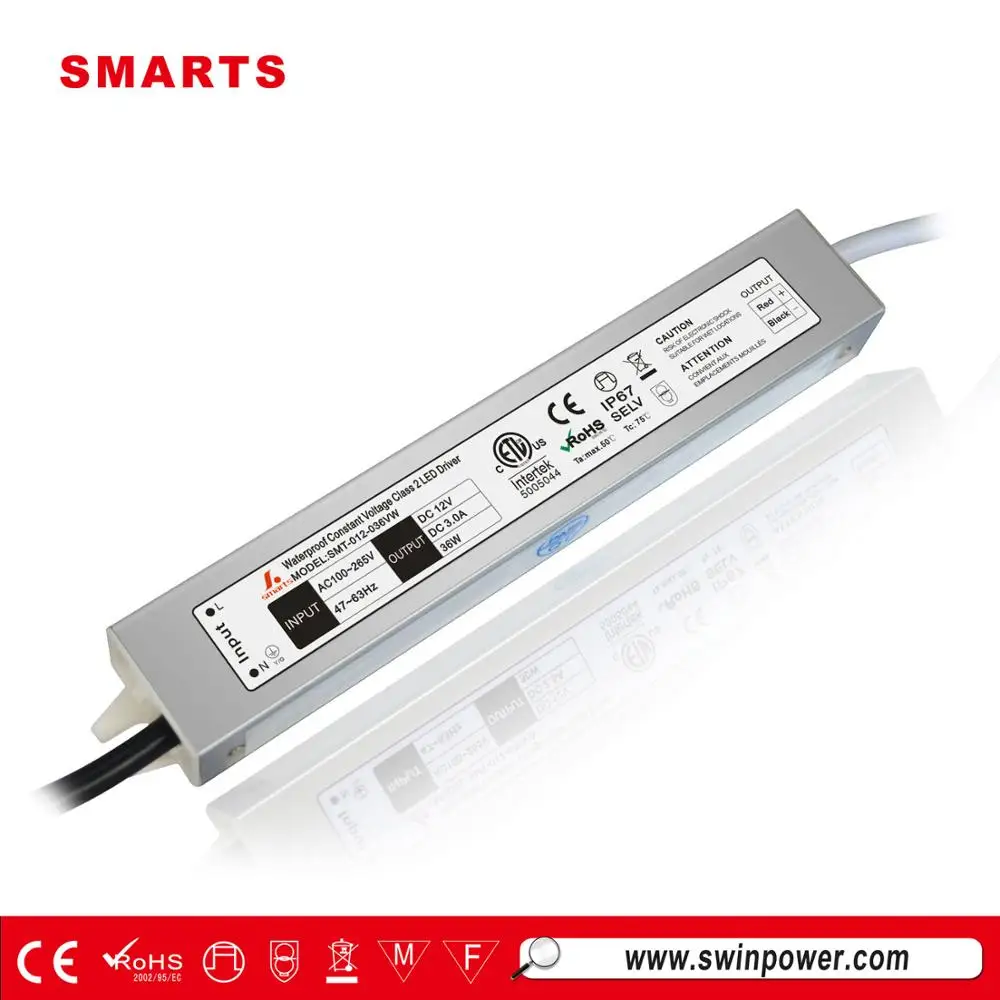

ETL CE ROHS approval 12v 36W LED Driver power supply 12v 3a mini slim
- Category: >>>
- Supplier: Quanzhou Smarts Electronic & Technology Co. Ltd.
Share on (60744435627):
Product Overview
Description
ETL CE ROHS approval 12v 36W LED Driver power supply 12v 3a mini slim
Product Description
Specification
| MODEL | SMT-012-036VW | SMT-024-036VW | ||
| OUTPUT | DC VOLTAGE | 12V | 24V | |
| RATED CURRENT | 3.0Amp | 1.5Amp | ||
| VOLTAGE RANGE | ||||
| RATED POWER | 36Watt | 36Watt | ||
| RIPPLE&NOISE(max) | 300mV | 300mV | ||
| VOLTAGE TOLERANCE | ±5% | ±5% | ||
| LINE REGULATION | ±1% | ±1% | ||
| LOAD REGULATION | ±2% | ±2% | ||
| INPUT | VOLTAGE RANGE | 100-265VAC | 100-265VAC | |
| FREQUENCY RANGE | 47-63Hz | 47-63Hz | ||
| POWER FACTOR(Typ.) | ||||
| EFFICIENCY(Typ.) | >83% | >84% | ||
| AC CURRENT(Typ.) | 0.13A/110,220VAC | 0.13A/110,220VAC | ||
| PROTECTION | SHORT CIRCUIT | Protection type:recovers automatically after condition is removed | ||
| OVER CURRENT | overload protected@145-160% above peak rating | |||
| OVER VOLTAGE | Protection type:Shut down o/p voltage,re-power on to removed | |||
| ENVIRONMENT | WORKING TEMP. | -10~+50℃ (Refer to output load derating curve) | ||
| WORKING HUMIDITY | 20~99% RH non-condensing | |||
| STORAGE TEMP.,HUMIDITY | -40~+80℃,10~99%RH | |||
| SAFETY&EMC | SAFETY STANDARDS | EN61347-1;EN61347-2-13; CE /ROHS approval | ||
| WITHSTAND VOLTAGE | I/P-O/P:2KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |||
| EMC Test Standards | EN55015;EN61000-3-2;EN61000-3-3; | |||
| EN61547;EN61000-4-2,3,4,5,6,8,11; | ||||
Applications
Our products are widely used in various industries, such as
- indoor LED illuminating lights,
- LED Neon,
- LED urban Decoration
- LED Lighting Advertising,
- LED Display,
- Safety Protection Apparatus,
- Telecommunications,
- Networks,
- Vehicle Lights,
- Controller Panels, etc.

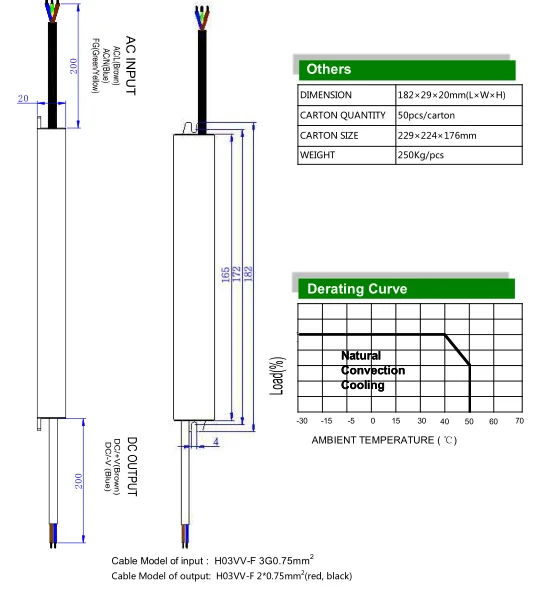

Mechanical specification
Hot Product
Company Information
Company Information
All of our drivers are got ETL CE SAA ROHS listed .OEM Welcome.
Our led drivers are widely used for:
- 1.Indoor LED illuminating lights
- 2.LED Neon, LED urban Decoration
- 3.LED Lighting Advertising,LED Display
- 4.Safety Protection Apparatus
- 5.Telecommunications, Networks
- 6.Vehicle Lights, Controller Panels
Our Market
Our major markets are in EU & North America,it takes about 85% markets share. view transaction history
Certifications
Our Services
Our Services
What Service we can supply??
- 1.All inquiries will be replied within 24 hours
- 2.Professional manufacturer,welcom to visit our website
- 3.OEM/ODM avaliable:
- A.Print logo on our product;
- B. Customized specification;
- 4.After Sales-Service:
- A. All products will have 100% burn-in test and strictly quality test before shipping;
- B. Fast Delivery: 3-7days for samples, 15-20 days for bulk production;
- 5.High efficiency,long life span,reasonable&competetative price,fast lead time;
- 6.We have our engineer team, if you have any question about your LED applications, let us know freely.
FAQ
FAQ
Q1. What's the trade terms you can do??
A1: We accept EXW,FOB..(Optional)
Q2. What's shipping mode can we choose?
A2: Express, Ocean and air transportation (optional).
Q3. What's the MOQ?
A3: Our MOQ is 1pcs. better price for large quantity;
Q4. What can you do if the product is broken?
A4: We promise to replace new ones to you if there is any defective happen during the warranty period.
Q5. Can i get products with my own logo??
A5: Sure, you can, MOQ is 500pcs.
Q6. Can i get a sample for testing??
A6: Sure, but sample fees should be charged on your account.
Q7. What's the mormal lead time??
A7: 7 working days for samples, 15 working days for mass production.
Q8. What's the payment conditon?
A8: T/T in advance or 30% deposit and 70% before delivery (optional)
Q9. What's the Payment do you have?
A9: We accept payment be sent via T/T, L/C, Trade Assurance, WESTERN UNION, PAYPAL.
Q10.How to contact with me??
A9: Skype: steven821228
Whatsapp/Phone: +86 13489577737
E-mail: Sales1 @smartselectronic.com. cn
