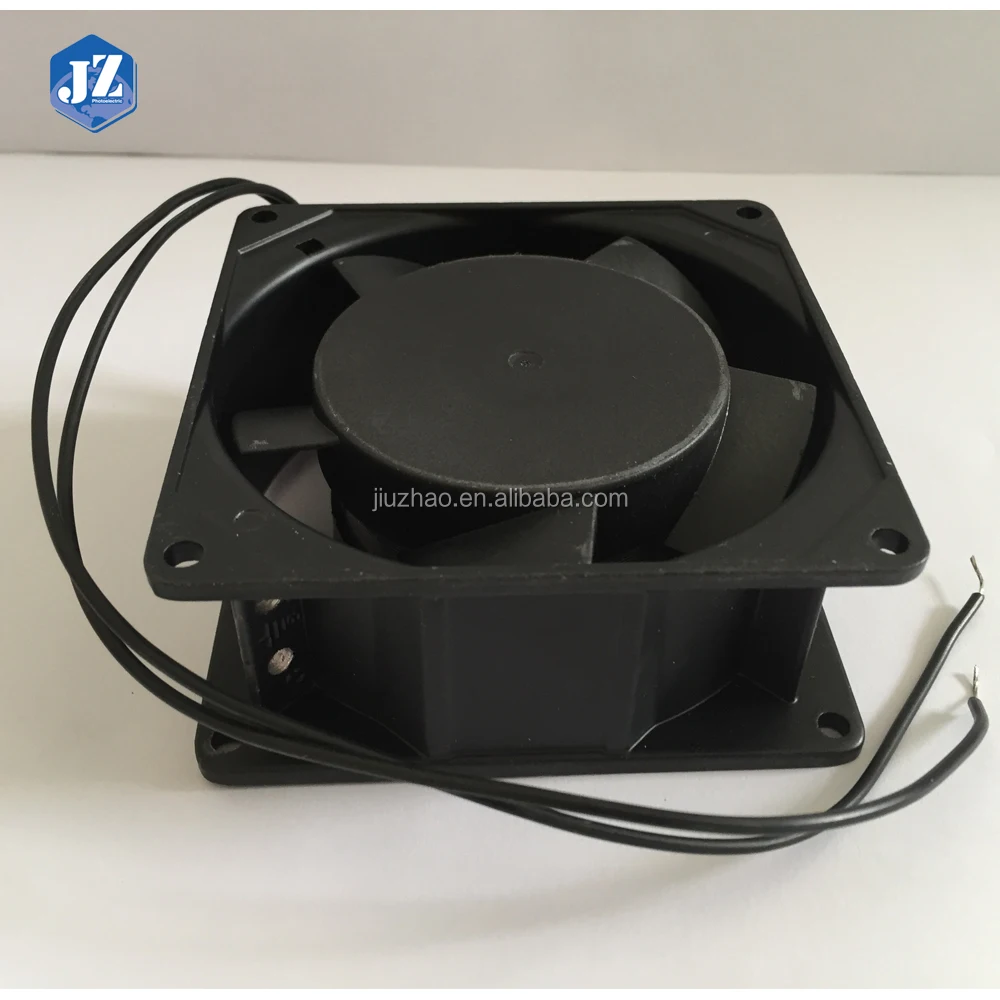

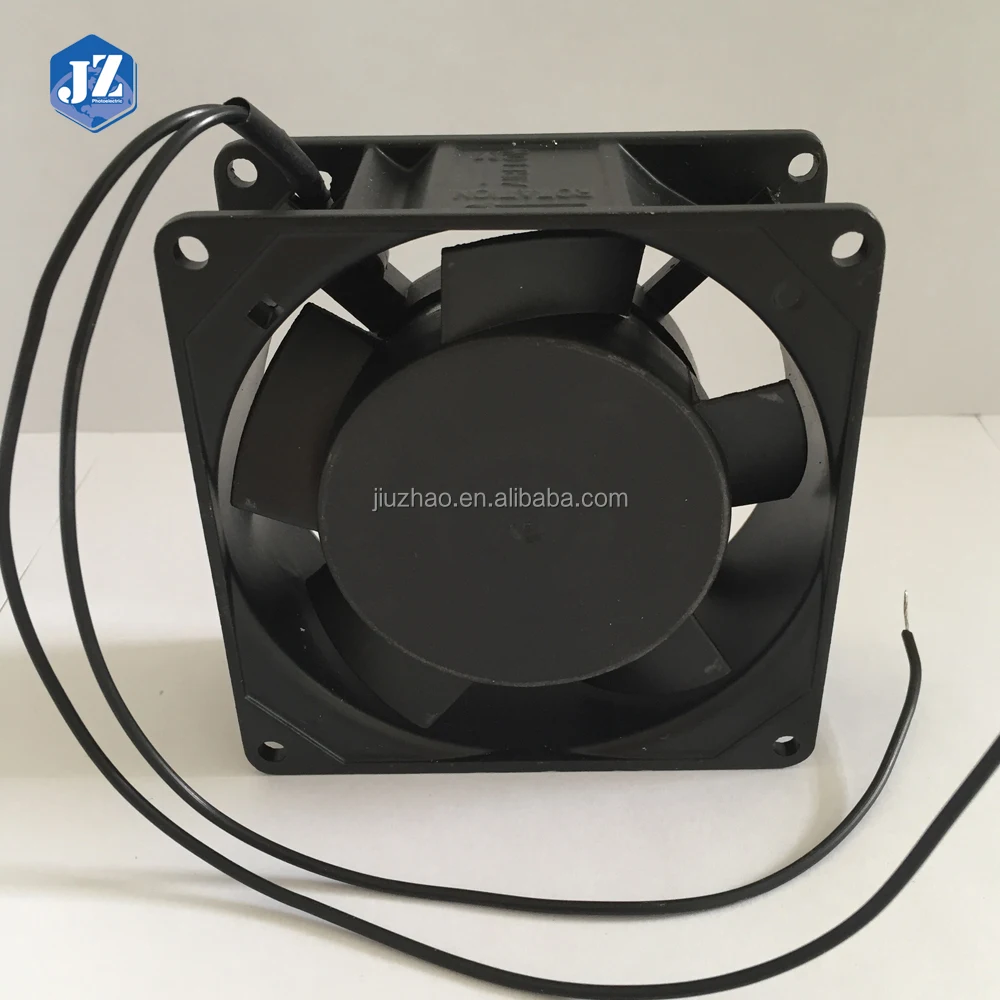

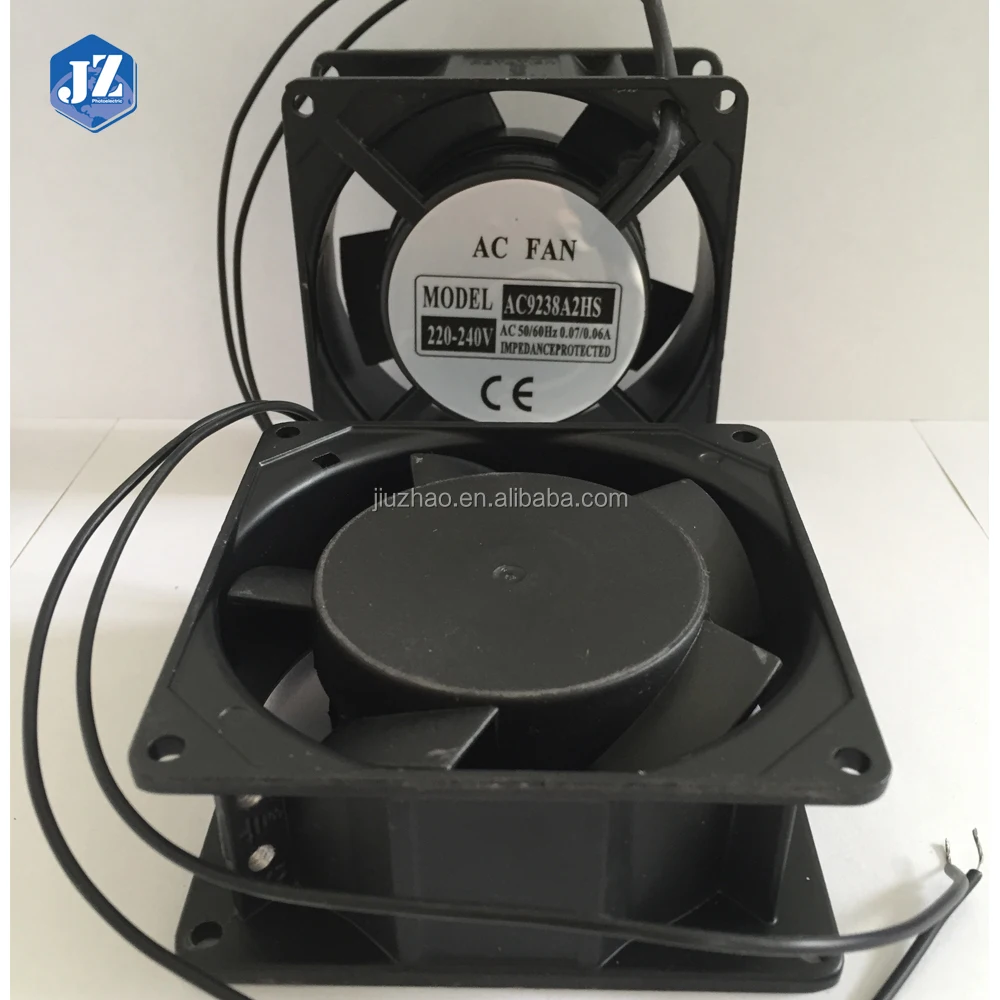

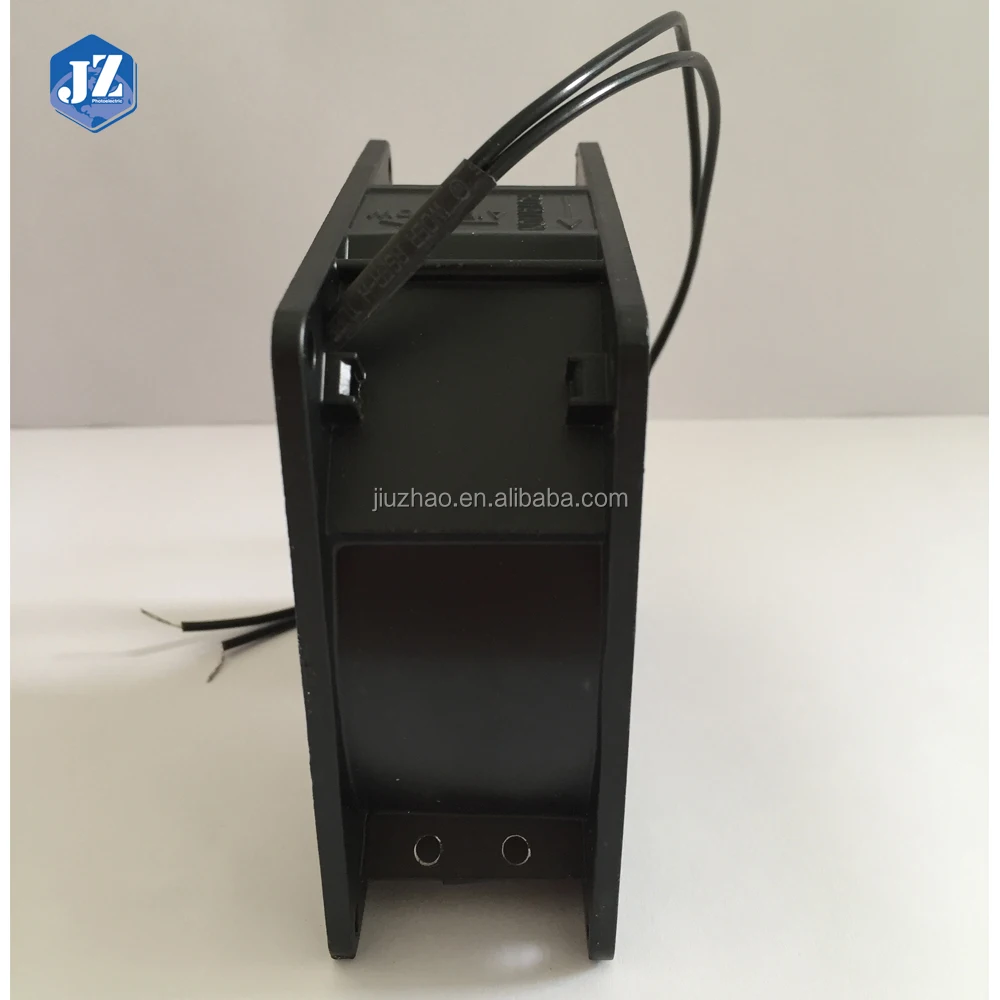

Low Noise Computer 9238 AC Axial Cooling Fan 110V 220V 92x92x38mm 92mm Axial Flow Fan

The General Description of Axial AC Fan

The jakets of this series of fans are of drum-shaped aluminium alloy.the fan blades of PBT plastics and the electric motor with flange protection form an integrity.It is characterized by small size,free maintenance,easy installation,low noise,less vibration,reliable operation and excellent functioning.These fans are chiefly used for ventilation and cooling applied the automatic controlling apparatus on ground,electronic devices,medical instruments,computers,power equipment,welding machines,packing and printing equipment,satellite communication,digital controlled machinery,office appliances and etc.

Application and Specification:

Temperature Range(℃):-20℃~+60℃Ball Bearing(B); -10℃ +40℃Sleeve Bearing(S);

Working Voltage:85V~125V for 110V and 190V~250V for 220V;

Humidity Permissible(%)90%-95%;

Insulation Resistance:10MΩ at 500VDC between lead and frame;

Dielectric Strength:1min at 1500VAC/50-60HZ,Current<5mA;

Vibration Permissible:Frequency10Hz~50Hz,Low and Double Amplitude1.5mm;

Impact Permissible:Peakacceleration)150m/S².

Life at 25'C:Ball bearing 50000hoursand sleeve bearing 20000hours.

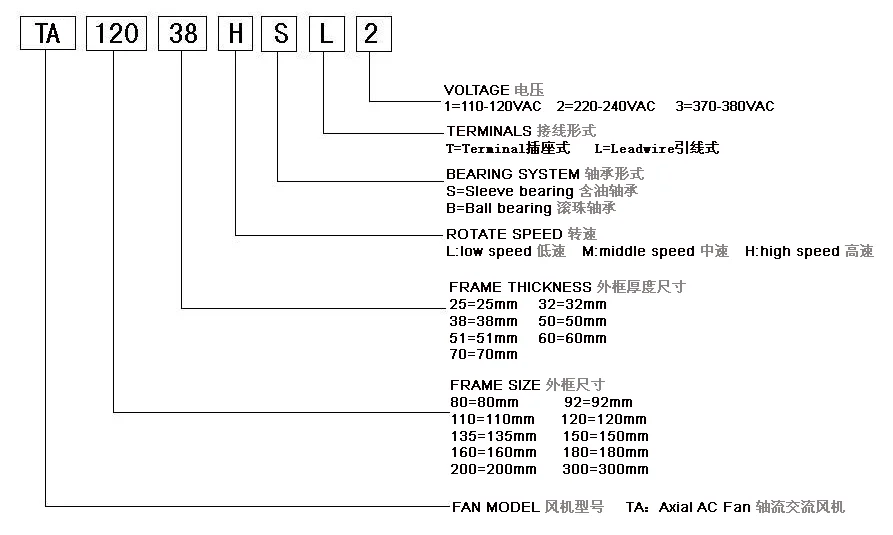

lustration of the Code

Notice:The products data can customize as client requirement.

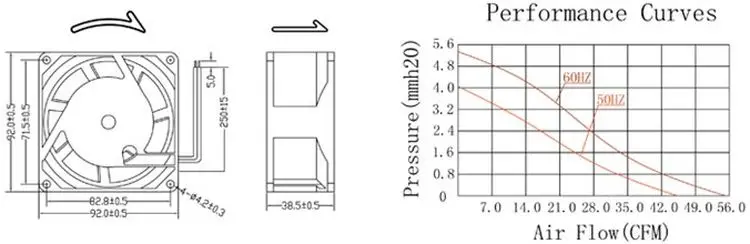

Drawing:
