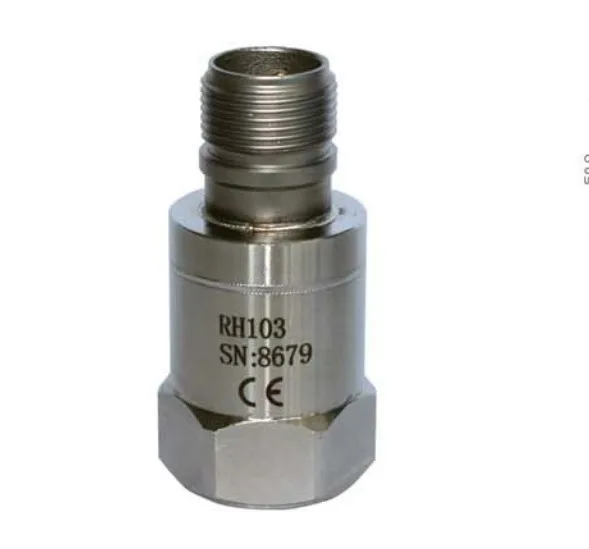

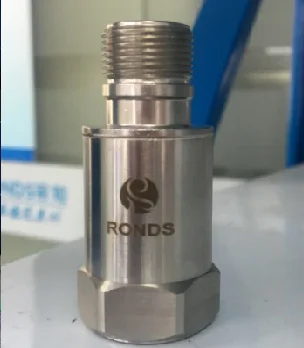

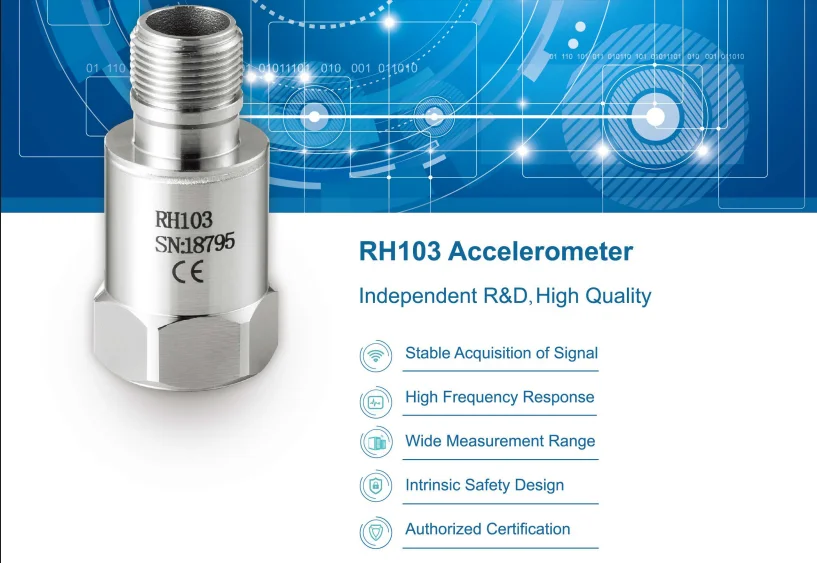

Piezo electric IEPE vibration accelerometer sensor

Share on (60744498959):


Price:

Quantity:


Product Overview

Description


Product Description


Built-in IEPE circuit, isolation output, constant current power supply.

Laser seal welded

IP68 design, outdoor using available

Military connector, can be used in harsh industrial field

Unconditional lifetime warranty
\t
Parameter
\t
Index
\t
Remarks
\t
Sensitivity
\t
100mV/g
\t
\t
Acceleration Rnage
\t
80g
\t
\t
Amplitude Linearity
\t
1%
\t
\t
Frequency Response (±10%)
\t
0.7~10000Hz
\t
\t
Frequency Response (±3 dB)
\t
0.4~15000Hz
\t
\t
Resonance Frequency
\t
26KHz
\t
\t
Transverse Sensitivity
\t
≤5%
\t
\t
Mount Screw Thread
\t
6mm
\t
\t
Bias Voltage
\t
10-12VDC
\t
\t
Constant Current
\t
2-20mA, Typical  4mA
\t
\t
Voltage Excitation
\t
18-30VDC, Typical  24VDC
\t
\t
Output Impedance
\t
<100Ω
\t
\t
Casting  Dielectric Resistance
\t
>108Ω
\t
\t
Maximum Shock Level
\t
5000g
\t
\t
Weight
\t
81g
\t
\t
Dimensions
\t
DXH, 23x50.9mm
\t
\t
Sealing Arrangement
\t
Laser welding
\t
\t
Sensor composition
\t
Plane shear
\t
\t
IP Grade
\t
IP68
\t
\t
Casting Material
\t
316L Stainless Steel
\t
\t
Output Mode
\t
Top Output, 2pin Mil-C-5015
\t
\t
Temperature Range
\t
-40~+120℃
\t
\t
Mount Torque
\t
About 2.7~6.8N.m (M6)
\t
\t

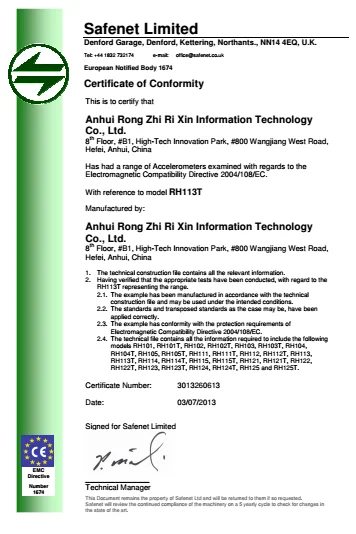

Certificate
\t
CE
\t
\t

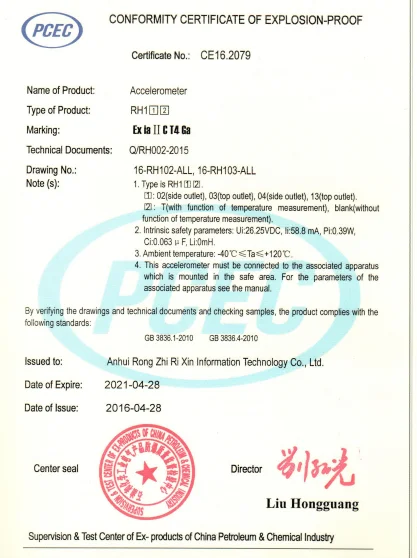

Anti-explosion option
\t
Explosion Proof Identification
\t
ExiaIICT4
\t
RH103 EX, Used for Area 0,1,2
\t
Temperature Measuring Option
\t
Measuring Range
\t
0~120℃
\t
RH103T, Output: 3pin Mil-C-

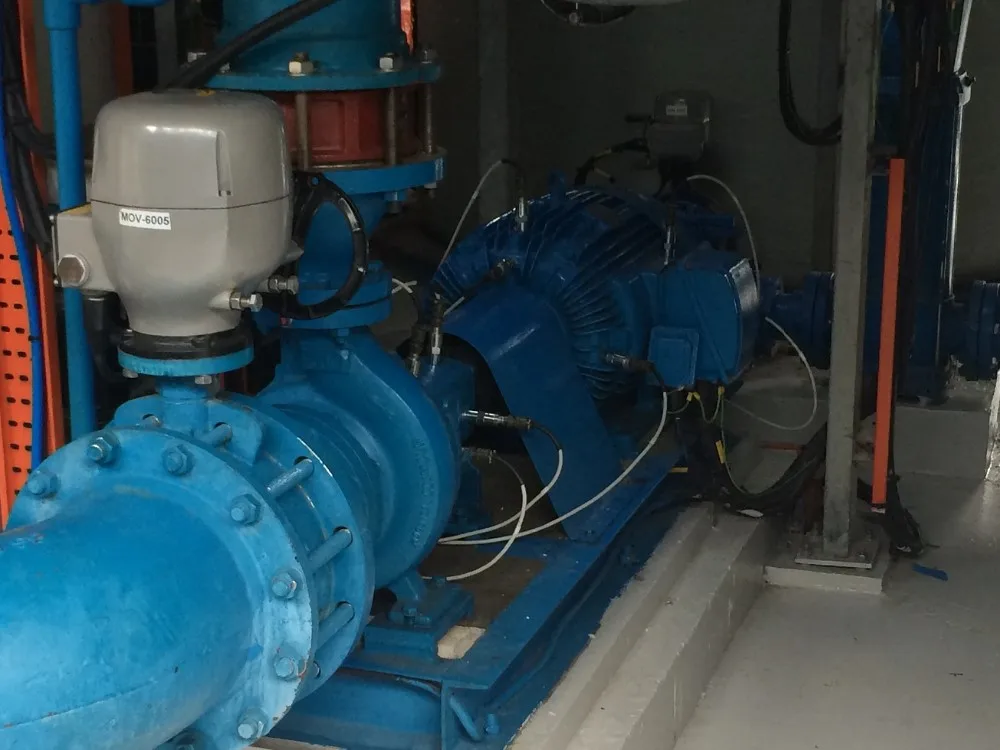

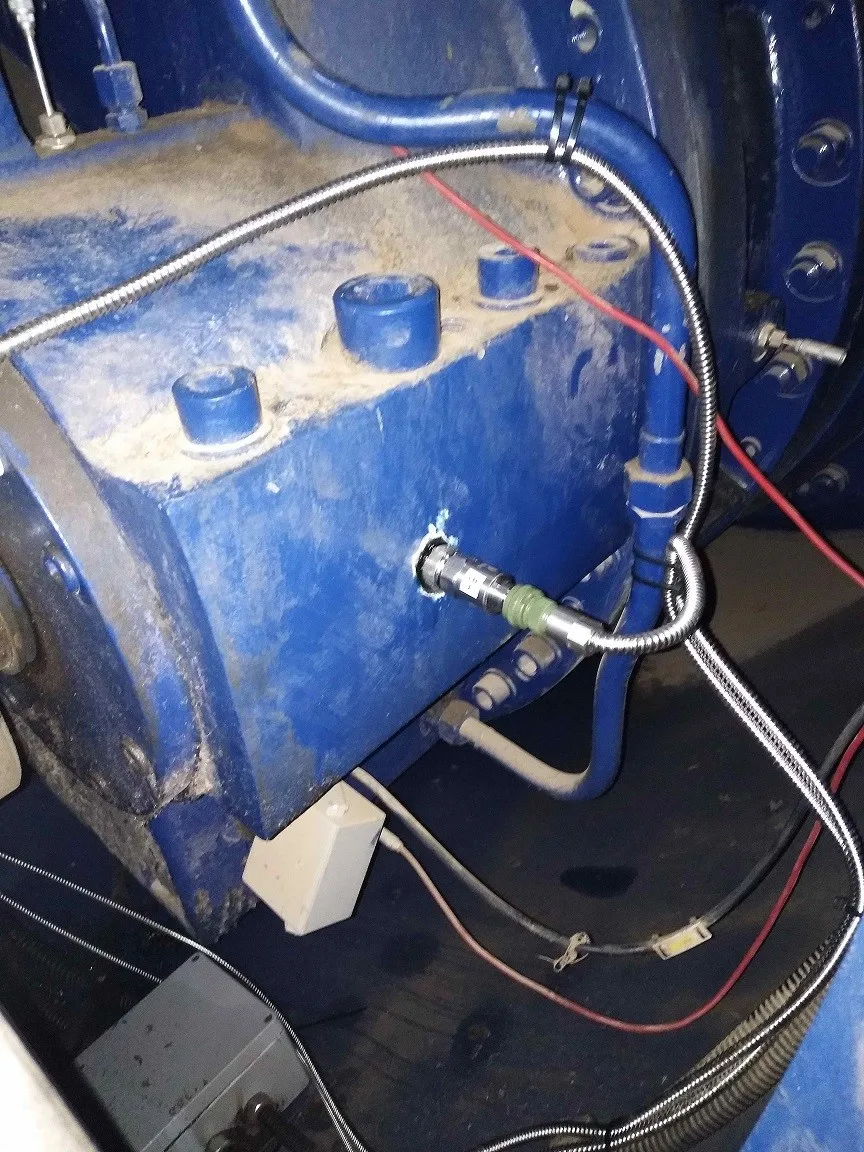

Field Application

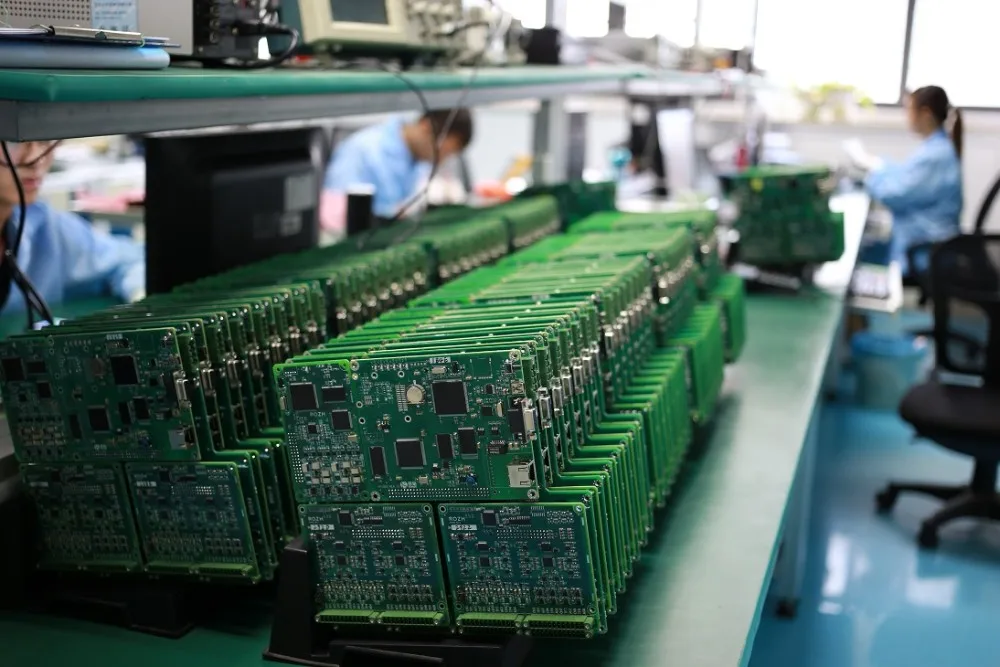

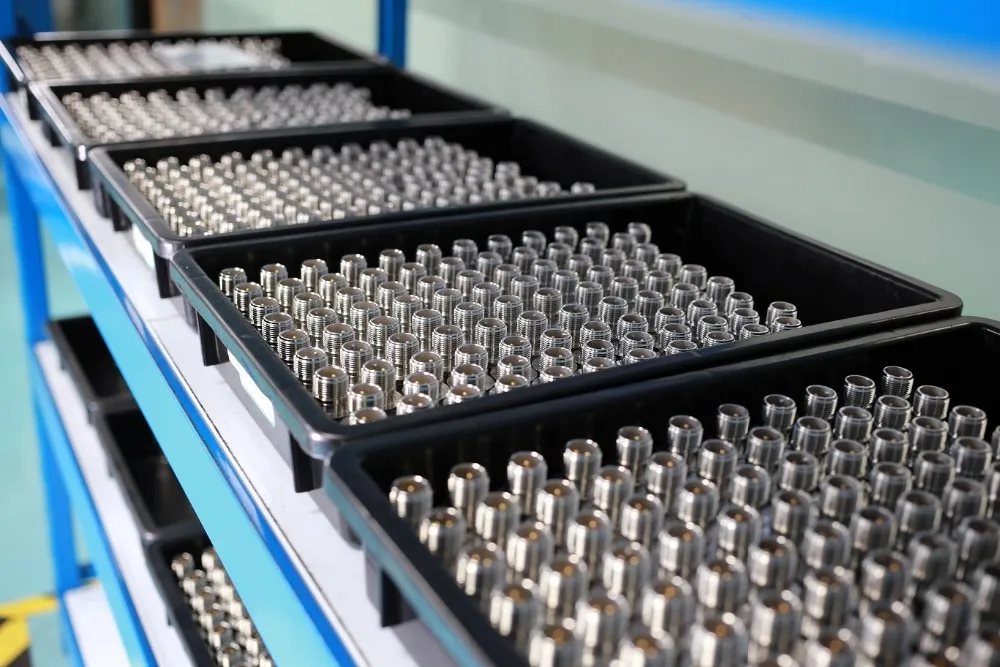

Ronds Introduction

Contact:


Kelly Xu / Global Marketing

M:+86 17756039295

Skype: xuyingchina111

E: ying.xu(at)ronds.com.cn
