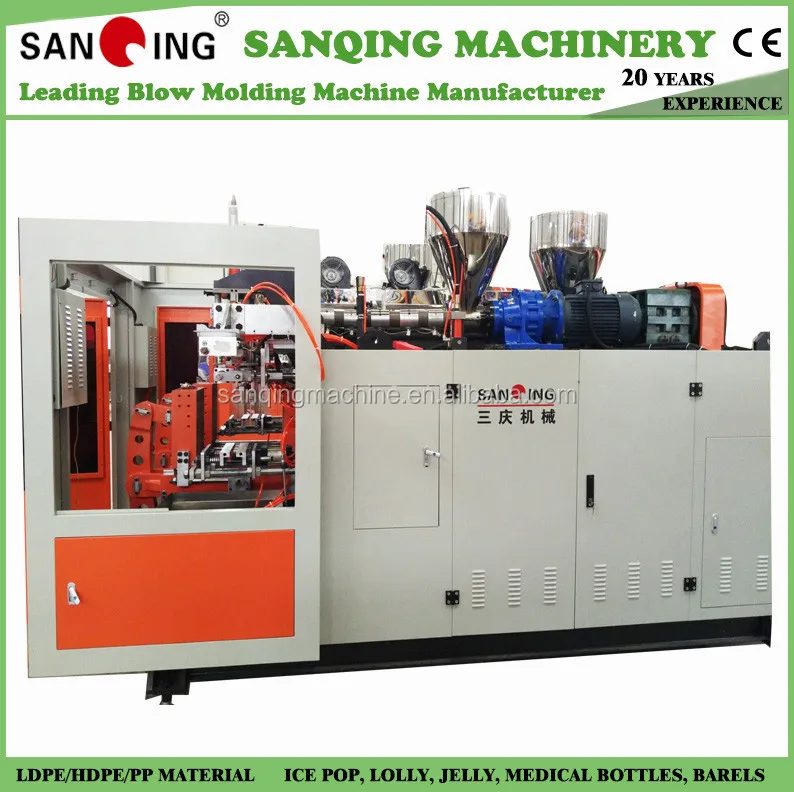

Product Description

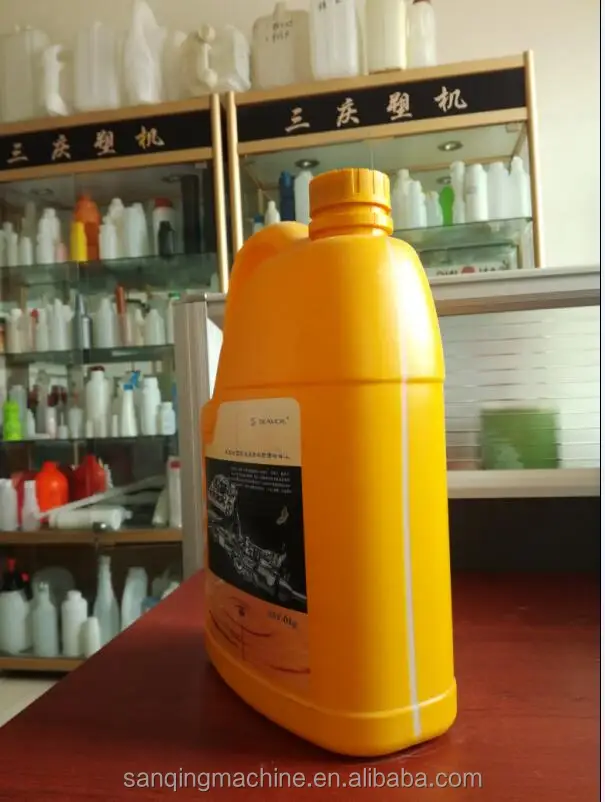

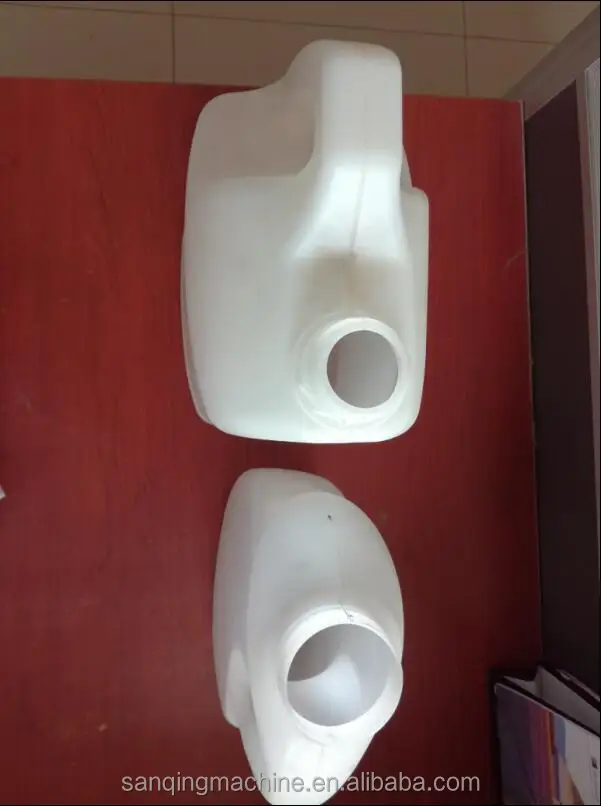

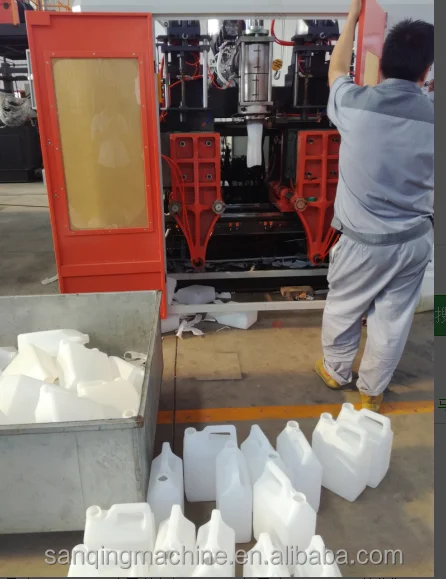

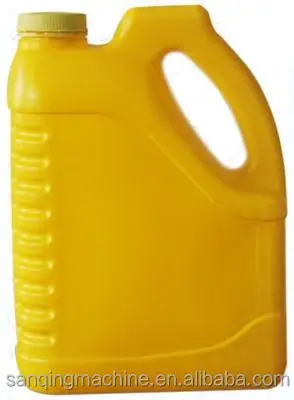

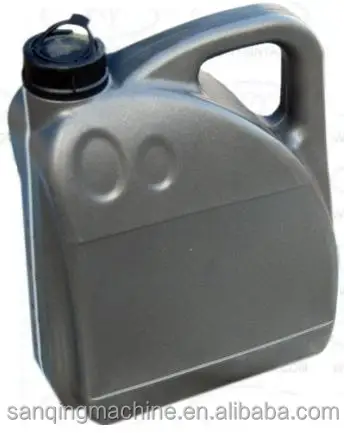

 Sanqing blow molding machines could cover 1ml to 100L, so above 2 Liter, necessary to have hydraulic powered machine to achieve qualified product. This type of hydraulic powered blow molding machine is able to produce until 5 Liter. The application could be water bottles, jerry cans, oil bottles and etc.

The machine is suitable to produce single layer, three layer and viewline bottles, it is good to produce plastic material such as HDPE/PP/LDPE.

This machine is controlled by PLC system, the working speed could be adjusted by operators over touch screen.

SPECIFICATIONS FOR 5 L Blow Molding Machine






Product Range
Max. Product Volume
5 L

Product Max. Dia.
18 CM
Thickness of Mould
150-220 mm
Width of Mould Board
303 mm
Distance of Mould Board
230 mm
Production Speed
200-300 PCS/HR
Applicable Raw Material
HDPE/LDPE/PP
Distance of Mold
160-500 mm
Force of Closing Mold
60 KN

Machine Parameters
Screw Dia.
75, 80, 90 mm
Screw Rod Length/Dia. Ratio
25:1
Speed Control Method
PLC


Energy Consumption
Heating Power
15 KW
Hydraulic Pump Power
4.5 KW
Extruder Motor Power
18.5 KW
Air Consumption
0.6 m3/Min.
Machine Dimension and
weight
Dimension
1960x1180x1960mm
Weight
4.5 Ton
5L machine.png

Main Features

1) High Production Capacity: our machine speed could reach 200-300 PCS per hour.

2) Our company have CE certification.

3)  We could produce bottle follow your instruction or drawing.

4)  Experienced manufacturer, our company already established 20 years.






Extruder Screw

Name: Screw

Brand: Zhou Shan Screw

Original: China

Zhou Shan Screw is the best quality in China. It could mix the plastic material very well.

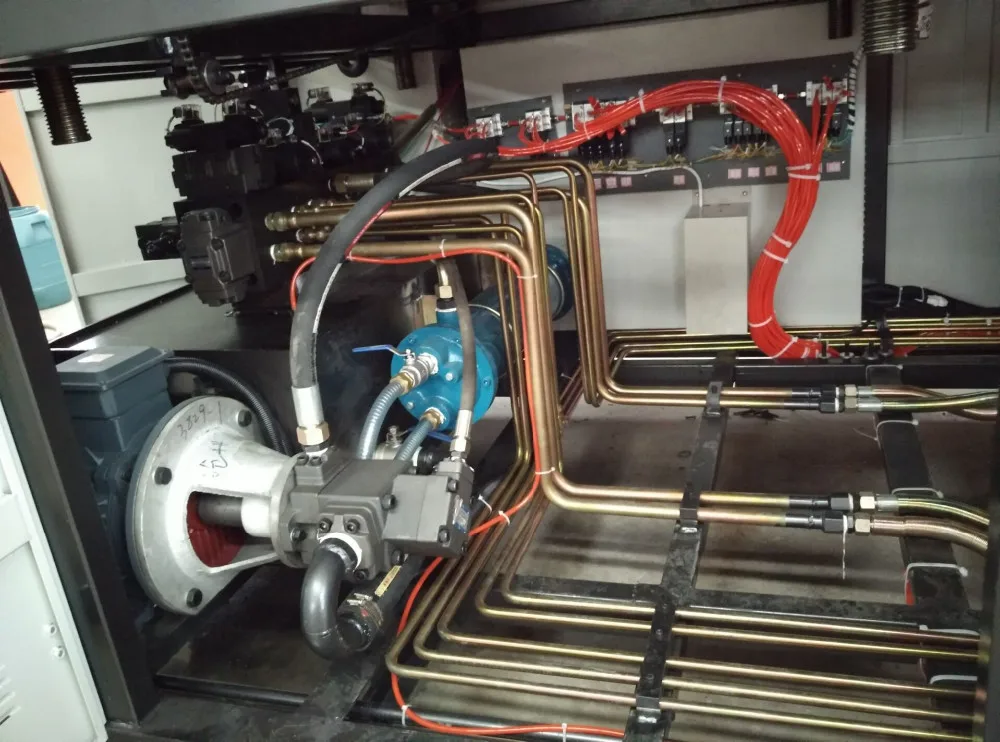

Hydraulic System

Name: Hydraulic Control Valve
Brand: Yuken
Original: Japan
It could control the hydraulic system working, the valve is very important for the hydraulic system, it will control the action of the machine.

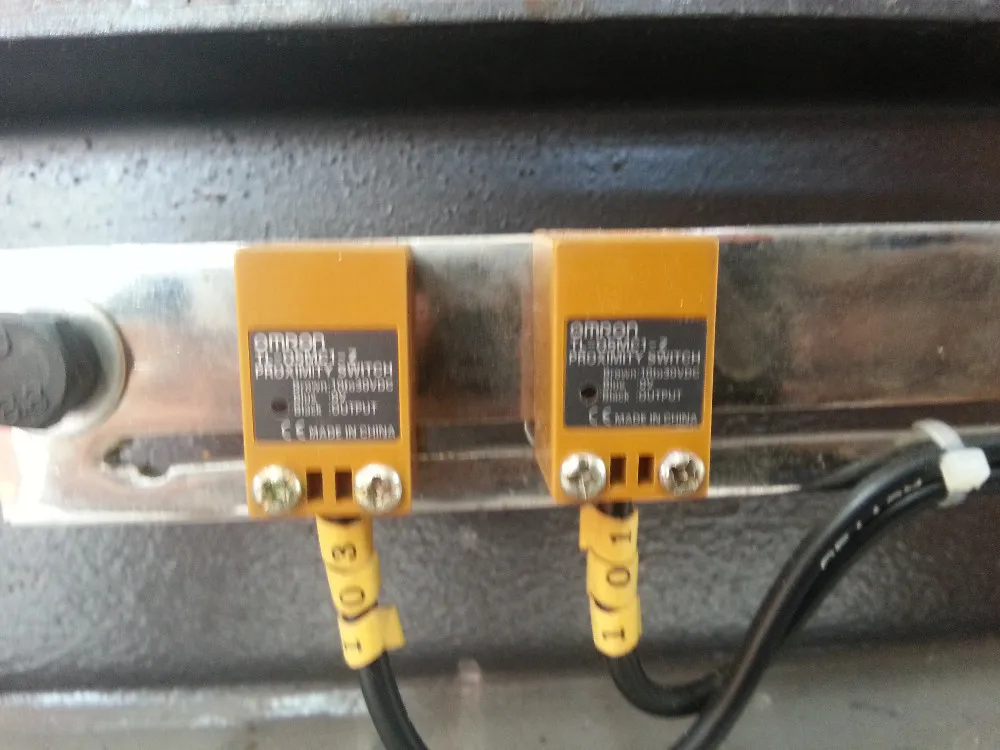

Proximity Switch

Name: Proximity Switch
Brand: OMRON
Original: Japan
This Proximity switch is working while the mould is nearby, it could trigger the next action. So this part use good brand is very important.

Parison Controller

Name: Parison Controller control thickness of plastic
Brand: MOOG
Original: USA
This controller is used to control the weight and wall thickness of the bottle, so the bottle will be better quality. It is necessary to use this controller when the bottle requirement is high.


Packaging & Shipping

 loadingPhoto


Our Services

 Our engineers are available to service machinery overseas. We will provide technical support for your installation and operation. We can also send engineers to your country, if you need, for installing, debugging and operation of the machine. We warranty the quality of this machine for 12 months, if there is any problem with the machine, or any main parts are broken, we will repair it or replace new for free

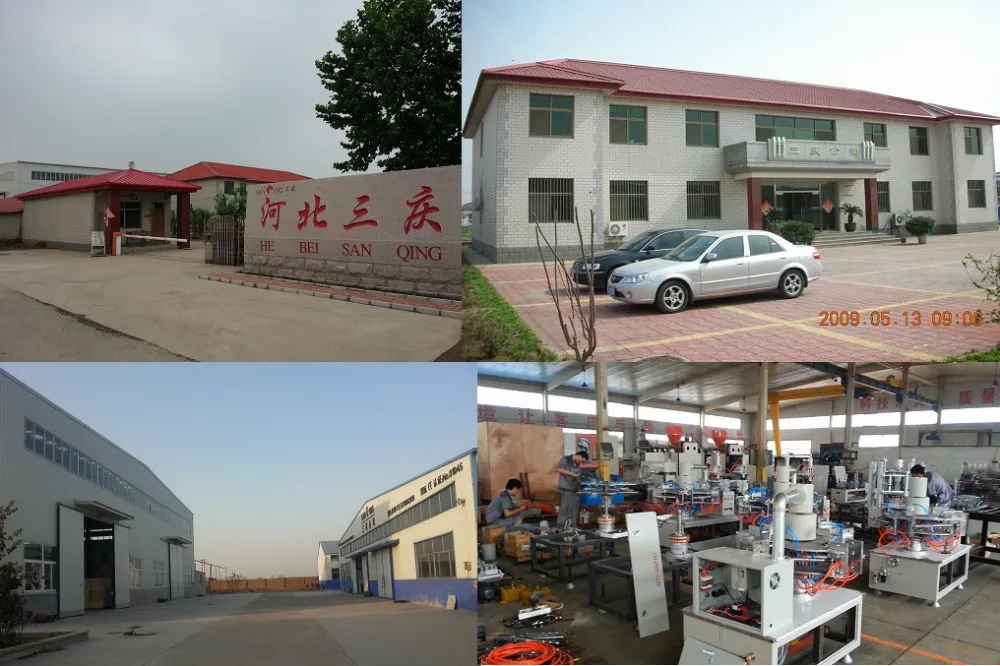

Company Information
