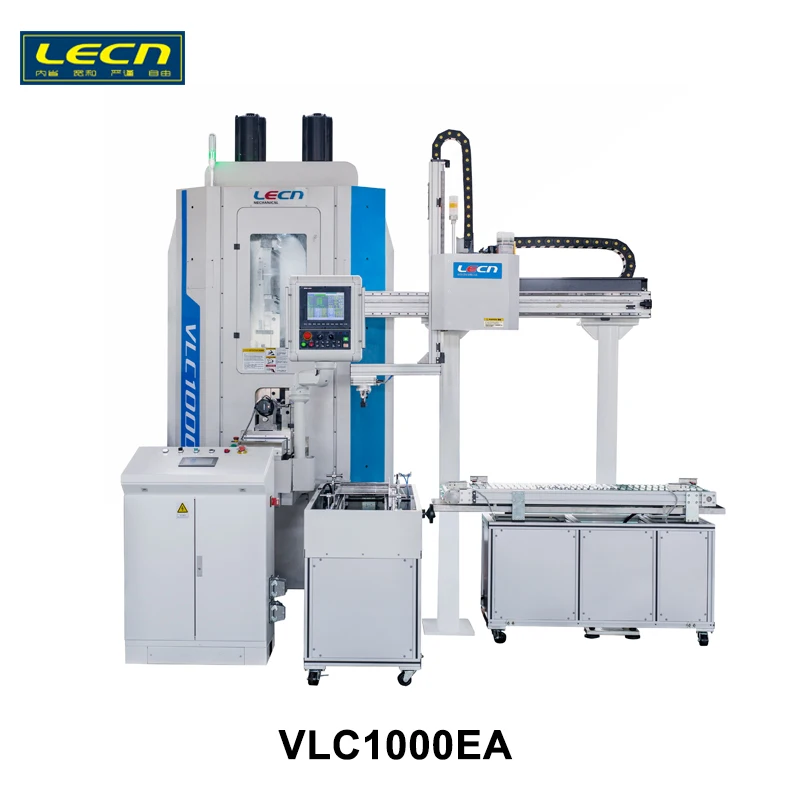

LECN Rolling Machine series VLC1000EA spline rolling mahine or thread machine for gear shaft parts

Product Overview

Description

VLC1000EA thread spline gear cutting machine for spline shaft parts



Production information



Function features

1)Wear-resistant castings made from special materials and rigid frame body.

2) Unique synchronization gap trimming technology can sharply improve synchronization accuracy.

3) Good mould combinations can reverse forming and save moulds;                                                         4)Intelligent guide way lubricant detector, work piece forming with large cooling flow.

5)Reasonable structure design, friendly operating height and small floor space.

6)Can carry with truss or joint robot and automation line.



Spline shaping principles

The spline cold forming is actually a shaping process without stock removal,in which root materials are gradually extruded and replaced upto crest .





Applications:



ITEM	UNIT	VLC1000A	VLC1000EA
Max  module	mm	1.5	1.5
Max out diameter	mm	ø50	ø50
Max tool width	mm	100	100
Max workpiece lenth	mm	1000	1000
Max installing tool width	mm	300	300
The open part size	mm	139.7	139.7
Tool size	mm	36or24,13	36or24,13
Max tavel	mm	1160	1160
Weight	kg	12000	12000
Length × width	mm	1580×3900	1580×3200
Drive way		Hydraulic	CNC

Our Factory and Workshop:







Our Services:



Warrantee & After-sale service:



1. All of our products give 1 year warranty.

2. Man-made destroy will be exception.

3. After the warrantee time, if we still in cooperation, we will give cost repairment if still can repair.

4. For reducing the cost of our customers, we can supply the materials or tech support to them,

help them fix the problems in their hands.

5. We will pay the delivery charge from us to customers if the repair, return or replacement cases happen

6. Strict technical inspection before packing.







Packaging & Shipping



a,How long will it take to deliver goods?



We will deliver the goods within 10 days for spare parts, other goods maybe take a little more times to test and prepare, we will deliver the goods within the deadline which both parties agreed.



b,What kind of packaging you offer?



We will pack the goods well with exporting packages to make sure all goods in a good condition during storage and delivery.



c, What kind of transportation methods you offer?



 We always transport by sea for the goods with large quantity, and we will confirm freight with buyers' prior delivery.



d, How about the insurance during transportation? How to deal with the responsibility?



Buyers should take the full responsibility for shortage of goods if the goods are checked

by any custom during transportation. During transportation, if goods are missed because of having been detained by custom in China, all loss thus occurred shouldbe borne by us;

if missing or detained of goods are occurred in other country except China, all loss should be borne by buyers



e, What Locations can you ship to?



We can send the goods to the whole world if the shipping way can deliver it.





Exhibition:



FAQ:





1. What are the terms of payments you offer?



Payment of the goods should be sent in USD or RMB on the basis of goods Values.

We accept payment of T/T, PayPal and cash only





2. What kind of problem will happen usually?



Some goods will be out of stock and cannot offer, because it cannot meet the quality request or really out of stock. Anyway we will contact the client to confirm well before shipping.
