Цифровой тестер емкости свинцово литиевых аккумуляторов BW LY5 12 В, 24 В, 36 В, 48 В, измеритель 3s 15s
Цифровой тестер емкости свинцово-литиевых аккумуляторов BW-LY5 12 В, 24 В, 36 В, 48 В, измеритель 3s-15s
Цифровой тестер емкости свинцово-литиевых аккумуляторов BW-LY5 12 В, 24 В, 36 В, 48 В, измеритель 3s-15s
Цифровой тестер емкости свинцово-литиевых аккумуляторов BW-LY5 12 В, 24 В, 36 В, 48 В, измеритель 3s-15s
Цифровой тестер емкости свинцово-литиевых аккумуляторов BW-LY5 12 В, 24 В, 36 В, 48 В, измеритель 3s-15s
Цифровой тестер емкости свинцово-литиевых аккумуляторов BW-LY5 12 В, 24 В, 36 В, 48 В, измеритель 3s-15s

Цифровой тестер емкости свинцово литиевых аккумуляторов BW LY5 12 В, 24 В, 36 В, 48 В, измеритель 3s 15s

Share on (60744527128):


Price:3,90 $ - 4,60 $

Quantity:


Product Overview

Description


Product Description

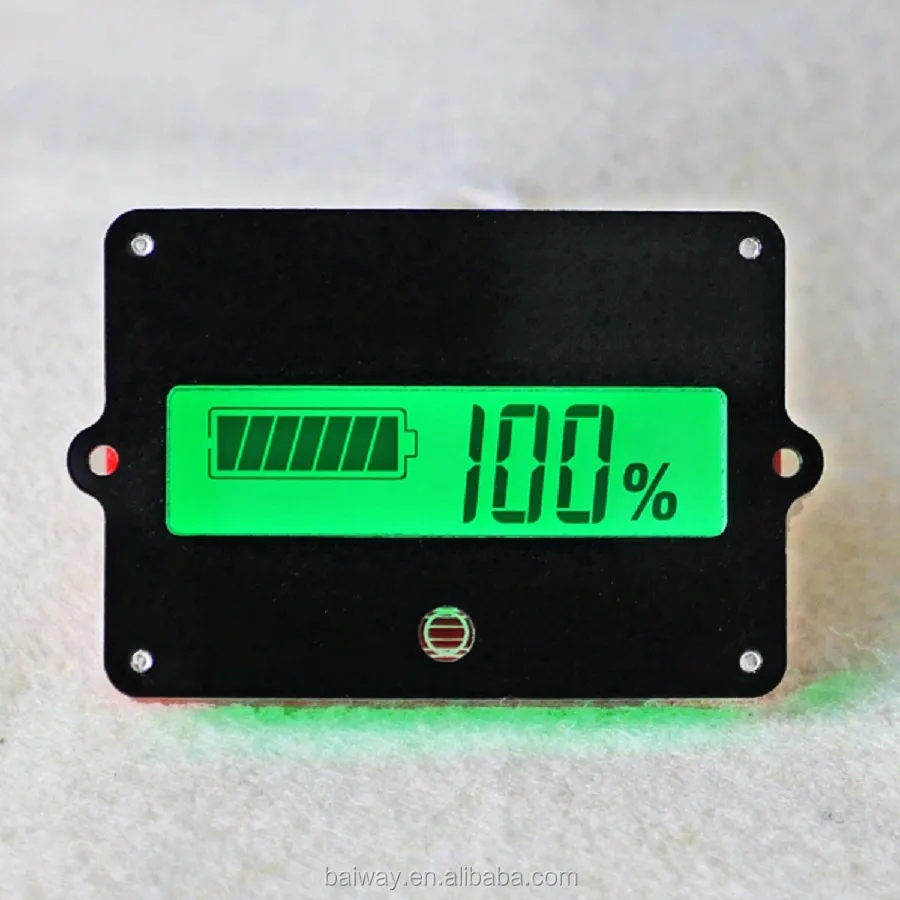

LY5 is a kind of universal voltage-type battery capacity tester, which can test the voltage and capacity of battery, and display them with intuitive battery symbol and percentage. Users can know the state of battery in time. LY5 is suitable for mobile and portable equipments,electro mobile,balance cars,cleaning machines,instruments,ups and so on.

Application:

 Lead-acid battery:12V, 24V, 36V, 48V

Lithium-ion battery:3Cells~15Cells(Except Lithium iron phosphate battery)
Note:Other specifications (1cell, 2cells and more than 15 cells) should be customized, and the specifications can't be adjusted.

Conventional models
Multifunctional models

This product is divided into key models and key style, with key style can be adjusted sleep function, voltage display function, voltage fluctuation trigger backlight function; without button style is the backlight is always on.

Dimensions
instructions
\t
Parameter
\t
Min
\t
Type
\t
Max
\t
Unit
\t
Working voltage
\t
8.0
\t
\t
63.0
\t
V
\t
Working current
\t
\t
3.0
\t
5.0
\t
A
\t
Working dissipation
\t
\t
\t
9.0
\t
mA
\t
Standby dissipation
\t
\t
\t
0.12
\t
mA
\t
Sleep dissipation
\t
\t
\t
15
\t
uA
\t
Capacity accuracy
\t
\t
±3.0
\t
\t
%
\t
Temperature range
\t
0
\t
20
\t
40
\t
℃
\t
Weight
\t
25
\t
g
\t
Size
\t
59*38*16.5
\t
mm

Specification adjustment:

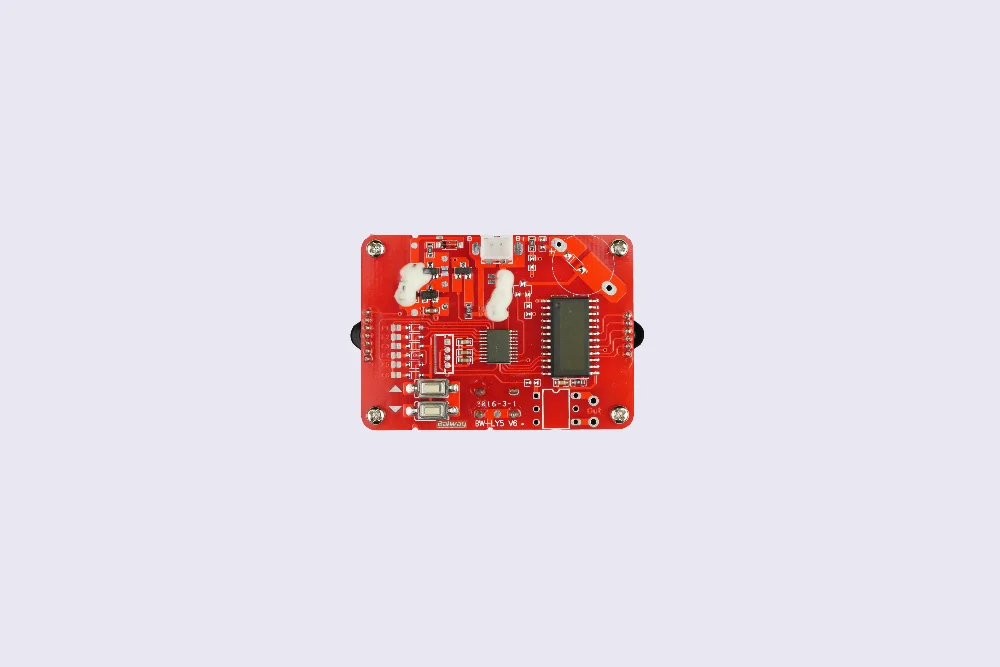

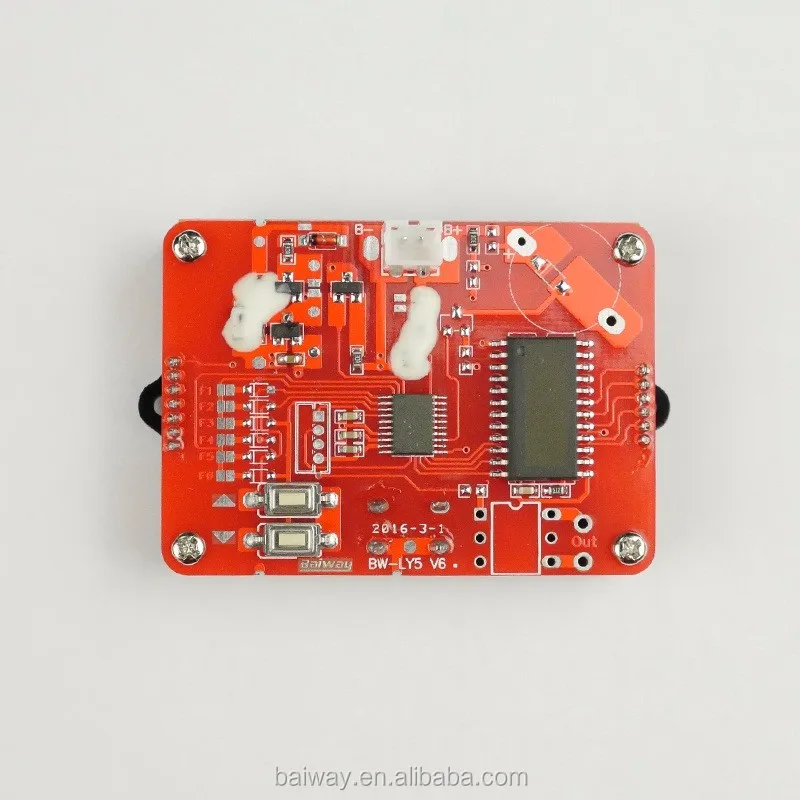

When turn off,hold down the "K-"key on the back and power on. LCD displays the present specification. Use the "K+"key and"K-"key to adjust specifications, select suitable specification you need, then turn off and power on again. The battery monitor will be work normally (correspond code as below form).

\t
Lithium battery
\t
Code
\t
Lead-acid battery
\t
Code
\t
3 cells
\t
Li3
\t
12V
\t
Pb1
\t
4 cells
\t
Li 4
\t
24V
\t
Pb2
\t
5 cells
\t
Li 5
\t
36V
\t
Pb3
\t
6 cells
\t
Li 6
\t
48V
\t
Pb4
\t
7 cells
\t
Li7
\t
\t
\t
8 cells
\t
Li 8
\t
\t
\t
9 cells
\t
Li 9
\t
\t
\t
10 cells
\t
LiA
\t
\t
\t
11 cells
\t
Lib
\t
\t
\t
12 cells
\t
LiC
\t
\t
\t
13 cells
\t
Lid
\t
\t
\t
14 cells
\t
LiE
\t
\t
\t
15 cells
\t
LiF
\t
\t

 After adjust specification press the OK key, battery monitor enter the mode of set up. The segment code of battery symbol on the left display the present function, the right display F1~F6. Use the down key and up key on the back, users can select different functions from F1 to F6, then press the OK key and power on again, the selected function will run(as shown below).

  LY5 battery monitor has six kinds of functions:


F1: Backlight delay off: Enter a low-power state (<120uA) after display 10s. LCD display but backlight turns off. Press the OK key, backlight turns on 10s.
F2: Dormancy: Enter a dormancy state (<15uA) after display 10s. LCD and backlight turn off. Press the OK key, backlight turns on 10s.
F3: Backlight trigger: Enter a low-power state (<120uA) after display 10s, LCD display but backlight turns off. Backlight turns on 10s when voltage changes. Press the OK key, backlight turns on 10s.
F4: Power on self test: When power on, LCD display strokes for 2s, then display the present battery type for 1s, finally display the electricity capacity.
F5: Voltage display: The LCD display present voltage on the right. The battery symbol on the left still display.

Related Products

BW-LY6W

BW-LY4


BW-LY7S

Our Company

          Shanghai Baiway electronic CO., LTD was founded in 2009. Our company has been focused on the production, design and development of battery applications for years, have rich experience.
          The company has a strong development of technical strength, and constantly introduce new products to meet the needs of various customers. Shanghai Baiway electronics Co., integrity, strength and quality of products recognized by the industry. Welcome friends from all walks of life come to visit, guidance and business negotiation.

High quality partner

Our products have been unanimously confirmed by users and established a good long-term cooperation relationship.

Order Process

From the time the order is established, the order information is transferred to the warehouse, the warehouse starts to pick according to the order information, (usually in stock, large batch orders are determined in advance for the delivery cycle), and then the electricity is turned on for product inspection, and after the test, the packaging is started and the box is sealed. The goods will be delivered to your hands through logistics.


Company environment


Certifications
Packing & Delivery

Packing

Ziplock bag, a pack of 5, weighing 130 grams

Delivery

We can send goods by sea, air and express according to you need.

FAQ

1. Are you manufacturer or trader?
We are manufacturer, and our company is established in 2009.

2. What is your delivery time?
10-30 working days depends on your order quantity.

3. Where is your factory?
Locate in Shanghai, China. You are welcome to visit our factory.

4. What are your main products?
Our products include voltage type battery capacity tester, current type battery capacity indicator, etc.

5. Why do you choose us?
Our company's products are independent R&D and manufacture, have high performance.
