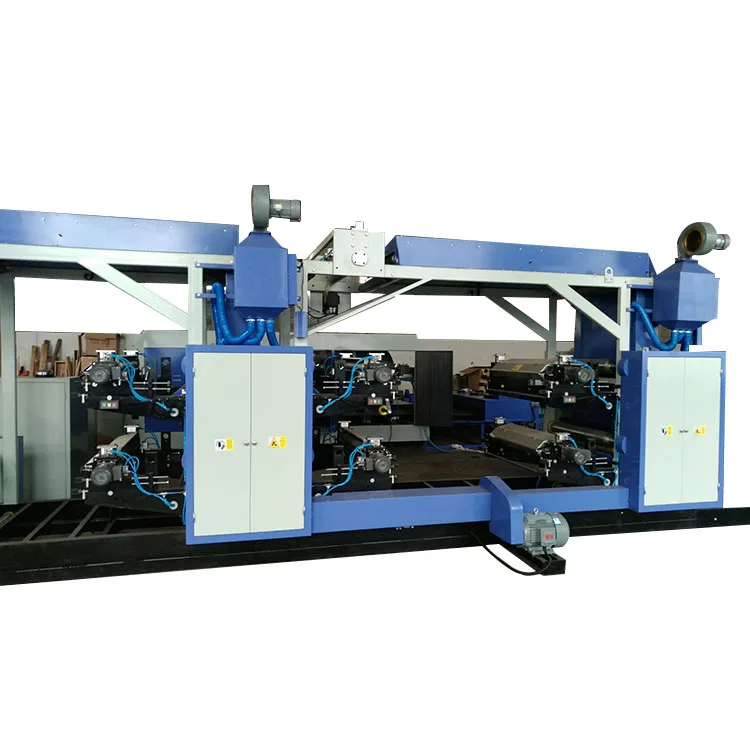

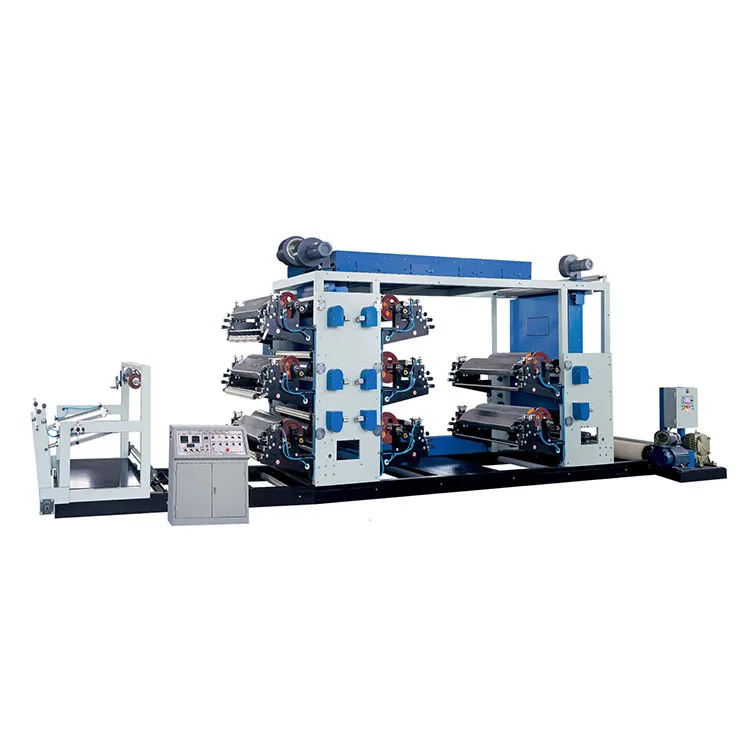

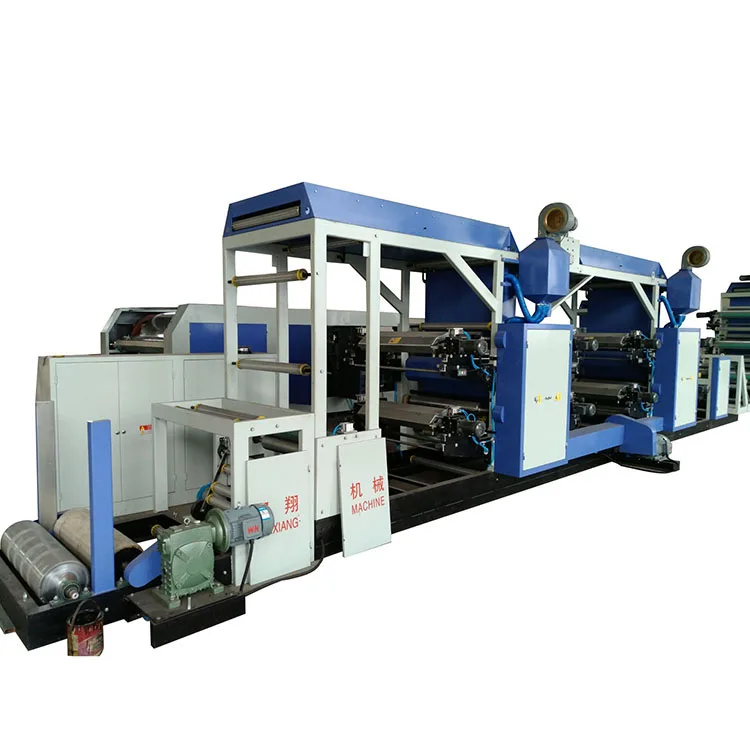

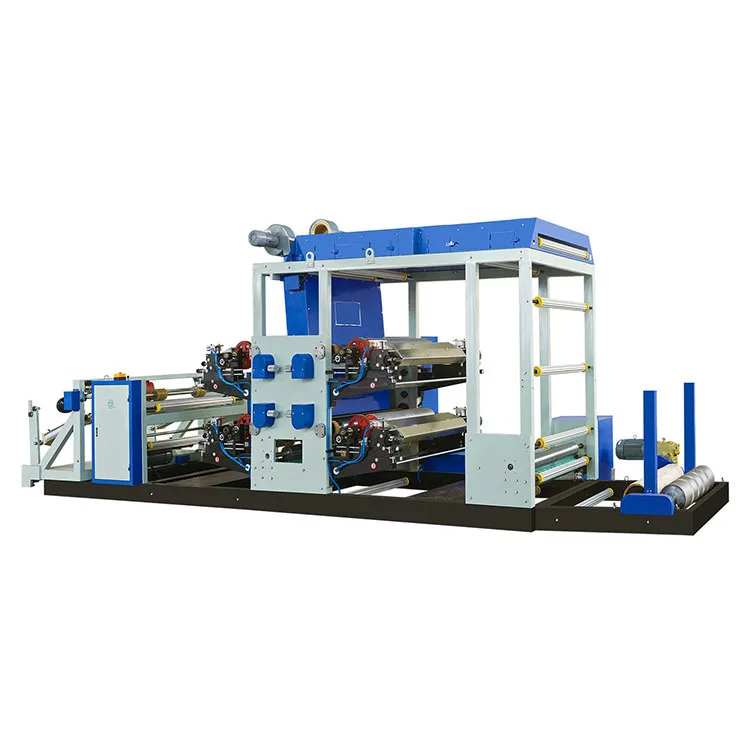

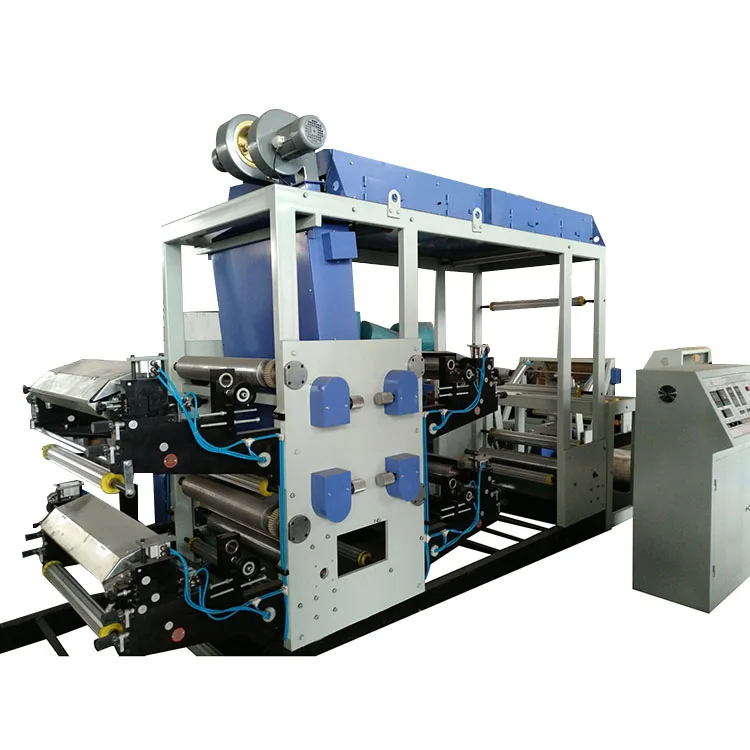

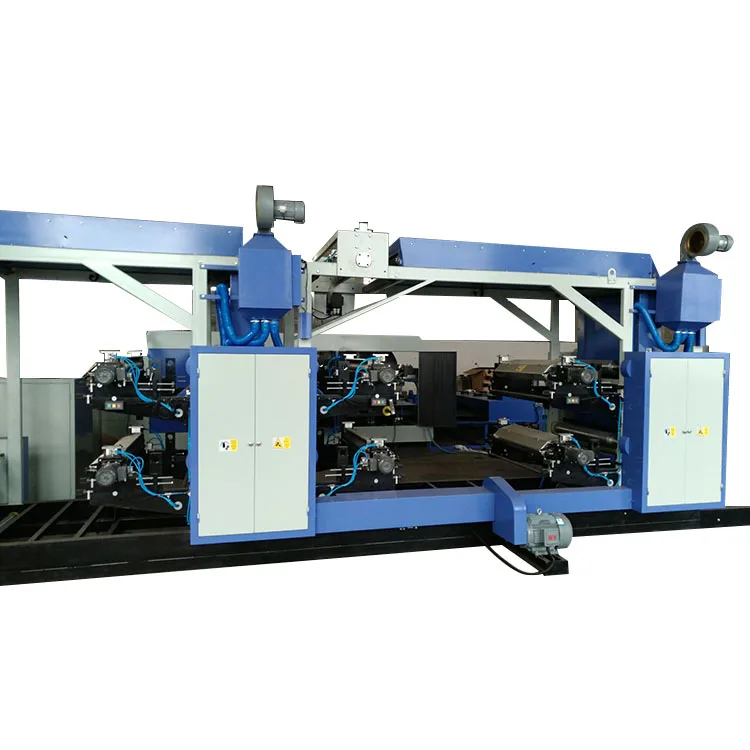

Wholesale printing coding portable conveyor paging machine
US $2900-$4000
Digital manufacture rotogravure printing machine manual machines low price offset
- Category: Auxiliary Packaging Equipment >>>
- Supplier: Changzhou Dagui International Trade Co. Ltd. [Jiangsu China]Changzhou
Share on (60744528034):
Product Overview
Description
Product Description
Digital manufacture rotogravure printing machine manual machines low price offset
good quality and high efficiency
Product details
| Max. feeding size | 1200mmx800mm |
| Effective printing width | 750mm |
| 750mm Thickness of printing plate | 4~5mm |
| Printing speed | 30~60m/min |
| Diameter of unwinding cloth | ≤1200mm |
| Total power | 25kw |
| Overall dimensions | 9000*2200*2600mm |
| Weight | 5000kg |
| Product Keywords | manufacture rotogravure printing machine,manual rotogravure printing machines,low price offset rotogravure printing machine |
Functions of equipment
This machine has the function to print continuously. Milti-color can be combined freely by changing the direction of cloth (6+0、5+1、4+2、3+3、...), it can be shaped one time at face and back. The printing speed may reach to 30-80m. The color of chroma is accuracy. Character of equipment: auto loading, EPC system for unwinder, inverter to control speed, cobwebbing roll to feed ink. During the period of printing, ink mixing equipment at clockwise and counterclockwise direction is increased. When main machine stops, the ink feed equipment will work continuously and wait for restart. It can reduce the waste. Each color can be controlled separately, printing colors quantity can be selected according to requirements. The energy consumption can be saved and the worn can also be reduced. Use PLC made by Mitsubishi to control automatic operation such as machine stopping, ink mixing and locking. It is equipped with quick printing plate checking system, as transverse 40mm and longitudinal 360 without stopping, dried by electric heating hot air oven, The winder and unwinder are controlled by inverter. Automatic edge fold, punching and cutting device can be chosen.
Main technical parameters
Max. feeding size 1200mmx800mm
Effective printing width 750mm
Thickness of printing plate 4~5mm
Printing speed 30~60m/min
Diameter of unwinding cloth ≤Ø1200mm
Total power 25kw
Overall dimensions 9000×2200×2600/2800mm
Weight 4000/5000kg
The Latest Patented Technology
Computer Controlled
No Need To Change The Printing Plate Rollers For Different Bag Length
