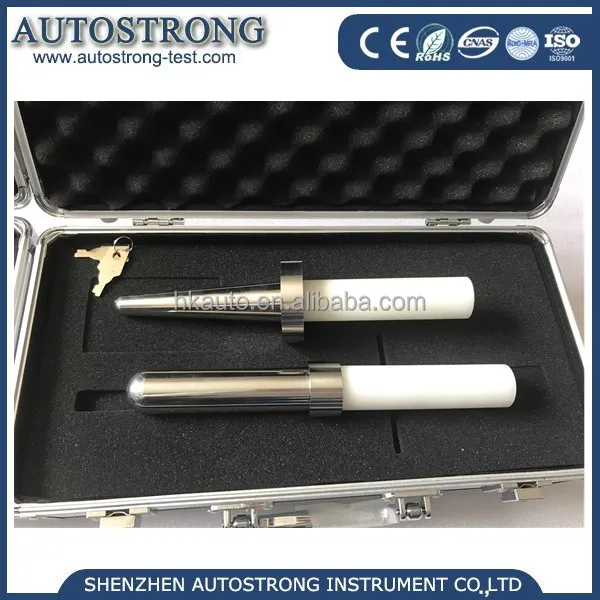

IEC 61032 Figure 13 Standard 5.6mm Small Children Test Finger Probe
IEC 61032 Figure 13 Standard 5.6mm Small Children Test Finger Probe
IEC 61032 Figure 13 Standard 5.6mm Small Children Test Finger Probe
IEC 61032 Figure 13 Standard 5.6mm Small Children Test Finger Probe
IEC 61032 Figure 13 Standard 5.6mm Small Children Test Finger Probe
IEC 61032 Figure 13 Standard 5.6mm Small Children Test Finger Probe
IEC 61032 Figure 13 Standard 5.6mm Small Children Test Finger Probe

IEC 61032 Figure 13 Standard 5.6mm Small Children Test Finger Probe

Share on (60744532719):


Price:

Quantity:


Product Overview

Description

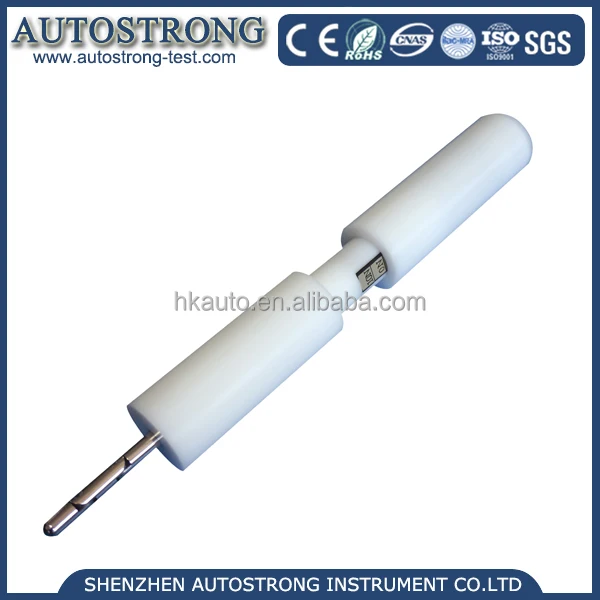

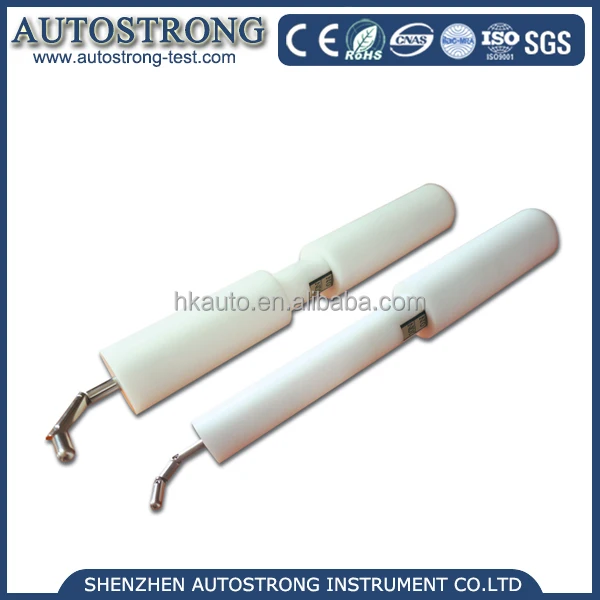

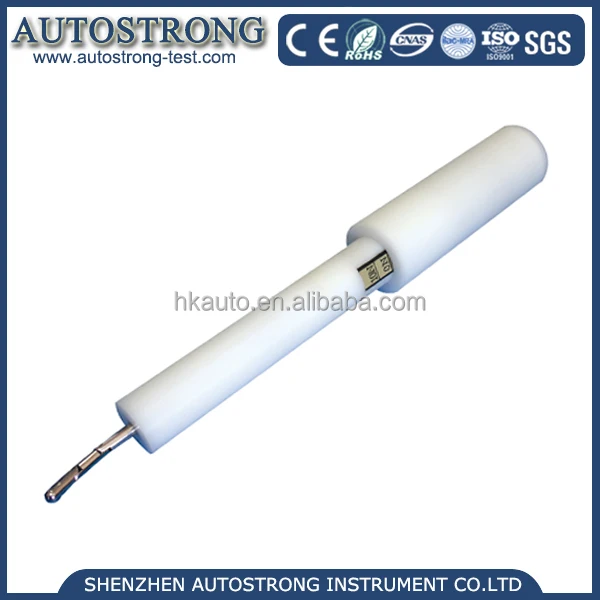

  IEC 61032 Figure 13 Standard 5.6mm Small Children Test Finger Probe

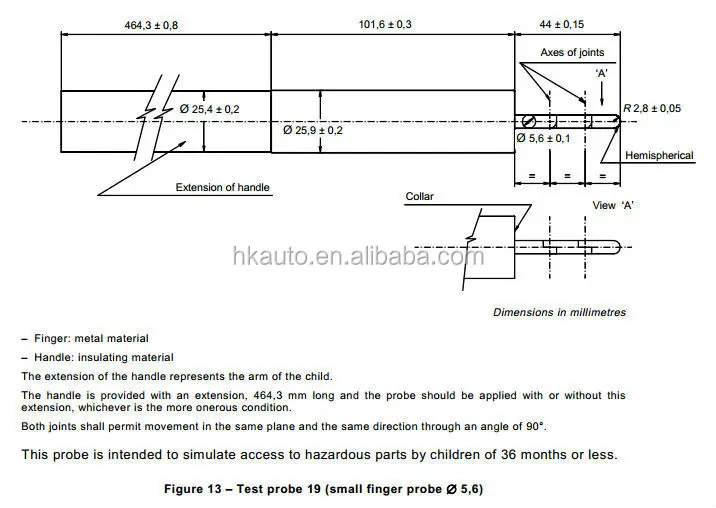

 •IEC61032 figure 13 test probe 19 (suit for 0-36 months infant)


























Knurled finger diameterφ5.6mm
Head radius2.8mm
Knurled finger length44mm(Three knurls,16.7mm/knurl)

– Finger: metal material
– Handle: insulating material
The extension of the handle represents the arm of the child.
The handle is provided with an extension, 464,3 mm long and the probe should be applied with or without this extension, whichever is the more onerous condition.
Both joints shall permit movement in the same plane and the same direction through an angle of 90°.
This probe is intended to simulate access to hazardous parts by children of 36 months or less.

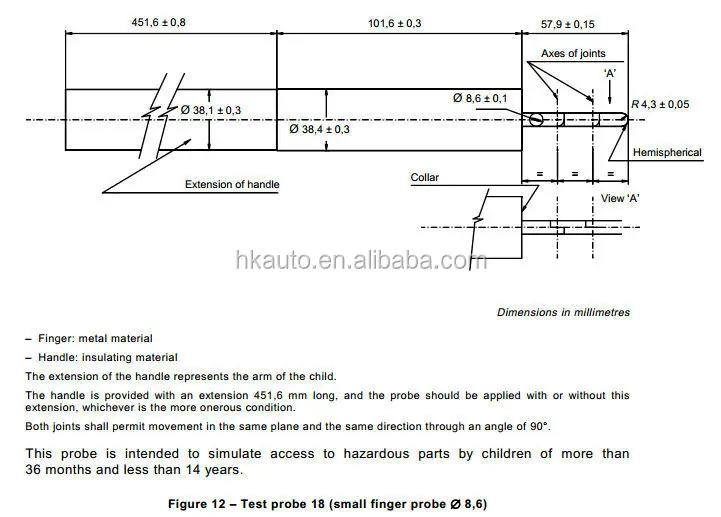

•IEC61032 figure 12 test probe 18  (suit for 37-96 months child)























Knurled finger diameter φ8.6mm
Head radius4.3mm
Knurled finger length57.9mm(Three knurls,19.3mm/knurl)
  – Finger: metal material
– Handle: insulating material
The extension of the handle represents the arm of the child.
The handle is provided with an extension 451,6 mm long, and the probe should be applied with or without this extension, whichever is the more onerous condition.
Both joints shall permit movement in the same plane and the same direction through an angle of 90°.
This probe is intended to simulate access to hazardous parts by children of more than 36 months and less than 14 years.







IEC61032 figure 13-test probe 19IEC61032 figure 12-test probe 18

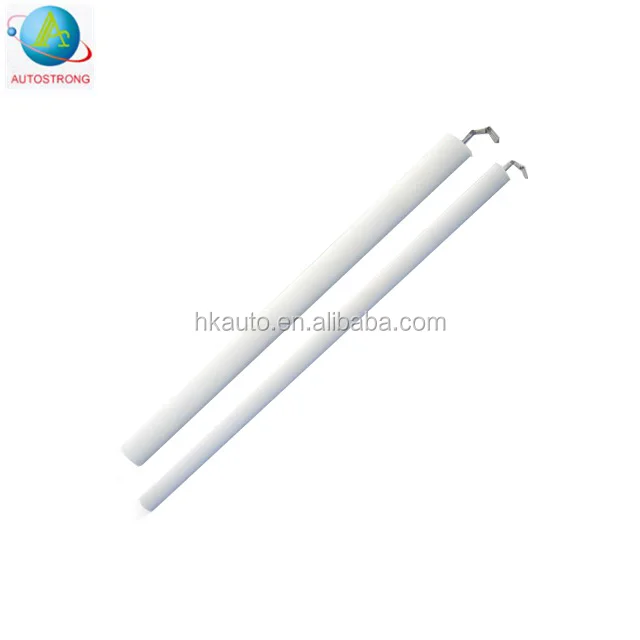

 Children Test Finer





Cerfiticates Details:


ISO9001-English







Company Information


AUTOSTRONG(www.hkautostrong.com) are the leading testing equipment manuscript in China. We are professional manufacturer of laboratory and Industrial test equipmets for products safety application with headquarter in Kowloon HK and branch factory in SHEN ZHEN city. SHEN ZHEN Branch factory is over 3200 area,it besides SHEN ZHEN airport with very convenient transportation.

We are one of the listed suppliers with IECEE (International Electro technical Commission) and have gained ISO9001:2015 Certification .

Main Products include:Glow wire tester, Needle flame tester, horizontal & vertical burning tester, tracking index tester, textile burning tester, protective clothing thermal conductivity tester, automotive interior combustion tester, melt dripping tester, salt spray test chamber , Constant Temperature and Humidity Test Equipment,building materials flammability tester, friction tester, test finger, test gauges, spring hammer, IPXX code dust & waterproof test equipment, Wire & cable testing machine, universal testing machine and other testing instruments.












Our Group:










FAQ


1.How about your tester quality?


1).We are leading testing equipment manufacturer in China with over ten year tester exportation experience.


2).All Tester we provided are calibrated by our professional engineers team or ISO17025 laboratory with testing certificate and report.


3).We are audited testing equipment supplier of Bureau Veritas Group, Laboratory ,Intertek etc.





2.How do order your equipment?


1).Contact us first to confirm tester techncial parameter;


2).Autostrong team quote and negotiate;


3).Order Confirm,clients pay down payment;


4).Autostrong start manufacture;


5).Confirm details before delivery;


6).Clients pay balance payment;


7).Arrange equipment shipment;


8).After sales service;





3.What about the transportation?
Our team provide you an offer with various transportation ways,you can choose the most convenient and competitive way for you.We have over ten year exportation experience and will do our best to save clients' shipping cost.





4.How about after-sale service?


We have a professional A/S enginner team,they all have over 15 year experience.We provide one year guarantee period and life long term repair service for tester. A/S feedbacks are  provided within 24 hours.





5.What is your payment way?


We prefer 100% advance payment before delivery and also accept credit card payment.Welcome to contact our team for more negotation.





6.What is your equipment guarantee?


We normally provide one year guarantee period,welcome to contact our team for more negotation if you need longer guarantee period.





7.Do you have sales agent at our local market ?


We have sales agent over 60 countries,welcome to contact our team for more details.







Thanks for your precious time for reading, have a nice day my friend !
