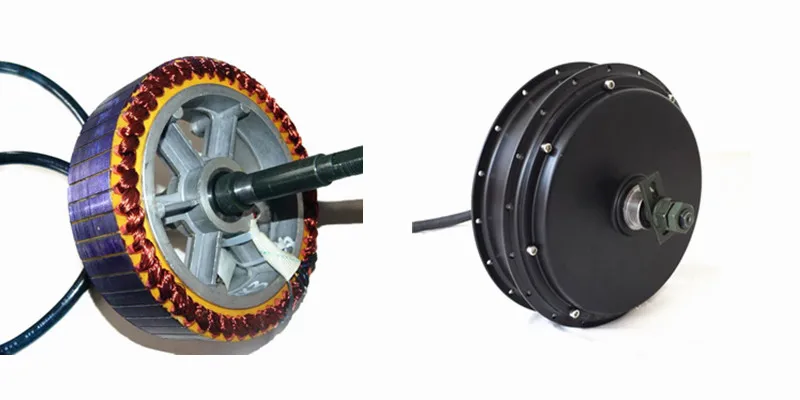

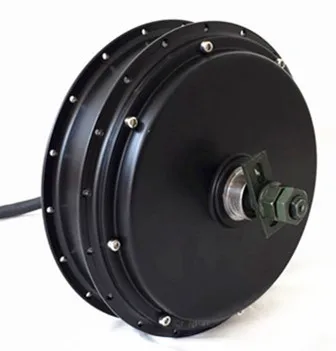

72v 5000W brushless gearless Electric Bicycle wheel hub motor

Product Overview

Description

High torque 48v-96v 5000W Electric Bike Scooter  hub motor

 Detail specification for High torque 48v-96v 5000W Electric Bike Scooter  hub motor

Model	NC5000
Motor power	5000w
Axle	10mm* 16mm
motor diameter	244mm
Voltage	48v-96v
Magnet Height	50mm
stator	aluminum alloy
windings	700rpm @72v, 4Tx20
waterproof grade	IP54
KV	3T motor is 12.5KV , 4T motor is 9KV.
numbers of pole pairs	16
peak phase current	300amp
Max torque	> 190N.m
Max Efficiency	89.80%
drop out	149mm
Numbers of Motor phase	3 pcs
Hall sensor	2 sets, one is for spare
hall sensor phasing	120 degrees
cross section of phase wire	10mm2
temperature sensor	KTY82/122
color	dark black
N.W	12.75kgs











































































Drawing for High torque 48v-96v 5000W Electric Bike Scooter  hub motor

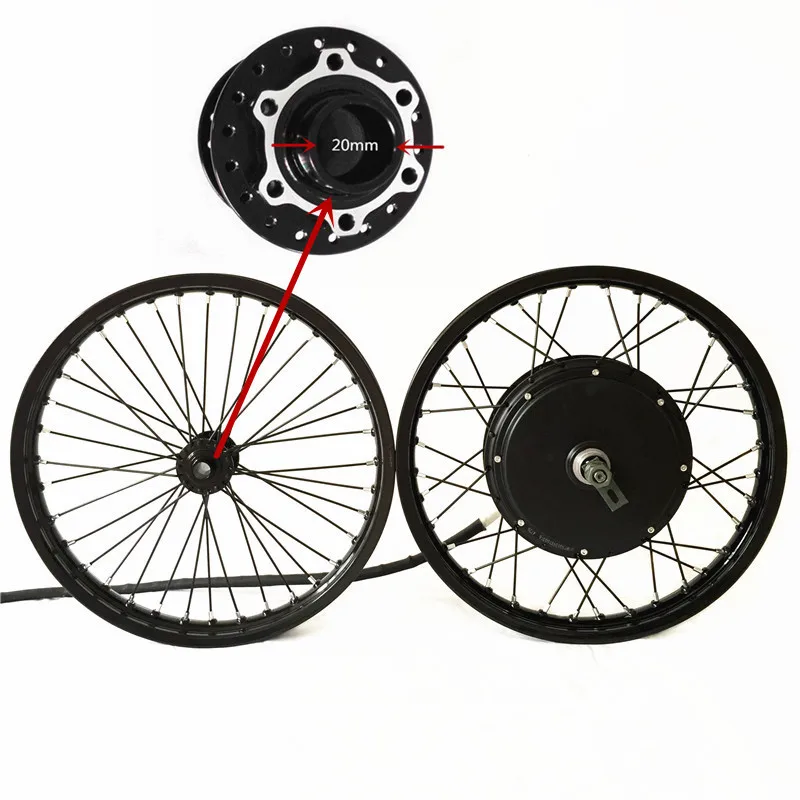

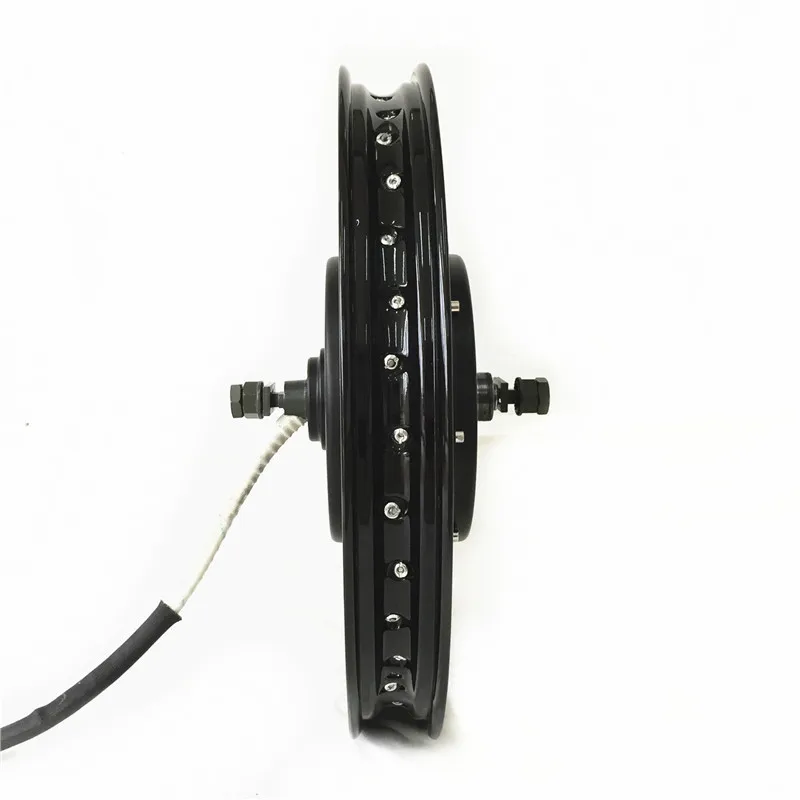

48v-96v 5000W Brushless  Electric Bike hub motor for ebike kit wheel

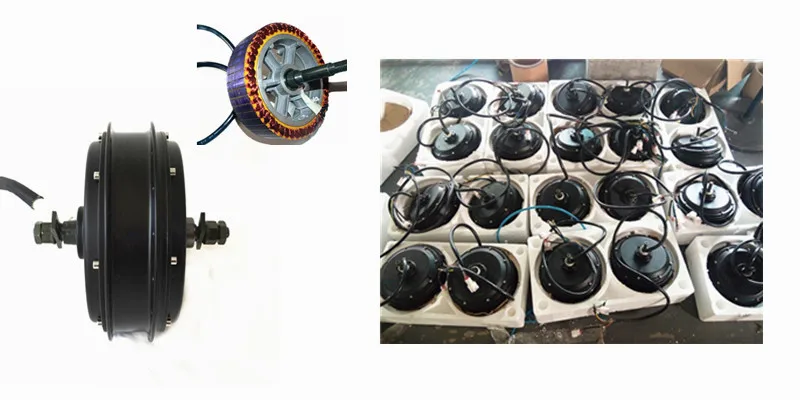

Packing for High torque 48v-96v 5000W Electric Bike Scooter  hub motor
