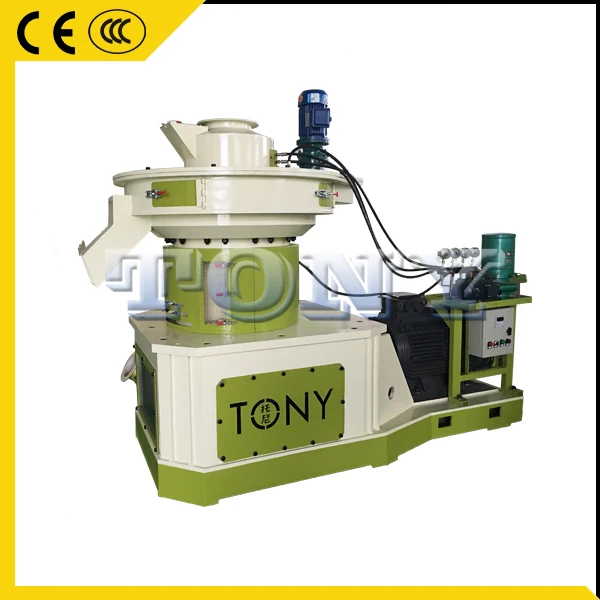

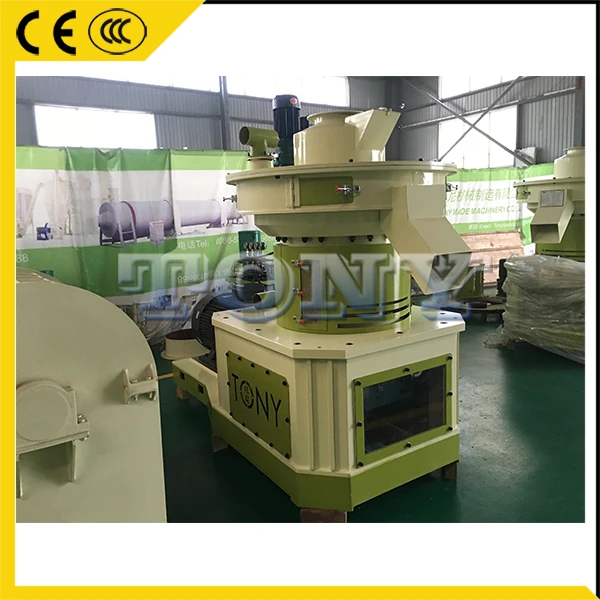

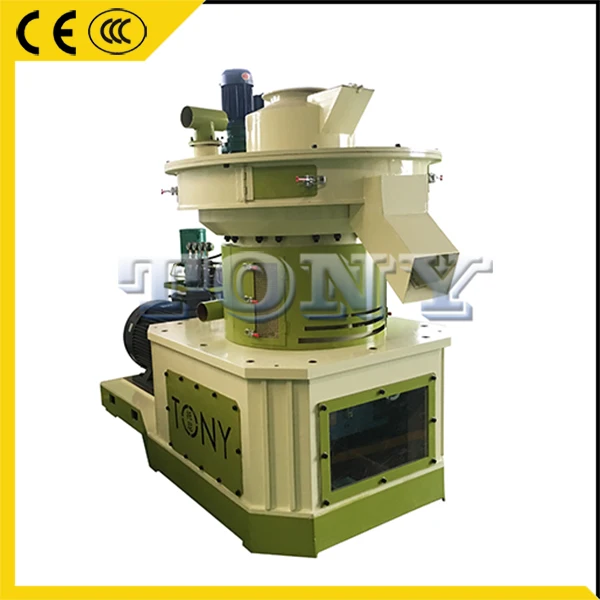

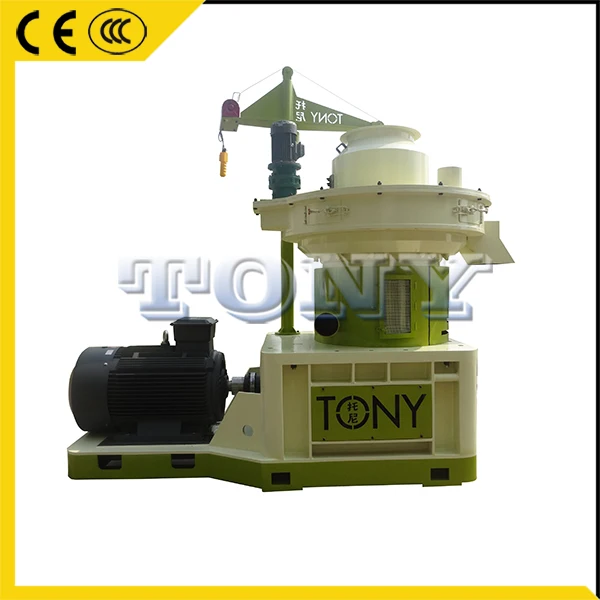

Running Stable Wood Pellet Machine Price Exported to Thailand

Function of Vertical Ring Die Complete Wood Pellet Machine

Ring Die pellet mill machine is also named as biomass or wood pellet machine/pellet mill/pellet press. It is designed to make biofuel / biomass fuel pellets for burning..

Features of Complete Biomass Wood Pellet Machine

★Upward mould, special structure; vertically feeding, never buff placer, feeding material with wide inlet, and easier heat dissipation.

★Die static, roller rotating, material centrifugation, distributed around evenly; because of the die high side, the material can be kicked back to the pressure room.
★Double-layer die, up and down dual-use, high capacity, saving energy.
★ Adjust the length of pellets and briquette with frequency conversion, which is the separate device in the machine, * the speed depends on the length of finished products.
★Grease filtrated, automatic lubrication and link compaction.

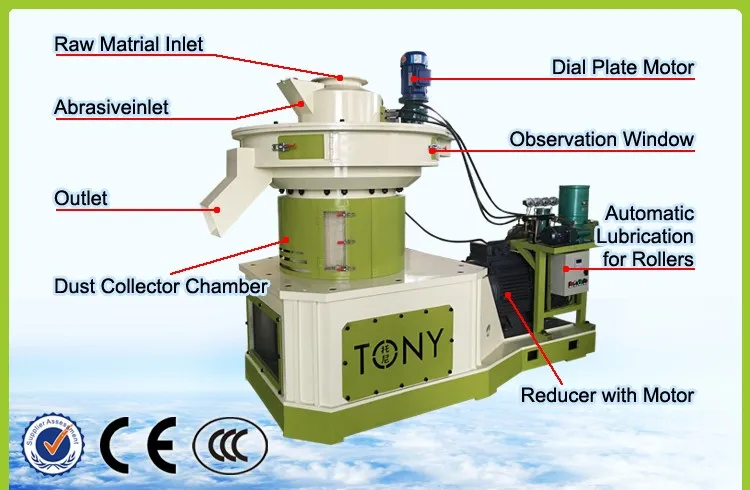

Working Principle of our ring die wood pellet machine

★Vertical ring die, feeding vertically                      ★Die fixed, rollers rotating
★Centrifugal force combined with extrusion to press materials from inside to outside and form pellets

Raw Materials of Wood Pellet Mill

Suitable Raw Materials: It can process various kinds of biomass raw materials such as wood, trunck, branch, sawdust, straw, rice husk, bamboo sawdust, peanut shell, bagasse waste, alfalfa, a variety of crop stalk and other agricuntural waste, etc. If you are not sure how your materials perform in pelletizing, you can send us some sample of the material and we can help you test the pelletizing process and send you the final products.

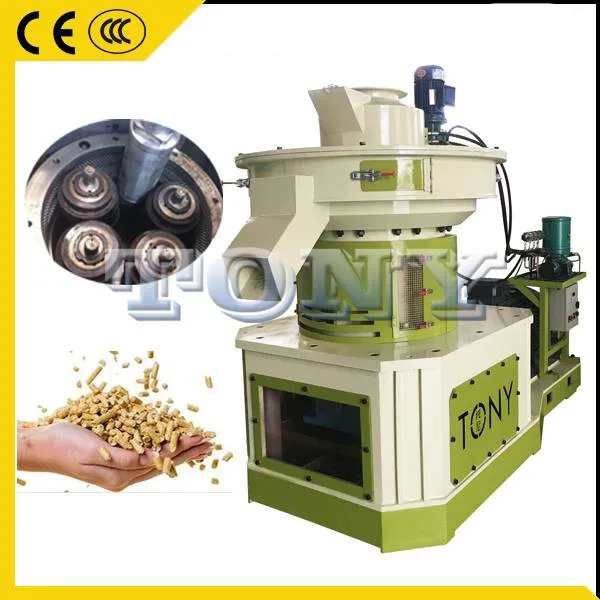

Final Pellets From Vertical Ring Die Wood Pellet Machine

Diameter Size: 4mm, 6mm, 8mm, 10mm, 12mm

Name: Motor

Original: China/Germany

Rated Vlotage: 380V,

Rated Frequency: 50HZ,
Also made according to user need(Brand and vlotage).
400V, 415V, 420V, 440V, 690V.etc.

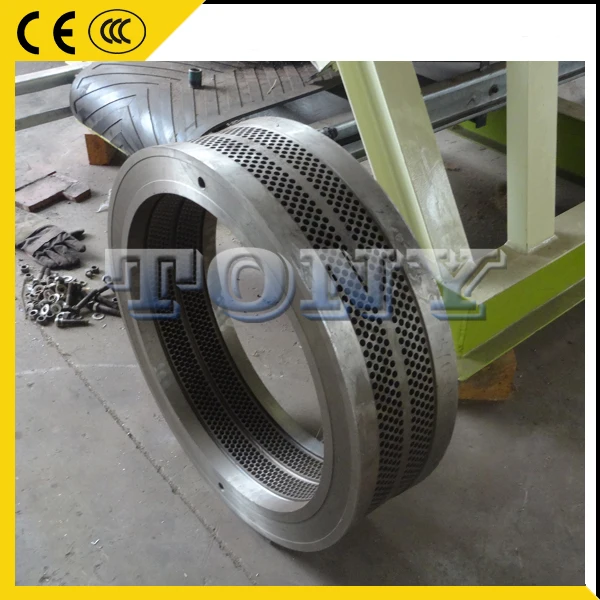

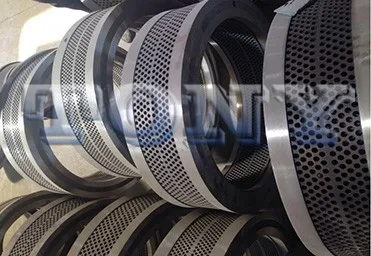

Name: Ring Die

1. Made of alloy and stainless steel;
2. The professional heat treatment processing technology can make its hardness above HRC62.
3. Vertical Ring die, feeding vertically.
4. Double-lay die, dual use. When one side is damaged, turn over and use the other side.

5. Hole diameter:4mm, 6mm, 8mm, 10mm, 12mm

6. Service Time: 2500-3000 hours

Name: Rollers

Materials: Stainless steel
Service Time: 2000-2500 hours
According to actural factors, such as capacity and raw material, two or three or four rollers are used.

Other Spare Parts of Ring Die Pellet Machine

Main Shaft, Bearing, Electric control box and auto-lubricate system.

You can contact via pelletmill08 AT tonyjixie.com for more details .

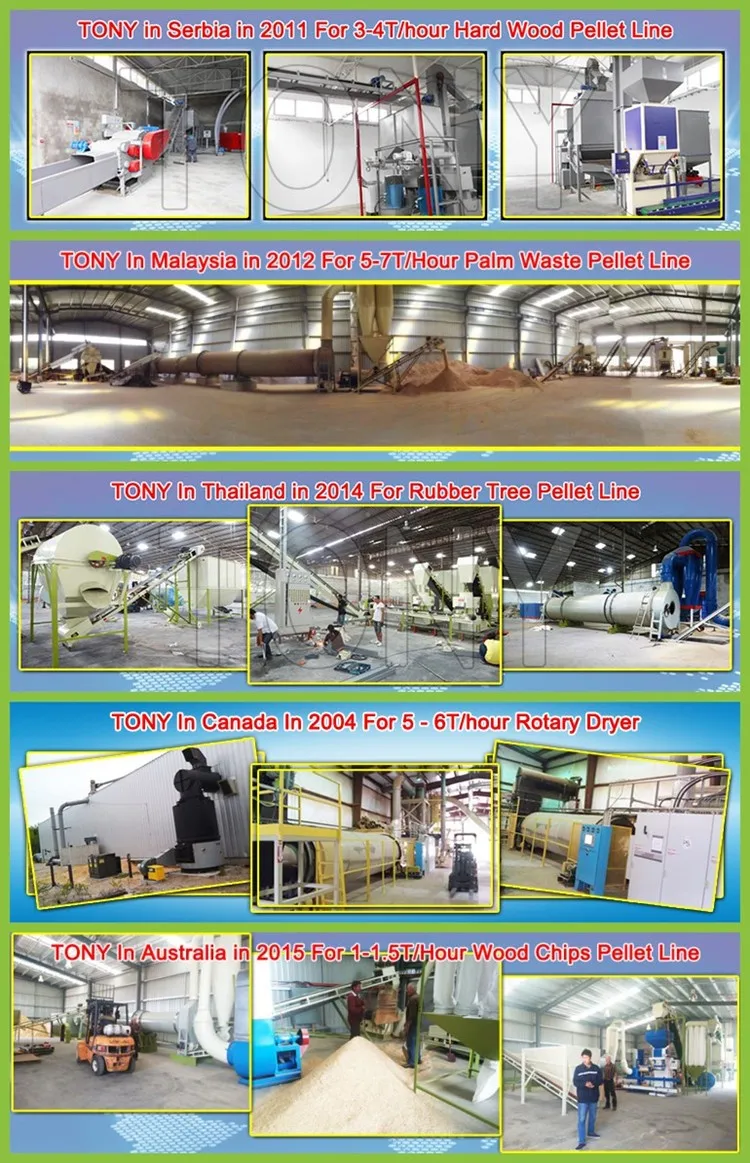

Successful experiences oversea

Our products have been exported to lots of Europe, South America, Southeast Asia countries and so on countries.

We mainly manufacture pellet machine  and related machines as following:

1. The SKJ Series flat die pellet machine/feed pellet machine with the volume 100kg to 4 ton per hour.
2.TheTY Series ring die pellet machine / feed pellet machine with the volume 800kg to 5 ton per hour.
3.The SKJD Series Pellet Machine with Diesel Engine with volume 100kg to 400kg/h.
4.The SKJT Series Pellet Machine with Tractor Engine with volume 80kg to 400kg/h.
5.Hammer Mill
6.Wood crusher
7.Wood chipper
8.Drum dryer
9.Packing machine

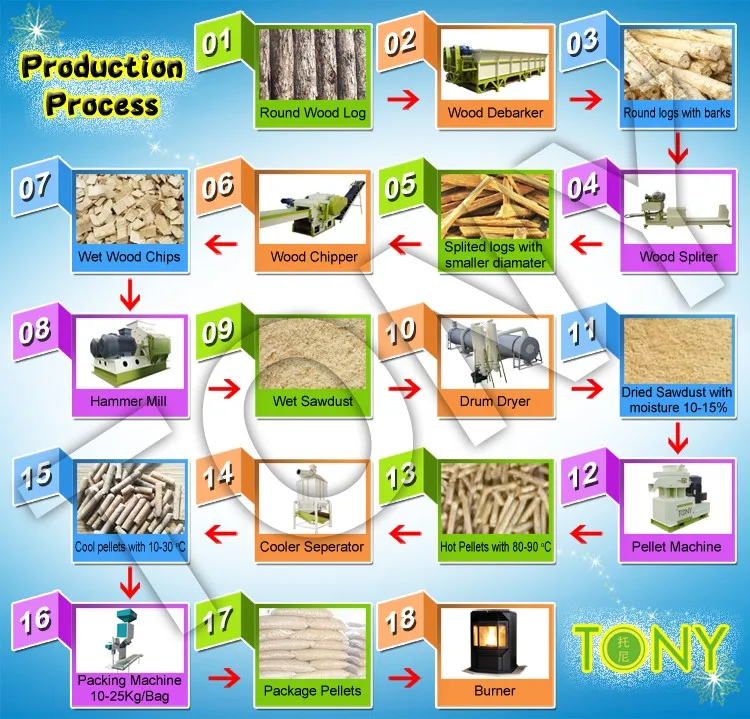

10.Whole pellet making production line from the volume 0.5 ton to 20 T/h.

How to inquire about our pellet machine/pellet mill/pellet press or pellet line?

When sending inquiry, pleases remember to write down the following information:
1. Your Capacity?
2. Your raw material, size and moisture?
3. Pellet size you want?

4. Pellet application, burning or feeding animals?
6. Your country voltage?
