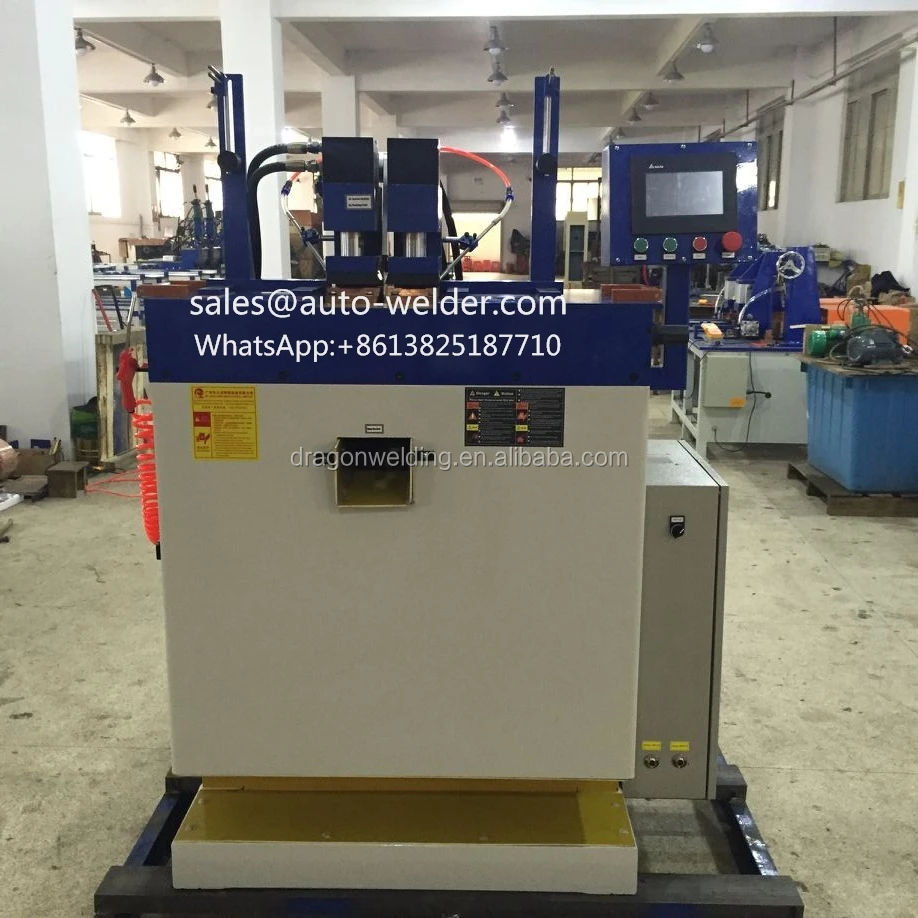

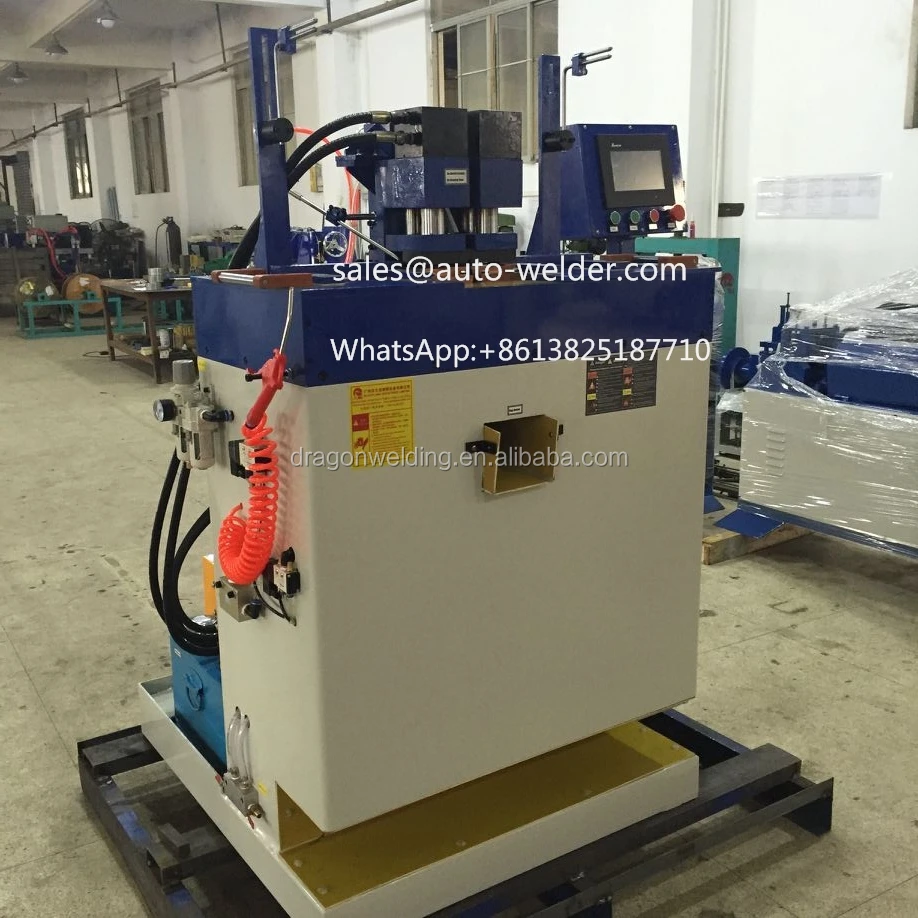

UNB 75KVA Automatic Band Saw Blade Welding Machine

Product Overview

Description











UNB Series Automatic Band Saw Blade Welding Machine

Apply to bandsaw blade of a variety of sizes and different materials,welding tensile strength,high toughness,speed fast,beautiful weld, good compactness,no blowholes. Much higher than the semi-automatic welding effect and speed.







UNB-75KVA Automatic Band Saw Blade Welding Machine



1. Adopt CNC system, PLC and touch screen control, language switching freely, parameter setting flexibility, high efficiency welding, with counting function.

2. Adopt Pneumatic-hydraulic combination, welding and annealing are both full automatic.

3. Automatic, semi-automatic, manual and other working modes can be chosen.

4. Machine structure design beautiful and reasonable, flexible and adjustable.

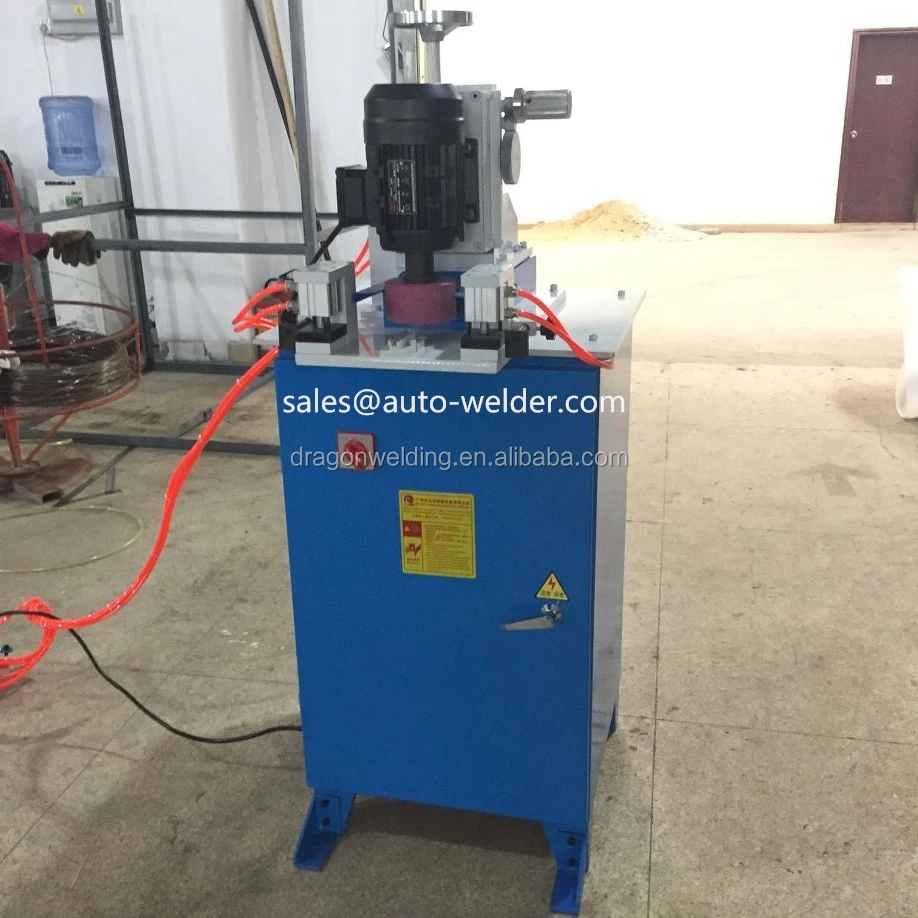

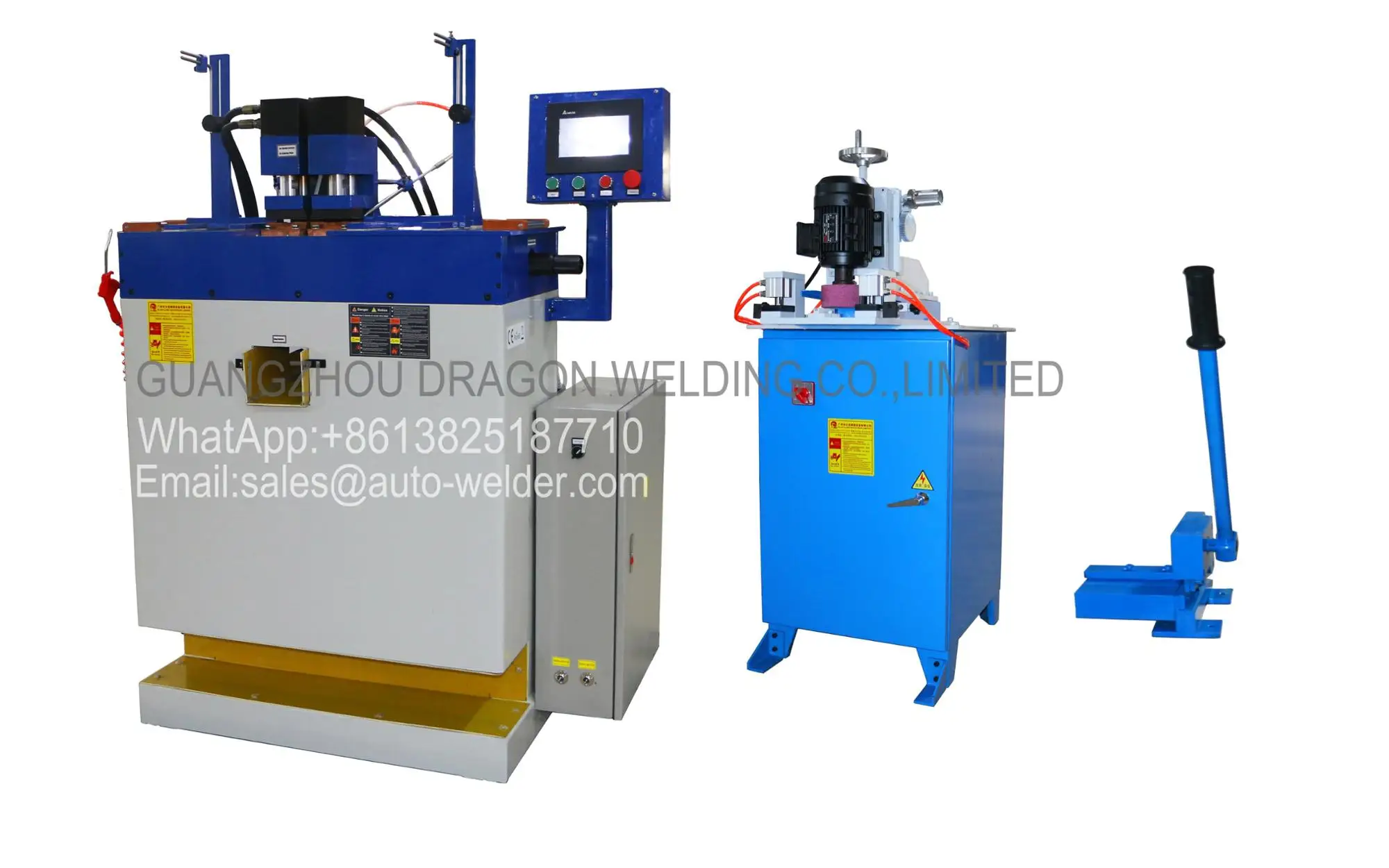

5. Accessories or other specification is available according to customers' requirement,Blade Grinding Machine and Cutter are optional.

6. Apply to a variety of sizes and different materials,welding tensile strength,high toughness,speed fast,beautiful weld, good compactness,no blowholes. Much higher than the semi-automatic welding effect and speed.





UNB Series Automatic Band Saw Blade Welding Machine



Parameter	Rated Power	Rated Voltage	Rated Frequency	Max Short Current	Rated Duty Cycle	Max Clamping Force	Max Upsetting Force	Cooling Water Required	Max. Welding Ability(Width)	Weight	Over Dimensions L*W*H
Model No.
UNB-50	50KVA	380V	50/60Hz	19000A	50%	25000N	15000N	150L/H	67mm	700KG	140x120x160cm
UNB-75	75KVA	380V	50/60Hz	24000A	50%	28000N	15000N	150L/H	100mm	800KG	140x120x160cm
UNB-100	100KVA	380V	50/60Hz	28000A	50%	30000N	2 000N	150L/H	150mm	900KG	150x120x160cm
UNB-150	150KVA	380V	50/60Hz	32000A	50%	35000N	25 00N	300L/H	200mm	1050KG	150x130x165cm







Our Products include Spot Welders,Butt Welders,Flash Butt Welders,Seam Welders,Medium Frequency Inverter DC Welders,Single-phase/Three phase Secondary Rectifier Spot Welder,Wire Mesh Welding Machines,

Sink Producing Line,Automatic Argon Arc Seam Welding Machines,High/Ultrasonic/Medium Frequency Induction Heating Machines,and other automatic equipments.







 The delivery time for standard machine is about 25-30days.(By Sea,by Air or by Express Way can be choosed)



       7. FAQ

Q1: What does your factory produce ?

  A: We produce and export all kinds of automatic welding machine and induction heating machine. We also can design and develop the welding machines according to your requirements.



Q2: What about your standard delivery date ?

  A: Usually 25-30 days. Our company provide just-in-time delivery



Q3:Do your factory sale directly ?

 A:YES,it is our factory sale directly,competitive price with high quality and excellent after-sale service.

Our quality products have been export to many countries,such as Germany,Russia,USA,Canada, Argentina,Peru,Turkey,Brazil,Spain,South Asia and Middle East countries.



Q4: Do you have CE Certificate?

  A: YES,we have.



Q5: Can you export machines by your factory?

  A; YES,we can.



Q6: Where are your factory?

  A: Our factory located in Nansha District , Guangzhou City, Guangdong Province, China.



Q7: Will you send engineer to help installing the welding machine?

  A : Yes, if need,we can send our engineer to go to your factory to help installing our welding machine, train the workers and make sure the welding machine running well before he leave.



Q8: If the machine get damaged, what can I do ?

   A: In the guarantee time (1 year) , we will send the spare parts to you for free. And provide the technical consultant for anytime.if more terrible,we can send our engineers to your factory.

  We will provide same good after-sale service as the pre-sale service, any of your questions,

we will be replied within 12 hours.
