50Ton Die Spotting Press Machine
- Category: Die Casting Machine >>>
- Supplier: Dongguan Nice Machine Building Co. Ltd.
Share on (60744736255):
Product Overview
Description
Product DescriptionProducts Advantages Of Nice Hydraulic Die Spotting Press Machine
Products Advantages Of Nice Hydraulic Die Spotting Press Machine

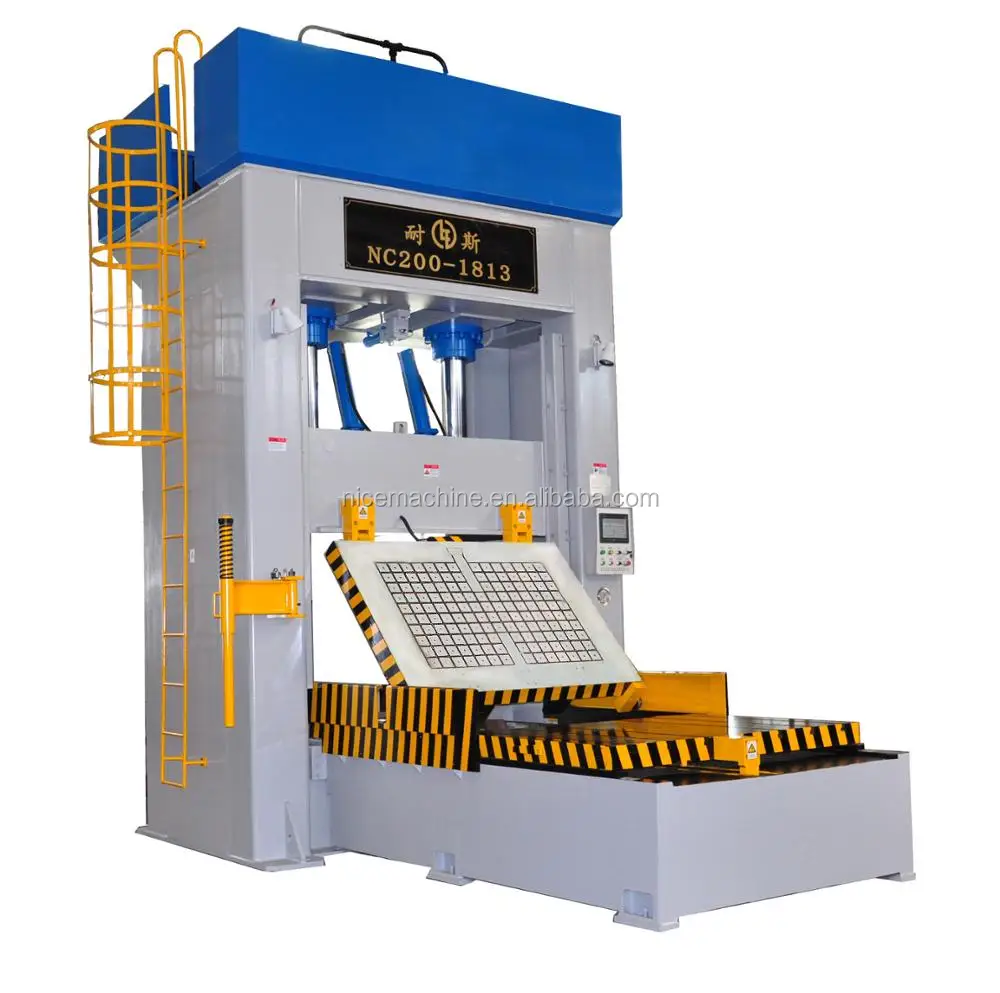

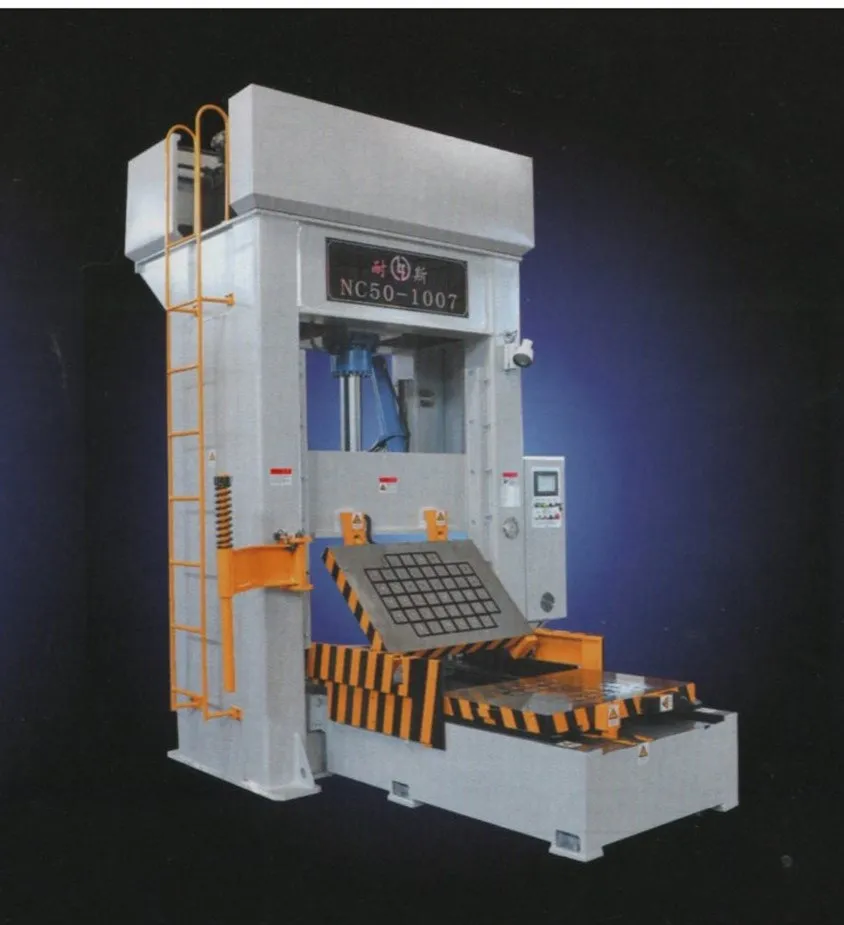

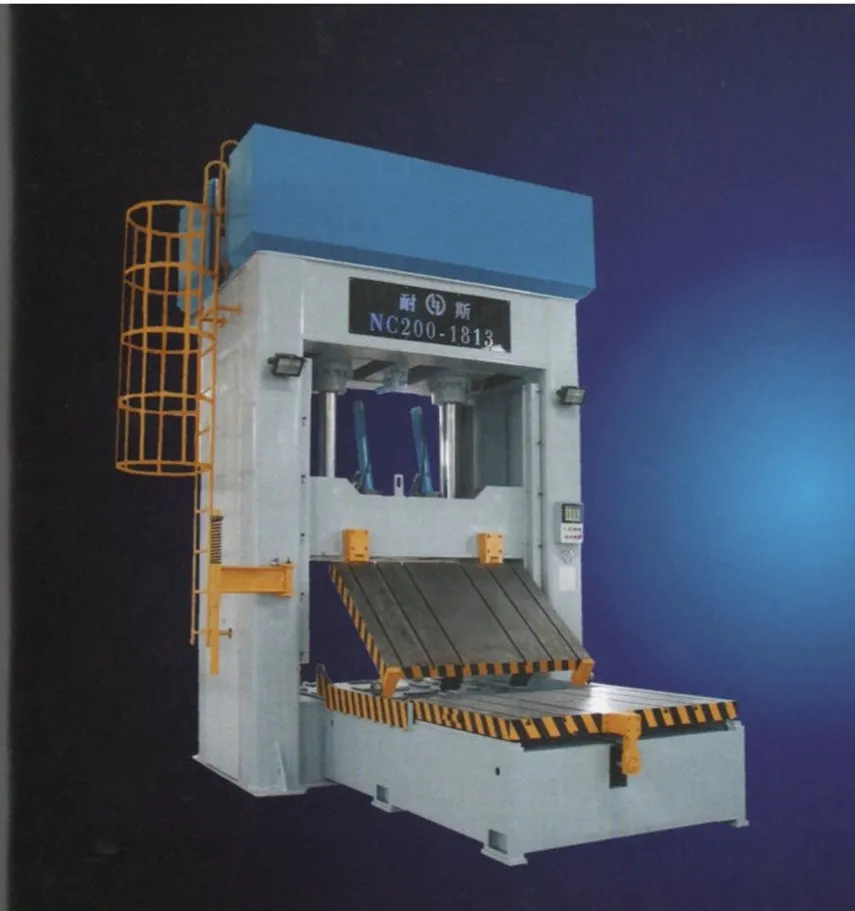

NC series vertical type die spotting machine draws essences of products of the same type at home and abroad, and is the main facility for design and development. This product is mainly utilized for repair and maintenance of various plastic die, hardware casting die and thin-strip tensile forming die. It, boasting convenient, fast and automatic operations, substitutes traditional simple fitting of knocking by copper bar, and greatly promotes efficiency and precision of fitting. NC series vertical type die spotting machine adopts PLC control, human-machine interface operations, proportion pressure adjustment and chooses different pressures according to working requirements.
Features:
1. Small-tonnage type (below 200T) frame adopts welding type frame structure, while large-tonnage type (above 300T) frame adopts welding type and separated frame. Separated parts are connected through Green columns and screws. Frame and sliding table are processed through tempering treatment, to eliminate inner stress and slightly deformation, achieve high rigidity.

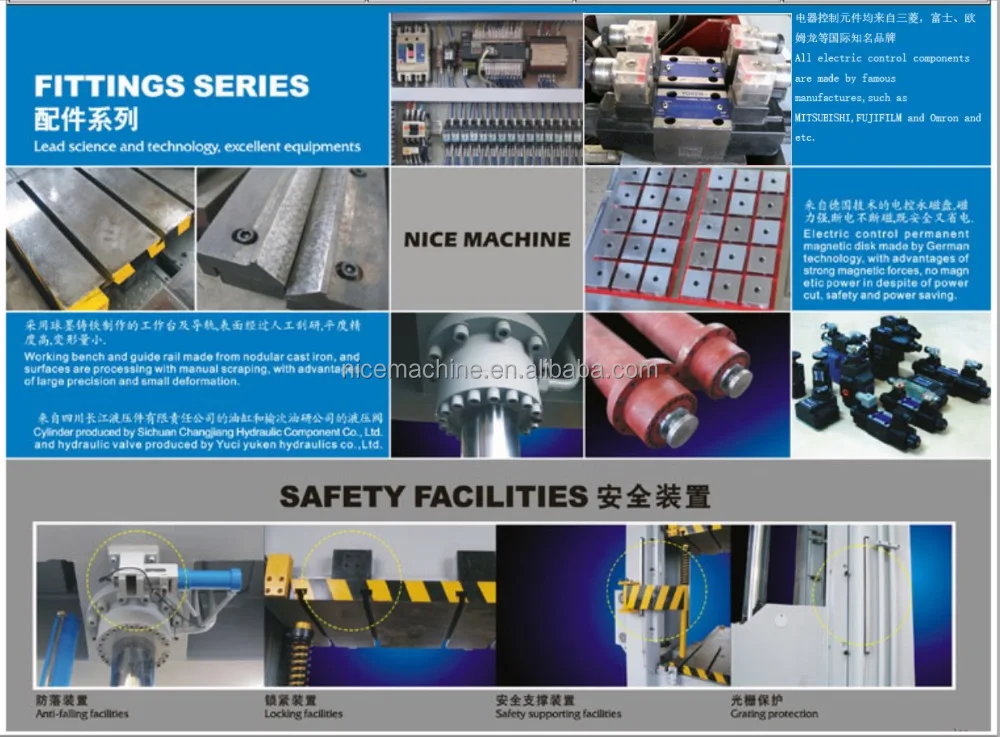

2. Upper and lower working benches and guide rails of pressure-plate die spotting machine are made from nodular cast iron and adopt manual scraping for surface processing, with advantages of sound flatness, high precision and small deformation.
3. Magnetic disk type die spotting machine adopts electric control permanent magnet disk, it's easy to magnetizing and demagnetizing. After completion of magnetizing, the magnetic forces will not be reduced without demagnetizing, with merit of strong magnetic forces, safety and no need to supply power during in use.
4. Complete safety facilities, safety grating, anti-falling oil cylinder, locking cylinder and safety supporting frame and other prevention facilities.
5. Hydraulic system adopts vibration-absorption facilities, to reduce hydraulic impact and ensure precision of facilities.
6. Hydraulic system is equipped with low-pressure protection facilities, to prevent damages caused by collision and insertion.
7. The system can realize impact produced through high speed die spotting, to obtain extremely sound impression effects of red lead.

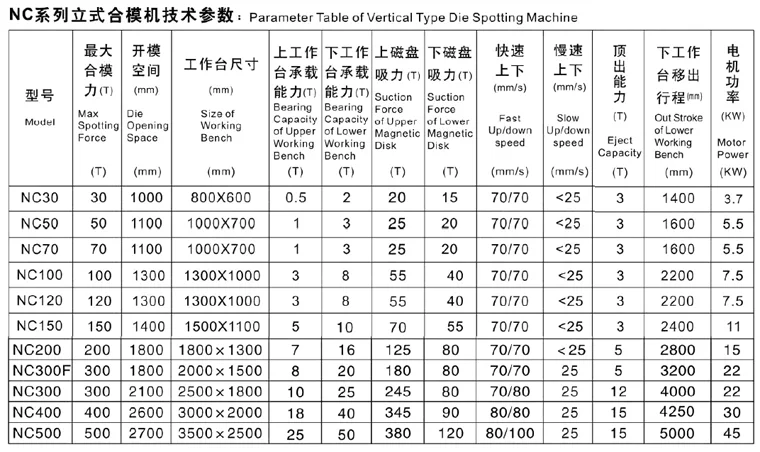

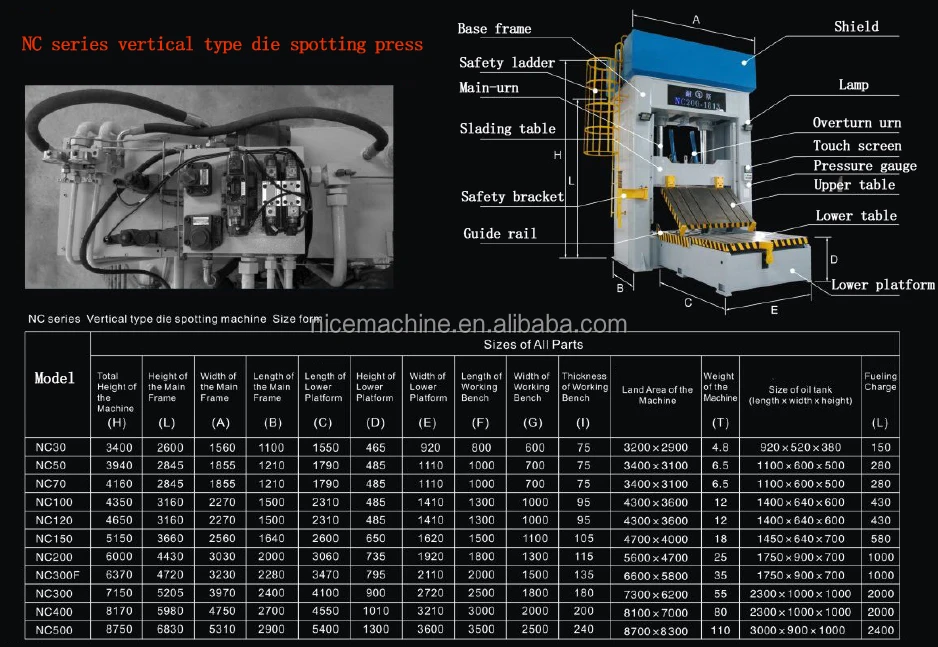

Parameter Table:
