Defrost DC 12 Volt Micro Solenoid Valve for R22 R407C

1. Leakage of small, small volume.

2. Coil: low power consumption,stable performance,good reliability.

3. Open performance is good, maximum working pressure difference is big.

4. Certification: CE, Rohs

\t
Product Name
\t
Solenoid Valve
\t
Material
\t
stainless steel, Copper
\t
Voltage
\t
AC 220-240 V, AC 110-115 V, DC 12 V, DC 24 v etc.,
\t
Takeover OD
\t
6 mm, 6.35 mm, 8 mm, 9.52 mm (1/4in, 3/8in )
\t
Length of cable
\t
customization
\t
Color of cable
\t
Blue, Black
\t
Type
\t
Normally closed
\t
Used
\t
Heat Pump, Air Conditioner, Ice machine, Water Chiller, Refrigeration etc.,

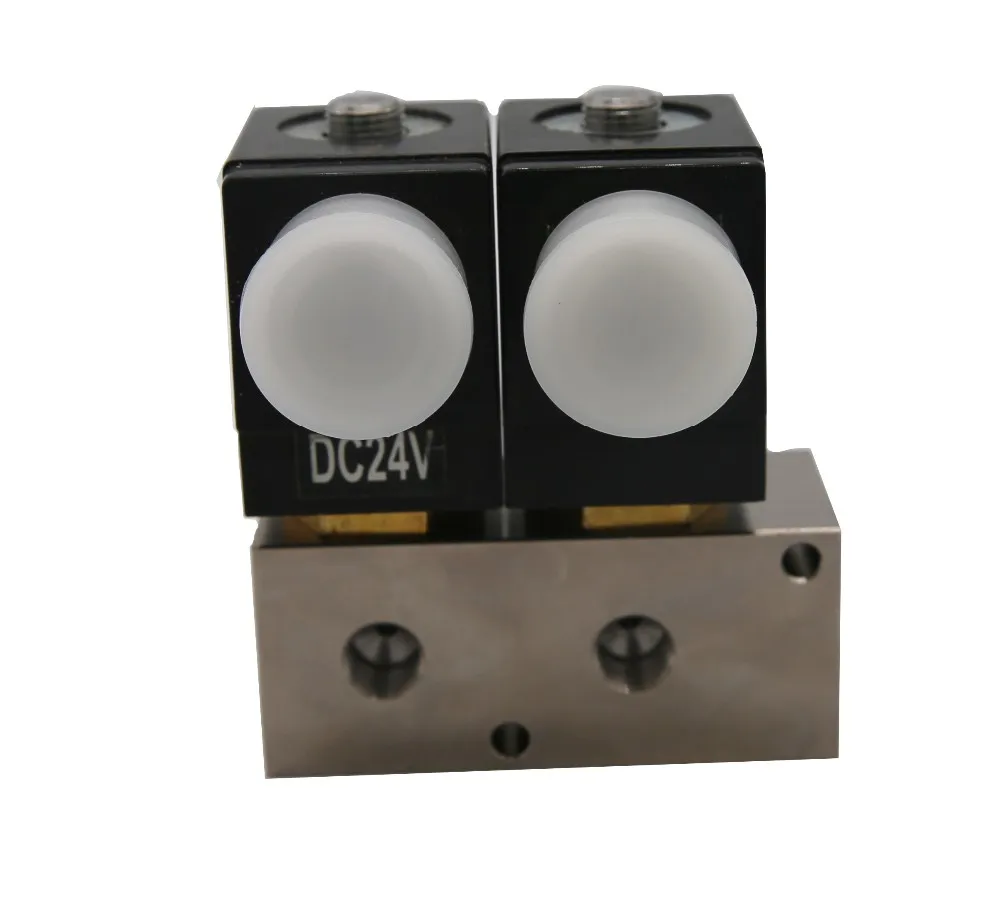

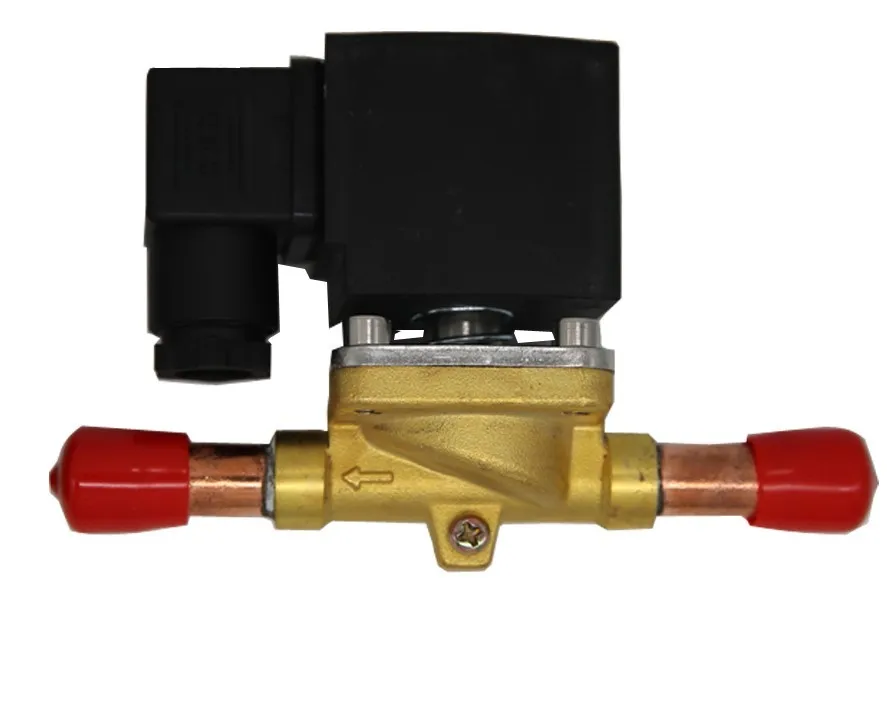

Products Show
Components


It's composed of valve body and electromagnetic coils,
Which control the opening, closing and closing of the valve  by on-off electromagnetic coils.
Technical Parameter
\t
Specification
\t
Movement pattern
\t
Port Size
  (mm)
\t
Kv
(m3/h)
\t
 Internal
 leakage
(ml/min)
\t
Highest
Actions pressure
\t
Lowest
Actions pressure
\t
Takeover OD
       (mm)
\t
FDF-1-2A
\t
Normally closed
\t
  1.9
\t
38
\t
10
\t
3.4
\t
0
\t
6 or 6.35
\t
FDF-1-3A
\t
 3.0
\t
110
\t
10
\t
3.4
\t
0
\t
6 or 6.35
\t
FDF-1-4A
\t
4.0
\t
196
\t
10
\t
3.4
\t
0
\t
6 or 6.35
\t
FDF-1-6A
\t
5.8
\t
367
\t
20
\t
3.4
\t
0
\t
8
\t
FDF-1-8A
\t
8.0
\t
450
\t
50
\t
3.4
\t
0
\t
9.52
\t
Coil
\t
BMC
\t
AC 220-240 V, AC 110-115 V, DC 12 V, DC 24 v etc.,
Frequency: 50/60Hz
Production&Testing
Our Certifications

                      CE

                   RoHS

                        TUV

Related Products

     Refrigeration Solenoid Valve

               Solenoid Valve

               Coffee  Solenoid Valve

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time and MOQ?

A: Generally it is 5-10 days.. MOQ is 20 pcs.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
