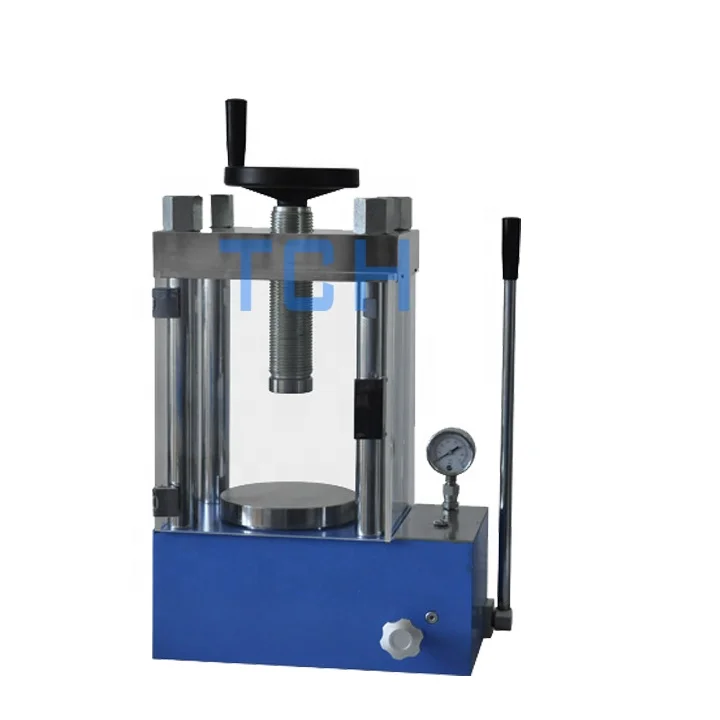

60T Benchtop portable electric hydraulic press machine / Lab Press

This is an electric hydraulic pressing machine with pressure capability up to 60 metric tons for the fast and easy preparation of compound or ceramic samples. It has a built-in DC electric hydraulic pump with precise pressure controller to keep pressure in constant automatically. It is an excellent tool for material / ceramic / chemistry laboratories to make larger pellet samples, and can be used under Ar atmosphere.

Specification of the 60T Benchtop portable electric hydraulic pressing machine / Lab Press

Model	PCD-60S
Pressure range	0-60T(0-33Mpa)
Piston diameter	Φ150mm (d)
Integral structure	No sealing connection, oil leakage reduced
Pressure gauge	Digital display 0.00-40.00MPa
Lifting height of cylinder	50mm (T) Max.
Pressure stability	≤1MPa/10min
Pressurization mode	Electric / manual
Compensation mode	Auto/manual
Workbench diameter	Φ160mm (D)
Number of columns	Four
Working space	185*250mm (M*N)
Dimension	405*470*565mm (W*L*H)
Voltage	220V , 50/60Hz
Weight	140Kg

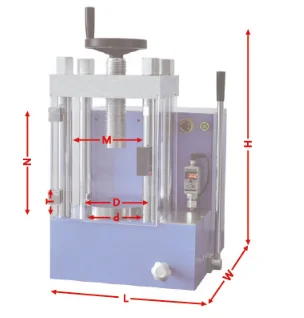

Diagram of hydraulic press size

If you need other pressure range, please contact us for details.

Reference of the 60T Benchtop portable electric hydraulic pressing machine / Lab Press
