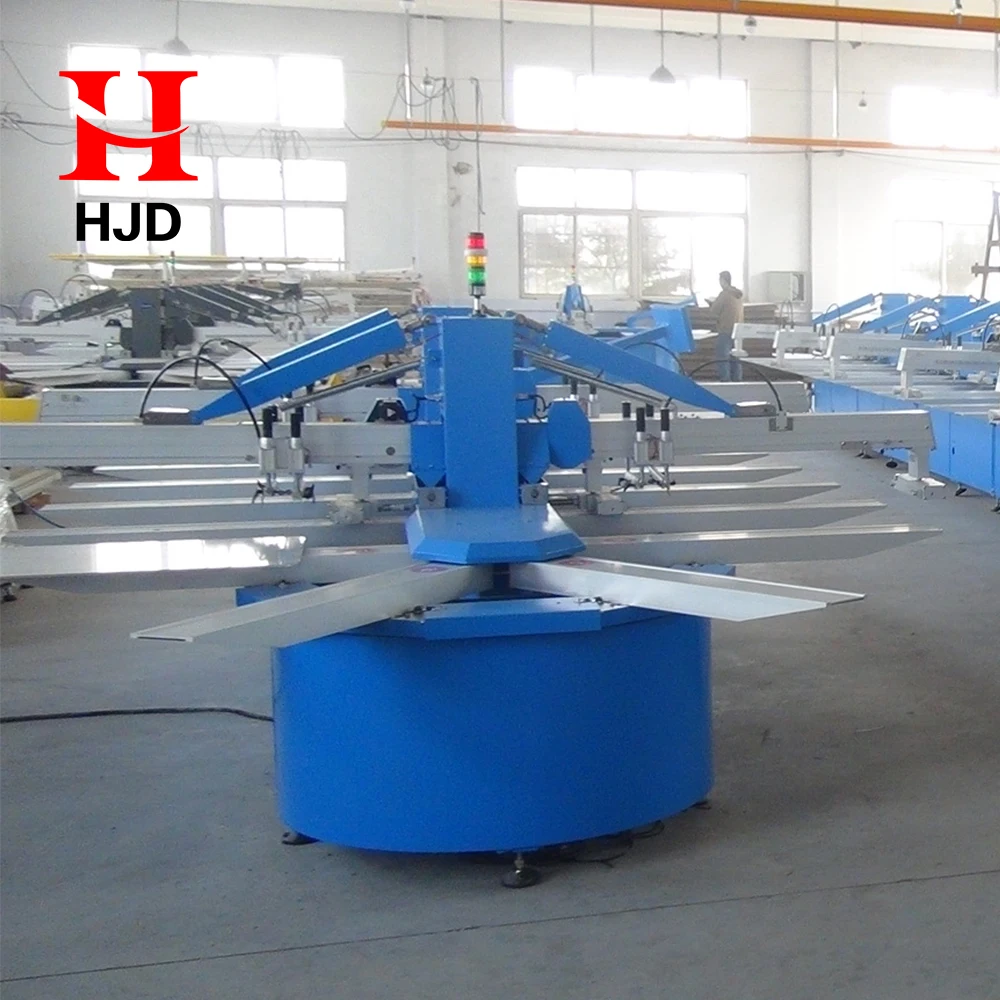

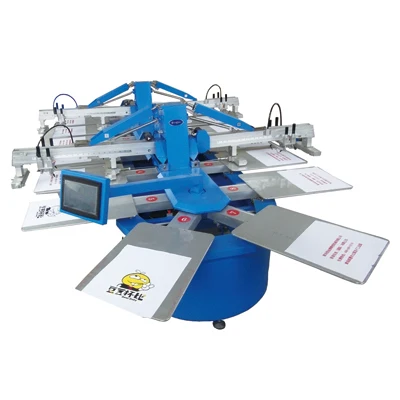

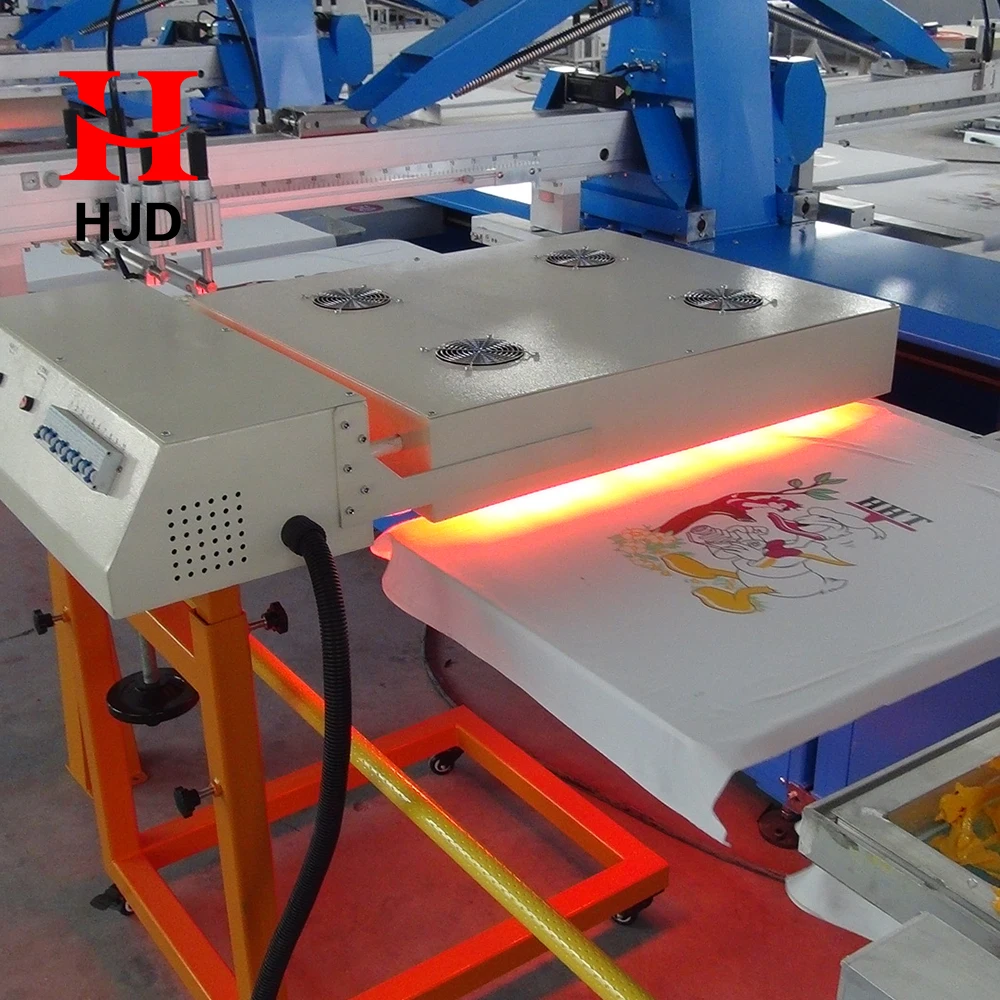

4 Colors Automatic Silk Screen Printing Equipment Rotating Screen Printing Machine For T Shirt
- Category: >>>
- Supplier: Qingdao Henghengtai Printing Equipment Co. Ltd.
Share on (60744889194):
Product Overview
Description
Product Description
4 Colors Automatic Silk Screen Printing Equipment Rotating Screen Printing Machine For T Shirt
2S | 4S | 6S | 8S | 10S | 12S | 14S | 16S | 18S | 20S | |
Plate Quantities (pieces) | 10 | 16 | 22 | 28 | 34 | 40 | 46 | 52 | 58 | 64 |
Printing Number (color) | 2 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 |
Printing Size (cm) | 55*70(platen size 58*85) | |||||||||
Max Frame (cm) | 66*99 | |||||||||

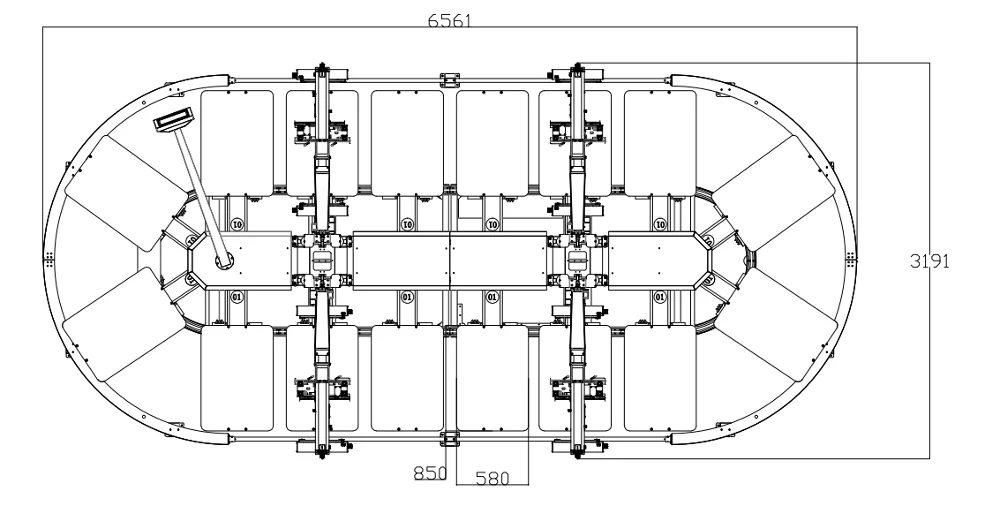

Machine length (cm) | 450 | 682 | 888 | 1094 | 1300 | 1506 | 1712 | 1918 | 2124 | 2330 |
Machine width (cm) | 316 | |||||||||
Machine Height (cm) | 162 | |||||||||
Machine weight (kg) | 1600 | 2200 | 2700 | 3200 | 3700 | 4200 | 4700 | 5200 | 5700 | 6200 |
Air consumption(m3/m) | 0.05 | 0.1 | 0.15 | 0.2 | 0.25 | 0.3 | 0.35 | 0.4 | 0.45 | 0.5 |
Air pressure Specification | 0.6Mpa/0.8Mpa | |||||||||
Print Head Driver | Single printing head servo motor 400W | |||||||||
Total power Consumption (kw) | 1.8 | 2.6 | 3.4 | 4.2 | 5 | 5.8 | 6.6 | 7.4 | 8.2 | 9 |
Power supply parameters | 380V,50HZ,three phase four wires | |||||||||
Capacity | 700 pcs/h | |||||||||

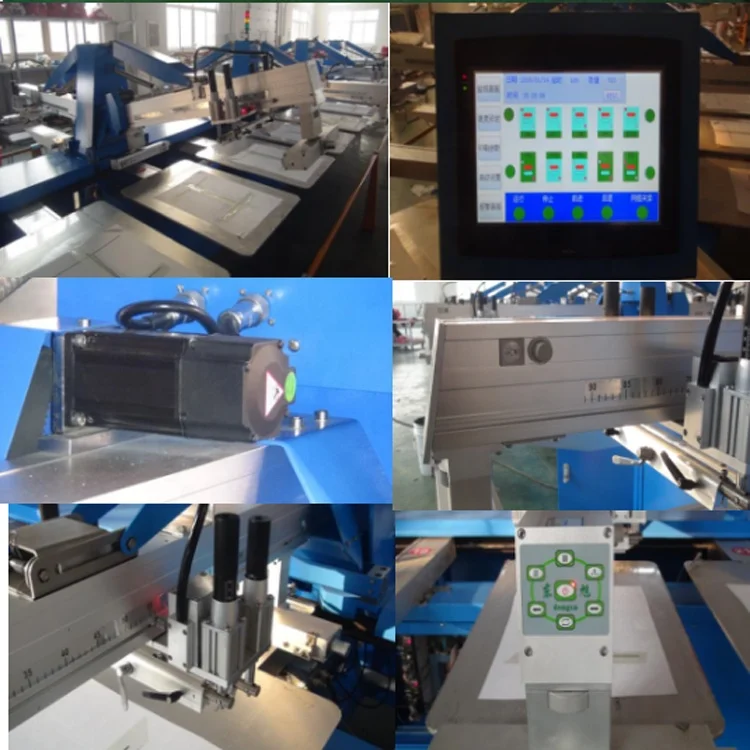

Product Details

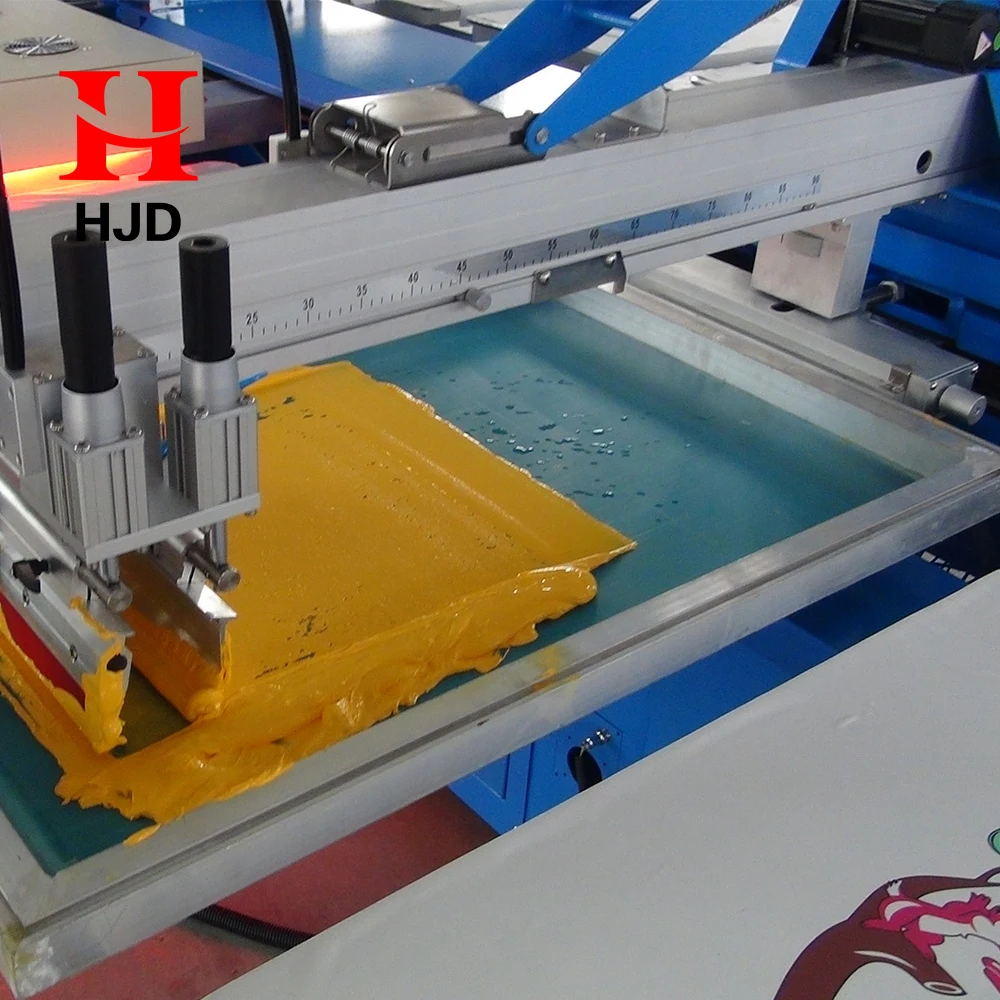

Frame fixation method is special , adopt four point positioning device , clean the frame net and exchange the new mesh quickly . It make sure that the printing precision stable . Cooling station can decrease the condition occurred which blocking the mesh when water slurry printing.

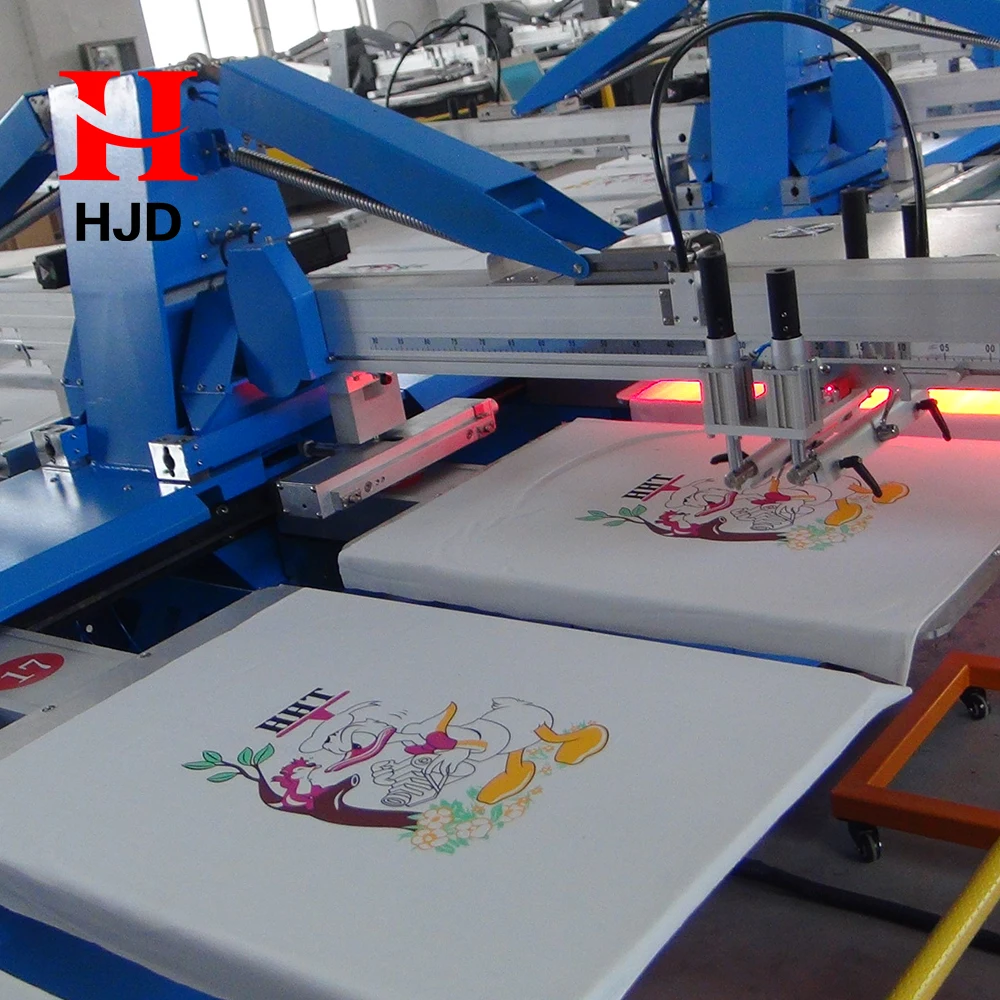

The frame is general application , the previous application to machine or manual screen frame both can be no limited and it can be used to oval automatic screen printing machine. There is no limit for large cutting piece printing and printing the t shirt finished .
