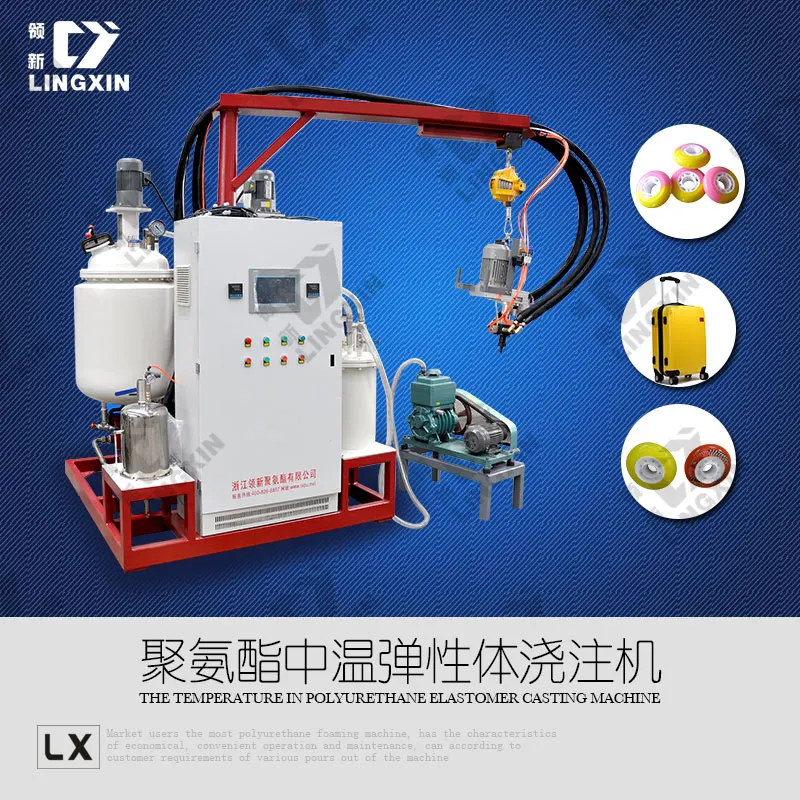

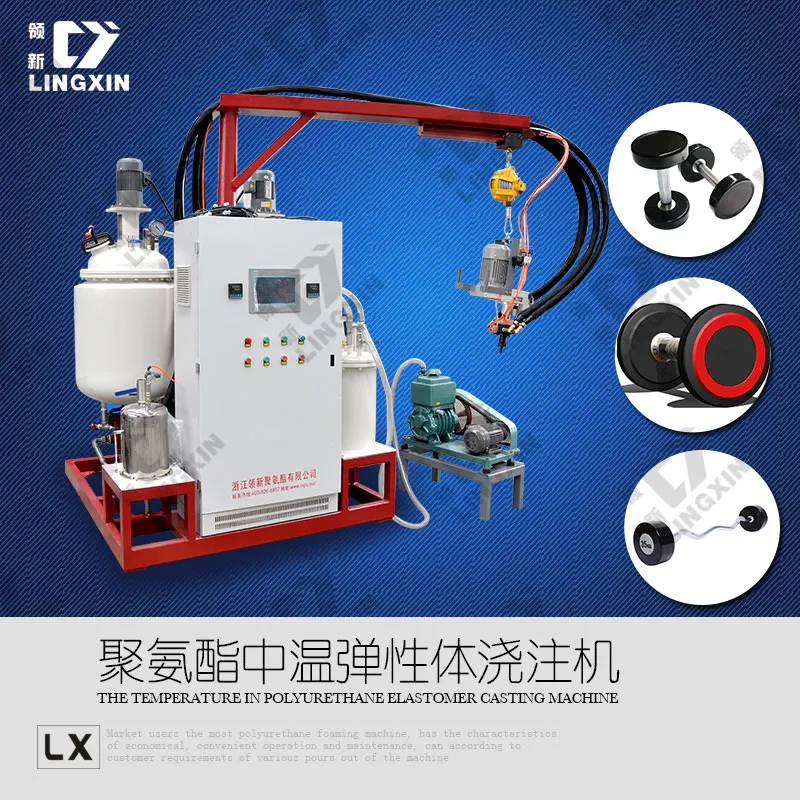

Automatic hot sale new design PU wheel casting machine /PU wheel making machine /polyurethane wheel making machine

Product Overview

Description

Application:

For the production of MDI type middle and low temperature elastomer items, such as shoe, wheel, dumbbell, suitcase wheel, gel and so on.



Equipment Features:

High temperature resistant low speed high precision metering pump, accurate measurement, random error within±0.5%;

Material output adjusted by frequency converter with frequency conversion motor, high pressure and precision, simple and rapid ratio control.

High performance mix device, accurate material output synchronization, even mix; New type mechanical seal structure avoids reflux problem.



High-efficiency vacuum device with special mixing head ensures no bubble in products.

Metering pump and material pipe equipped with heating device, automatic constant temperature adjusting, efficient and energy saving; Multi-point temp. control system ensures stable temperature, random error <±2℃.

Adopting plc and touch screen man-machine interface to control casting, automatic cleaning and air purge, stable performance, high operability, which can automatically distinguish, diagnose and alarm abnormal situation as well as display abnormal factor;



Technical Parameters:

Application	casting PU ealstomer
Output	1.8-7.2kg/min; 3.6-18kg/min; 7.2-31kg/min; 15-50kg/min
Material bucket volume	30L-500L
Power	15-35KW
Injection Pressure	0.01-0.1Mpa
Injection time	0.5~99.99S (correct to 0.01S)
Mixing head	Around 6000rpm, forced dynamic mixing
Compressed air requirement	Dry, oil free P:0.6-0.8MPa Q:600L/min(Customer-owned)
Vacuum pump	2X-8;2X-15 speed of exhaust: 8L/S;15L/S
Input power	Three-phrase five-wire,380V 50HZ
Temperature control system	25~35KW
Color (selectable)	White/Blue/Red
Weight	1500kg



Our Company:

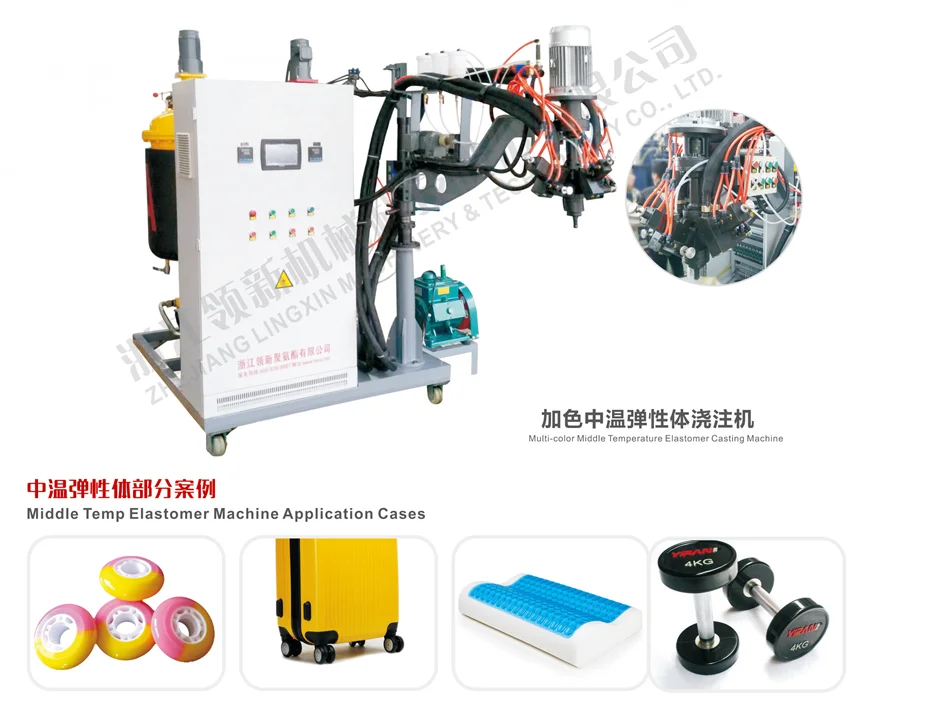

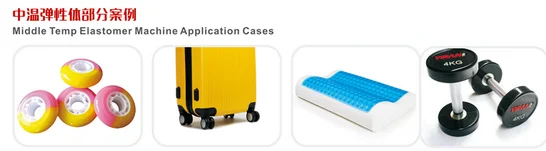

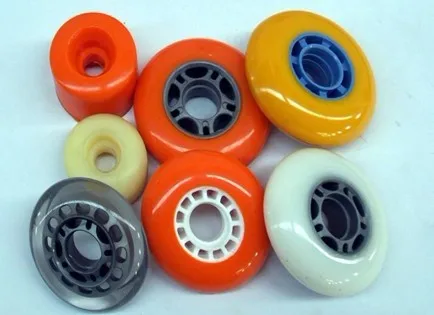

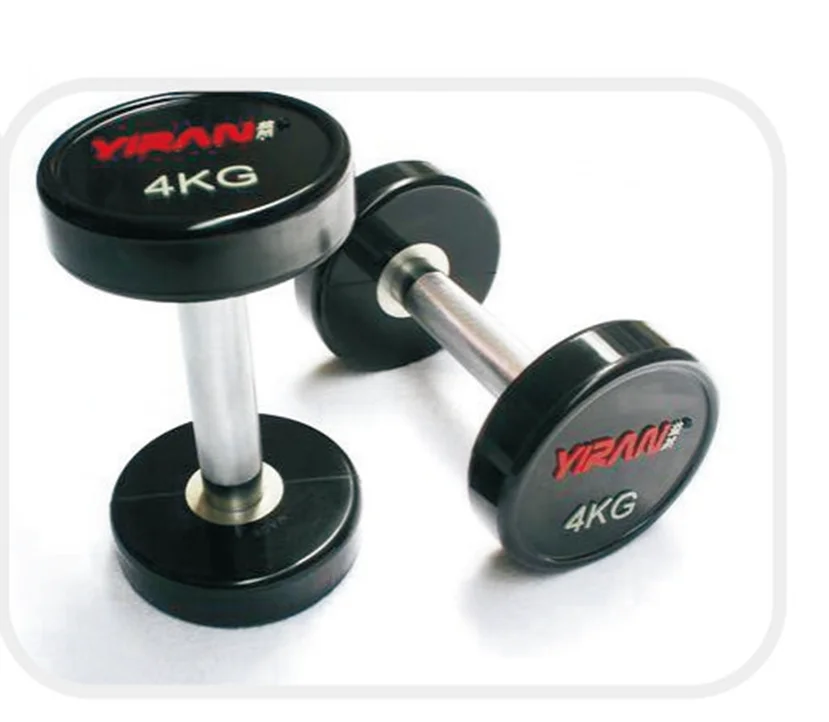

Part of PU Products can be made by our machines:

Welcome to contact with us /send inquiry for more details of machines. We will reply you ASAP. Thanks.
