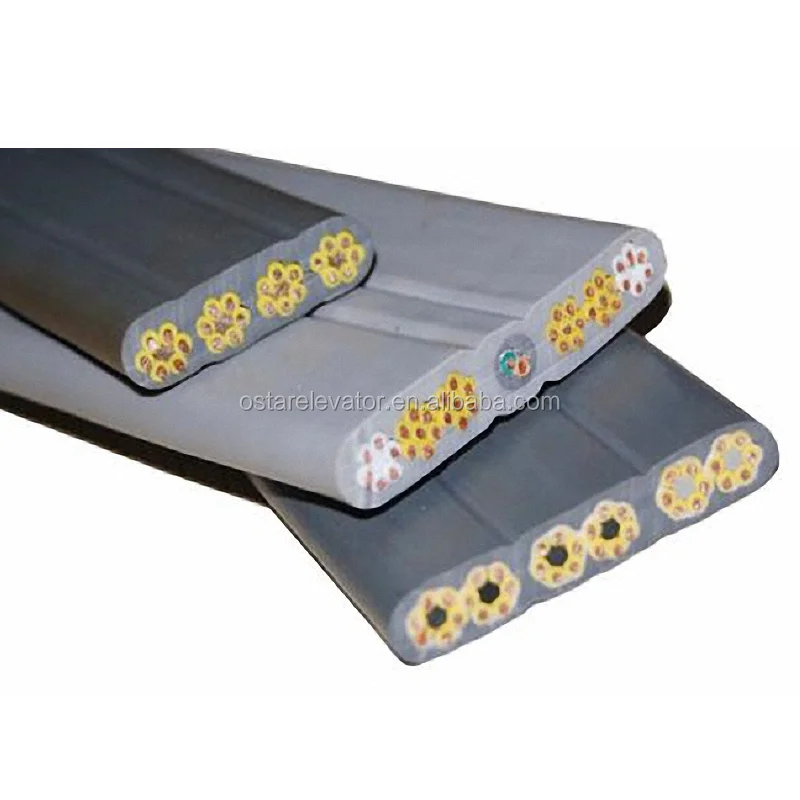

24*0.75, 36*0.75 TVVB Flat Cable Elevator Travel Cable
- Category: >>>
- Supplier: Suzhou Ostar Elevator Co. Ltd. [Jiangsu China]Suzhou
Share on (60744963059):
Product Overview
Description
24*0.75, 36*0.75 TVVB Flat Cable Elevator Travel Cable
Product Description
TVVB type
Feature:
1. PVC isolation, PVC sheath
2. Rated voltage: 300/500VAC, 450/750VAC
3. Rated Temperature: 70ºC
| Cores | Cores*Section (m2) | Structure of Core | Maximum Overall Size (mm) |
| 12 | 12*0.75 | 12*24/0.20 | 32.55*5.0 |
| 24 | 24*0.75 | 24*24/0.20 | 35.0*10.0 |
| 24 | 24*1 | 24*32/0.20 | 36.5*10.0 |
| 36 | 36*0.75 | 36*24/0.20 | 45.0*9.5 |
| 40 | 40*0.75 | 40*24/0.20 | 50.0*9.0 |
| 48 | 48*0.75 | 48*24/0.20 | 56.0*9.5 |
TVVBG type
Feature:
1. PVC isolation, PVC sheath
2. Rated voltage: 300/500VAC, 450/750VAC
3. Rated Temperature: 70ºC
4. With steel rope
| Cores | Cores*Section (m2) | Structure of Core | Maximum Overall Size (mm) |
| 24 | 24*0.75 | 24*24/0.20 | 48.0*10.0 |
| 36 | 36*0.75 | 36*24/0.20 | 57.0*9.5 |
| 40 | 40*0.75 | 40*24/0.20 | 56.0*9.5 |
| 48 | 48*0.75 | 48*24/0.20 | 70.0*9.5 |
TVVBP type
Feature:
1. PVC isolation, PVC sheath
2. Rated voltage: 300/500VAC, 450/750VAC
3. Rated Temperature: 70ºC
4. With shielded communication cable
| Cores | Cores*Section (m2) | Structure of Core | Maximum Overall Size (mm) |
| 40 | 36*0.75+2*(2*0.75)P | 36*24/0.20+2*(2*24/0.20) | 56.0*9.5 |
| 52 | 48*0.75+2*(2*0.75)P | 48*24/0.20+2*(2*24/0.20) | 68.0*9.5 |
TVVBPG type
Feature:
1. PVC isolation, PVC sheath
2. Rated voltage: 300/500VAC, 450/750VAC
3. Rated Temperature: 70ºC
4. With shielded communication cable and steel rope
| Cores | Cores*Section (m2) | Structure of Core | Maximum Overall Size (mm) |
| 40 | 36*0.75+2*(2*0.75)P | 30*24/0.20+2*(2*24/0.20) | 68.0*9.5 |
| 52 | 48*0.75+2*(2*0.75)P | 30*24/0.20+2*(2*24/0.20) | 80.0*9.5 |
