Product Overview

Description


Product Description



 Grandstream Gateway and ATAs

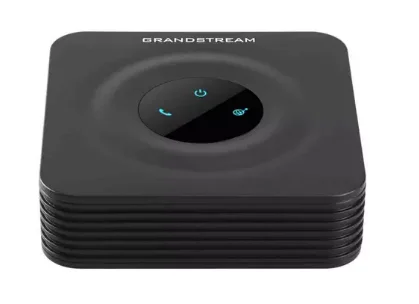

HT801

Designed for users looking to connect their analog devices to a VoIP network, in either a home or office. The HT801 is a powerful analog telephone adapter that is easily deployable and manageable. It comes equipped with 1 FXS ports to create a high-quality network solution.

The HT801 delivers powerful VoIP technology and routing capabilities to home and office environments, and allows users to successfully connect their analog devices to a manageable and powerful VoIP network. Built upon Grandstream’s market-leading SIP ATA/gateway technology, with millions of units successfully deployed worldwide, this powerful ATA features exceptional voice quality in various applications and environments. The HT801 comes with 1 easy-to-use FXS ports, state-of-the-art encryption with a unique security certificate per unit, automated provisioning for volume deployment and device management and outstanding network performance.

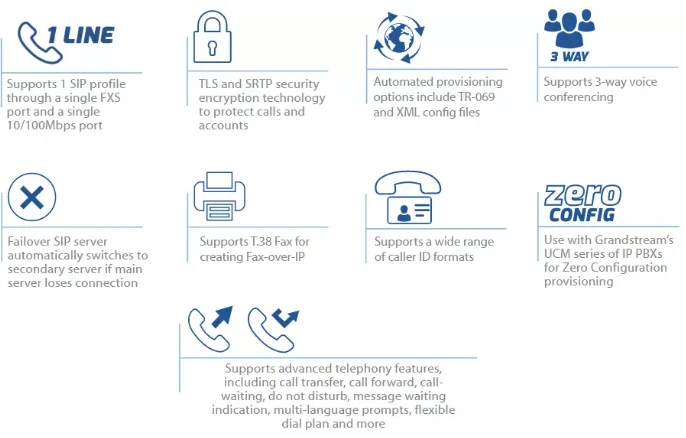

Features



  • Supports 1 SIP profile through a single FXS port and a single 10/100Mbps port
  • TLS and SRTP security encryption technology to protect calls and accounts
  • Automated provisioning options include TR-069 and XML config files
  • Supports 3-way voice conferencing
  • Failover SIP server automatically switches to secondary server if main server loses connection
  • Supports T.38 Fax for creating Fax-over-IP
  • Supports a wide range of caller ID formats
  • Use with Grandstream’s UCM series of IP PBXs for Zero Configuration provisioning
  • Supports advanced telephony features, including call transfer, call forward, call-waiting, do not disturb, message waiting indication, multilanguage prompts, flexible dial plan and more
Specification



Telephone InterfacesOne (1) FXS port
Network InterfaceOne (1) 10/100Mbps auto-sensing ethernet port (RJ45)
LED IndicatorsPOWER, INTERNET, PHONE
Factory Reset ButtonYes
Voice, Fax, Modem
Telephony FeaturesCaller ID display or block, call waiting, flash, blind or attended transfer, forward, hold, do not disturb, 3-way conference
Voice CodecsG.711 with Annex I (PLC) and Annex II (VAD/CNG), G.723.1, G.729A/B, G.726, iLBC, OPUS, dynamic jitter buffer, advanced line echo cancellation
Fax over IPT.38 compliant Group 3 Fax Relay up to 14.4kpbs and auto-switch to G.711 for Fax Pass-through
Short/Long Haul Ring Load5 REN: Up to 1km on 24 AWG
Caller IDBellcore Type 1 & 2, ETSI, BT, NTT, and DTMF-based CID
Disconnect MethodsBusy Tone, Polarity Reversal/Wink, Loop Current
Signaling
Network ProtocolsTCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP, ICMP, DNS, DHCP, NTP, TFTP, SSH, STUN, SIP (RFC3261), SIP over TCP/TLS, SRTP, TR-069
QoSLayer 2 (802.1Q VLAN, SIP/RTP 802.1p) and Layer 3 (ToS, Diffserv, MPLS)
DTMF MethodIn-audio, RFC2833 and/or SIP INFO
Provisioning and ControlHTTP, HTTPS, SSH, TFTP, TR-069 , secure and automated provisioning using AES encryption, syslog
Security
MediaSRTP
ControlTLS/SIPS/HTTPS
ManagementSyslog support, SSH, remote management using web browser
Physical
Universal Power SupplyInput: 100-240VAC, 50-60Hz Output:  12V/1.0A
Operational 32o – 104oF or 0º – 40ºC
Environmental Storage14o – 140oF or -10º – 60ºC

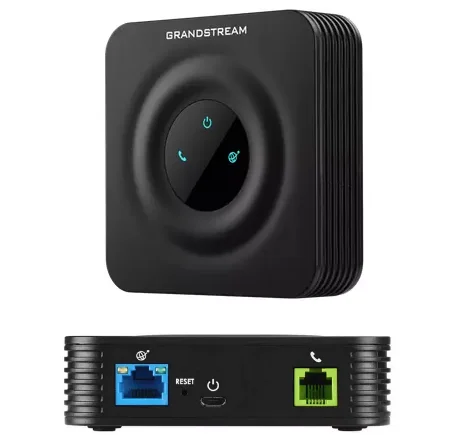

Image show
