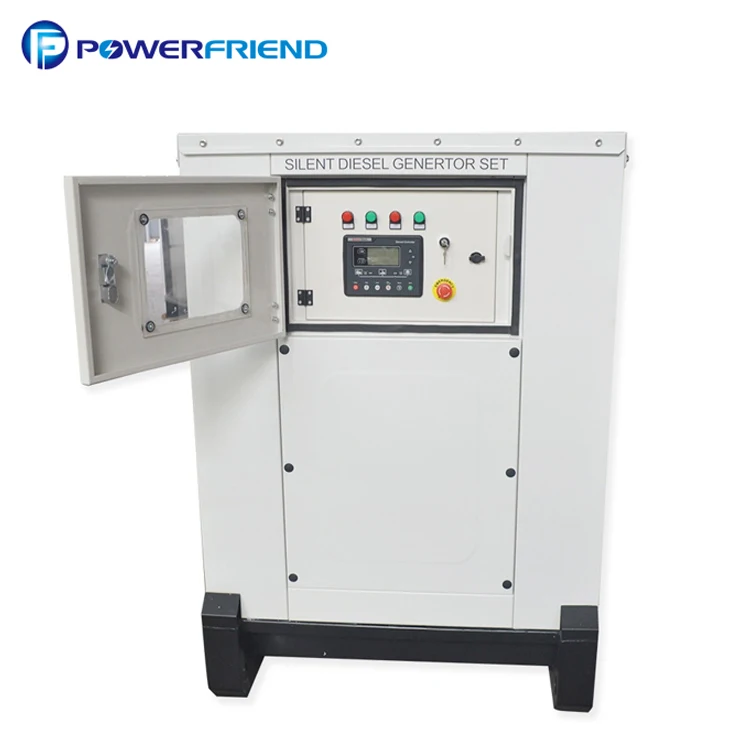

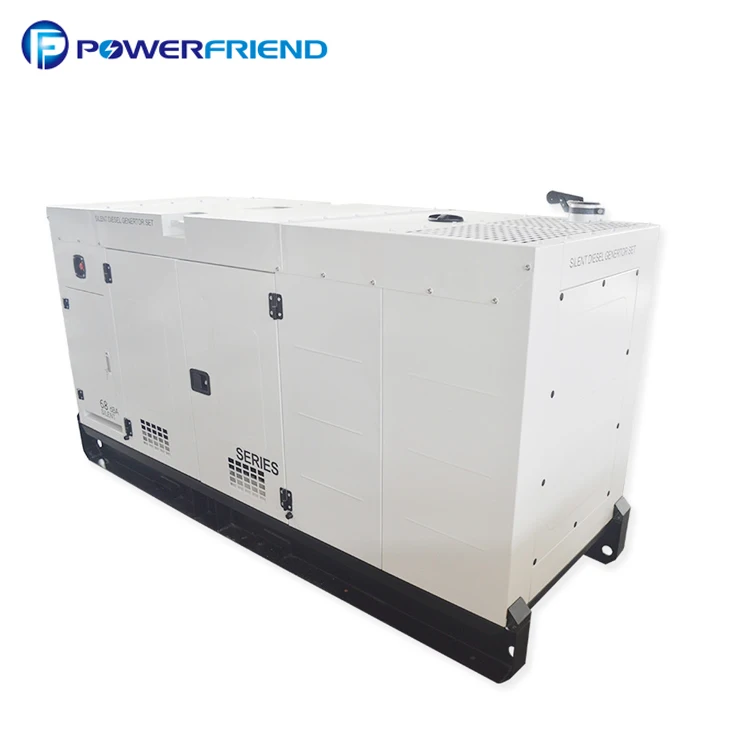

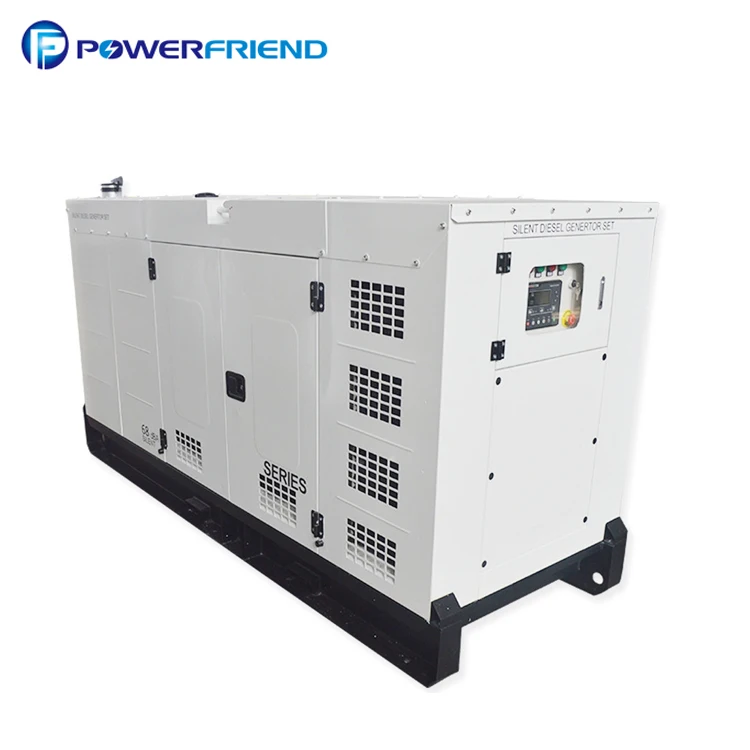

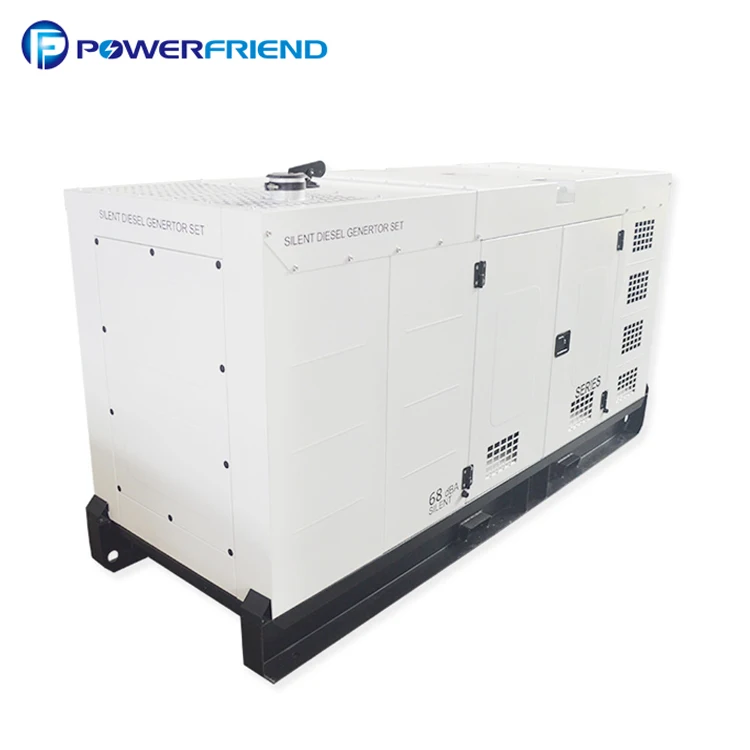

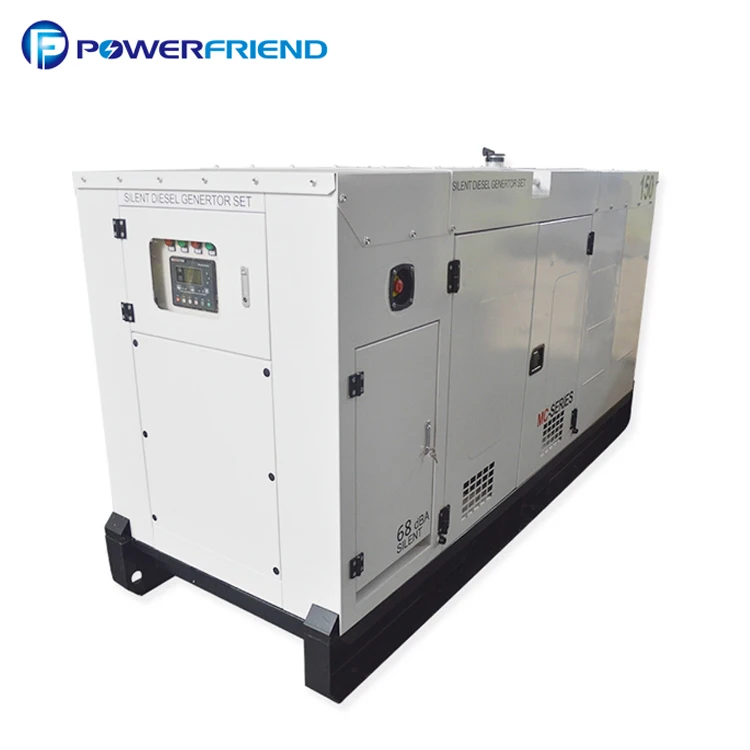

CA6DF2 19D engine genset 100 kw 125 kva diesel generator price
- Category: >>>
- Supplier: Jiangsu United Power Friend Technology Co. Ltd.
Share on (60745014808):
Product Overview
Description
CA6DF2-19D engine genset 100 kw 125 kva diesel generator price
Product Description
| 1. SPECIFICATIONS OF GEN-SET | ||
| 1.1 | Set Model | PF-FW138 |
| 1.2 | Prime at 50HZ, 40℃ ambient | 100KW 125KVA |
| 1.3 | Standby at 50HZ, 40℃ ambient | 110KW 138KVA |
| 1.4 | Rated Gen-set output | 230/400V 50Hz |
| 1.5 | Rated Relative humidity | ≤ 60 % |
| 1.6 | Dimension (L×W×H) | Open: 2600*1000*1600, Silent: 3400*1400*1900 |
| 1.7 | Weight | Open: 1600kg, Silent: 2200kg |
| 1.8 | Fuel consumption 100% prime load | 24L/hr |
| 1.9 | Structure of Gen-set | The Gen-set adopt integrative structure, engine is fix on high strength steel basic frame, anti vibration instrument between the engine and basic frame, cooling fan have protecting cap, control cabinet and circuit breaker installed on Gen-set. |
| 1.10 | Control system (Optional) | Basic control panel or Advanced control panel with automatically start-up function and other function. |
| 2. SPECIFICATIONS OF ENGINE | ||
| 2.1 | Engine Brand | FAWDE |
| 2.2 | Engine Model | CA6DF2-19D |
| 2.3 | Governor/Class | Electronic |
| 2.4 | Cylinder NO. | 6 |
| 2.5 | Engine build | Line |
| 2.6 | Emission compliant | Stage II |
| 2.7 | start-up method | 24V, electric |
| 2.8 | Air intake type | Turbocharged |
| 2.9 | Cooling mode | Radiator cooled (enclose water) |
| 2.10 | Bore and stroke | 110×125 mm |
| 2.11 | Compression ratio | 17:01 |
| 2.12 | Displacement | 7.13 |
| 2.13 | Engine Prime Power at 1500rpm | 125KWm |
| 2.14 | Engine Standby Power at 1500rpm | 138KWm |
| 2.15 | Lubrication oil capacity | 24L/hr |
| 2.16 | Oil consumption | 0.08 |
| 2.17 | Dry weight of base | 680Kg |
| 2.18 | Dry weight of Gen Pac | 880Kg |
| 2.19 | Overall dimension(G.P) | 1655×805×1310(mm) |
| 2.20 | Overall dimension(base) | 1320x680x1100(mm) |
| 2.21 | 27℃ air consumption ( m³/ min) | 9 |
| 2.22 | Fuel type | #0 Diesel (Natural temperature) |
| 2.23 | Filter system | Adopt whole changeable lubricating oil, fuel filter and air filter |
| 2.24 | Exhaust system | Adopt industrial high efficiency muffler and ripple pipe |
| 3. SPECIFICATIONS OF ALTERNATOR | ||
| 3.1 | Alternator Model | Stamford/UCI274E |
| 3.2 | Alternator Type | A.C. Synchronous |
| 3.3 | Rated Voltage | 230/400V |
| 3.4 | Rated Frequency | 50HZ |
| 3.5 | Rated speed | 1500 RPM |
| 3.6 | Voltage regulation mode | Auto |
| 3.7 | Alternator voltage regulation | ±0.5% |
| 3.8 | Exciting mode | Brushless self exciting |
| 3.9 | Power factor | 0.8 (lagging) |
| 3.10 | Phase & wires | 3 phase 12 wires |
| 3.11 | Rated currency | 202.1A |
| 3.12 | Efficiency | 0.917 |
| 3.13 | Insulation class | H |
| 3.14 | Protection class | IP23 |
| 3.15 | Single load step to NFPA110 | 100% |
| 3.16 | Standards | IEC34-1 |
| 3.17 | Max. Ambient Temperature | 40℃ |
| 3.18 | Min. Ambient Temperature | - 20℃ |
| 3.19 | Max. altitude | 1000m |
| 3.20 | Weight | 455kg |
| Please Click Here to Contact Us for More Info. | ||
Control Panel
| Protection | ||
|---|---|---|
|
|
|
| Optional Function | ||
|
|
|
Production Flow
Digital Punching & cutting | Powder Painting | Genset Assembling | Wiring |
|---|---|---|---|
| Shipping | Packing | Tidy & Clean | Test |
| Quality Inspection Process |
|---|
|
|
|
Clean the genset, and packed, then transport |
ATS
Features of ATS
|
Features of Paralleling System
|
Company Information
| About Our Company | |
|---|---|
JIANGSU UNITED POWER FRIEND TECHNOLOGY CO., LTD is focus on power generator products and service in China.
Being in the power generation field for more than 10 years, we have very good connection with G-Drive Engines and brand alternators. We are not only assembling the generator set, but alsogiving you the best solution to meet your special needs on projects and your clients. We supply Generator Sets from 2kva to 3000kva.
Our Goal: Satisfying customers by our good quality and strict business management; Increasing the occupancy of the market and competitive strength; further expanding the global market.
We are your faithful power friend!
| |
| Our Workshop |
| Major projects at home and abroad |
| OEM Partners |
| Certificate |
| Trade shows |
Our company has participated in several exhibitions, such as Canton Fair(Guangzhou) and many foreign trade shows.
| Packaging & Shipping |
Delivery Time: 30 days after deposit, By Sea
Package: nude packing or plywooden case
Contact Us
If you have any questions, please contact us and we will reply as soon as possible.
PowerFriend Website: www.powergeneratingsets.com
Follow us on
Facebook: https://www.facebook.com/UnitedPowerFriend
LinkedIn: https://www.linkedin.com/company/powerfriend
Contact us for fast reply:
Skype: zou751
WhatsApp/WeChat: +8613720828359
FAQ
Q1: What is your warranty period?
A1: Our warranty period is 1 year or 1000 running hous, whichever comes first(Excep the damageable spare parts of genset caused by incorrect man-made operation).
Q2: Does your generator have global warranty?
A2: Yes. Global warranty service is available depending on the engines and alternators you choose. Please contact us for more details.
Q3: What is your payment terms?
A3: T/T 30% advance payment, the balance 70% shall be paid before shipment.
L/C Irrevocable L/C at sight.
Q4: What is your delivery time?
A4: Our standard delivery time is 20 to 30 days. If you have urgent demand, the delivery will be shorter depending on the requirements. If you have special requirements, the delivery will be longer.
Q5: Can the generators be customized?
A5: Yes. Our generators can be customized depending on customer's detailed requirements. We can supply generators for rental business, home use, inudstrial projects, army projects, power station, etc. The generators we supply is suitable for indoor and outdoor use, lower and high temperature environment.
Q6: Can you use our logo?
A6: Yes. For mass orders, we can use customer's logo instead of ours.
Our hot products
Here are the explosives of our company. If you need it, you can click to view more.

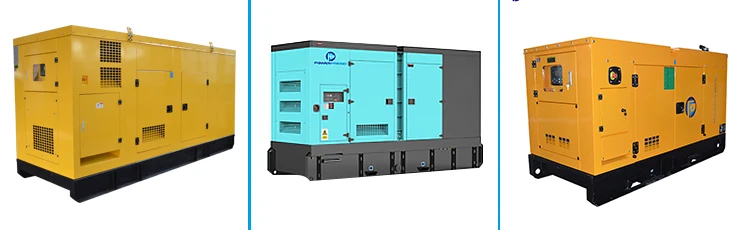

| 25kva 40kva 100kva 125kva 250kva 300kva 400kva power low rpm electric super silent diesel generator | Soundproof 50 kw 100kw 250kw 150kva 500 kva water cooled silent diesel generator set | Soundproof Japan Denyo genset 25kva 20kw diesel generator price for sale |
