New Products 2021 Ti BLE 4.0/5.0 Cc2541 Configurable Beacon With Humidity And Temperature Sensor

Product Overview

Description

New Products 2021 Ti BLE 4.0/5.0 Cc2541 Configurable Beacon With Humidity And Temperature Sensor



Description:

The CC2541 beacon module is a portable Beacon tag with ultra low power chip set CC2541 and leverage BLE 4.0 technology. It has a portable white case, accurate hardware and robust firmware. It is designed for the commercial advertising and indoor location-based service.
CC2541 beacon module outputs 2.4GHz radio signals at regular and adjustable intervals when it is power on. It can be detected and interpreted by iOS and Android BLE devices that are equipped with many mobile apps.

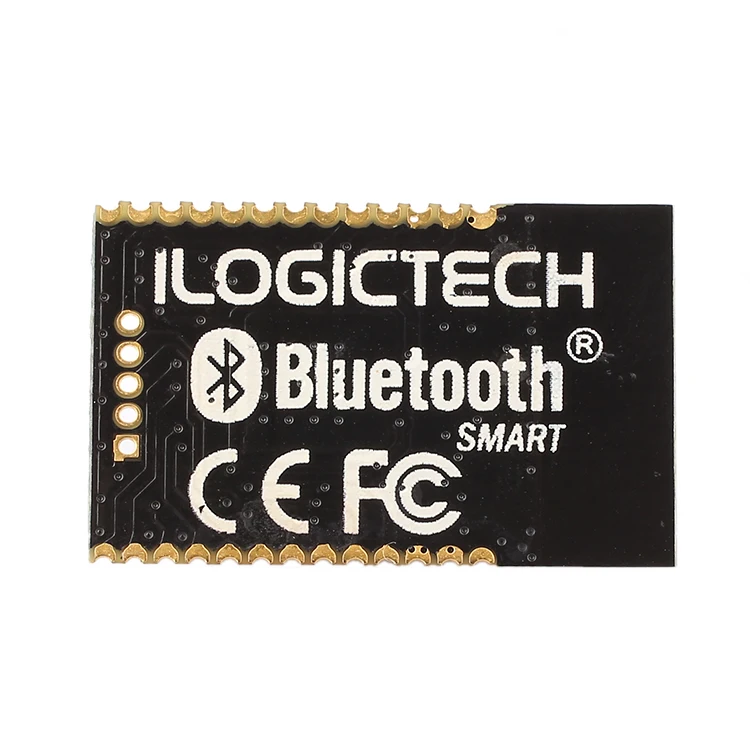

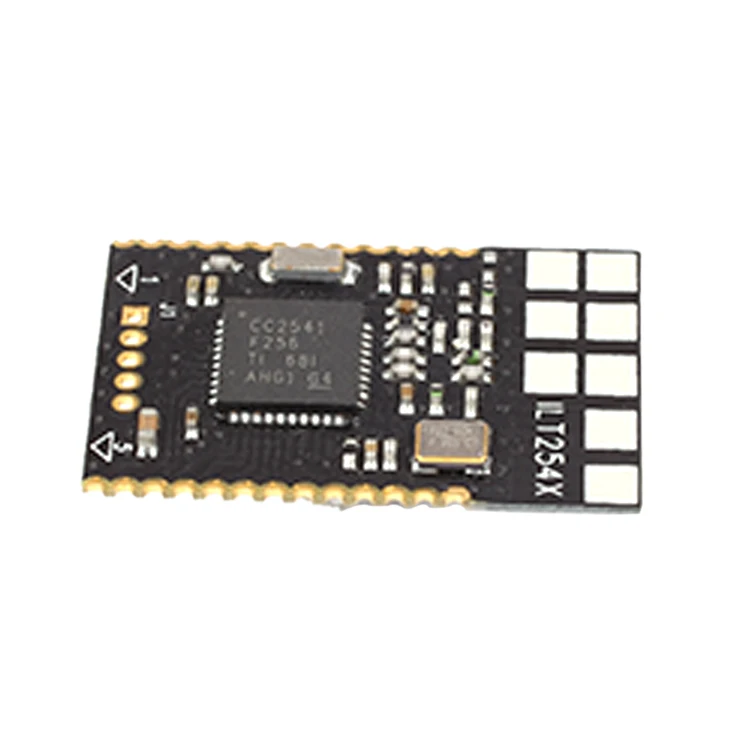

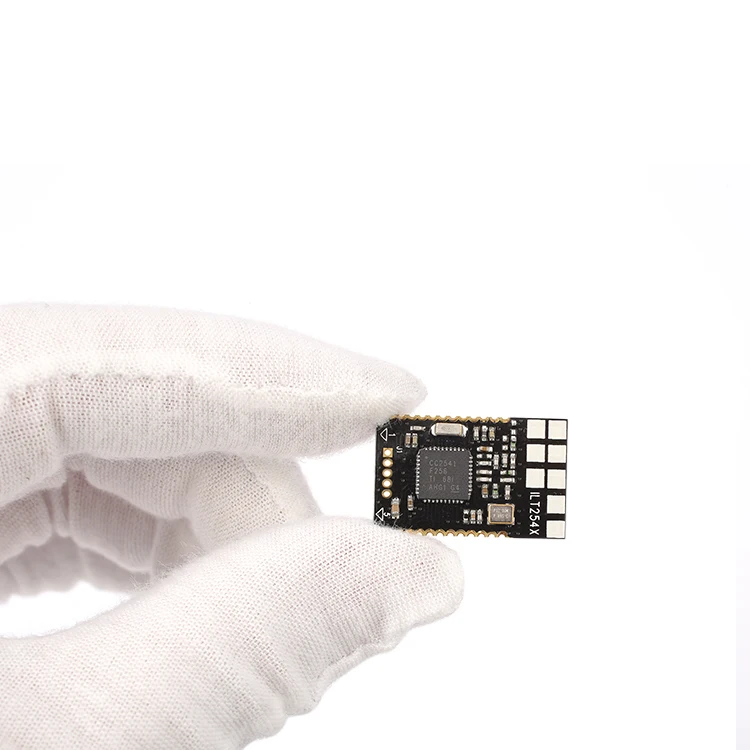

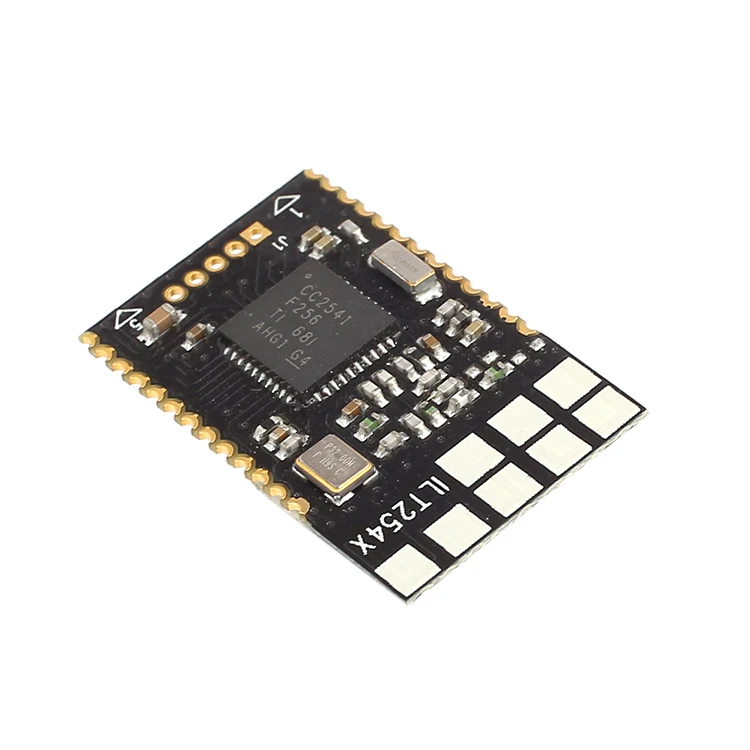

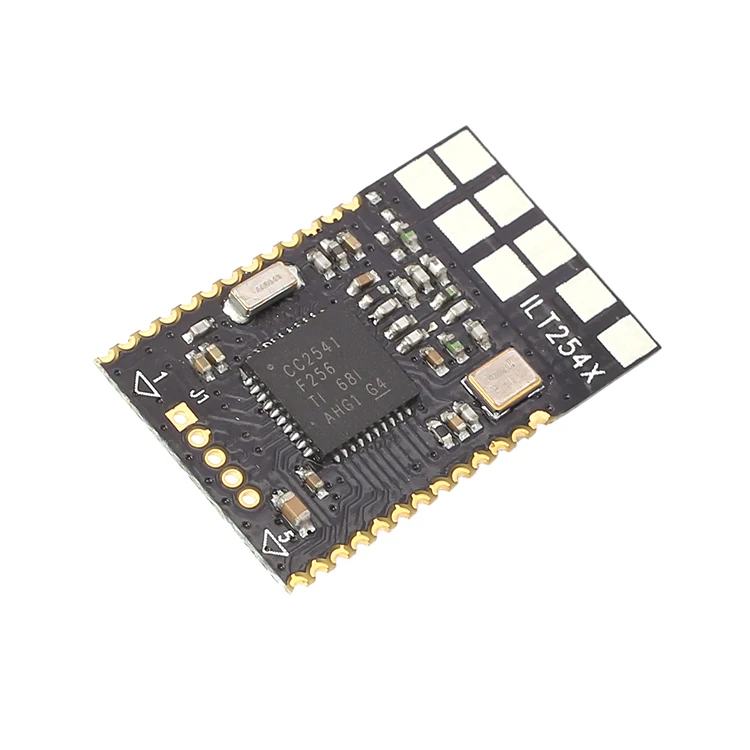

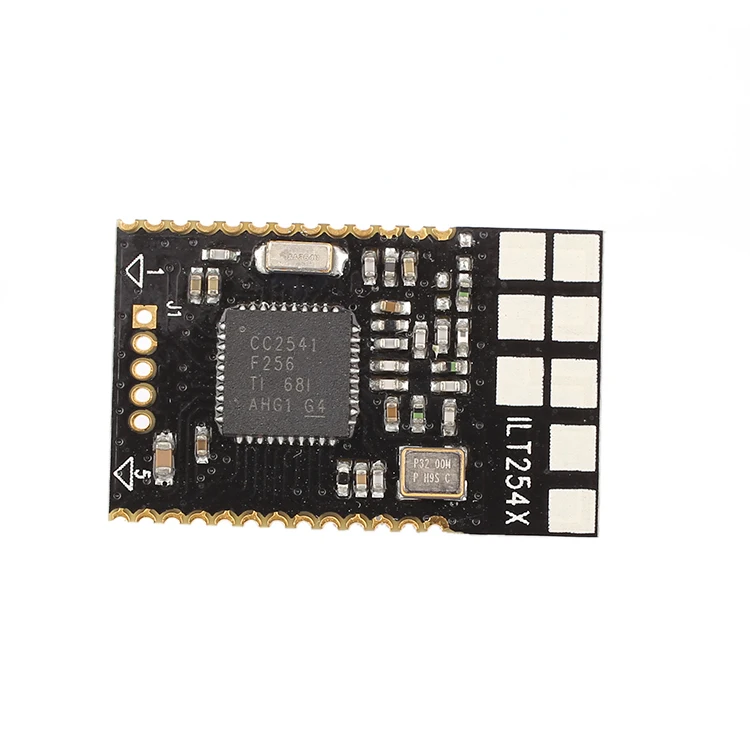

Pictures:

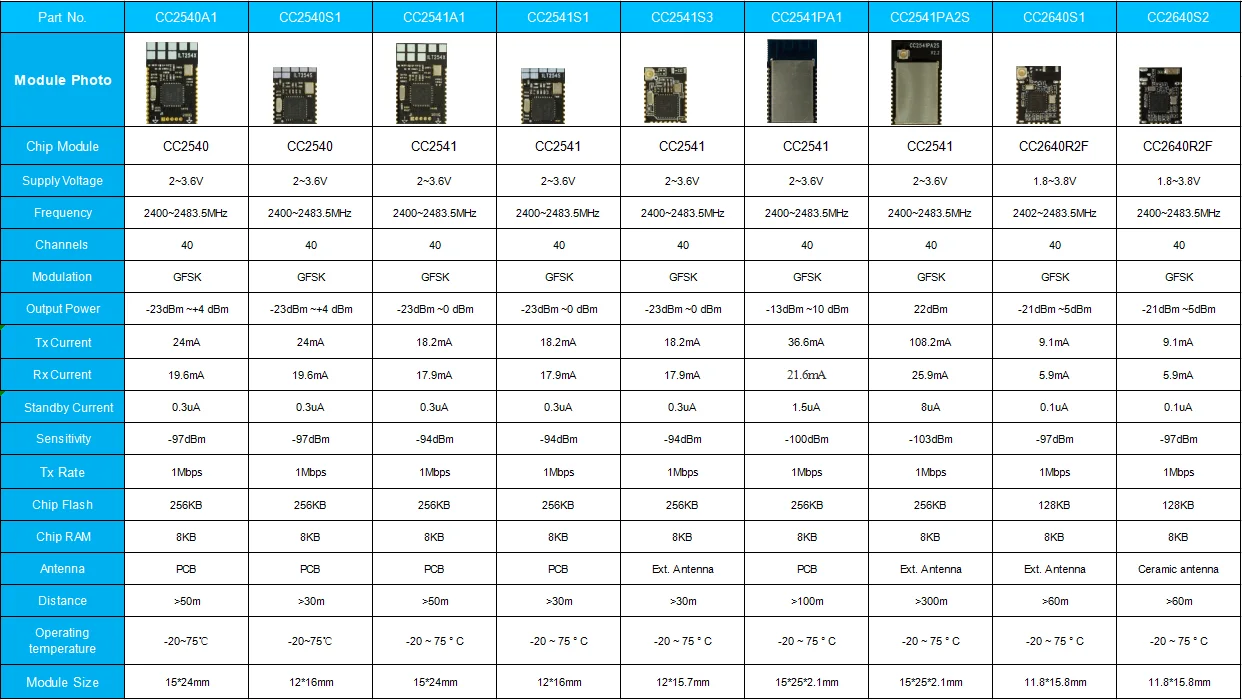

Electrical Characteristics:



Characteristics :

1. Easy and Rapidly to customize a casing in very low cost;
2. UUID, Major, Minor and other parameters can be changed by customer;
3. iBeacon with bar code and easy for recognize;
4. Based on TI's CC2541 chip, BLE5.0 low energy module;
5. Support for IOS7.0,Android 4.3 or above;
6. Effected range:30M;
7. The battery lifespan have over 1 year.



Application fields:

--Indoor navigation
--mobile payment
--in-store promotions specialist
--flow analysis

--Broadcasting Advertisement



Packing detail:

Antistatic bag, Antistatic sponge. Corrugated case

Delivery Time:

1-2 days after comfirm an order
