Product Overview

Description

MDT-22 and MDT-30 Demolition Tools/sullair/demolition hammer

Tired of poorly designed handles breaking and your handle-to-barrel connection coming loose? Our two-bolt backhead design eliminates this problem and offers greater operator comfort.

Bushings provide versatile hose connections and protect the handle inlet threads. Two air inlet bushings are furnished: 3/8" NPT and 7/8"-24, internal thread



FLOW

Cubic Feet Per Minute

37.1 cfm

m³/min



FLOW

Cubic Feet Per Minute

33.4 cfm

m³/min



INFORMATION:

• Weight 33 lbs.
• Length 24 1/2".
• Shipping Weight 35 3/5 lbs.
• Bore & Stroke 1 2/5" x 7 2/5".
• Impact Rate 1000 blows/min.
• Air Consumption 37.1 cfm (1.1 m3/min, 18 l/s).
• Air Inlet Diameter 3/8" NPT or 7/8-24.
• Shank 11X Jumbo.
• Retainer Screw-on
•
• Net Weight 24.7 lbs.
• Length 20"
• Shipping Weight 26 lbs.
• Bore & Stroke 1 1/2" x 4 1/2"
• Impact Rate 1450 blows/min.
• Air Consumption 33.4 cfm (0.9 m3/min, 16 l/s)
• Air Inlet Diameter 3/8" NPT or 7/8-24
• Shank 7/8" HX x 3 1/4"
• Retainer Latch



FEATURES:

• Two Bolt Backhead
• D-Handle
• Minimal Lubrication Required
• Smoother Operation
• Stroke Length Piston Sizing for Improved Power/Weight Ratio
• Screw-on Retainer
• Two Air Inlet Bushings
• Rotatable Exhaust Deflector
• Limited Warranty



TECHNICAL SPECIFICATIONS
Demolition Tools









Sullair Rivet Busters/Cutting Off Large Rivet Heads/Heavy Duty Chipping and Concrete Breaking/MRB-8 MRB-11

Rivet Busters

The Power for Cutting Off Large Rivet Heads, Heavy Duty Chipping and Concrete Breaking

Applications Include:

• Bridge jobs

• Steel structure maintenance

• Railroad car repair

• Shipyards

• Petrochemical plants

• Demolition work

MRB-8 Rivet Buster/MRB-11

Sullair Rivet Busters possess the power for cutting off large rivet heads, heavy duty chipping, and concrete breaking. Our D-Handle design provides comfort and control to the operator in demolition applications while variable throttle control allows for variable speed control for maximum production.

Applications include bridge jobs, steel structure maintenance, railroad car repair, shipyards, petrochemical plants and demolition work.

Inline Lubrication is required.

Products and Features may vary, please contact your local distributor for more information about what is available in your region.



FLOW

Cubic Feet Per Minute

44 cfm

m³/min



INFORMATION:

• Net Weight: 30 lbs.
• Length: 22 1/2"
• Shipping Weight: 35 lbs.
• Bore & Stroke: 1 3/16" x 8"
• Impact Rate: 1140 blows/min.
• Air Consumption: 44 cfm (1.2 m3/min, 21 l/s)
• Air Inlet Diameter: 1/2" NPT
• Chuck Size: 11X Jumbo

FEATURES:

• D-Handle with Inside Trigger
• Variable Throttle Control
• Muffler and Screened Inlet Bushing
• Interchangeable Parts Provide Flexibility
• Simplified Control Valve
• 90-day Parts Warranty

OPTIONS:

• Line oilers for lubrication

Rivet Buster

·        Cuts off large rivet heads, breaks concrete, & handles heavy duty chipping

·        Designed for shipyard, bridge work, railroads, demolition, & steel structure maintenance

D-Handle With Inside Trigger

·        Design provides comfort & control during demolition applications

Variable Throttle Control

·        Variable speed control delivers maximum production

·        1-3/16 x 8 bore & stroke; 1140 blows-per-minute gets tough jobs done

Muffler & Screened Inlet Bushing

·        Quieter operation; filters contaminating particles out of the inlet

Interchangeable Parts

·        Interchangeable parts (except cylinder) reduce inventory & increase parts versatility

Simplified Control Valve

·        Smoother operation in dirty conditions thanks to precisely engineered tolerances; requires inline lubrication

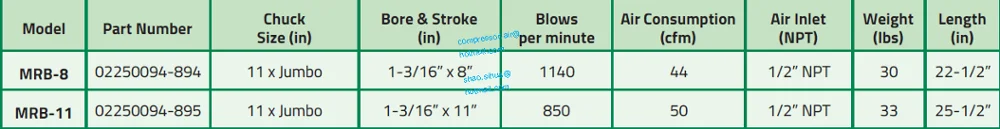

TECHNICAL SPECIFICATIONS
Rivet Busters

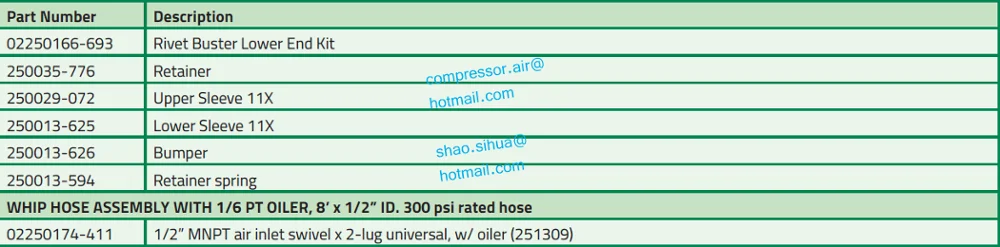

Rivet Busters – Retainers and Accessories







Pavement Breakers

Sullair pavement breaker/paving air tool/pneumatic jack hammer/MPB-90A MPB-60A MPB-35C MPB-30A MPB-90AS MPB-60AS

Sullair MPB-90A Compared to a Conventional Thor Type Breaker

Our direct-impact, non-corrosive automatic valve design with its one-piece housing dramatically reduces air consumption. You can operate multiple tools from a single compressor.



Features and products may vary, please contact us for more information on tools available in your region.



FLOW

Cubic Feet Per Minute

49 cfm

m³/min

INFORMATION:

• Weight 39 lbs.
• Length 25 1/2"
• Bore & Stroke 1 3/4" x 5 5/16"
• Impact Rate 1200 blows/min.
• Air Consumption 49 cfm (1.4 m3/min, 23 l/s)
• Air Inlet Diameter 3/8" NPT
• Shipping Weight 43 lbs.
• Chuck Size 1" HX x 4 1/4"

FEATURES:

• High-Wear Parts Reduced
• No Tappet System
• One Piece, Non-Protrusive Housing
• Minimal Lubrication Required
• Direct Impact Piston
• Parts Interchangeability
• Quieter
• Smoother Operation
• Improved Latch Design
• Less Air Consumption
• Two-year Limited Warranty

TECHNICAL SPECIFICATIONS

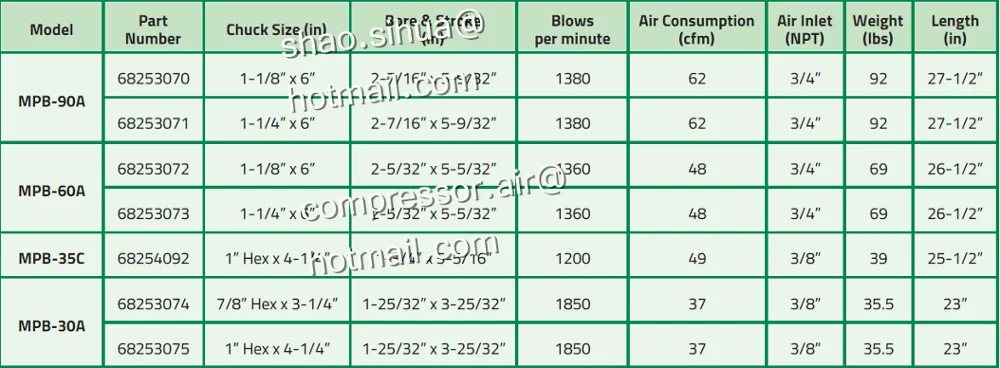

Standard T-handle Pavement Breaker

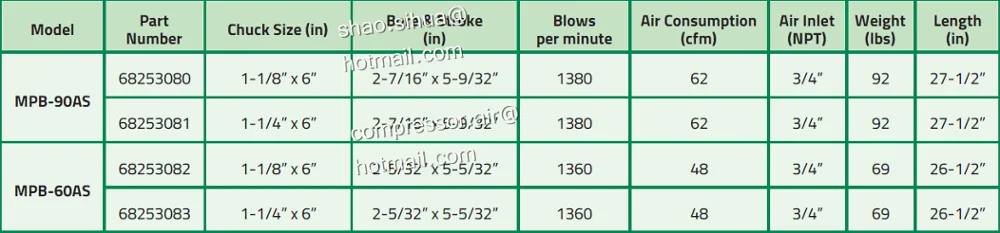

Super-Silenced, Anti-Freeze T-handle Pavement Breaker

Sullair/Chipping Hammer/Screw-0n Ball Retainer/standard oval return lock spring retainer/MCH-2 MCH-3 MCH-4 MCH-3S MCH-4S

Sullair Pneumatic Chipping Hammer MCH-3 S .680 Round w/ Screw-On Ball Retaine



Chipping Hammers Built to Last

MCH-4S Chipping Hammer

ullair also offers a screw-on ball retainer as an alternative to our spring retainer.

Our four-bolt backhead design reduces handle breakage and eliminates the common problem of a threaded handle-to-barrel connection coming loose, damaging the handle and internal parts. The strong “D” configuration provides a comfortable, sure grip even for a gloved hand.



FLOW

Cubic Feet Per Minute

30 cfm

m³/min

INFORMATION:

• Weight 20 3/4 lbs.
• Length 18"
• Bore & Stroke 1 1/8" x 4 1/4"
• Impact Rate 1800 blows/min.
• Air Consumption 30 cfm (0.8 m3/min, 14 l/s)
• Air Inlet Diameter 3/8" NPT or 7/8-24
• Shipping Weight 22 1/8 lbs.
• Chuck Size .680 round, .580 hex

FEATURES:

• Four Bolt Backhead
• D-Handle
• Minimal Lubrication Required
• Smoother Operation
• Choice of Bushings
• Universal Ball Type Screw-On Retainer
• Rotatable Exhaust Deflector
• Two Air Inlet Bushings
• Limited Parts Warranty

OPTIONS:

• 8' Whip Hoses with Fittings



TECHNICAL SPECIFICATIONS

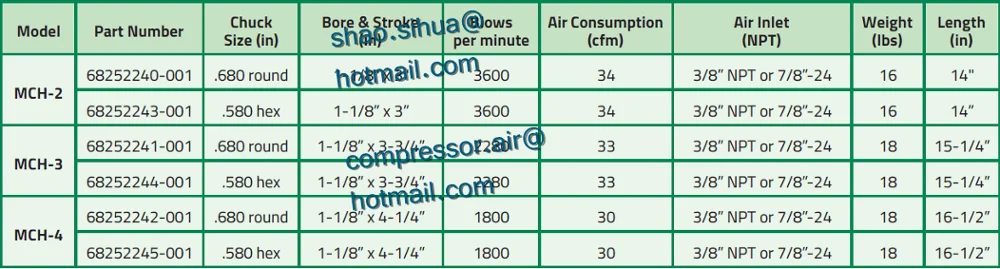

Chipping Hammer – Standard Oval Return Lock Spring Retainer

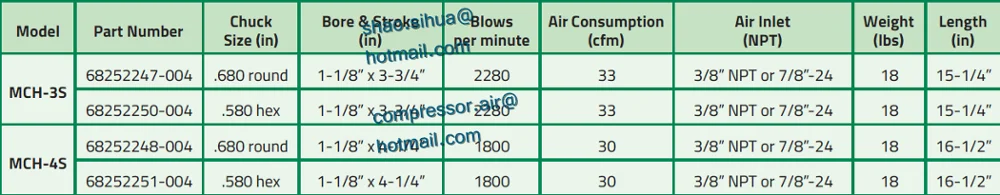

Chipping Hammer – Screw-0n Ball Retainer (No Springs Required)







Drills Designed for Performance
and Operator Protection

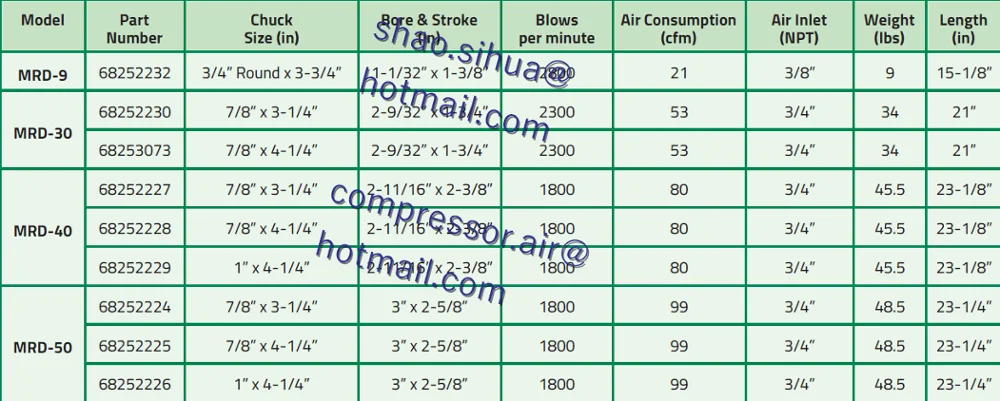

Rock Drill/sullair/drilling hammer/MRD-9 MRD-30 MRD-40 MRD-50 MRD-60



MRD-60 Rock Drill

Sullair MRD-60 provides 200 rpm rotation and a heavy down force of 60 lbs for ease of penetration in hard rock. The throttle lever controls tool functions from off to two drilling speeds, and the exhaust valve controls blowing velocity. An 09-weight inline oiler lubricates the internal rifling and ratchet assembly.

Constant feed inline oilers with 10-weight oil are recommended for this model

Products and Features may vary, please contact your local distributor for more information about what is available in your region.



FLOW

Cubic Feet Per Minute

91 cfm

m³/min

INFORMATION:

• Weight: 60 lbs.
• Length: 22"
• Bore & Stroke: 2 5/8" x 2 3/5"
• Impact Rate: 1800 blows/min.
• Air Consumption: 91 cfm (2.6 m3/min, 43 l/s)
• Air Inlet Diameter: 3/4" NPT
• Shipping Weight: 65 lbs.
• Chuck Size: 7/8" HX x 4 1/4", 1" HX x 4 1/4"

FEATURES:

• Rubber Handle Grips
• Controls for Drilling and Blowing
• Continuous Hole Cleaning
• Replaceable Chuck Bushing, Piston Cushion Bushing, and Rifle Nut
• Internal Oiler
• 90-day Parts Warranty



OPTIONS:

• Line Oilers



Single-throttle lever controls all tool functions: automatic-off, blow only, and progressive drill speeds.

We eliminated many high wear parts. To you this means less loss of power due to wear, less downtime to replace worn parts, and lower overall maintenance costs.

With only two parts moving during operation, a non-corrosive automatic valve, less radial piston movement and high-tech alloys, our drills do not require special rock drill oil. Under normal operating conditions, oil carry-over from the compressor combined with moisture in the air will provide sufficient lubrication.



Products and Features may vary, please contact your local distributor for more information about what is available in your region.

FLOW

Cubic Feet Per Minute

99 cfm

m³/min



INFORMATION:

• Weight 48 1/2 lbs.
• Length 23 1/4"
• Bore & Stroke 3" x 2 5/8"
• Impact Rate 1800 blows/min.
• Air Consumption 99 cfm (2.8 m3/min, 47 l/s)
• Air Inlet Diameter 3/4" NPT
• Shipping Weight 55 lbs.
• Chuck Size 7/8" HX x 3 1/4", 7/8" HX x 4 1/4", 1" HX x 4 1/4"

FEATURES:

• Dead Man Safety Handle
• One Control for Drilling and Blowing
• Variable Throttle Control
• Continuous Hole Cleaning
• Direct Rotation of the Piston
• Less Maintenance
• Minimal Lubrication Required
• Oil Reservoir
• One-Year Parts Warranty

TECHNICAL SPECIFICATIONS
Drilling Hammers
